8.4" LCD Panel PC
Model PNC08-01


Waterproof Panel PC with 8.4" TFT LCD with Low Power Consumption,
Optional Touch screen and Fanless function, Audio and WiFi




  Special Feature

  • Panel PC provides Water Proof / Touch Screen ( Optional ) / Fanless Function
  • It can be easy mounted with Wall / Information Mech. / Ticket Mech. ...ect
  • Open-frame mechanical design for customerized request
  • Support VESA75 / VESA100 Mounting Spec.
  • Panel frame Water Proof : IPX3 Level

  •   Feature

    Data Sheet

    Specifications
      CPU VIA V4 bus processor Eden / ULV or C7 Nano-BGA2 400 pin L1 128 KB, L2 128 KB
      Front Side Bus 400 / 533 MHz
      Chipset VIA CN700 + VT8237R Plus
      BIOS Award BIOS
      Memory 1 x DDRII SDRAM DIMM slot (max. 1GB)
    Support mixed 64 / 128 / 256 / 512 Mb
    SDRAM in x8 or x16 configurations
      Graphics Integrated with VIA CN700. Shared system memory up to 64 MB
      LVDS Data format of 24 / 48 bits
      HDD 1 x 2.5" IDE HDD bay
      IDE Ultra DMA-133 / 100 / 66. 1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm.
    CF Card Type II socket for ATA interface
      SATA 1 x SATA port
      Audio AC-Link for Audio CODEC, AC’97 2.1. Support Line-out / Mic-in / Line-in
      LAN 1 x Realtek 10 / 100 Mbps ( optional Realtek / Intel GbE )
    Intel 82541PI or Realtek RLT8100C / RLT8110SC LAN Chip

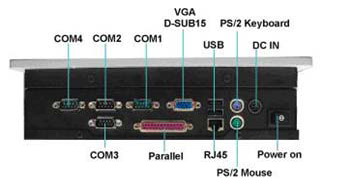

      IO Function 5 x RS232 + 1 x RS232 / 422 / 485
    IrDA 1.0 / ASKIR protocol
    PS/2 keyboard & mouse
      USB 7 x USB 2.0 ( 3 external + 4 internal )
      Touch Screen USB interface Touch screen controller
    Support 4- , 5- , 8- wire Analog Resistive Touch screen
    USB 1.1 full speed sample rate maximum of 300 point / sec
      TV-OUT (option) Support all NTSC & PAL formats. Resolution : 1024 x 768
      DIO & WDT Hardware digital Input & Output, 8 x DI / 8 x DO
    Hardware Watch Dog Timer, 0~255 sec programmable
      Expansion interface 1 x Mini PCI socket
      Power On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system
      Operating Temperature 0 ~ 60 °C
      Relative humidity 5~95% @ 60 °C, non-condensing
      Dimension
    200 x 150 mm


    Ordering Information
    Part Number  Description
    PNC08-01-A  1 Realtek LAN. VIA V4 Eden ULV 1 GHz CPU
    PNC08-01-B  1 Realtek LAN. C7 Nano-BGA2 400 pin L1 128KB, L2 128KB
