Introduction |

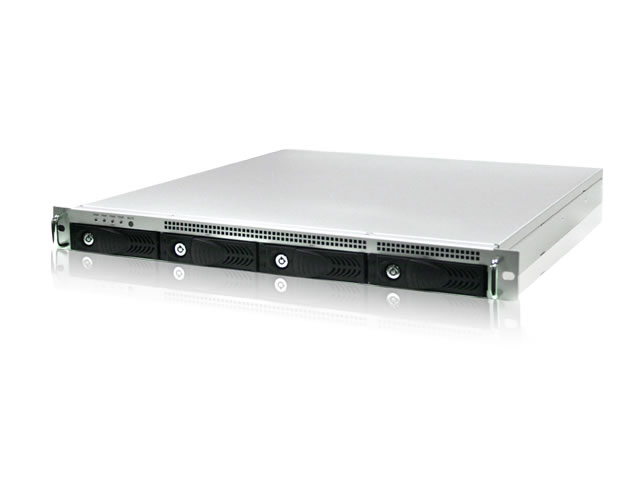

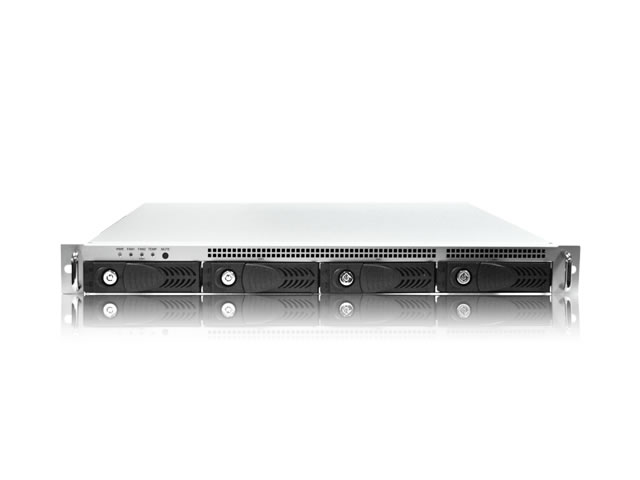

SA1003 is a 4 Bay Hot-Swap external SATA Enclosure with built-in I2C for HDD fail signal and particularly supports Areca's external RAID HBA of ARC-1110ML, ARC-1120ML, ARC-1210ML and ARC-1220ML. It provides users a low cost and high performance external data backup solution. The convenience of Multilane SATA interface brings users an easy installation and a fast data transmission experience.
|
Features |
- Supports SATA (3Gbps)
- Aluminum housing, anodized surface, benefits for cooling and durability

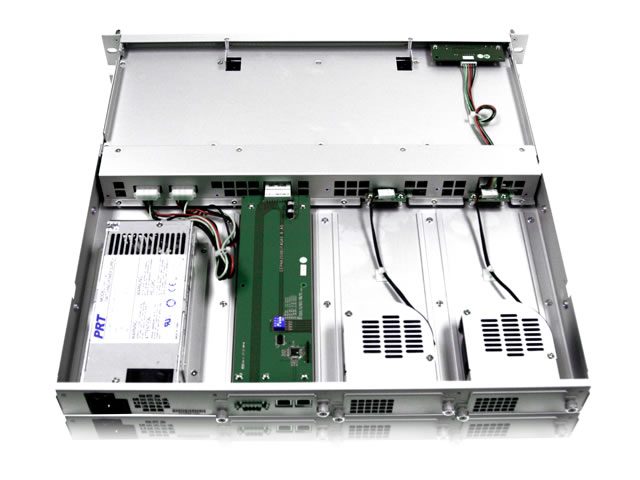

- Backplane design for four removable SATA drive trays

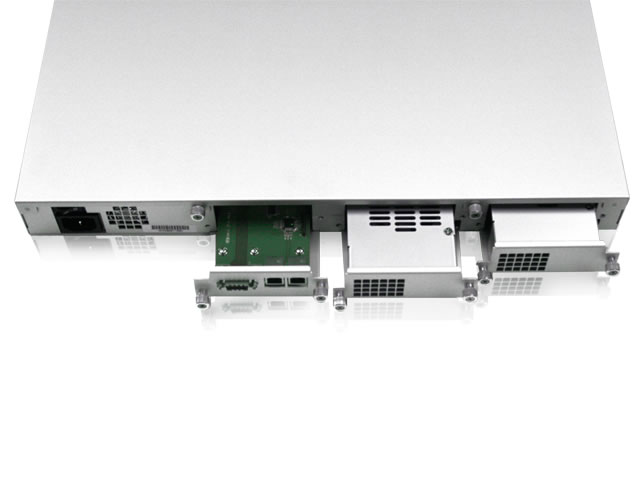

- Two quiet hotswap blowers for self-contained ventilation
- Individual key lock of each HDD tray for physical security
- LED indicators for power and activity on each HDD tray
- Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm
|
Package Content |
- Enclosure x 1
- HDD Tray x 4
- Power Cord x 1
- Manual CD-ROMx 1
- Multilance cablex 1
- RS232-to-TJ11 cable x 1
- RJ11-to-RJ11 x 1
- Hard Disk Drive mounting screw x 16
- Key for HDD tray x 2
|
|
Technical Specification |
Host
Interface |
SATA II (one MultilaneX4 connector) |
HDD
Interface |
SATA I/II |
Data Transfer Rate |
SATA 1.5/3 Gbps |
Hot-Swap |
Both on Host and Device |
LED Display for Environmental Monitoring |
POWER on LED - white
FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
(We strongly recommend customers to replace a new fan ASAP after the fan failed) |
Tray LED Display |
Green - Power on indicator
Blue - Busy (HDD Accessing) indicator |
Dimension |
(L)45.3cm(W)48.2cm(H)4.4cm |
Material |
Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face |
Power Supply |
180W (High reliability of IPC form-factor)
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC |
System requirement |
Areca external SATA RAID HBA:
PCI-X ARC-1110ML, ARC-1120ML
PCI-Express ARC-1210ML, ARC-1220ML |
Cooling |
Two 75 x 75 x 28 mm Blowers |
O.S. support |
OS Independant |
