                  SATA JBOD :  Part # SS1004 4 Bay MiniSAS Rackmount JBOD Enclosure


     **Click on pictures to enlarge



  PCI-E Bus Connection

     SS1004 works in Windows XP, Windows Vista, Windows Server, Mac OS X, and Linux systems that supported by HBA RAID card manufacture. Use your favorite video software such as Apple Final Cut Pro, Adobe Premiere Pro, Adobe After Effects, Adobe Photoshop, and many more. Instantly compatible with 1080 HD, 720 HD, HDV, SD and VFX application.
  Introduction

    SA1004 MiniSAS interface provides cost effective solutions without compromising performance. SS1004 MiniSAS system can be use in editing with Apple Final Cut Pro® and Adobe® Premiere® Pro CS4 video editing software, compatible with video capture cards from AJA, Blackmagic Design, Bluefish444 and Matrox. When in use with the PCI-E RAID controller, SS1004 MiniSAS can easily be configured as a RAID 0, 1, 5, 6,10 & JBOD, capaple of providing performance and fault-tolerance necessary to protect your video data.

  Features

  • Up to 8TB of Disk Capacity & Higher

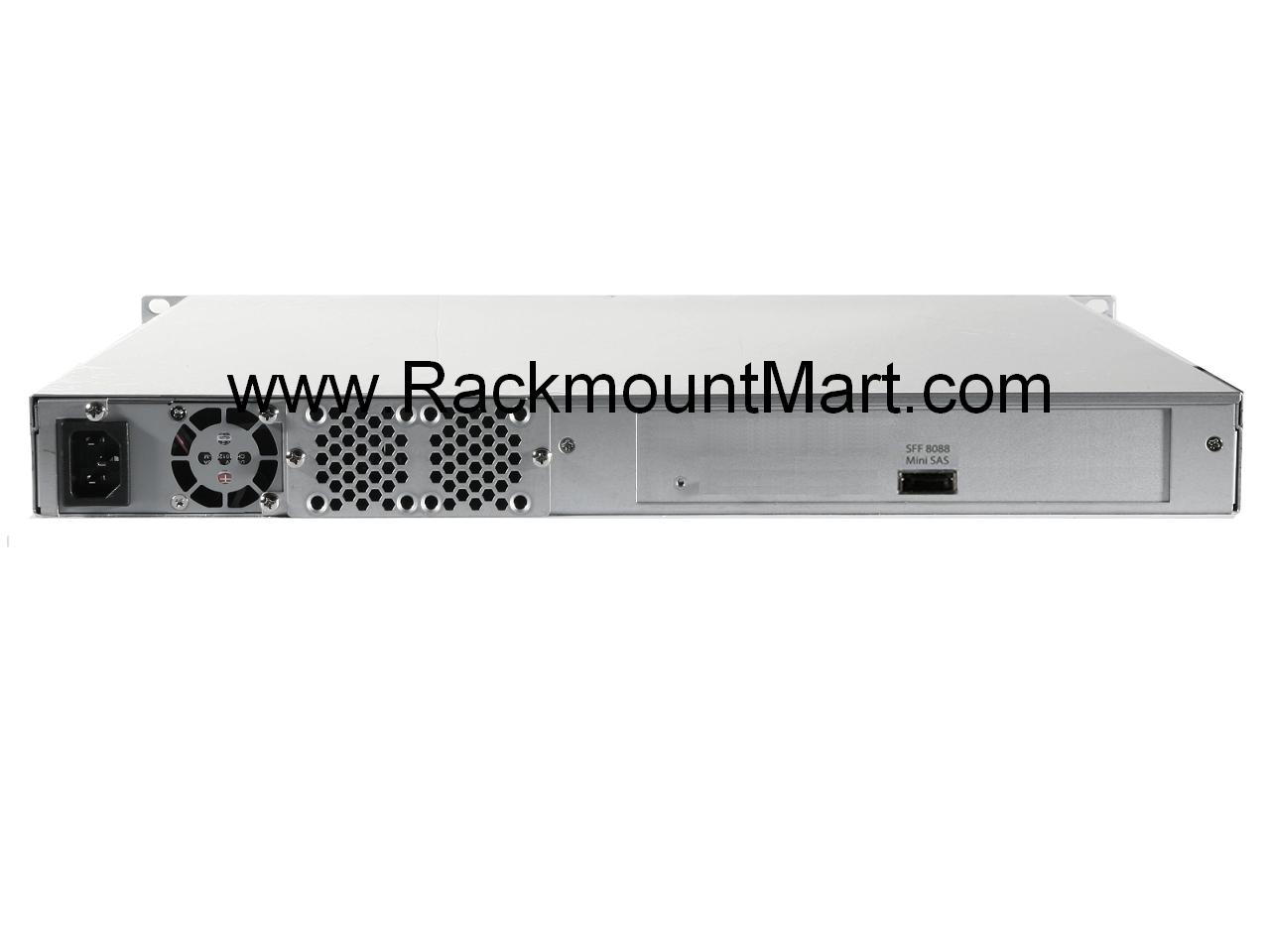

  • One port MiniSAS 8088 connector
  • Four hot-swappable disk module, 3.5" SAS/SATA II drive
  • Low Noise cooling fan ensures data integrity
  • Universal Power Supply: 120-240VAC auto switching
  • Unique design, aluminum enclosure finished
  • Mac OS X , Windows® & Linux compatible
  Compatible with Popular Video Software
  & Operating System

     The SA1004in Windows XP, Windows Vista, Windows Server, Mac OS X, and Linux systems that supported by HBA RAID card manufacture. Use your favorite video software such as Apple Final Cut Pro, Adobe Premiere Pro, Adobe After Effects, Adobe Photoshop, and many more. Instantly compatible with 1080 HD, 720 HD, HDV, SD and VFX application.
Currently only compatible with 3 Gb/s SATA & SAS Drives.

  Video Capture & Playback Supported
  • 8 bit Uncompressed HD 1080i
  • 10 bit Uncompressed SD
  • 8 bit Uncompressed SD
  • DVCPRO HD, HDV, DV & Prores
  Qualified RAID Controller Cards
  MAC
  • Areca - 1221X PCI-E (SATA)
  • Areca - 1680X PCI-E (SAS/SATA)
  • ATTO - R380 PCI-E (SATA)
  • HIGHPOINT - 2322 PCI-E (SATA)
  • HIGHPOINT - 4322 PCI-E (SAS/SATA)
 PC
  • Areca - 1221X PCI-E (SATA)
  • Areca - 1680X PCI-E (SAS/SATA)
  • ATTO - R380 PCI-E (SATA)
  • HIGHPOINT - 4322 PCI-E (SAS/SATA)
Technical Specification
  HDD Interface   SATA I/II & SAS
  Data Transfer Rate   SATA 1.5/3 Gbps & SAS
  Host Interface   1 X MiniSAS 8088
  Power Supply   Universal Auto-Switching
  Cooling   Swap Fan Module
  O.S. support   Mac OS X, Windows, Linux
