SERVER RACK
CABINET - CR1016 / NR6042
|
 |
CR1016 / NR6042 19"
Server Cabinet
42U Cabinet, 24"(w) x 40"(d) x 80"(h) |
|
FEATURES
: |
-
Guaranteed Compatibility : Fits
all IBM, HP, Dell and Sun servers.
-
Good ventilation : Rear
door is vented and Roof top is perforated. ( Front
Door installed with toughened safety glass )
- Cable Management
: Top Roof features Four 5.5" x 2" cutouts
for cable entry
- Security / Restricting
access : Lockable front
door, rear door, side panels and top cover.
- Safety : Heavy duty
framework holds 600Kg / 1300lbs load rating -
Unit Marking at Front and Rear
- Rolls
through a 7 foot Doorway - Easy Installation
- Caster base and Leveling feet ,
cage nuts and mounting screws are included
|
|
Guaranteed Compatibility
|
Guaranteed Compatibility
with all IBM, HP, DELL and SUN servers.
| Manufacturer |
Series |
| AppleTM |
XserveTM |
| DELLTM |
PowerEdgeTM |
| DELLTM |
PowerVaultTM |
| HPTM |
ProLiantTM |
| IBMTM |
xSeriesTM |
| SUNTM |
Sun Fire TM |
| SUNTM |
Sun
Fire Blade TM |
|
| |
|
SUN TM
Sun Fire TM Server
(V120 shown) |
IBM TM
xSeries TM
(x305 shown) |
|
|
|
DELL TM
PowerEdge TM
(2600 shown) |
HP TM
ProLiant TM Server
(DL380 G3 shown) |
Back to top
 |
Good ventilation
|
|
The expanded steel design of all enclosure doors give 80%
perforated area that optimize air flow |
|
|
Fan Top |
Perforated Top |
|
|
|
| |

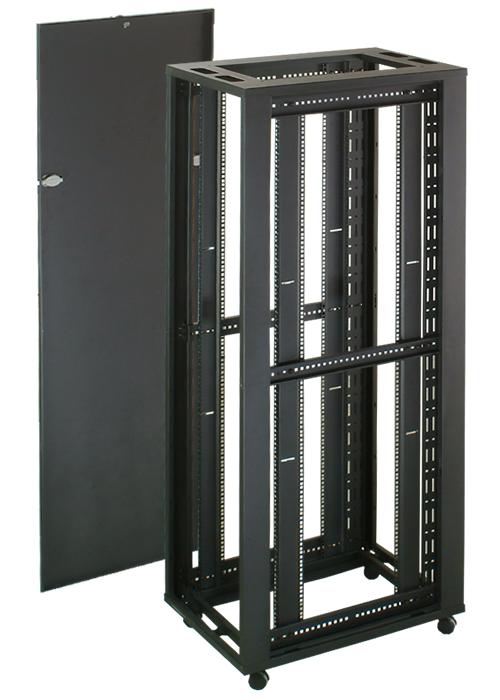

Plain Side Panel - Quick release
w/ slim latches
|
Vented Steel
Door -
Door perfectly fits into the
front or rear, completed with hexagon ventilated infill, area,
rackets, fixings, door lock and keys |
 |
 |
 |
|

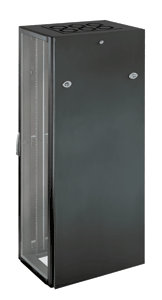

Glass Door -
Front door with toughened safety
glass, completed with brackets, fixings, door lock and
keys |

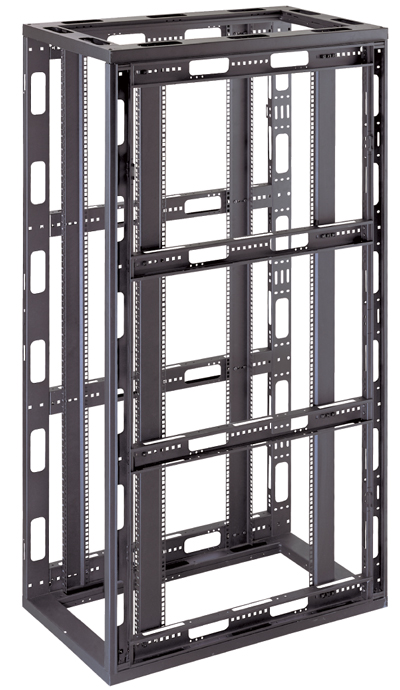

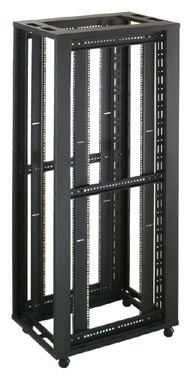

Frame |
|
| *****
Click on the above icons for
detailed views
|
|
Back to top
|
Cable Management
|
| Top Roof features Four 5.5" x 2" cutouts
for cable entry |
 |
|
|
|
Back to top
|
Safety / Security / Restricting Access
|
Safety : CR1016 / NR6042 provides high end structural
stability. It is tested through sequential loading
which ensures s a safe working environment. For ease of
installation and transportation, it has heavy duty rated
castors and is static load rated to 600 kgs.
Security /
Restricting Access : CR1016 / NR6042 includes a key lockable front
door, rear door, and side panels as well as top cover.
These locks can be keyed identically or with different
keys allowing you to manage security levels. |
|
|
|
|
*****
Click on the above icons for
detailed views |
Back to top
|
|
SPECIFICATION |
|
Color |
Black |
Internal width |
19 inches |
|
Product Height |
2020 mm /
80" |
External width |
24 inches |
|
Product Width |
600
mm / 24" |
Internal depth |
39 inches |
|
Product Length |
1075 mm/
42" |
External depth |
42 inches |
|
Internal Length |
1000 mm /
39" |
Shipping
dimensions |
84.5H x
26.5W x 38.5D inches |
|
Industry Standards |
EIA
RS310-C |
Shipping (Package)
Weight |
289lbs
[131.36 Kgs] |
|
Internal Rack
Height |
42U |
Color |
Flat
Black |
|
Weight Capacity |
1300lbs
[600Kgs] |
Key Lock |
Yes |
|
External height |
80 inches |
|
|
|
General Package Contents
|
- Black 42U Server Cabinet Rack
- Sets of keys : 1 for side
panels, 1 for front ,if applicable
- Bag of 50 cage nuts, 50
mounting screws
- Vented ceiling panel
- "L" Shaped Mounting Rails
- Casters Levelers
- Grounding Cables x 5
- Unit Marking at Front and Rear

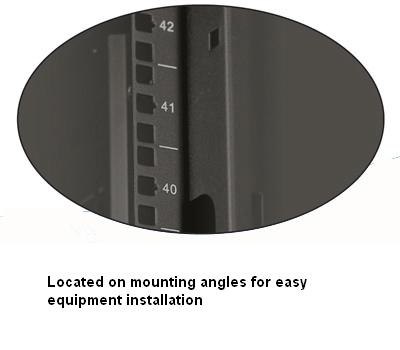

Mounting angles
|
Ordering
information :
| Part # |
Description |
CR1016 / NR6042
Price:$722 |
42U Rackmount Cabinet, 24"(w) x 40"(d) x
80"(h)
Basic Frame + Front Glass Door + Rear Steel Door + Side Panels + Castors & feet + M6 screw
pack |
CR1016-A / NR6042-A
Price:$469 |
42U Rackmount Cabinet, 24"(w) x 40"(d) x
80"(h)
Basic Frame + Castors & feet + M6 screw
pack |
CR1016-B / NR6042-B
Price:$609 |
42U Rackmount Cabinet, 24"(w) x 40"(d) x
80"(h)
Basic Frame + Front Glass Door + Rear Steel Door + Castors & feet + M6 screw
pack |
CR1016-C / NR6042-C
Price:$582 |
42U Rackmount Cabinet, 24"(w) x 40"(d) x
80"(h)
Basic Frame + Side Panels + Castors & feet + M6 screw
pack |
