19" Equipment Rack - CR1660
*** Note: CR1060-gd is an old part number and has been revised to CR1660-gd ***

                                       17U 19" WIDTH Equipment Rack with 1320lbs ( 600Kg ) loading weight






* Click on the above pictures for
a detailed View
17U 19" Server Cabinets

Inside Dimension :
Height = 33"
Depth  = 31"
Width  = 19"
Overall Dimension : 24" (w) x 34" (d) x 36" (h)
Mounting depth (post to post): 25.5"
Full Package Content

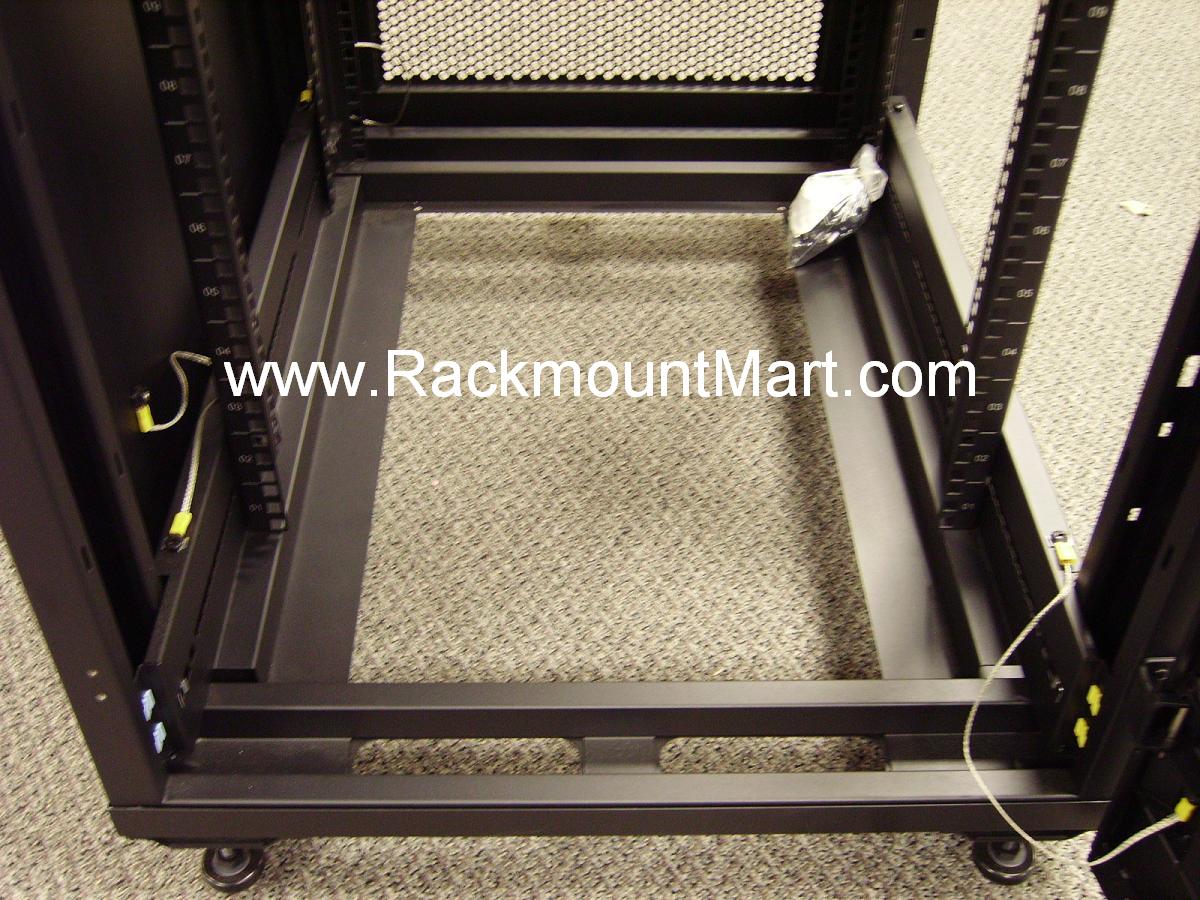

  • Basic Frame : End Frame + 4 x square cut vertical mounting railings + depth supporters + Mounting support
  • Front Door : Glass Door
  • Rear Door : Vented Steel Door

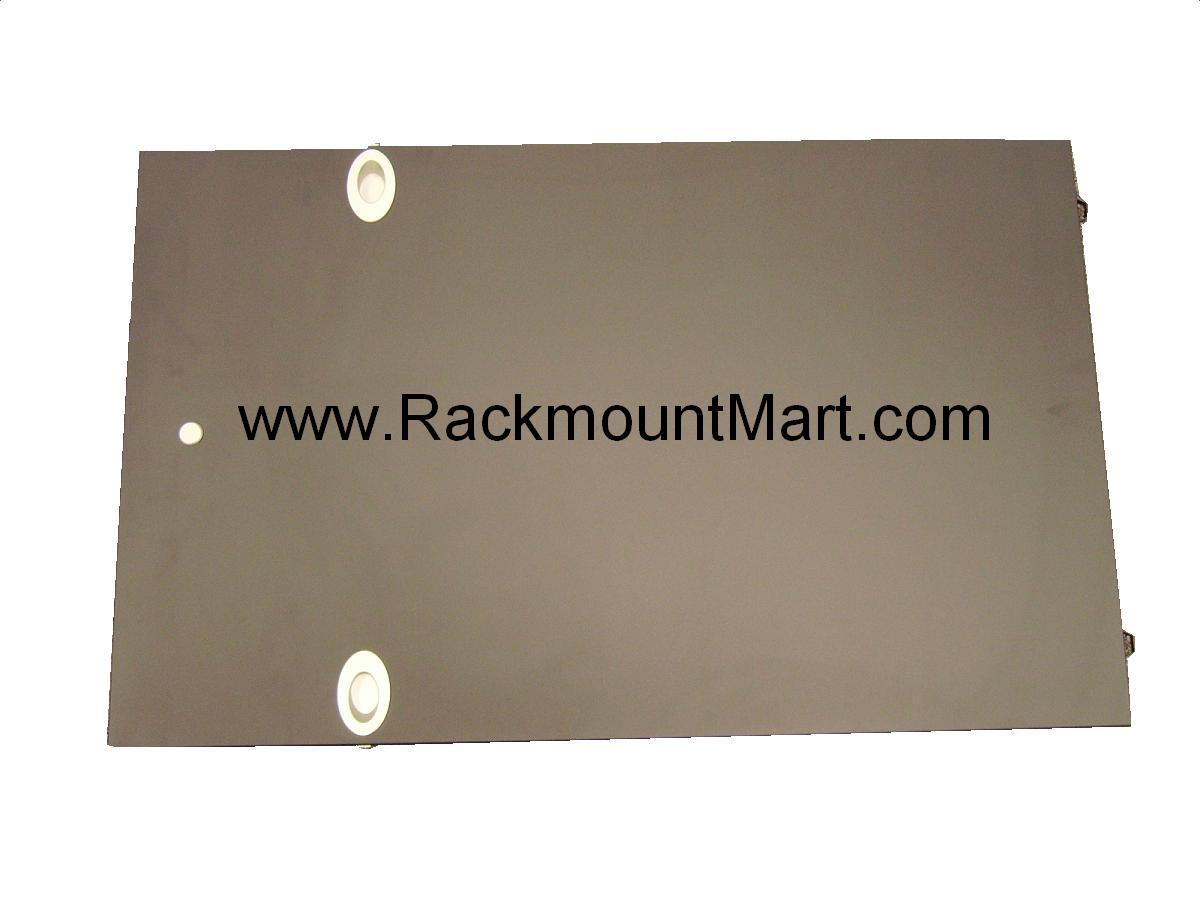

  • Side Panels : Plain Side Panels
  • Caster base (Castor base) , Leveling feet and M6 screw pack with 50 x M6 screws + 50 x washers + 50 x cage nuts for mounting are included
  • Fully assembled

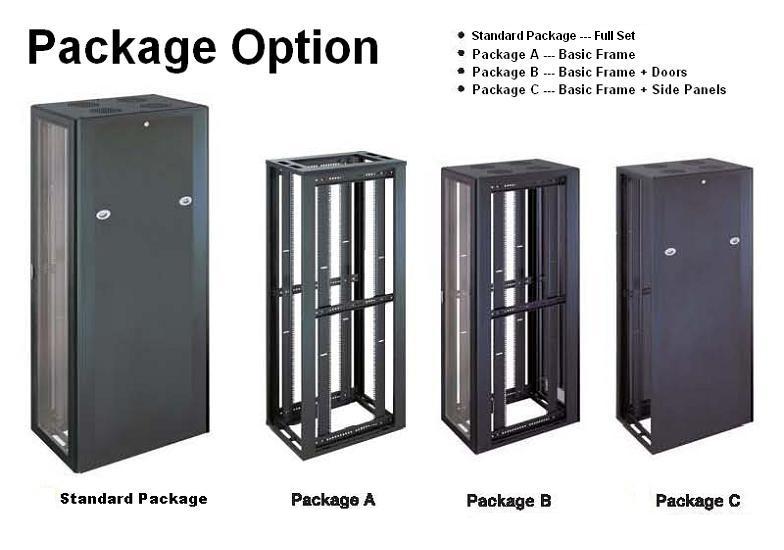

  • Optional Package A , B and C available
    •
Options
Features
  • Guaranteed Compatibility : Fits all IBM, HP, Dell and Sun servers.

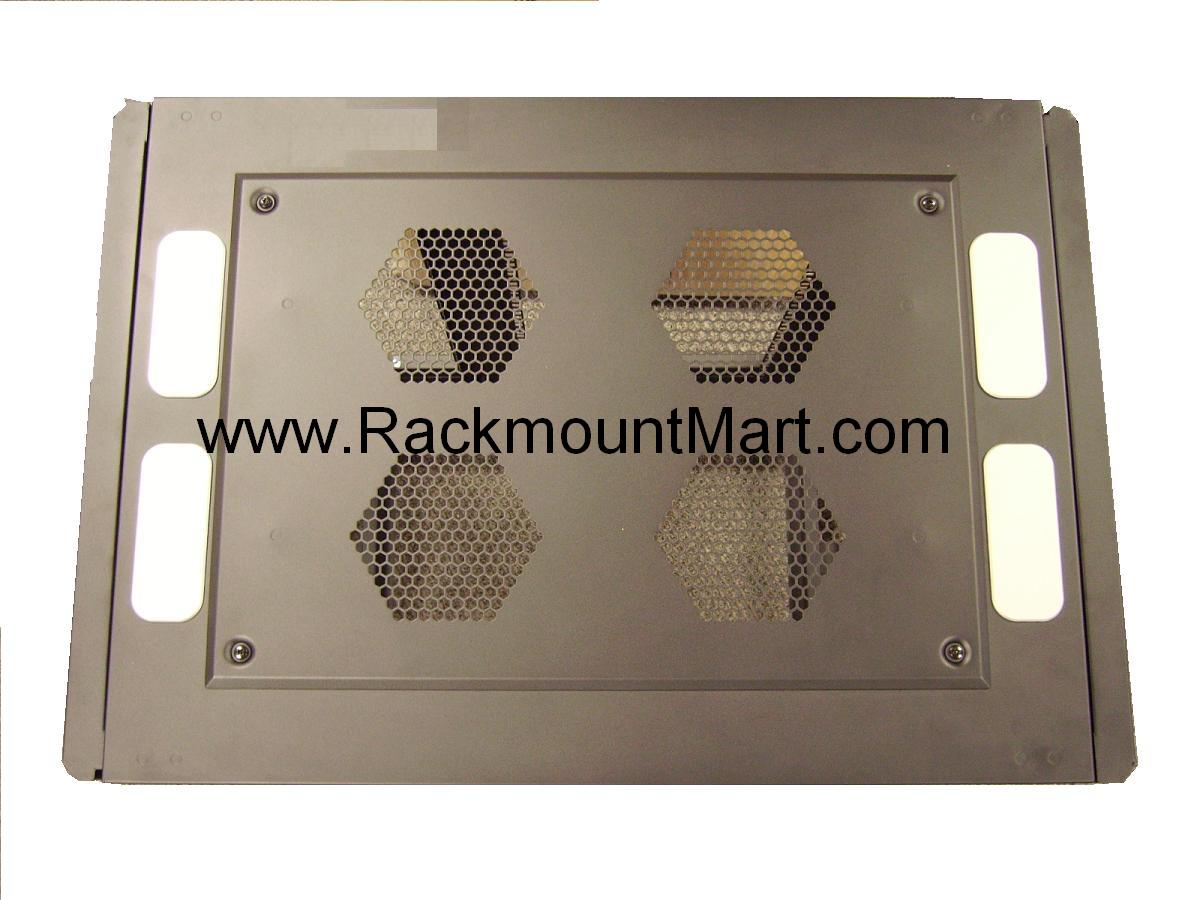

  • Good ventilation : Rear door is vented and Roof top is perforated. ( Front Door installed with toughened safety glass )
  • Cable Management : Top Roof features Four 5.5" x 2" cutouts for cable entry.
  • Security / Restricting access : Lockable front door, rear door, side panels and top cover.

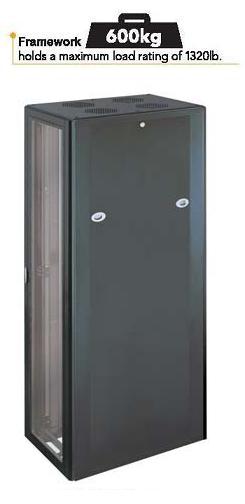

  • Safety : Heavy duty framework holds 1320lbs / 600Kg load rating.

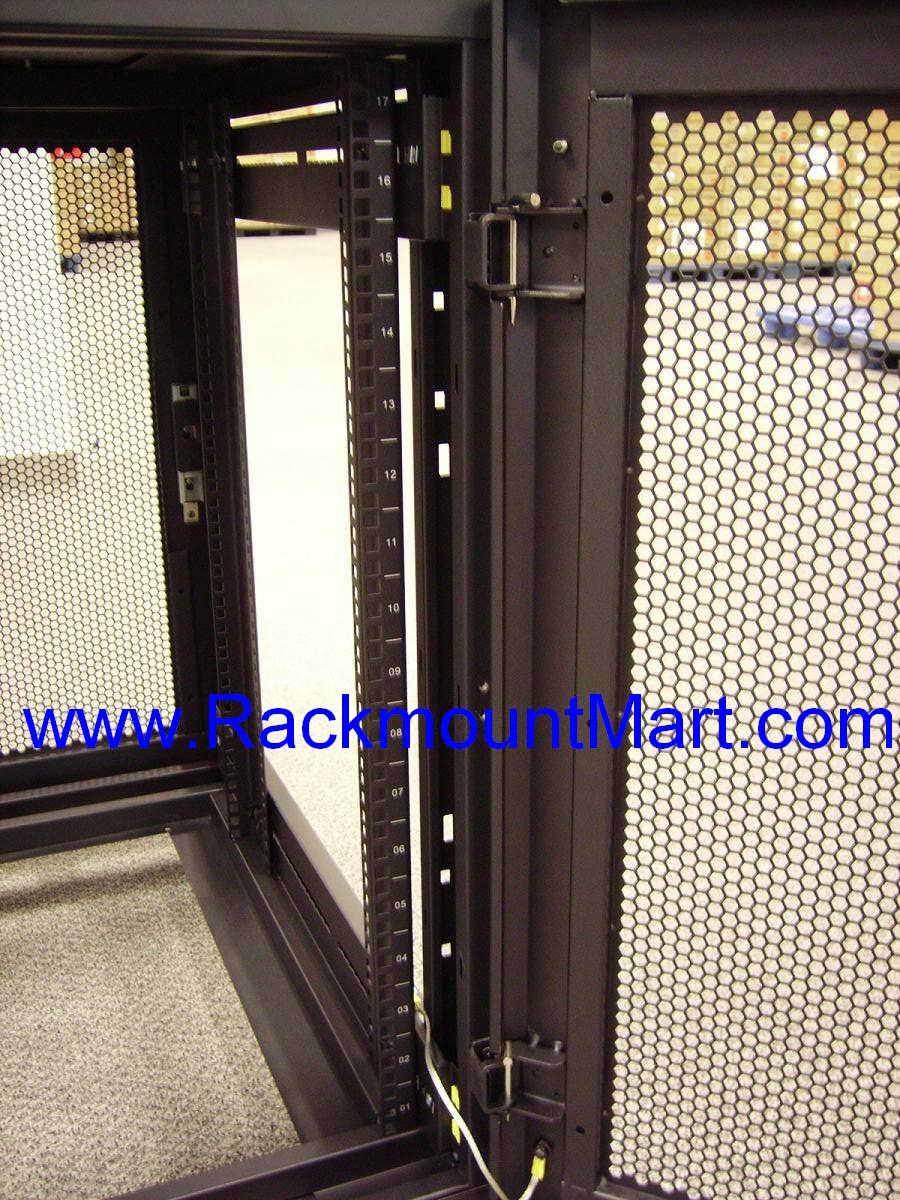

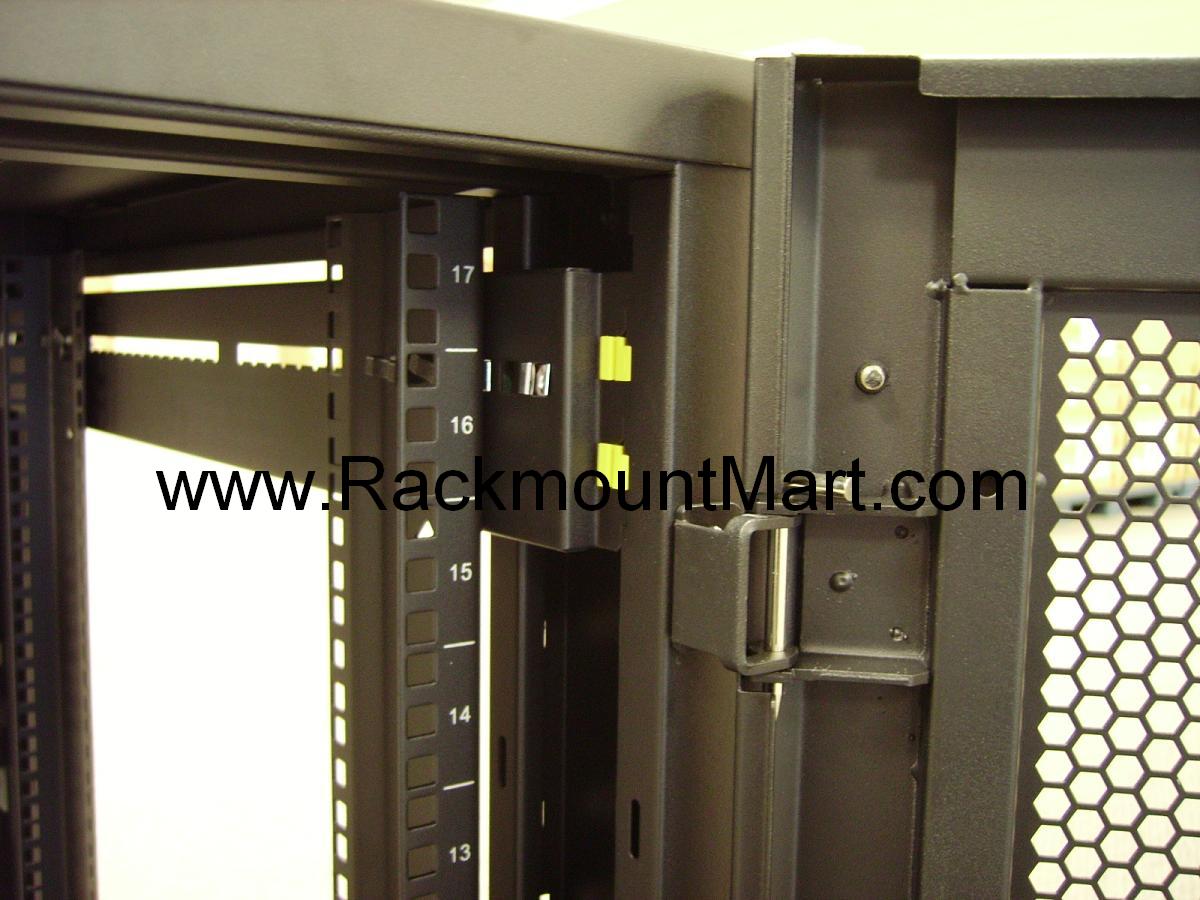

  • Unit Marking at Front and Rear.
  • Rolls through a 7 foot Doorway.
  • Easy Installation.
    •
Specification
  • Color: Black
  • Weight Capacity : 1320lbs ( 600Kgs )
  • Internal Dimension : 33" x 31" x 19"( HxDxW )
  • External Dimension : 36" x 34" x 24"( HxDxW )
  • Maximum front to rear depth (post to post depth ) : 25.5"
    •
Download Dimensional Drawing

More photos ( Click for enlarged views )


 Ordering Information

Part # Description
 CR1660-gd
(Old part number : CR1060-gd)
 Price : $488.7		 17U Rack mounting Cabinet, 24" (w) x 34" (d) x 36" (h)
Basic Frame + Front Glass Door + Rear Steel Door + Side Panels + Castors & Feet + M6 screw pack
 CR1660-gd-A
 Price : 403.7		 17U Rack mounting Cabinet, 24" (w) x 34" (d) x 36" (h)
Basic Frame + Castors & Feet + M6 screw pack

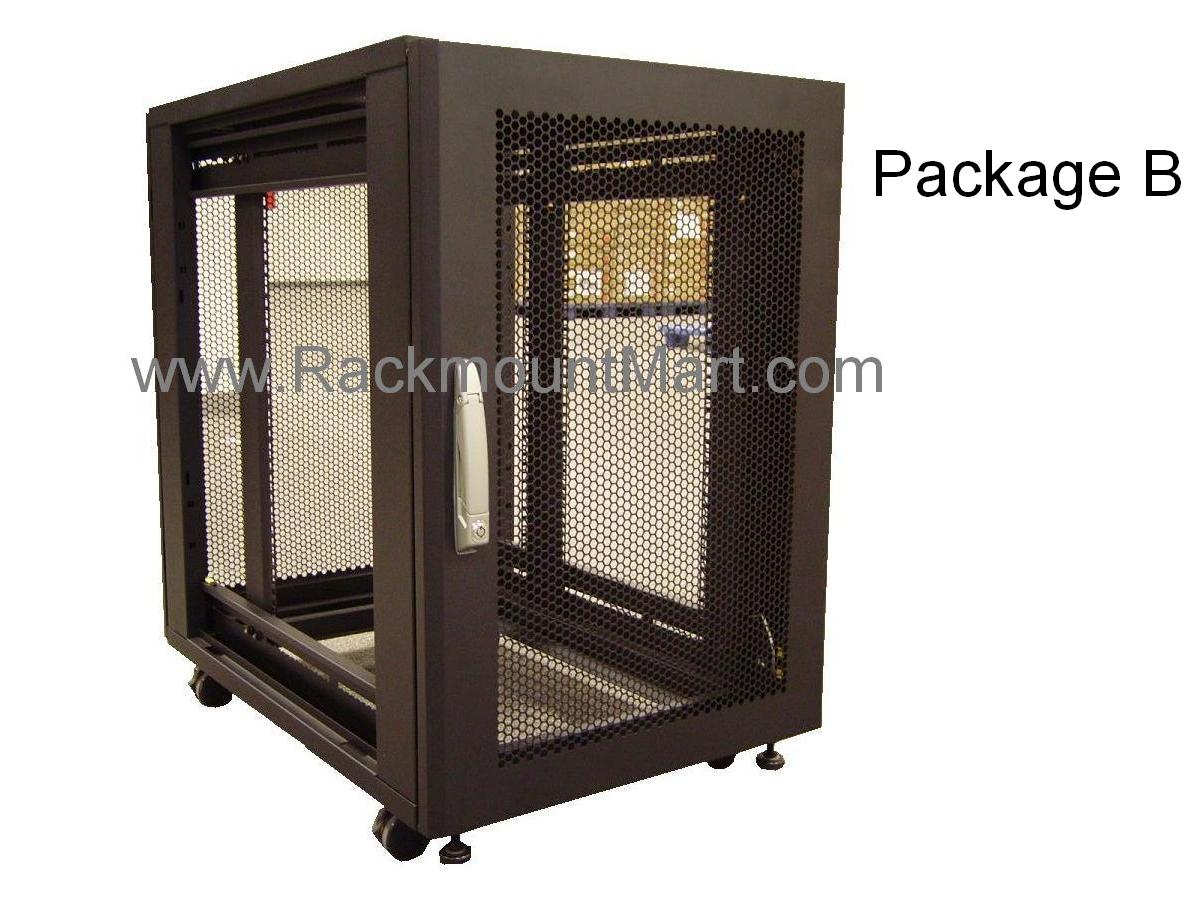

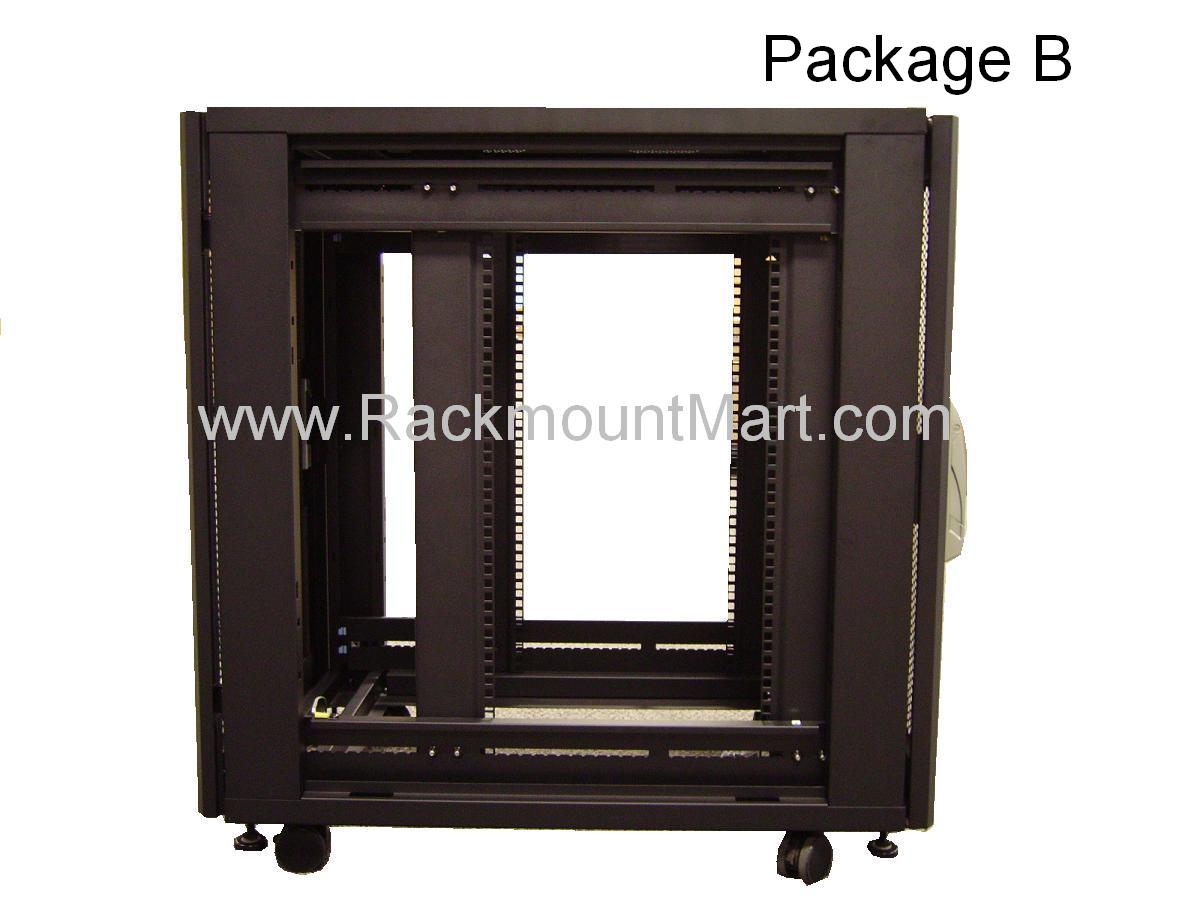

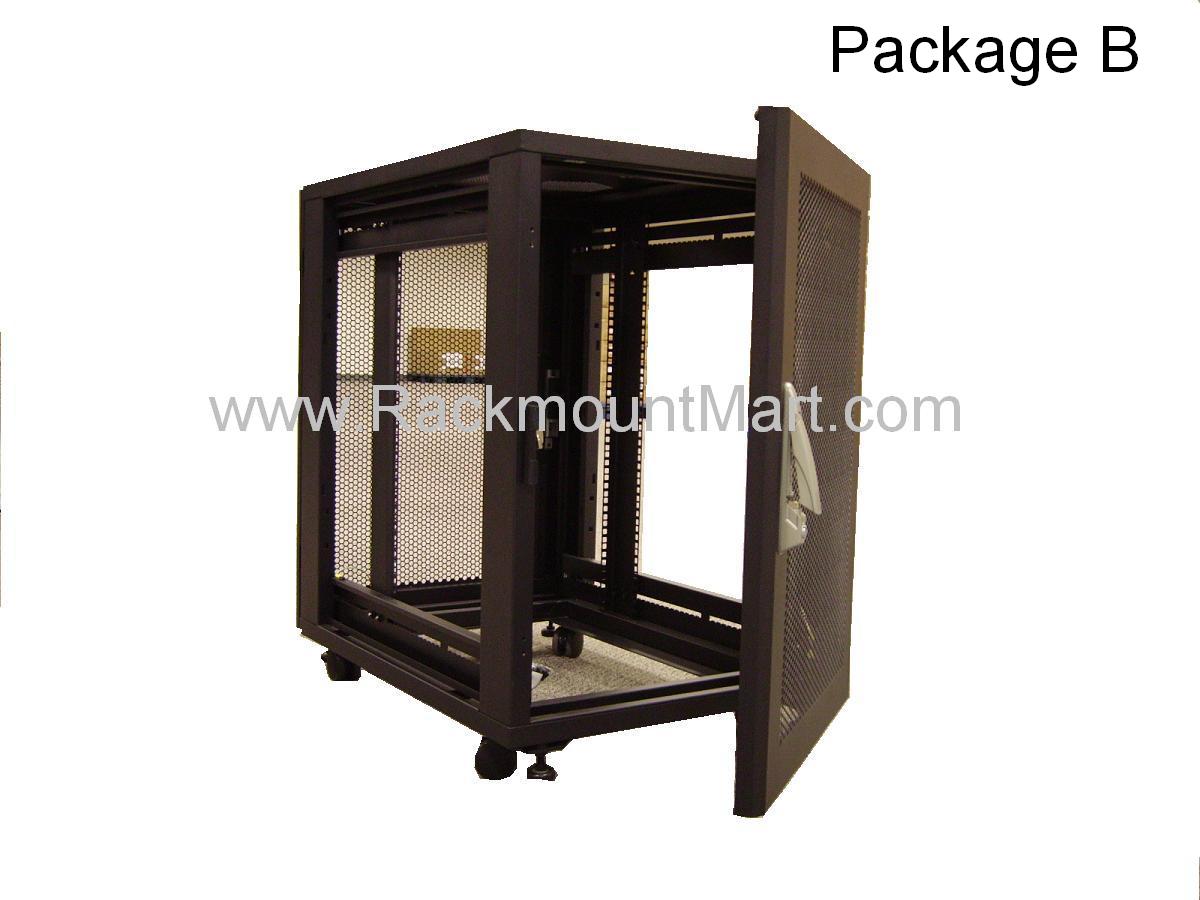

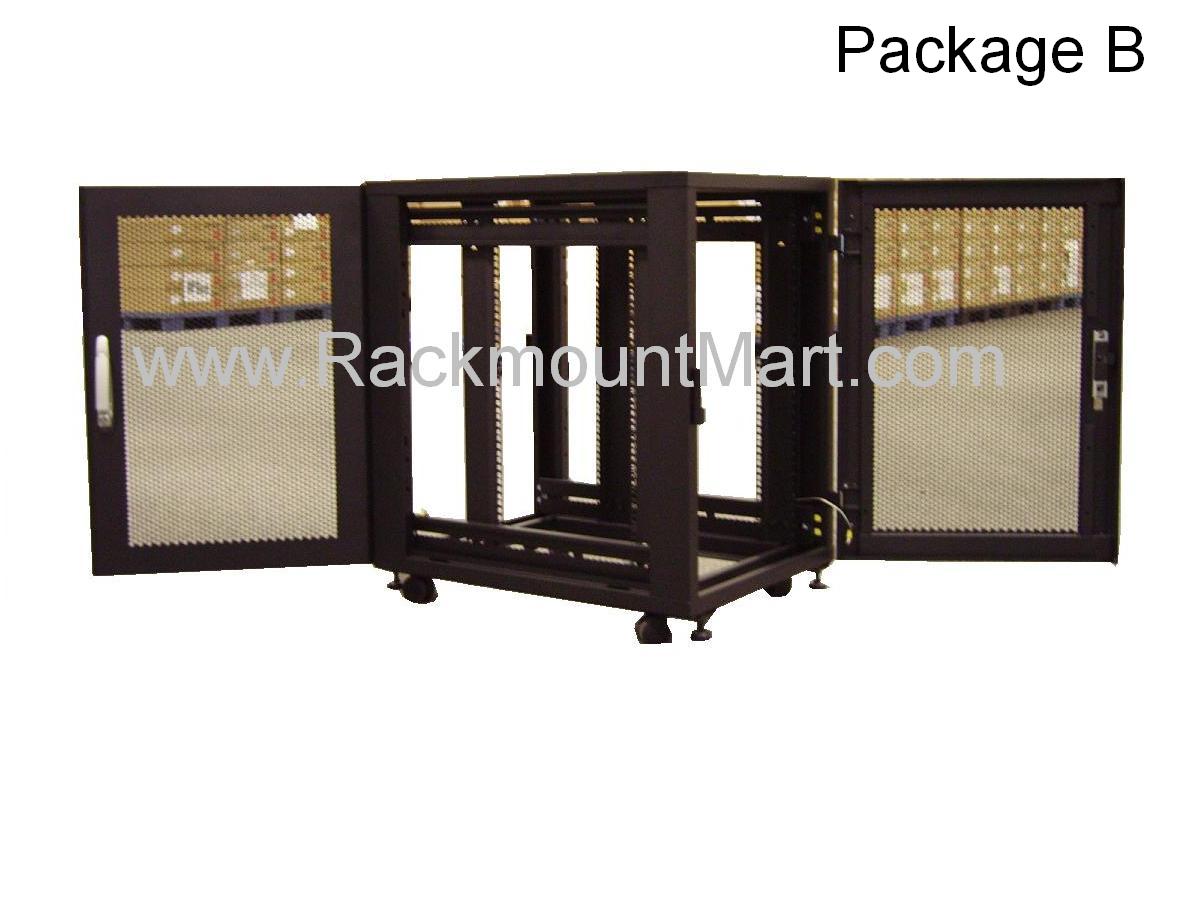

 CR1660-gd-B
 Price : 457.9		 17U Rack mounting Cabinet, 24" (w) x 34" (d) x 36" (h)
Basic Frame + Front Glass Door + Rear Steel Door + Castors & Feet + M6 screw pack
 CR1660-gd-C
 Price : 433.2		 17U Rack mounting Cabinet, 24" (w) x 34" (d) x 36" (h)
Basic Frame + Side Panels + Castors & Feet + M6 screw pack
 RA4016-4
 Bundled Price : $115
 (Regular price : $152.40) 		4 fans added to fan top
 RA4016-6
 Bundled Price : $150
 (Regular price : $206.80) 		6 fans added to fan top

Other Options for CR16xx Cabinet Series
Rack Mount Shelf Part #
1U Heavy Duty Fixed Type RA7030-17 RA7030-23
1U Sliding Type RA7031-17 RA7031-23
2U Cantilever Fixed Type RA7032
Side Panel Lock Baying Kit Grounding Kit Earthing Kit Plinth Trim Kit
Optional Accessories
  Air Filters    Rack Mount LCD Monitors ( No Keyboard & KVM )
  Blank Panels    Rack Mount LCD Monitor Keyboard Optional KVM
  Bracket Supports    Rack Power Distribution Unit / Rackmount PDU
  Cable Management    Rack Mount Rails
  KVM Switches    Rack Mount Shelves
  Rack Mount Cooling Fans    Rack Mount Speakers
  Rack Display Mounting Brackets    Power Strips
  Rack Mount Drawers    Screw Bags
  Rack Mount Keyboard Drawers (No Monitor & KVM)    Vertical Mounting Rail
