22U Server Racks

- Guaranteed Compatibility : Fits all IBM, HP, Dell and Sun servers.
- Good ventilation : Rear door is vented and Roof top is perforated. ( Front Door installed with toughened safety glass )
- Cable Management : Top Roof features Four 5.5" x 2" cutouts for cable entry
- Security / Restricting access :   Lockable front door, rear door, side panels and top cover.
- Safety : Heavy duty framework holds 600Kg / 1320lbs load rating - Unit Marking at Front and Rear
- Rolls through a 7 foot Doorway                                            - Easy Installation                                                                                - Caster base and Leveling feet , cage nuts and mounting screws are included

   Guaranteed Compatibility

   Guaranteed Compatibility with all IBM, HP, DELL and SUN servers.


Manufacturer Series

Apple^TM Xserve^TM

DELL^TM PowerEdge^TM

DELL^TM PowerVault^TM

HP^TM ProLiant^TM

IBM^TM xSeries^TM

SUN^TM Sun Fire ^TM

SUN^TM Sun Fire Blade ^TM




                  SUN ^TM
              Sun Fire ^TMServer
              (V120 shown)

                       IBM ^TM
                       xSeries ^TM
                       (x305 shown)


                 DELL ^TM
              PowerEdge ^TM
              (2600 shown)
                           HP ^TM
                      ProLiant ^TMServer
                      (DL380 G3 shown)

                                                                                                                                                        Back to top

   Good ventilation

   The expanded steel design of all enclosure doors give 80% perforated area that optimize air flow

Excellent ventilation / Super Thermal Management

   Optimal thermal efficiency is gained via careful R&D in air flow direction and air throughput :
   - Fully Perforated Front & Rear door and Roof Top.
   - Hexagon perforated holes filled fully perforated doors facilitates optimal air flow.
   - The expanded steel design of all enclosure doors give 80% perforated area that optimize air flow

Hexagon Perforated Holes


Fan Top
(Option)

Perforated Top
(Standard)

Structure




                                          ***** Click on the above icons for detailed views

                                                                                                                                                        Back to top

   Cable Management

Top Roof features Four 5.5" x 2" cutouts for cable entry





                                                                                                                                                        Back to top

   Safety / Security / Restricting Access

Safety : CR1061 provides high end structural stability. It is tested through sequential loading which ensures s a safe working environment. For ease of installation and transportation, it has heavy duty rated castors and is static load rated to 600 kgs.

Security / Restricting Access : CR1061 includes a key lockable front door, rear door, and side panels as well as top cover. These locks can be keyed identically or with different keys allowing you to manage security levels.

Swing Handle Lock

Heavy Duty Framework

Unit Markings Rolls through a 7 foot doorway

                                            ***** Click on the above icons for detailed views

                                                                                                                                                        Back to top

SPECIFICATION

Color Black/Two Tone Grey Weight Capacity 1320lbs [600Kgs]

Internal width 19 inches External width 24 inches

Internal depth 24 inches External depth 26 inches

Internal length 42 inches External length 45 inches

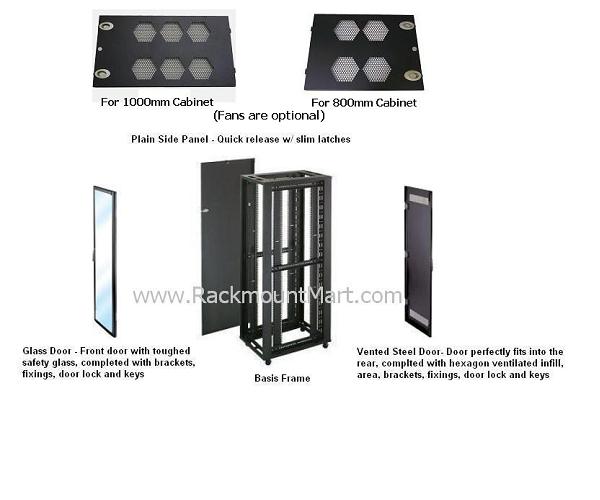

General Package Contents

Basic Frames: End Frames + Verticals + Horizontals panel mounting brackets + MTG

Front Door: Glass Door

Rear Door: Vented Steel Door

Side Panels: Plain Side Panels

Ordering Information for CR1061 - Rack 22U 24" deep

Part #     Description

CR1061
22U Equipment Rack Cabinet, 24"(w) x 26"(d) x 45"(h) Basic Frame + *Front GLASS Door + Rear Steel Door + Side Panels”

Optional Rack Shelf
RA7030 -- 1U Fixed Rack Shelf RA7031 -- 1U Sliding Rack Shelf

Other Rack Shelf Options

Optional Accessories ( Click on specific link for details):

Air Filters Rack LCD Monitors (No Keyboard & KVM)

Blank Panels Rack LCD Monitor Keyboard Optional KVM

Bracket Supports Rack PDU ( Power Distribution Unit )

Cable Management Rack Rails

KVM Switches Rack Shelves

Rack Cooling Fans Rack Speakers

Rack Display Mounting Brackets Power Strips

Rack Drawers Screw Bags
Rack Keyboard Drawers (No Monitor & KVM) Vertical Mounting Rail
