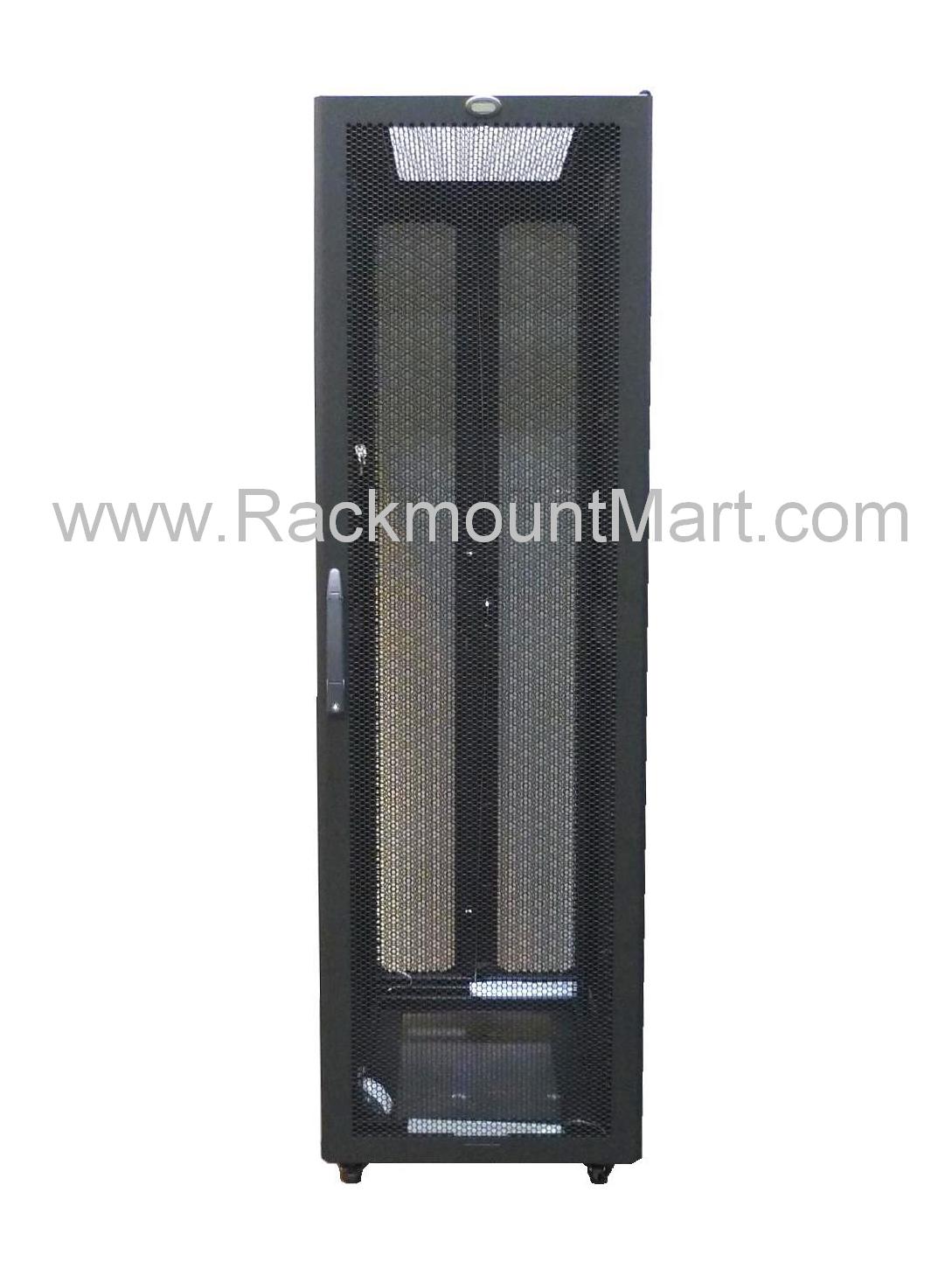

19" Equipment Rack - CR1686
*** Note: CR1086 is an old part number. New part number is CR1686 ***


                                  47U 19" Width Equipment Rack with 2094lb ( 950Kg ) loading weight







* Click on the above pictures for
a detailed View
47U 19" Server Cabinets

Inside Dimension :
Height = 86"
Depth  =
39"
Width  = 19"

Overall Dimension : 24" (w) x 42" (d) x 88" (h)
Mounting depth (post to post): 34"
Full Package Content
  • Basic Frame : End Frame + 4 x square cut vertical mounting railings + depth supporters + Mounting support
  • Front Door : Perforated Door ( with Temperature Sensor )
  • Rear Door : Split Perforated Door
  • Side Panels : Plain Side Panels
  • Caster base (Castor base) , Leveling feet and M6 screw pack with 50 x M6 screws + 50 x washers + 50 x cage nuts for mounting are included
  • Fully assembled
  • Optional Package A , B and C available ( Temperature Sensor does not include in A & C package )
Options
Features
  • Guaranteed Compatibility : Fits all IBM, HP, Dell and Sun servers.
  • Good ventilation : Front / Rear door and Roof top is perforated. Additional Temperature Sensor is included.
  • Cable Management : Top Roof features Four 5.5" x 2" cutouts for cable entry.
  • Security / Restricting access : Lockable front door, rear door, side panels and top cover.
  • Safety : Heavy duty framework holds 2094lbs / 950Kg load rating.
  • Unit Marking at Front and Rear.
  • Rolls through a 7 foot Doorway.
  • Easy Installation.
Specification
  • Color: Black
  • Weight Capacity : 2094lbs ( 950Kgs )
  • Internal Dimension : 86" x 39" x 19" ( H x D x W )
  • External Dimension : 88" x 42" x 24" ( H x D x W )
  • Maximum front to rear depth ( post to post depth ) : 34"
Download Dimensional Drawing


More photos ( Click for enlarged views )


 Ordering Information

Part # Description
 CR1686
(Old part number : CR1086)
 Call for pricing
47U Sever Rack, 600mm wide & 1000mm deep, 2094lb ( 950Kg ) loading weight
Basic Frame + Front
Perforated Door + Rear Split Perforated Door + Side Panels + Castors & Feet + M6 screw pack
 CR1686-A
 Call for pricing
47U Rack mounting Cabinet, 24" (w) x 42" (d) x 88" (h)
Basic Frame + Castors & Feet + M6 screw pack
 CR1686-B
 Call for pricing
47U Rack mounting Cabinet, 24" (w) x 42" (d) x 88" (h)
Basic Frame + Front
Perforated Door + Rear Split Perforated Door + Castors & Feet + M6 screw pack
 CR1686-C
 Call for pricing
47U Rack mounting Cabinet, 24" (w) x 42" (d) x 88" (h)
Basic Frame + Side Panels + Castors & Feet + M6 screw pack
 RA4016-4
 Bundled Price : Call for pricing
4 fans added to fan top
 RA4016-6
 Bundled Price : Call for pricing
6 fans added to fan top

Other Options for CR16xx Cabinet Series
Rack Mount Shelf Part #
1U Heavy Duty Fixed Type RA7030-27 RA7030-31
1.5U Heavy Duty Sliding Type RA7033
2U Cantilever Fixed Type RA7032
Side Panel Lock Baying Kit Grounding Kit Earthing Kit Plinth Trim Kit
Optional Accessories
  Air Filters    Rack Mount LCD Monitors ( No Keyboard & KVM )
  Blank Panels    Rack Mount LCD Monitor Keyboard Optional KVM
  Bracket Supports    Rack Power Distribution Unit / Rackmount PDU
  Cable Management    Rack Mount Rails
  KVM Switches    Rack Mount Shelves
  Rack Mount Cooling Fans    Rack Mount Speakers
  Rack Display Mounting Brackets    Power Strips
  Rack Mount Drawers    Screw Bags
  Rack Mount Keyboard Drawers (No Monitor & KVM)    Vertical Mounting Rail
  Intelligent Cabinet Door Lock handle    Environmental Control Management
  Rack Lights    Patch panel
