     Home >>    JBOD  >>

                                                                      JBOD

         1U JBOD                                                                         Back to top >>
Part Number Unit /  Depth Hot-Swap Bay I / O Module Power Supply        Price

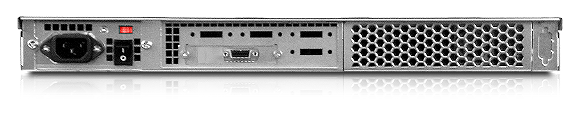

SS1001

1U 4 SAS/SATA hot-swap bays   150W Single

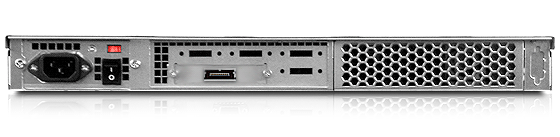

SS1002
1U 4 SAS/SATA hot-swap bays   150W Single


SS1003
1U / 17.84" 4 SAS/SATA hot-swap bays   150W Single

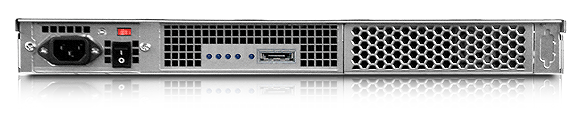

SA1001
1U 4 SATA hot-swap bays   150W Single

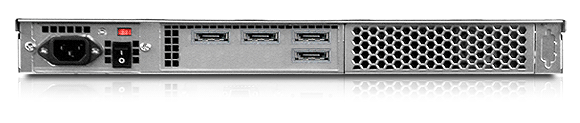

SA1002

1U 4 SATA hot-swap bays   150W Single



SA1003

1U / 17.84" 4 SATA hot-swap bays   150W Single


       2U JBOD                                                                        Back to top >>
Part Number Unit /  Depth Hot-Swap Bay I / O Module Power Supply          Price

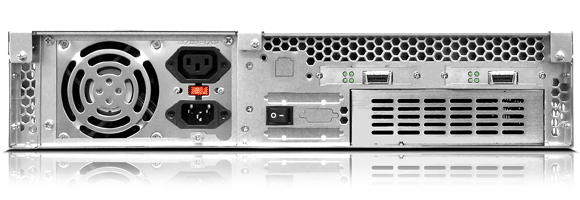

SS2001


2U 8 SAS / SATA hot-swap bays   Dual I/O module
  with expander
Single 250W or Redundant 2x300W

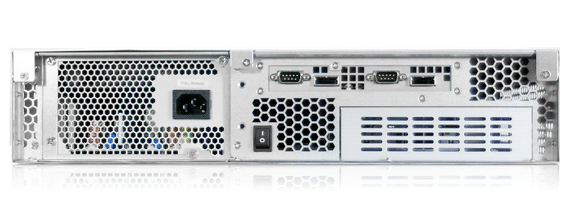

SS2002


2U 8 SAS / SATA hot-swap bays   Single 250W or Redundant 2x350W


SS2003


2U / 16.6 24 SAS / SATA hot-swap bays Dual I/O module
  with expander
350W 1+1 hot-swap redundant PFC

$2588
SS2004


2U / 21.6 12 SAS / SATA hot-swap bays   Dual I/O module
  with expander
460W 1+1 hot-swap redundant PFC

$2289
SS2005


2U / 16.6 24 SAS / SATA hot-swap bays   Single I/O module
  with expander
350W 1+1 swap redundant PFC

$2188
SS2006


2U / 21.6 12 SAS / SATA hot-swap bays   Single I/O module
  with expander
460W 1+1 hot-swap redundant PFC

$1989
SS2007


2U / 21.6 8 SAS / SATA hot-swap bays   300W Single PSU


SS2008


2U 8 SAS / SATA hot-swap bays   400W Single PSU


SS2009


2U 12 SAS / SATA hot-swap bays   400W Single PSU or 400W Redundant PSU


SA2001


2U 8 SATA hot-swap bays   Single 250W or Redundant 2x300W


       3U JBOD                                                                        Back to top >>
Part Number Unit /  Depth Hot-Swap Bay I / O Module Power Supply          Price
SS3001


3U / 22.5" 16 SAS / SATA hot-swap bays   Dual I/O module
  with expander
460W 1+1 hot-swap redundant PFC

$2488
SS3002


3U / 22.5" 16 SAS / SATA hot-swap bays   Single I/O module
  with expander
460W 1+1 hot-swap redundant PFC

$2089
SS3003


3U / 17.9" 16 SAS / SATA hot-swap bays   400W Single PSU


SS3004


3U / 16.6" 16 SAS / SATA hot-swap bays   400W Single PSU or 400W Redundant PSU


       Tower JBOD                                                                        Back to top >>
Part Number Unit /  Depth Hot-Swap Bay I / O Module Power Supply          Price
TS4001


  4 SAS / SATA hot-swap bays   Single 80 Watt


TS4002


  4 SAS / SATA hot-swap bays   Single 80 Watt


TA4001


  4 SATA hot-swap bays   Single 80 Watt


TA5001


  5 SATA hot-swap bays   Single 150 Watt


TS8001


  8 SAS / SATA hot-swap bays   Single 300 Watt or 2x 350 Wartt Redundant


TS8002


  8 SAS / SATA hot-swap bays   Single 300 Watt or 2x 350 Wartt Redundant


TA8001


  8 SATA hot-swap bays   Single 300 Watt or 2x 350 Wartt Redundant
