                               Mini Raid Box :  Part # MRaid1001-SA




     **Click on pictures to enlarge
  Introduction

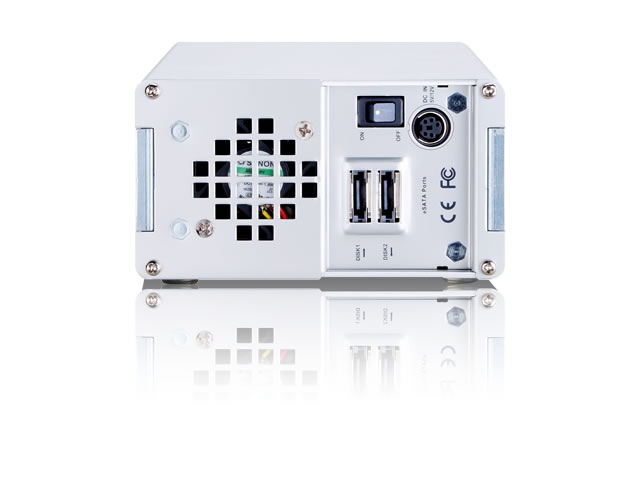

  MRaid1001-SA is a Dual Bay Hot-Swap Serial ATA (SATA)
  Enclosure
. It provides user a low cost and high performance
  external data backup solution. The convenience of SATA
  interface brings user an easy installation and a fast data
  transmission experience.


  Features

  • Supports SATA (3Gbps)
  • Aluminum housing, anodized surface, benefits for cooling and durability
  • Small, compact, and light weight
  • Backplane design for two removable SATA drive trays
  • Built-in thermo speed control fan for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  Package Content

  • Enclosure x 1
  • HDD Tray x 2
  • eSATA Cable x 2
  • Power Adapter w/ Power Cord x 1
  • Manual CD-ROM x1
  • Hard Disk Drive mounting screw x 8
  • Key for HDD tray x 2
                                             Technical Specification
  Host Interface   SATA II
  HDD Interface   SATA I/II
  Data Transfer Rate   SATA 1.5/3 Gbps
  Hot-Swap   Both on Host and Device
  LED Display   Green - Power on indicator Blue - Busy (HDD Accessing) indicator
  Dimension   Enclosure only:(L)3.5cm(W)6.5cm(H)12cm
  Material   Plastic and Aluminum alloy
  Power Supply   External Power Adapter (AC input:100-240V~1.0A 50-60Hz / DC output:+5V/2A,+12V/2A)
  Cooling   40 x 40 x 10 mm Cooling Fan with thermo speed control
  O.S. support   OS Independent
