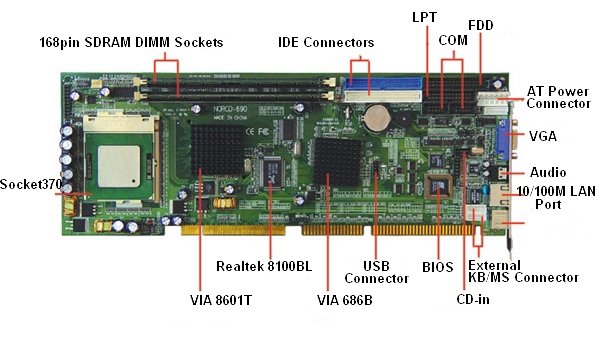

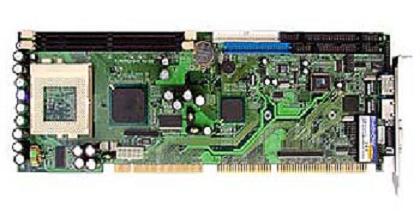

            SINGLE BOARD COMPUTER / CPU CARDS :  Part #  SB1001

  • Intel 815E chipset with GMCH, ICH2, FWH

  • Celeron /P-III/Tualatin processors, support 566~1.26HGz & up reserved

  • Support 2 x 168-pin DIMM up to 512MB

  • Support 10/100M Ethernet

  • AD 1881, AC97 Audio

  • Used in CTI, Audio system, Industrial control, communication






SPECIFICATION
CPU Support Celeron /P-III/Tualatin processors (support 566~1.26HGz & up reserved)
Chipset Intel 815E chipset with GMCH, ICH2, FWH
VGA Build-in GMCH 4MB display cache on board, support CRT & LCD panel display
Memory 2 x 168-pin DIMM up to 512MB
IDE Two IDE (UDMA-100) support up to 4 devices
USB Two USB Ports with header pin
LAN Single LAN, Intel 82562ET PHY & optional Intel 82559, 10/100 Base Tx Ethernet, support WOL
Super I/O ICH2 & LPC (Low pin Count) I/O chip
Speaker Internal buzzer and external speaker connector
FDD One channel, supports up to two FDD
Parallel Port One port, Bi-direction, SPP/EPP/ECP
Serial Port : Two ports 16550 UARTs RS-232 for COM1, COM2 for RS232/422/485
Keyboard Mini DIN connector & external connector
Mouse Mini DIN connector (selectable w/keyboard/Y-cable)
BUS Interface ISA / PCI (PICMG spec.) / PPCI BUS
BIOS Award PnP BIOS, Firmware HUB BIOS memory size 4Mbits, w/VGA BIOS
Watchdog timer 16 Level Watchdog Timer selectable w/Reset/NMI
Size 338.5mm x 122mm, 13.33" x 4.8"
