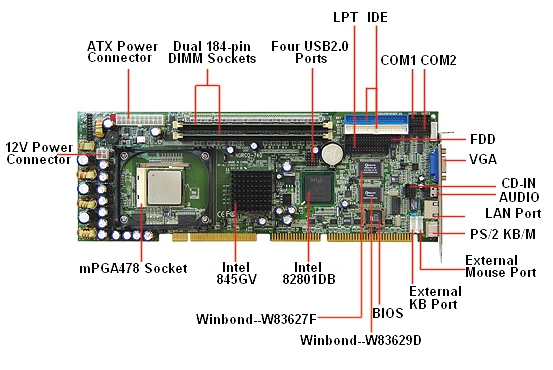

SINGLE BOARD COMPUTER / CPU CARDS : Part # SB1002

Support Intel Pentium 4 or Celeron processor in the mPGA478 package, FSB 533/400MHz
Chipset:Intel 845GV + ICH4
Up to 2GB DDR 333/266/200 SDRAM on two 184-pin DIMM sockets
Intel integrated VGA display controller, 64M dynamic video memory

SPECIFICATION
CPU	Support Intel Pentium 4 or Celeron processor in the mPGA478 package, FSB 533/400MHz
Chipset	Intel 845GV + ICH4
Memory	Up to 2GB DDR 333/266/200 SDRAM on two 184-pin DIMM sockets
BIOS	4M Flash BIOS, Supports Plug & Play, APM 1.2, Supports boot from USB device or CD-ROM or LS-120 ZIP Drive
Display	Intel integrated VGA display controller, 64M dynamic video memory
Ethernet	10/100Base-T Interface, Intel 82562ET Controller, RJ-45 x 1 Connector
Audio	AC-97 audio interface
ISA Bus	64mA high driving ISA bus interface to backplane
EIDE	Support four EIDE devices with Ultra DMA 100/66/33
Compact Flash	One optional standard 50 pin Compact Flash socket, supports three kinds of CF cards
FDD	1
USB	Four USB2.0 Ports
KB & Mouse	One 6-pin Mini-DIN connector for keyboard and mouse
Parallel Port	1 (SPP/EPP/ECP)
COM	COM1 IDC10, COM2 IDC10, COM1->RS232 COM2->RS232
Watchdog Timer	Programmable via software
Dimension (L x W)	338.5mm x 122mm /13.33" x 4.8"
Environment	0 to 50 蚓 (operating temperature), -20 to 80 蚓 (storage temperature) 5% to 90%, non-condensing (relative humidity)
Approval	CE, FCC Class A
