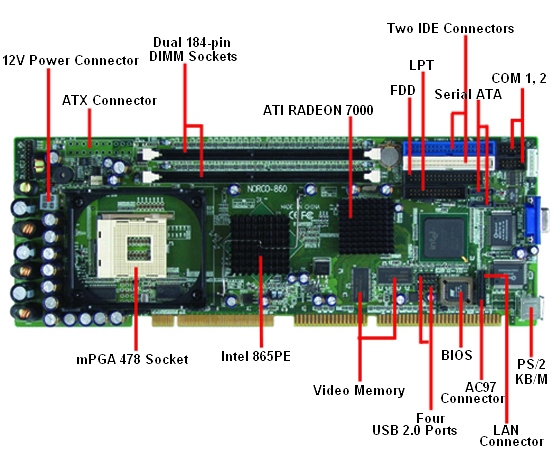

SINGLE BOARD COMPUTER / CPU CARDS : Part # SB1004

Support Intel Pentium 4 or Celeron processor in the mPGA478 package, FSB 800/533/400MHz
Chipset:Intel 865PE + ICH5
Up to 2GB dual channel DDR 400/333/266 SDRAM on two 184-pin DIMM sockets
ATI RADEON 7000 VGA controller
On-board 64M or 32M video memory

Specification
CPU	Support Intel Pentium 4 or Celeron processor in the mPGA478 package, FSB 800/533/400MHz
Chipset	Intel 865PE + ICH5
Memory	Up to 2GB dual channel DDR 400/333/266 SDRAM on two 184-pin DIMM sockets
BIOS	4M Flash BIOS, Supports Plug & Play, APM 1.2, Supports boot from USB device or CD-ROM or LS-120 ZIP Drive
Display	ATI RADEON 7000 graphics controller, on-board 64M or 32M video memory
Ethernet	10/100Base-T Interface, Intel 82562ET Controller, RJ-45 x 1 Connector
Audio	AC-97 audio interface (LINE OUT, LINE IN, MIC IN, CD IN)
ISA Bus	64mA high driving ISA bus interface to backplane
SATA	Support two SATA 150 devices
EIDE	Support four EIDE devices with Ultra DMA 100/66/33
FDD	1
USB	Four USB2.0 Ports
KB & Mouse	One 6-pin Mini-DIN connector for keyboard and mouse
Parallel Port	1 (SPP/EPP/ECP)
COM	COM1 IDC10, COM2 IDC10, COM1->RS232 COM2->RS232
IrDA	Support IrDA
Raid	Support Raid 0 or Raid 1 (ICH5-R)
Watchdog Timer	Programmable via software
Dimension (L x W)	338.5mm x 122mm /13.33" x 4.8"
Environment	0 to 50 degree Celsius (operating temperature), -20 to 80 degree Celsius (storage temperature) 5% to 90%, non-condensing (relative humidity)
Approval	CE, FCC Class A
