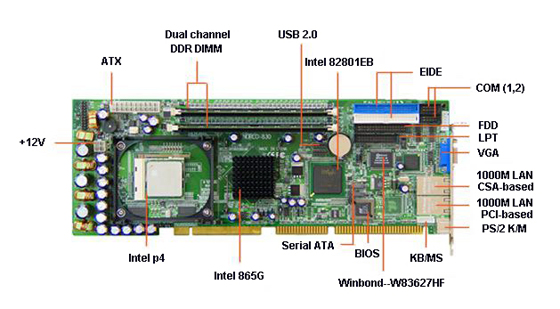

SINGLE BOARD COMPUTER / CPU CARDS : Part # SB1005

Support Intel Pentium 4 or Celeron processor in the mPGA478 package, FSB 800/533/400MHz
Chipset:Intel 865G + ICH5
Up to 2GB dual channel DDR 400/333/266 SDRAM on two 184-pin DIMM sockets
Intel integrated VGA display controller, 64M dynamic video memory
Two optional gigabit LAN Ports

Specification
CPU	Support Intel Pentium 4 or Celeron processor in the mPGA478 package, FSB 800/533/400MHz
Chipset	Intel 865G + ICH5
Memory	Up to 2GB dual channel DDR 400/333/266 SDRAM on two 184-pin DIMM sockets
BIOS	4M Flash BIOS, Supports Plug & Play, APM 1.2, Supports boot from USB device or CD-ROM or LS-120 ZIP Drive
Display	Intel integrated VGA display controller, 64M dynamic video memory
Ethernet	Two optional 10/100/1000Base-T Interfaces, Intel82547EI, Intel82540EM or Intel82551QM Controller, RJ-45 x 2 Connector
ISA Bus	64mA high driving ISA bus interface to backplane
SATA	Support two SATA 150 devices
EIDE	Support four EIDE devices with Ultra DMA 100/66/33
FDD	1
USB	Four USB2.0 Ports
KB & Mouse	One 6-pin Mini-DIN connector for keyboard and mouse
Parallel Port	1 (SPP/EPP/ECP)
COM	COM1 IDC10, COM2 IDC10, COM1->RS232 COM2->RS232
Raid	Support Raid 0 or Raid 1 (ICH5-R)
Watchdog Timer	Programmable via software
Dimension (L x W)	338.5mm x 122mm /13.33" x 4.8"
Environment	0 to 50 degree Celsius (operating temperature), -20 to 80 degree Celsius (storage temperature) 5% to 90%, non-condensing (relative humidity)
Approval	CE, FCC Class A
