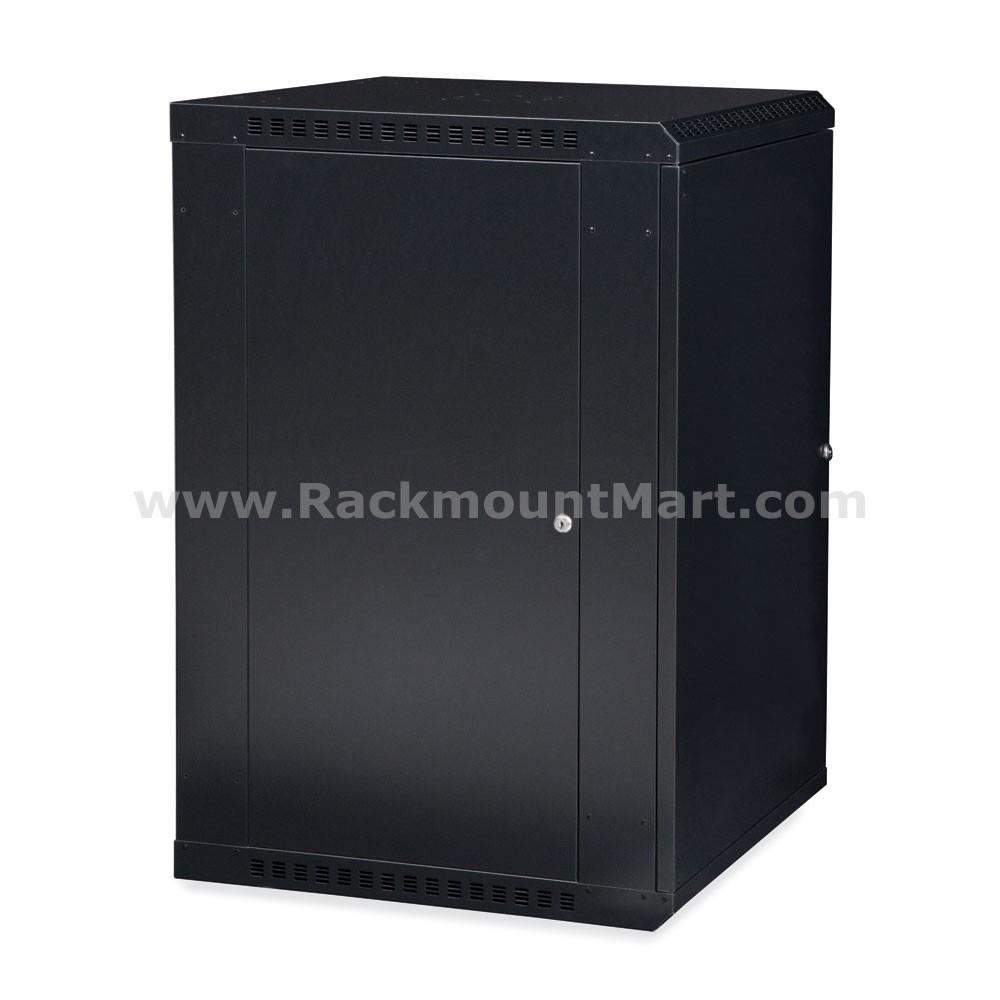

18U Fixed Wall Mount Cabinet - Solid Door
Model  WB1206-SD
TAA Compliant

                                                                                     MADE IN THE USA


The Fixed Wall Mount Cabinets provide stability and durability for your valuable server and network equipment. Its feature rich design gives you a universal enclosure, guaranteed to function for a variety of applications.
  • Includes one locking solid door
  • Locking side panels
  • 250 lb. weight capacity
  • One set of cage nut style mounting rails
  • Mounting depth: 21.5”
  • 19” EIA 310-D compliant
  • Made in the USA



Features
Cost-Effective Design   Innovative engineering and outside-of-the-box thinking paved the way for this durable, American-made, yet economical wall mount enclosure.

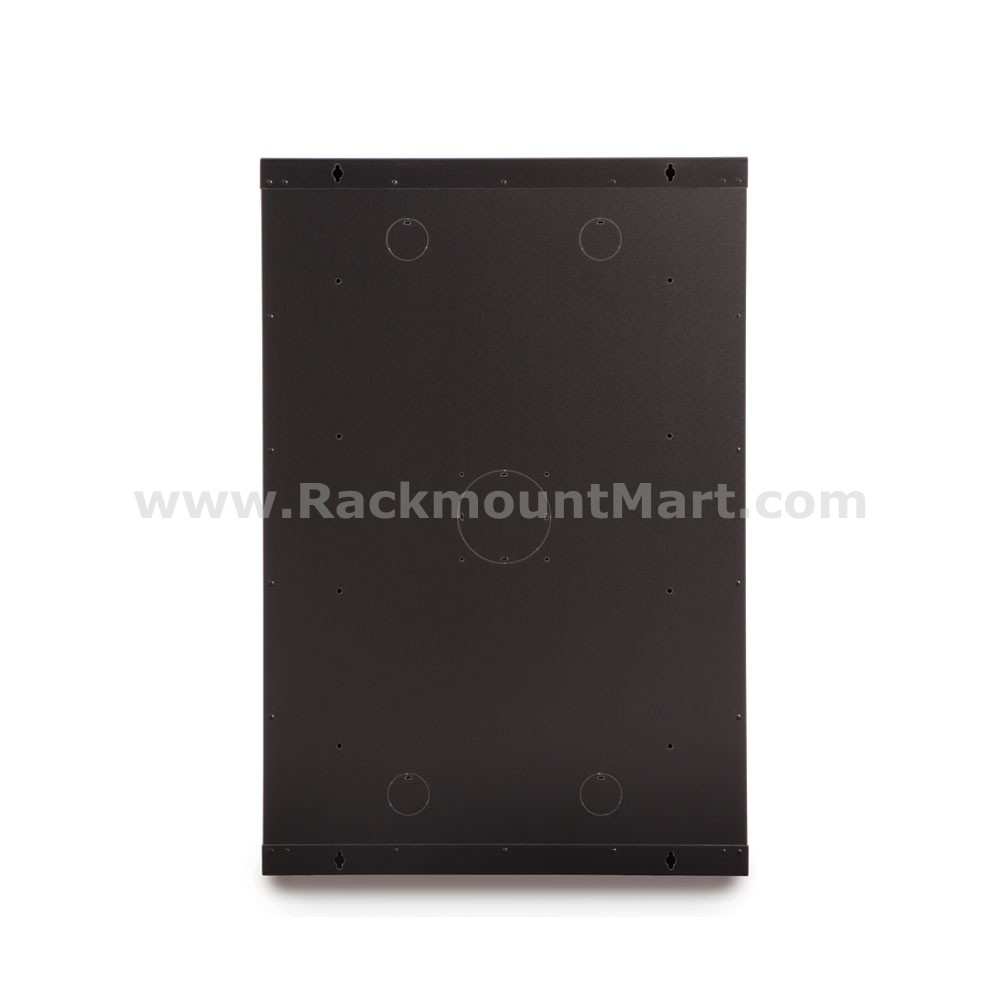

Numerous Laser Knock-Outs   Strategically placed laser knock-outs provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
Adjustable Rails   The included set of cage nut style rails fully adjust in 1 inch increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

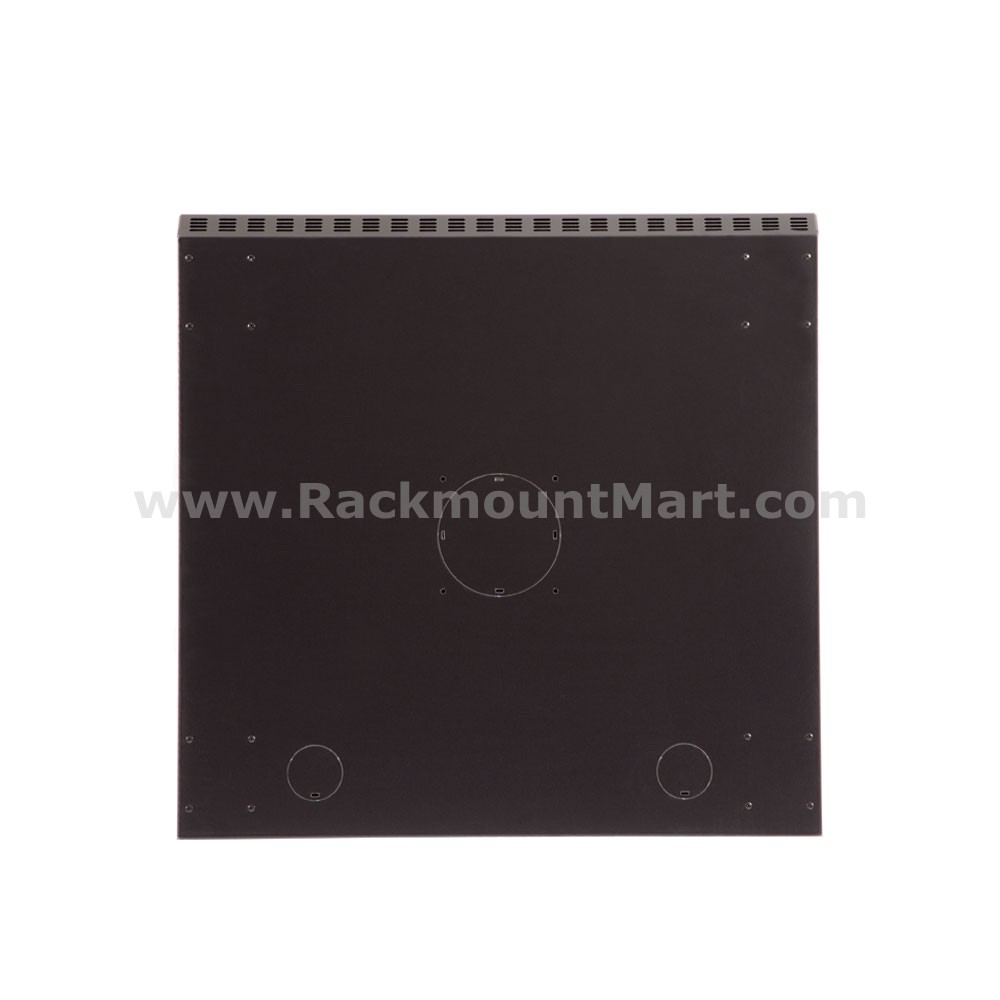

Removable Side Panels   Easy-to-remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.
Locking Doors and Side Panels   The locking feature provides additional security for all three access points, to keep your valuable rack mounted equipment safe from unauthorized use.

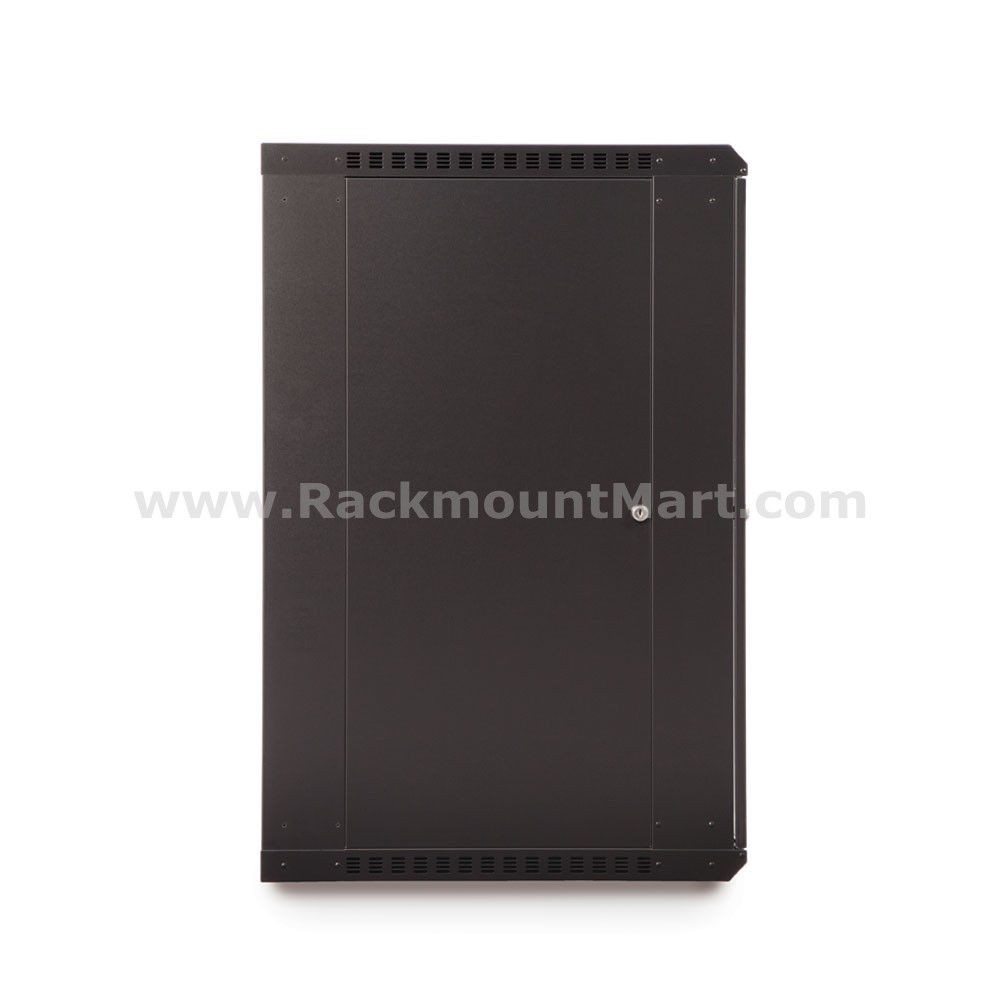

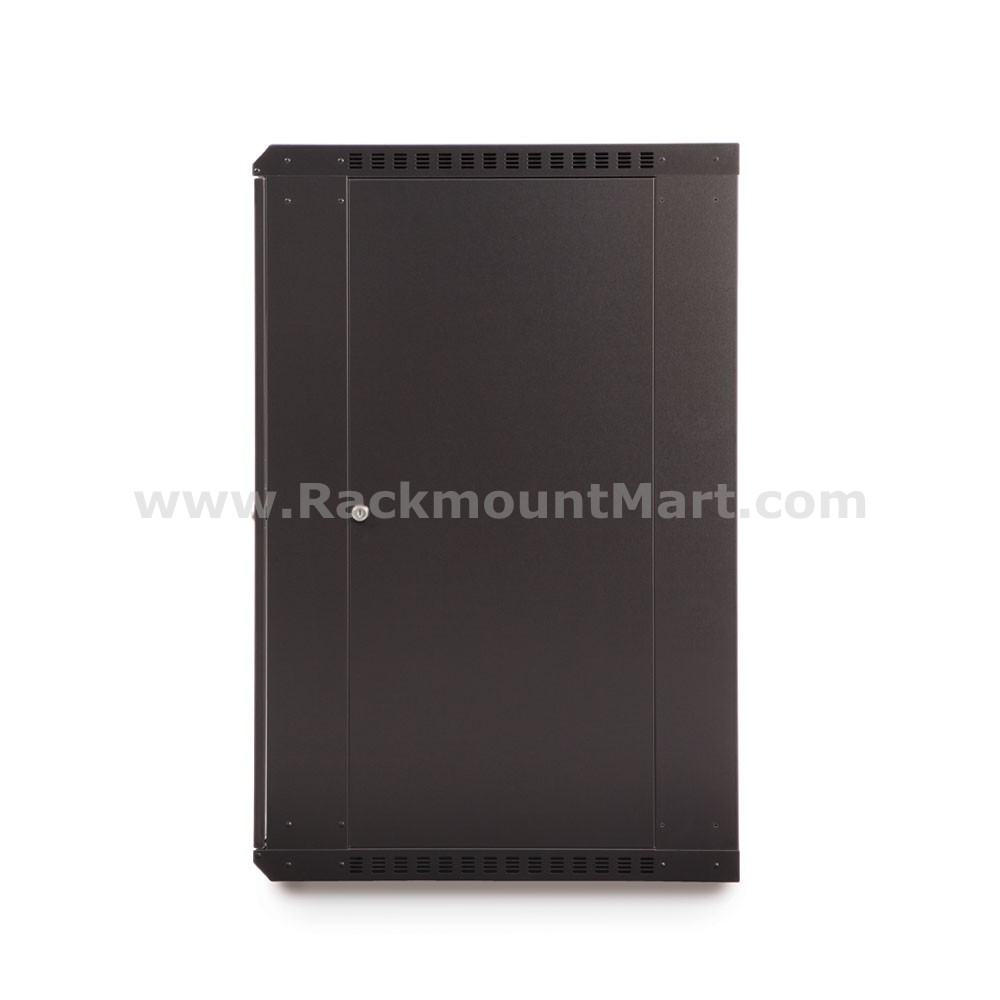

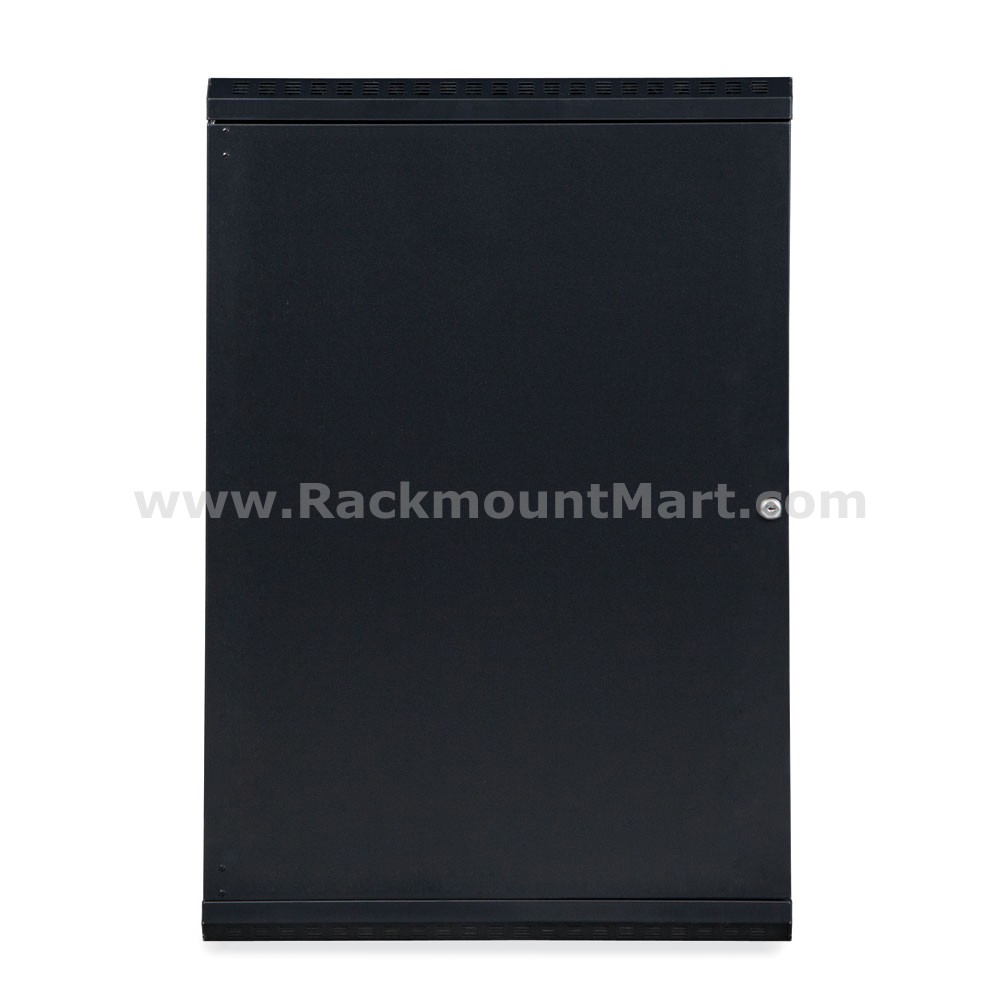

Reversible Solid Door   Solid door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The solid door allows you to enclose and secure your network system.
Specifications
  • Width : 23.50"
  • Depth : 23.50" (Usable 22.50")
  • Height : 35.21"
  • Color : Black Finish
  • Weight : 74.00 lbs.
Package Content
  • Qty 1 - 18U Fixed wall mount Cabinet - Solid Door

Gallery


Optional Vertical Rail Kit
Height Cage Nut 10-32 Tapped
18U PT-SRL-18U-WKH PT-SRL-18U-WKH-T
Optional Caster Base
  RA2205
Optional Combination Lock
  MP1202-W

 Ordering Information

Part Number Description
 WB1206-SD
 18U Fixed Wall Mount Cabinet - Solid Door
 WB1206
 18U Fixed Wall Mount Cabinet - Glass Door
 WB1206-VD  18U Fixed Wall Mount Cabinet - Vented Door
