Raid Storage -  Mini Raid Box :  Part # TRaid1002-ML

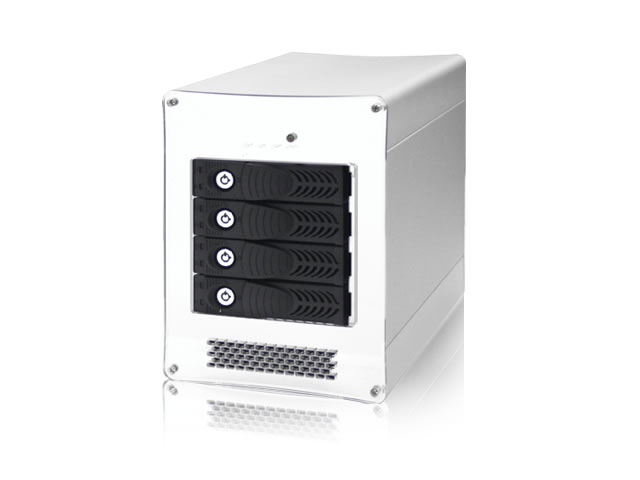

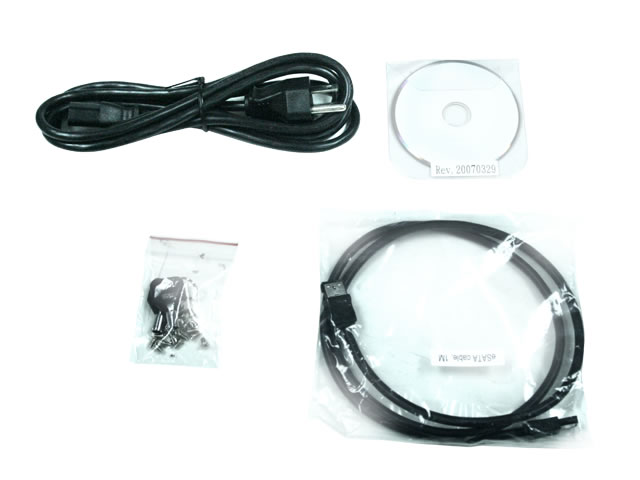

**Click on pictures to enlarge    Introduction     TRaid1002-ML is a four Bay Hot-Swap Serial ATA (SAS/SATA) Enclosure. It provides users a low cost and high performance external data backup solution. The convenience of Multilane SATA interface brings users an easy installation and a fast data transmission experience.                                                                   Features Supports SATA (3Gbps) Aluminum housing, anodized surface, benefits for cooling and durability Backplane design for four removable SATA drive trays Built-in fans for self-contained ventilation Individual key lock of each HDD tray for physical security LED indicators for power and activity on each HDD tray Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm   Package Content Enclosure x 1 HDD Tray x 4 Multilance Cable x 1 (Optional) Power Cord x 1 Manual CD-ROM x 1 Hard Disk Drive mounting screw x 16 Key for HDD tray x 2                                              Technical Specification   Host Interface   SATA II (one MultilaneX4 connector)   HDD Interface   SAS/SATA I/II   Data Transfer Rate   SATA 1.5/3 Gbps   Hot-Swap   Both on Host and Device   LED Display   Green - Power on indicator Blue - Busy (HDD Accessing) indicator   LED Display for Environmental Monitoring   POWER on LED - white FAN normal – green; fail – red (too slow rpm or stop)   TEMP normal – green; over 55°C – red    (We strongly recommend customers to replace a new fan ASAP after the fan failed)   Dimension   (L):23.15cm (W):15.68cm (H):20.97cm   Material   Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face   Power Supply   150W (High reliability of IPC form-factor) Input: 90 – 230 VAC 50- 60 Hz Output: +5V and +12V DC   Cooling   Two 60 x 60 x 10 mm Cooling Fans (Without any HDD installed, fan don't spin up.)   System Requirement   SiI3132 PCI-Express / ExpressCard or SiI3124 PCI-X Host   Bus Adapter with eSATA connector   O.S. support   OS Independant                                                         Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com
