Raid Storage -  Mini Raid Box :  Part # TRaid1004-ML

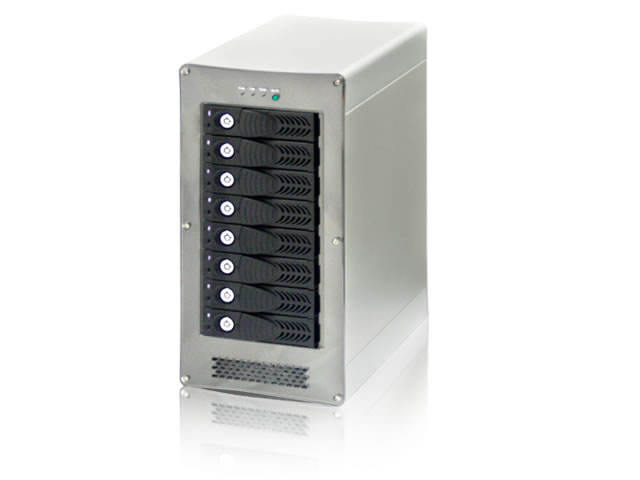

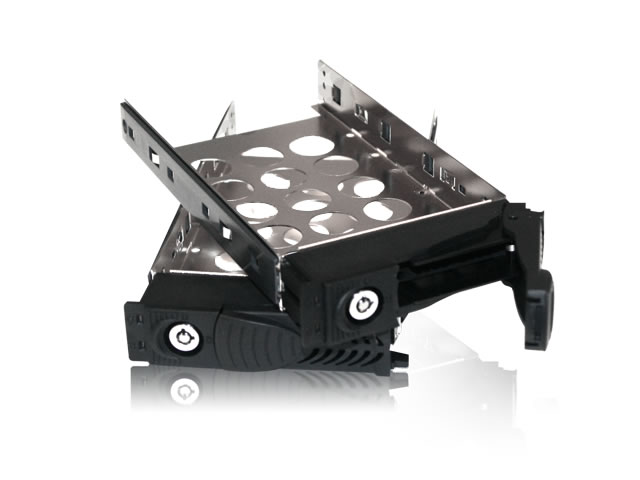

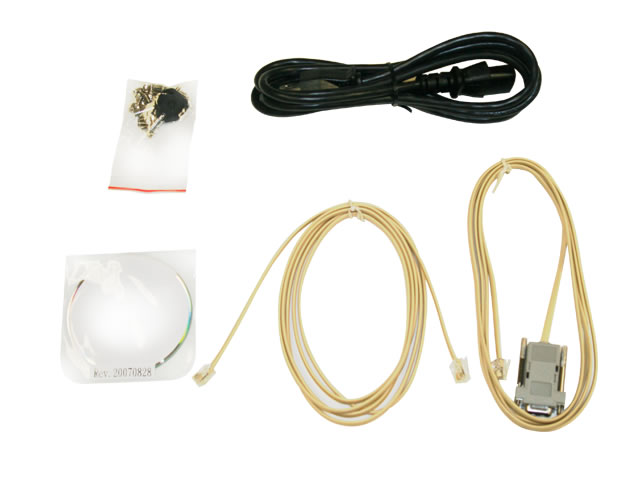

**Click on pictures to enlarge    Introduction     TRaid1004-ML is a 8 Bay Hot-Swap SATA Enclosure with built-in I2C for HDD fail report prticular supports Areca's HBA of ARC-1120ML(PCI-X) and ARC-1220ML(PCIe). It provides users a high capacity and performance external data storage solution for HD of 1080i Vedio Editing or any high resolution video platform. This 8 Bay SAS/SATA JBOD is designed with two convenience of Multilane interface brings users an easy installation and a fast data transmission experience.                                                                   Features Supports SATA (3Gbps) Aluminum housing, anodized surface, benefits for cooling and durability High performance SAS/SATA Backplane design for 8 removable SATA drive trays Built-in fans for self-contained ventilation Built-in I2C for HDD fail report and supports Areca's HBA Individual key lock of each HDD tray for physical security LED indicators for power and activity on each HDD tray Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm   Package Content Enclosure x 1 HDD Tray x 8 Multilance Cable x 1 (Optional) RS232-to-RJ11 Cable x 1 (Enclosure to Areca HBA) RJ11-to-RJ11 Cable x 1 (Enclosure to Enclosure) Power Cord x 1 Manual CD-ROM x 1 Hard Disk Drive mounting screw x 20 Key for HDD tray x 2                                              Technical Specification   Host Interface   SATA II (Two MultilaneX4 connector)   HDD Interface   SATA I/II   Data Transfer Rate   SATA 3 Gbps   Hot-Swap   Both on Host and Device   LED Display   Green - Power on indicator Blue - Busy (HDD Accessing) indicator   LED Display for Environmental Monitoring   POWER on LED - white FAN normal – green; fail – red (too slow rpm or stop)   TEMP normal – green; over 55°C – red    (We strongly recommend customers to replace a new fan ASAP after the fan failed)   Dimension   (L):23.15cm (W):15.68cm (H):31.0cm   Material   Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face   Power Supply   150W (High reliability of IPC form-factor) Input: 90 – 230 VAC 50- 60 Hz Output: +5V and +12V DC   Cooling   Four 60 x 60 x 10 mm Cooling Fans (Without any HDD installed, fan don't spin up.)   System Requirement  Areca external SATA RAID HBA: PCI-X ARC-1120ML, PCI-Express ARC-1220ML   O.S. support   OS Independant                                                         Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com
