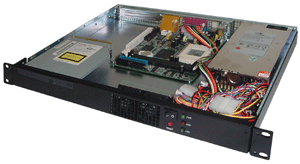

1 U Rack-mount : Part # RM1002

Extra Short 1U Rackmount Chassis 2 Bays : exposed 1 x 5.25" slim + internal 1 x 3.5

Material: Heavy-duty cold-rolled steel with bright chromate finishing
Dimension: 19" (W) x 13" (D) x 1.75" (H)
Cooling: 2 x 40mm air-bearing fans
Power Supply: 200W
PCI Extension: One full-height, full-length PCI slot for expansion
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Power and HDD LED's
System Boards: 9" (W) x 7.5" (D) Flex ATX motherboards
Speaker: 0.4W built-in
Drive Bay: 1 x Slim CD Rom + 1 x HDD
Temperature: 0º C (32 F) - 50º C (122 F)
Humidity: 5% - 95% non-condensing

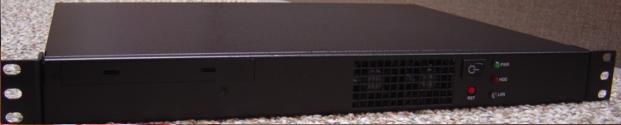

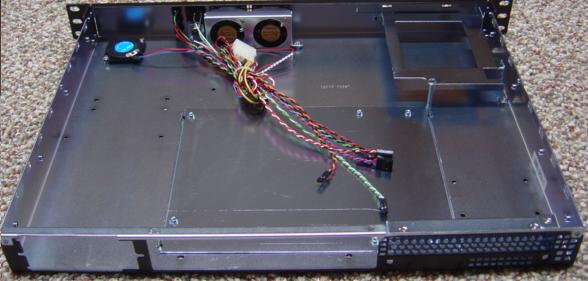

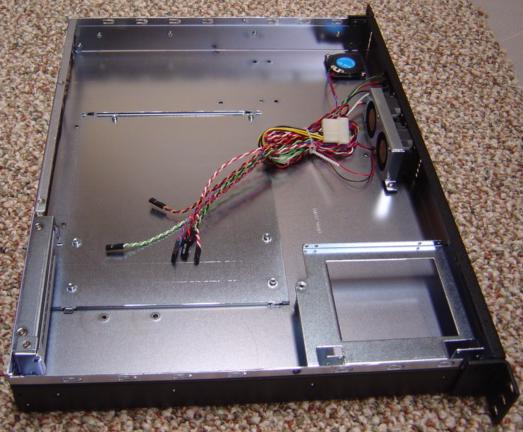

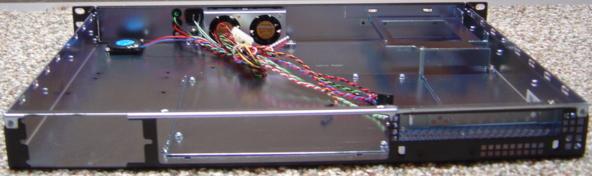

More photo - (click on the picture to enlarge)

FEATURES:
• Extra-short 1U chassis with dimensions of 19" x 13" x 1.75"
• Supports 9.6" x 7" Flex ATX motherboards
• One full-height PCI expansion slot.

APPLICATIONS:
• Firewall / Virtual Private Network gateway
• Internet Appliance

BENEFITS: Special-task servers, like those used for network gateway access (firewalls and VPN gateways), are vital components in a complex network. Still, these tasks can perform their duties without requiring the latest server components. This extra-short 19" chassis helps to save precious cabinet space while providing added functionality to a growing network.

Ordering Information

Part Number	Description
RM1002	1U Rackmount Chassis, Black, No P.S.
RM1002-20	1U Rackmount Chassis, Black, w/ 200W P.S.
