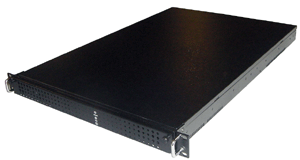

1 U Rackmount Chassis : Part # RM1006

Material: Heavy-duty cold-rolled steel with bright chromate
Dimension: 19" (W) x 25.6" (D) x 1.75" (H)
Cooling: 1 x 120mm blower + 1 x 97mm blower + 2 x 40mm fans
Power Supply: 350W ATX, AMD, EPS, WTX, Standard with PFC
PCI Extension: One full size PCI expansion slot
Controls: Power on/off and system reset
Indicators: Power and HDD LED's
System Boards: 12" x 13" dual-Xeon or dual-Athlon based server boards
Drive Bay: 1 x slim CD + 1 x slim (or regular 3.5") FDD + 3 x HDD
Temperature: 0º C (32 F) - 50º C (122 F)
Humidity: 5% - 95% non-condensing

More photo - (click on the picture to enlarge)

FEATURES:
• 1U Rackmount chassis
• With angled dual blower placement and a specially designed air duct to cool dual processor (Dual XEON and Dual Athlon) server boards

APPLICATIONS:
Cluster Component
Domain Controller
General-Purpose Server
High-End Workstation

BENEFITS: Specially designed for 12" x 13" dual processor (Dual XEON and Dual Athlon) server boards with vertical memory modules positioned in front of the processors. This 1U chassis utilizes two strategically placed blowers to deliver superior cooling to the processors and an air duct to move the heated air out of the chassis. There is room for more storage in the front of the case, with 3 bays for hard drives as well as a place for both a slim CD-ROM and a slim (or regular 3.5") FDD. The 1U form-factor saves room in server cabinets and the full-height PCI slot gives you an extra level of expandability. Depending on your solution, this is the perfect platform to give you extra configuration options in designing a component for your cluster.

Ordering information

Part Number Description

RM1006 1U Rackmount Chassis, Black, NO P.S.

RM1006-30 1U Rackmount Chassis, Black, 300W ATX 12V P.S.

RM1006-35 1U Rackmount Chassis, Black, 300W EPS 12V P.S.

RM1006-40 1U Rackmount Chassis, Black, 400W EPS 12V P.S.
