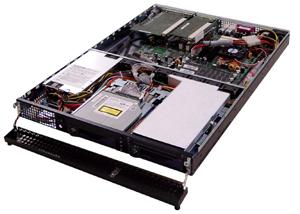

1 U Rackmount : Part # RM1009

1U Rackmount Chassis 4 Bays : 1 x 5.25" slim+ 1 x 3.5" slim + 2 x 3.5" HOT-SWAP SCA or IDE bays 6 Fans

Material: Heavy-duty cold-rolled steel. Inside: zinc-plated with brigh chromate, Outside: texture-coated
Dimension: 19"(W) x 24.4"(D) x 1.75"(H)
Cooling: 6 x 40mm ball-bearing fans
Power Supply: 250W
PCI Extension: 2 Full-height slots with riser card included
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Powe and HDD LED's
System Boards: 12"(W) x 12.2"(D) ATX motherboard
Speaker: 0.4W built-in
Drive Bay: 1x5.25" slim CD-ROM + 1x3.5" slim FDD bays, 2x3.5" hot-swap drive bays for 1" IDE or SCA
Temperature: 0°C (32 F) ~ 50°C (122 F)
Humidity: 5%~95% non-condensing

FEATURES:
• 2x PCI expansion slots in a 1U enclosure
• 2x hot-swap drive bays for SCA or IDE, plus bays of slim CD-ROM and slim FDD
• This chassis also supports SUN MICRO's Netra series motherboards

BENEFITS: 2-PCI extension slots in a 1U form factor is an ideal solution for highly scalable and flexible systems, with 2 hot-swap drive bays, the RM1009 is also capable of a RAID 0 and RAID 1.

Ordering information

Part Number Description

RM1009-SCSI 1U Rackmount Chassis, SCSI, Black, No P.S.

RM1009-IDE 1U Rackmount Chassis, IDE, Black, No P.S.

RM1009-25-SCSI 1U Rackmount Chassis, SCSI, Black, w/250W P.S.

RM1009-25-IDE 1U Rackmount Chassis, IDE, Black, w/250W P.S.
