1 U Rackmount Chassis : Part # RM1013

Material: Heavy-duty cold-rolled steel
Dimension: 19”(W) x 27”(D) x 1.75”(H)
Cooling: 8 x 40mm fans
Power Supply: 400W ATX/EPS PFC power supplies
PCI Extension: 1 x PCI slot via riser card
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Power and HDD LED’s
System Boards: Up to 12" x 13" ATX/SSI EEB 3.0 size motherboards
Speaker: 0.4W built-in
Drive Bay: 1 x slim CD + 1 x slim FDD exposed + 4 x hot-swap bays for 1" IDE (PATA) , SCSI, or SATA HDD's
Temperature: 0°C (32°F)~50°C (122°F)
Humidity: 5%~95% non-condensing

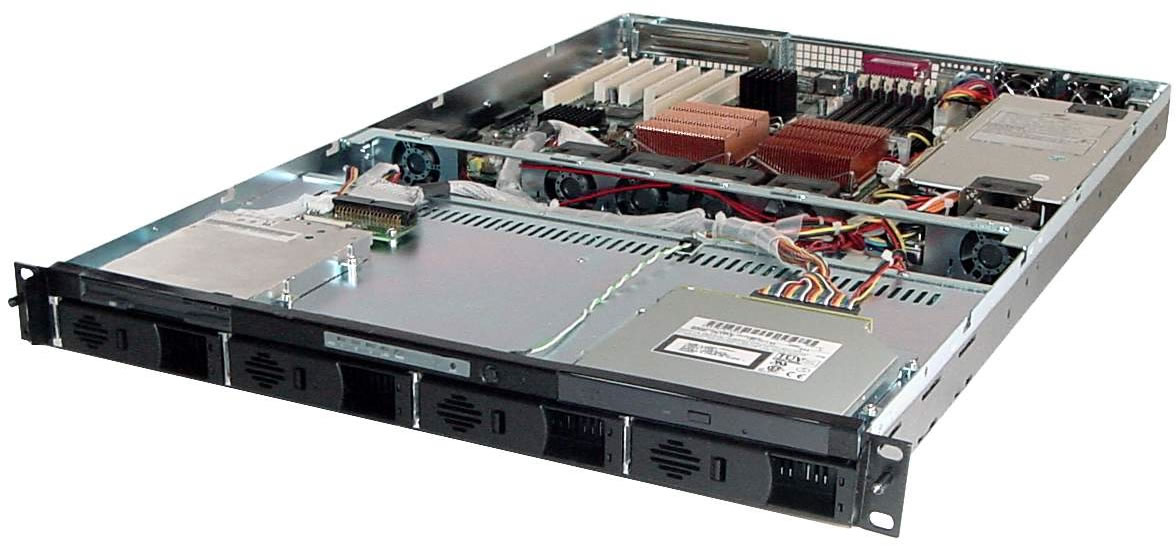

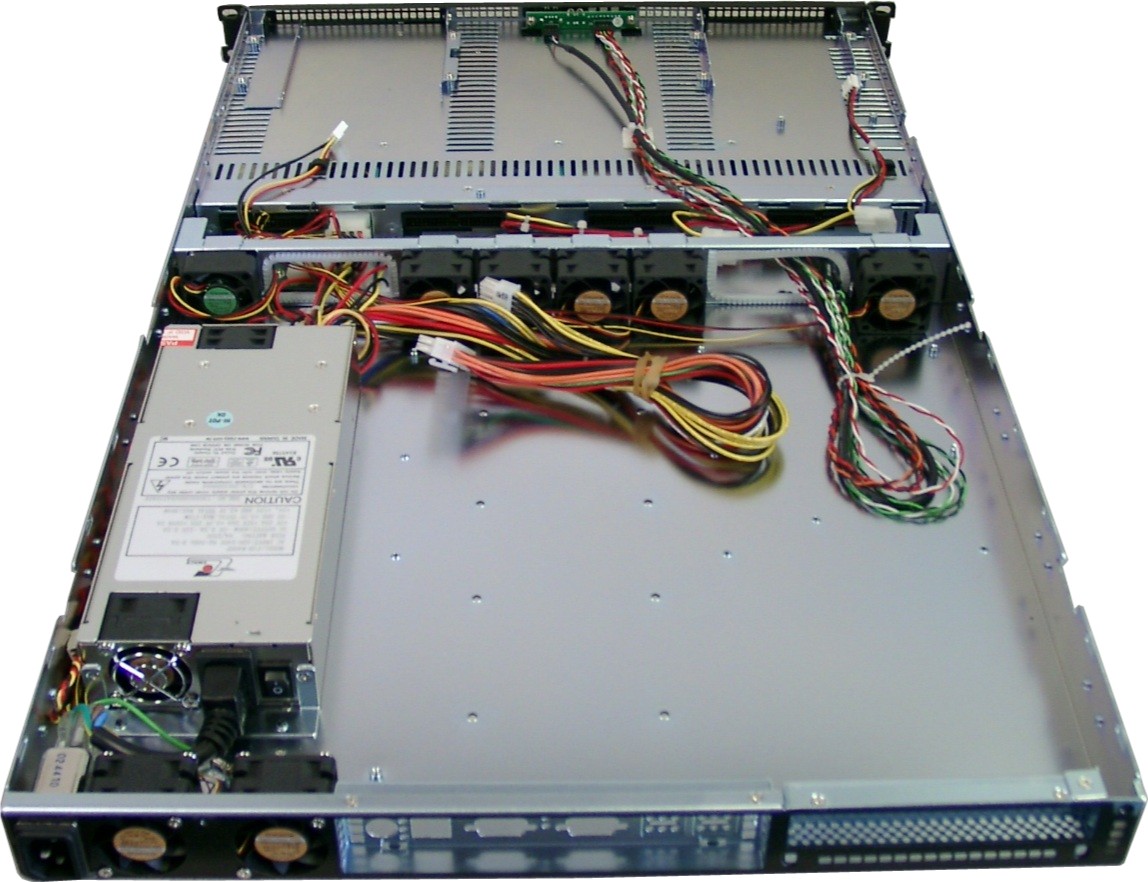

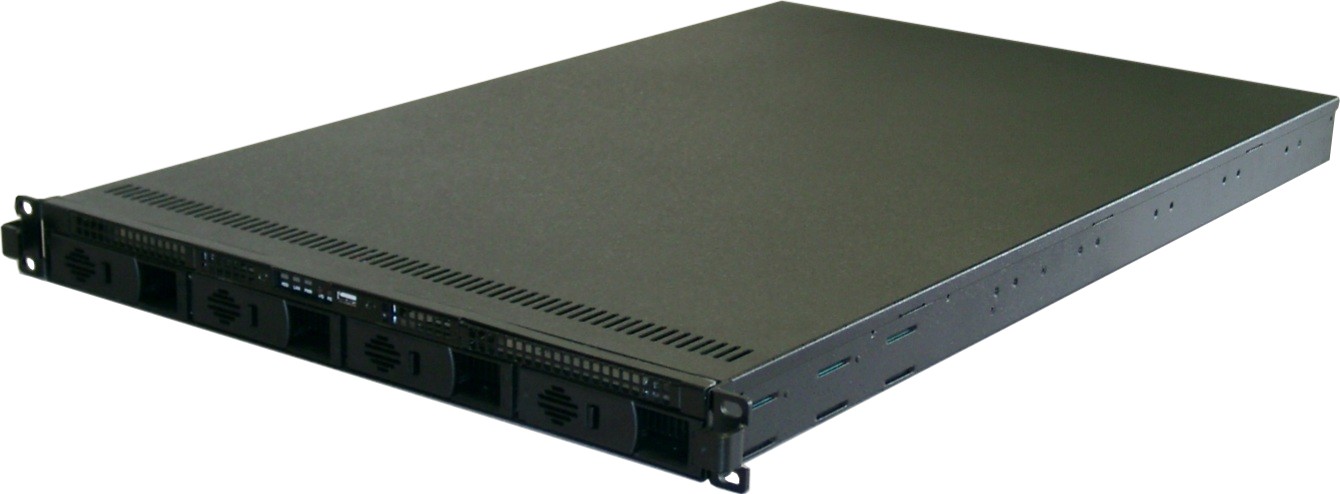

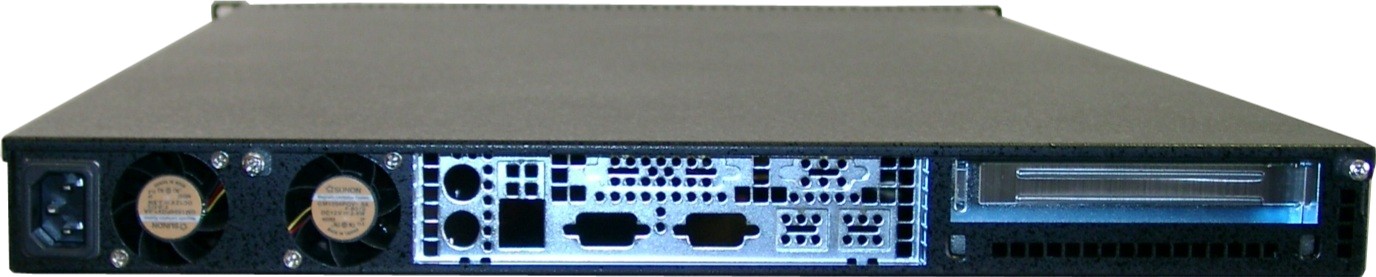

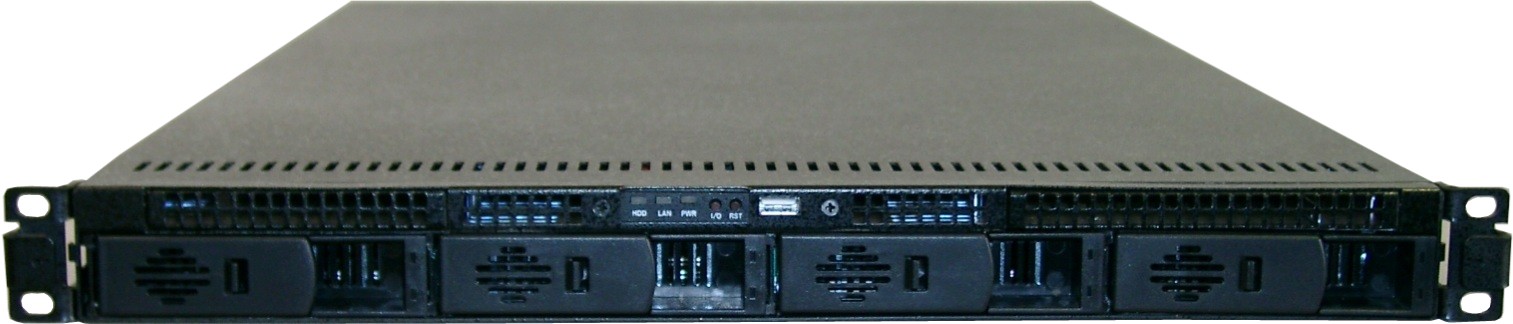

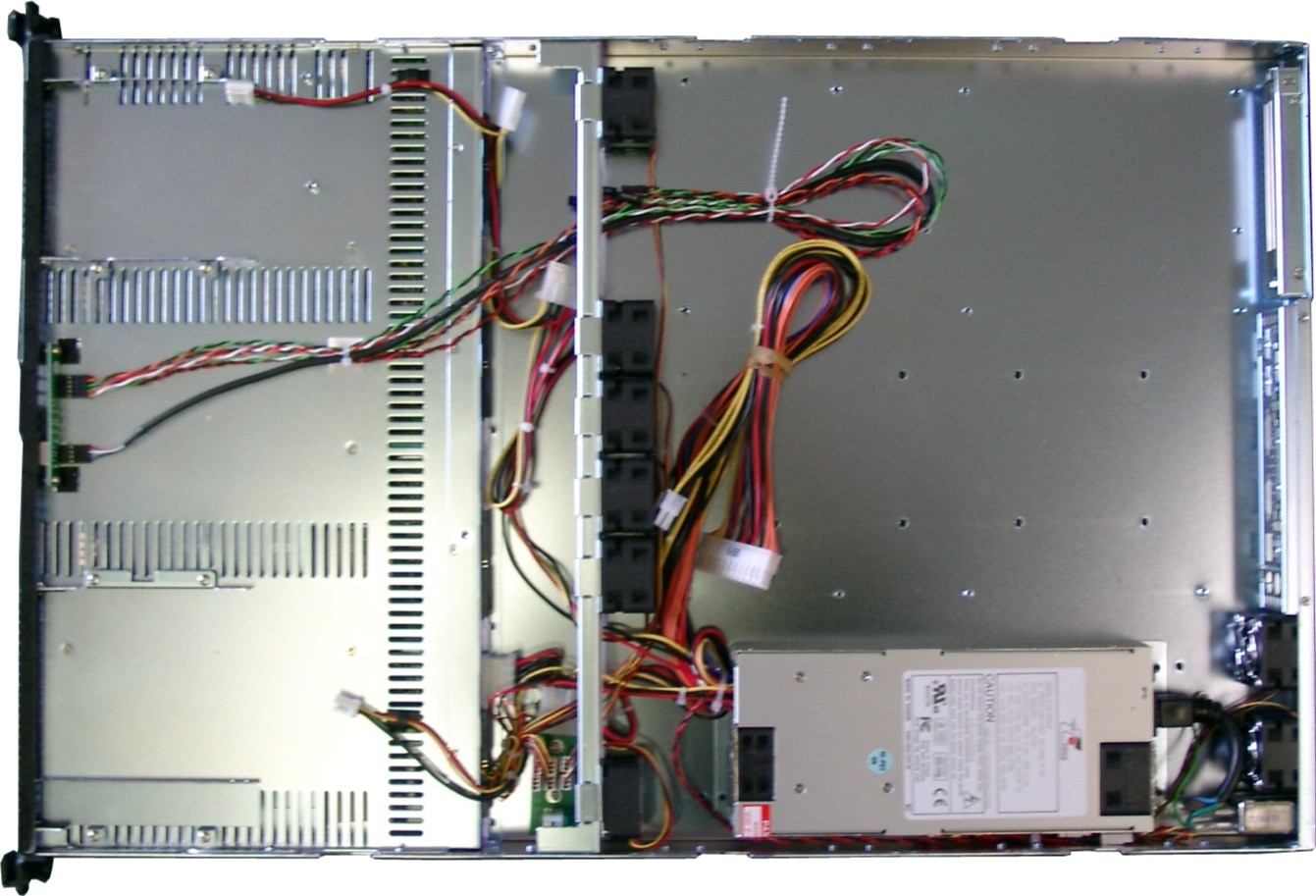

More photos - (click on the photos for enlarged views)

FEATURES:

RM1013 chassis provides the ideal platform for 1U Storage Server or Filer. Four hot-swap IDE (PATA), SCSI, or SATA drive bays provide high capacity in maximized density. Super high-speed fans are fitted to provide optimized cooling for the latest server boards.

Ordering information

Part Number Description

RM1013-SATA 1U Rackmount Chassis, 4x SATA, Black, NO P.S.

RM1013-PATA 1U Rackmount Chassis, 4x PATA, Black, NO P.S.

RM1013-SCSI 1U Rackmount Chassis, 4x SCSI, Black, NO P.S.

RM1013-40-SATA 1U Rackmount Chassis, 4x SATA, Black, w/400W P.S.

RM1013-40-PATA 1U Rackmount Chassis, 4x PATA, Black, w/400W P.S.

RM1013-40-SCSI 1U Rackmount Chassis, 4x SCSI, Black, w/400W P.S.
