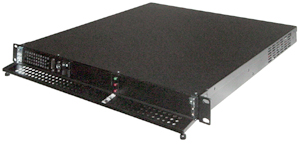

1 U Rack Case : Part # RM1020

Material: Heavy-duty cold-rolled steel. Inside: zice-plated with bright chormate, Outside: texture-coated
Dimension: 19"(W) x 19"(D) x 1.75"(H)
Cooling: 4x 40mm ball-bearing fans
Power Supply: 180W or 250W ATX
PCI Extension: 1-slot full height PCI riser card included
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Power and HDD LED's
System Boards: Sun's Netra AX1105-500 Motherboard
Speaker: 0.4W built-in
Drive Bay: 1x 5.25" + 1x 3.5" exposed bays, 1x 3.5" + 1x 2.5" internal bays.
Humidity: 5%~95% non-condensing

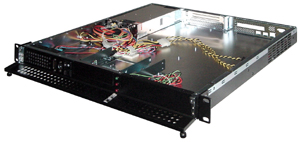

More photos - (click on the pictures for enlarged views)

FEATURES: The RM1020 is equipped with four (4) 40mm ball-bearing fans. It internally packs space for a 3.5" and a notebook size 2.5" HDD. It exposes a 5.25" and a 3.5" slot for HDD or FDD. This chassis is tailored to fit SUN MICRO's Netra AX1105-500 Motherboards.

APPLICATIONS: The 1U short chassis is an ideal solution for space saving applications. It is ample for web, email, proxy, data, and nas servers.

BENEFITS: Four 40mm fan configuration in a 19x19 square chassis supplies ample air circulation for optimum cooling. Its short design is to compliment its space saving attributes

Ordering information

Part Number Description

RM1020 1U Rackmount Chassis, for Sun 1105, Black, No P.S.

RM1020-18 1U Rackmount Chassis, for Sun 1105, Black, w/ 180W P.S.

RM1020-25 1U Rackmount Chassis, for Sun 1105, Black, w/ 250W P.S.
