1 U Rack Enclosure : Part # RM1021

Material: Heavy-duty cold-rolled steel. Inside: zice-plated with bright chormate, Outside: texture-coated
Dimension: 19"(W) x 24.4"(D) x 1.75"(H)
Cooling: 8x 40mm ball-bearing fans (10x optional)
Power Supply: 250W or 300W, Optioanl PFC
PCI Extension: 1-slot full height and length
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Power, temperature detector, and HDD LED's
System Boards: Sun's Netra AX1105-500 Motherboard
Speaker: 0.4W built-in
Drive Bay: 1x5.25" slim-CD-ROM + 1x3.5" slim FDD bays, 3x hot-swap drive bays for 1" IDE or SCA HDD
Temperature: 0°C (32°F) ~ 50°C (122°F)
Humidity: 5%~95% non-condensing

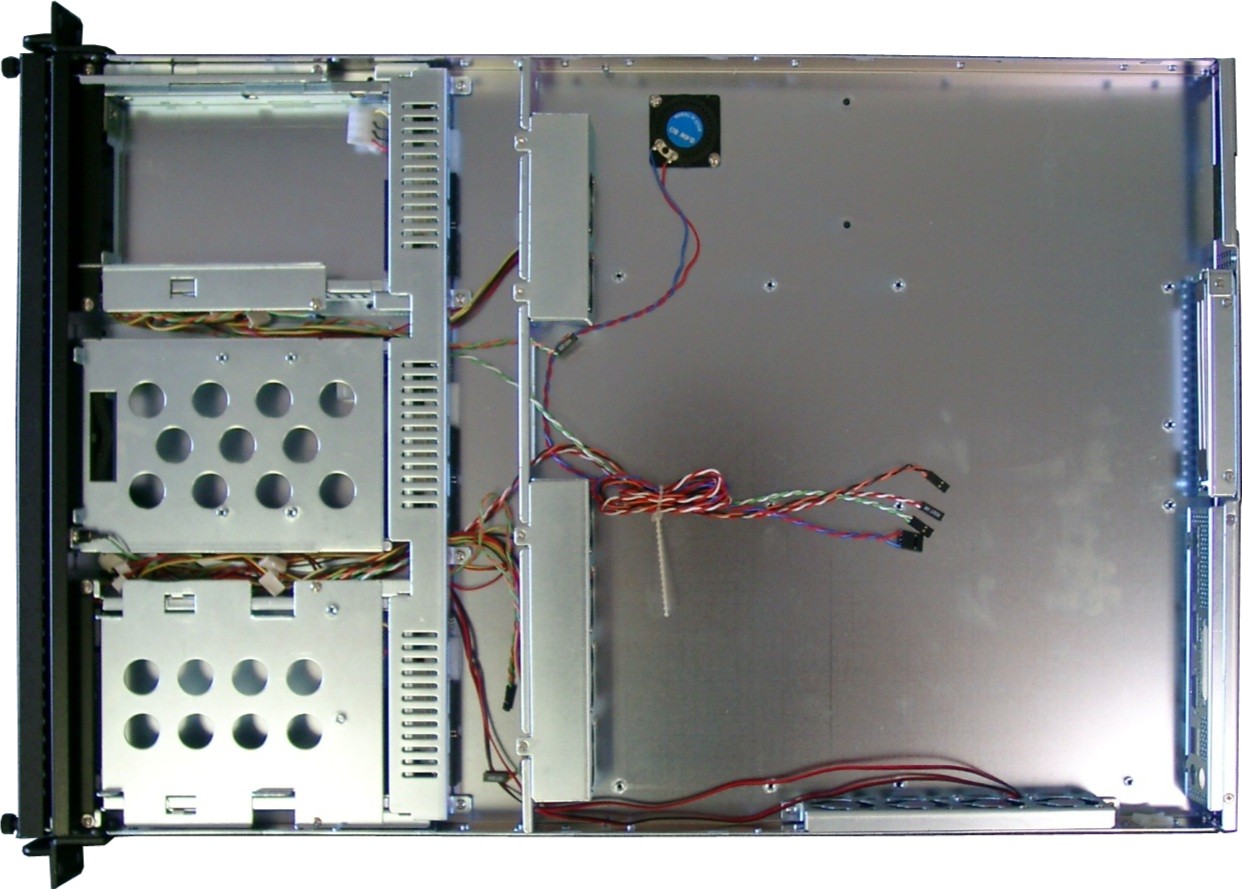

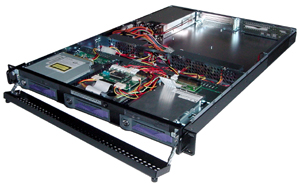

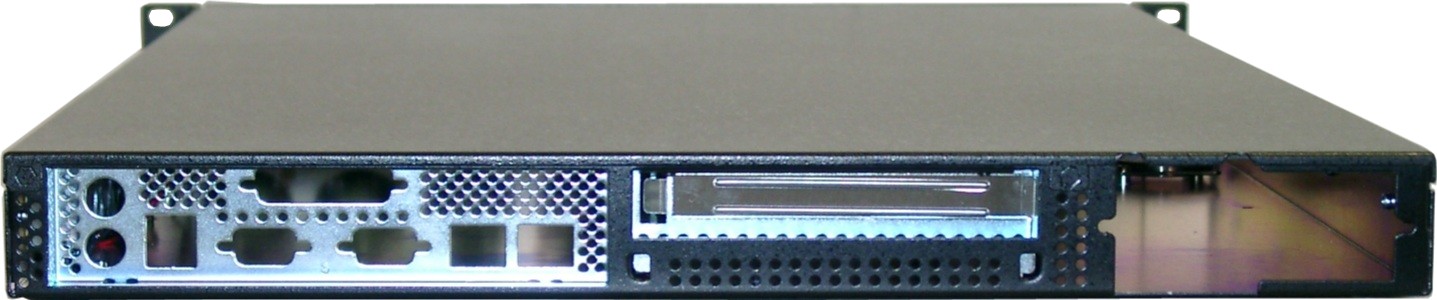

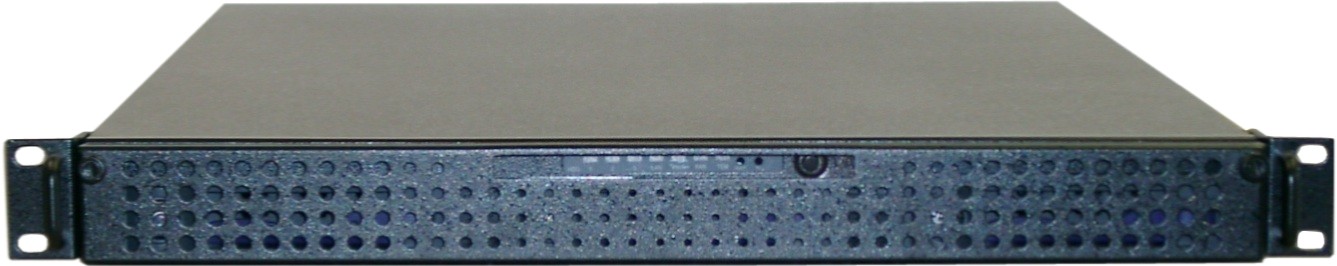

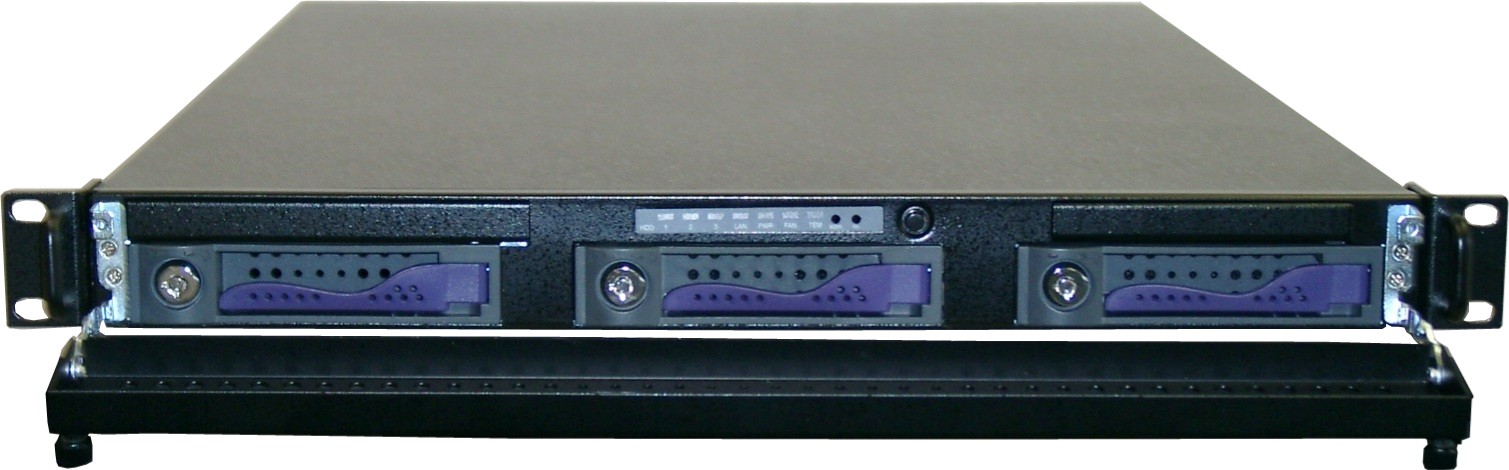

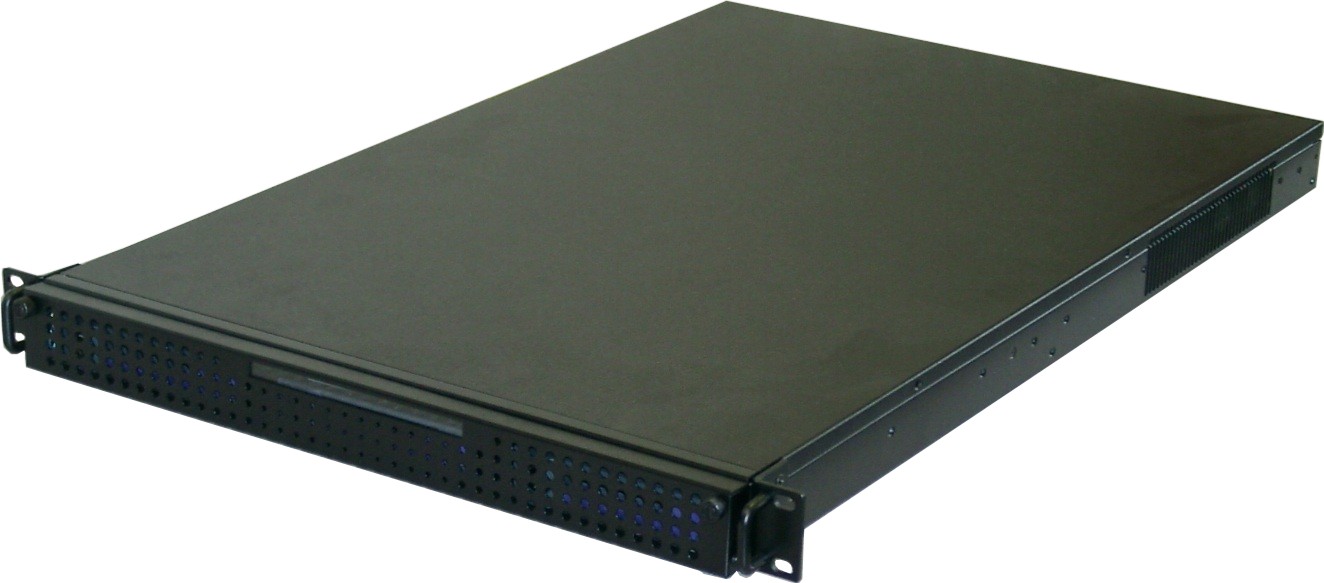

More photos - (click on the pictures for enlarged views)

FEATURES: 3x Hot-swap drive bays with key-locks, 8x 40mm air-bearing fans, on-board temperature monitoring system, bays for slim CD-ROM and slim 3.5" FDD. This chassis is tailored to fit SUN MICRO AX1150-500 Motherboard.

APPLICATIONS: Ideal chassis for space saving data-intensive applications. 3x hot-swap drive bays easily passes for a High-End NAS servers with RAID 5 capabilities.

Ordering information

Part Number Description

RM1021 1U Rackmount Chassis, Black, No P.S.

RM1021-25 1U Rackmount Chassis, Black, w/ 250W P.S.

RM1021-25-PFC 1U Rackmount Chassis, Black, w/ 250W w/ P.F.C. P.S.

RM1021-30 1U Rackmount Chassis, Black, w/ 300W P.S.

RM1021-30-PFC 1U Rackmount Chassis, Black, w/ 300W w/ P.F.C. P.S.
