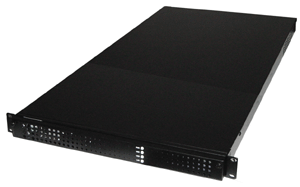

1 U Rack mount : Part # RM1023

Material: Heavy-duty cold-rolled steel with bright chromate finishing
Dimension: 19" (W) x 30" (D) x 1.75" (H)
Cooling: 2 x 120mm blowers + 1 x 40mm fan
Power Supply: Optional 300W or 350W PFC EPS, AMD WTX 12V
PCI Extension: 2 full-height, full-length PCI expansions
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Power, HDD LED's, and LAN
System Boards: 12"x13" dual-Xeon or dual-Athlon based server boards
Drive Bay: 1 x slim CD-ROM + 1 x 3.5" FDD + 2 X 3.5" hot-swap drive bays for 1" IDE or SCSI
Temperature: 0 C (32 F) - 50 C (122 F)
Humidity: 5% - 95% non-condensing

More photos - (click on the photos for enlarged views)

FEATURES:
• 1U 19" rackmountable chassis hosts dual-Xeon or dual-Athlon based server boards
• Longer chassis with dimensions of 19"(W) x 30"(D) x 1.75"(H)
• 2 full-height and full-length PCI expansion
• Patented air-intake air duct plus 2 x 120mm blowers ensuring coolest chassis ambient temperature
• Easy installation disk drive bays hold 1 x slim CD-ROM, 1 x 3.5" FDD and 2 x 3.5" hot-swap drive bays for 1" IDE or SCSI

APPLICATIONS:
General-Purpose Server
Clustering
DNS
DHCP server
Mail server
Power Workstation

Ordering information

Part Number Description

RM1023-IDE 1U Rackmount Chassis, 2x IDE, Black, NO P.S.

RM1023-SCSI 1U Rackmount Chassis, 2x SCSI, Black, NO P.S.

RM1023-30-IDE 1U Rackmount Chassis, 2x IDE, Black, 300W P.S.

RM1023-30-SCSI 1U Rackmount Chassis, 2x SCSI, Black, 300W P.S.

RM1023-35-IDE 1U Rackmount Chassis, 2x IDE, Black, 350W P.S.

RM1023-35-SCSI 1U Rackmount Chassis, 2x SCSI, Black, 350W P.S.
