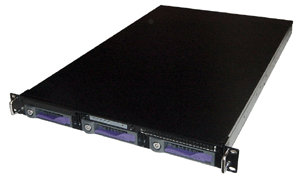

1 U Rack Chassis : Part # RM1024

Material: Heavy-duty cold-rolled steel with bright chromate finishing
Dimension: 19" (W) x 25.6" (D) x 1.75" (H)
Cooling: 9 x 40mm high pressure fans with special air ducts
Power Supply: Optional 250W, 300W, 350W, & 400W ATX / EPS/ AMD power supply
PCI Extension: 1 full-height PCI riser card for expansion
Air Filter: Removable and washable on HDD trays
Controls: Power on/off and system reset
Indicators: Power + 3 x HDD LED's
System Boards: All server boards up to 12"x13" size including dual-Xeon or dual-Athlon
Drive Bay: 1 x Slim CD-R0M + 1 x Slim FDD and 3 x hot-swap SCSI or IDE drive bays
Temperature: 0º C(32F) - 50º C(122F)
Humidity: 5% - 95% non-condensing

More photo - (click on the picture to enlarge)

FEATURES:
• 1U 19" rackmountable chassis can host up to 12" x 13" single P4, dual-Xeon, or dual-Athlon based server boards
• Patented air-intake duct plus 9 x 40mm high pressure air-bearing fans ensuring the coolest chassis ambient temperature
• Easy installation disk drive bays hold 1 x slim CD-ROM, 1 x slim-FDD and 3 x hot-swap SCSI or IDE drives

RM1024 is one of the Intel validated chassis.

Ordering information

Part Number Description

RM1024-IDE 1U Rackmount Chassis, 3x IDE, Black, NO P.S.

RM1024-SCSI 1U Rackmount Chassis, 3x SCSI, Black, NO P.S.

RM1024-30a-IDE 1U Rackmount Chassis, 2x IDE, Black, 300W AMD P.S. for Dual Athlon

RM1024-30a-SCSI 1U Rackmount Chassis, 2x SCSI, Black, 300W AMD P.S. for Dual Athlon

RM1024-35a-IDE 1U Rackmount Chassis, 2x IDE, Black, 350W AMD P.S. for Dual Athlon

RM1024-35a-SCSI 1U Rackmount Chassis, 2x SCSI, Black, 350W AMD P.S. for Dual Athlon

RM1024-35e-IDE 1U Rackmount Chassis, 2x IDE, Black, 350W EPS P.S. for Dual Xeon

RM1024-35e-SCSI 1U Rackmount Chassis, 2x SCSI, Black, 350W EPS P.S. for Dual Xeon
