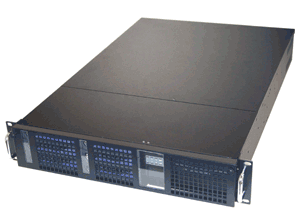

                           2 U Rackmount Chassis :  Part # RM2013

***** This model has been discontinued . *****

Material: Heavy-duty cold-rolled steel with bright chromate finishing
Dimension: 19" (W) x 25.6" (D) x 3.5" (H)
Cooling: 2 x 80mm ball-bearing fans + 4 x 40mm air-bearing fans
Power Supply: 460W with PFC single or 1+1 HRP
PCI Extension: Configuration A: 3 x full height, full length PCI expansion slots
Configuration B: 7 x low profile PCI expansion slots
Air Filter: Removable and washable on the tray
Controls: Two CPU and one alarm reset buttons, power on/off, system intrusion switch
Indicators: POWER & HD LED's
System Boards: SSI EEB 3.0 Dual XEON server boards
Drive Bay: 6 x 1" hot-swap drive bays(IDE , SCSI or SATA)  + 1 x 5.25" drive bay + 1 x slim CD-ROM bay + 1 x FDD bay
Temperature: 0° C (32 F) - 50° C (122 F)
Humidity: 5% - 95% non-condensing



 More photo - (click on the picture for enlarged view)

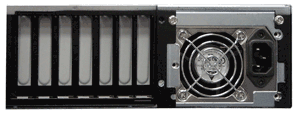

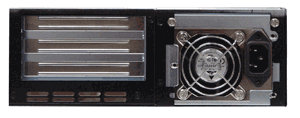

                                                3  full-heigh, full-length       7 low-profile PCI
                                                PCI expansion slots           expansion slots

FEATURES: RM2013 is an ideal 2U server platform supporting up to six hot-swap IDE, SCSI, or SATA hard disk bays. Six high speed system cooling fans provide more than adequate cooling for both the drives and latest 2-way server processors. Modular expansion design allows users to interchange between the full-height and low-profile PCI-X slots.

APPLICATIONS:
• File Servers
• Web Servers
• Network Attached Storage devices.



Ordering Information
Part Number  Description
RM2013-SATA-3f  2U Rackmount Chassis, 6x SATA, Black, w/ 3 full PCI slot, NO P.S.
RM2013-IDE-3f  2U Rackmount Chassis, 6x IDE, Black, w/ 3 full PCI slot, NO P.S.
RM2013-SCSI-3f  2U Rackmount Chassis, 6x SCSI, Black, w/ 3 full PCI slot, NO P.S.
RM2013-46-SATA-3f  2U Rackmount Chassis, 6x SATA, Black, w/ 3 full PCI slot, w/460W P.S.
RM2013-46-IDE-3f  2U Rackmount Chassis, 6x IDE, Black, w/ 3 full PCI slot, w/460W P.S.
RM2013-46-SCSI-3f  2U Rackmount Chassis, 6x SCSI, Black, w/ 3 full PCI slot, w/460W P.S.
RM2013-R46-SATA-3f  2U Rackmount Chassis, 6x SATA, Black, w/ 3 full PCI slot, w/460W redundant P.S.
RM2013-R46-IDE-3f  2U Rackmount Chassis, 6x IDE, Black, w/ 3 full PCI slot, w/460W redundant P.S.
RM2013-R46-SCSI-3f  2U Rackmount Chassis, 6x SCSI, Black, w/ 3 full PCI slot, w/460W redundant P.S.
RM2013-SATA-7l  2U Rackmount Chassis, 6x SATA, Black, w/ 7 low PCI slot, NO P.S.
RM2013-IDE-7l  2U Rackmount Chassis, 6x IDE, Black, w/ 7 low PCI slot, NO P.S.
RM2013-SCSI-7l  2U Rackmount Chassis, 6x SCSI, Black, w/ 7 low PCI slot, NO P.S.
RM2013-46-SATA-7l  2U Rackmount Chassis, 6x SATA, Black, w/ 7 low PCI slot, w/460W P.S.
RM2013-46-IDE-7l  2U Rackmount Chassis, 6x IDE, Black, w/ 7 low PCI slot, w/460W P.S.
RM2013-46-SCSI-7l  2U Rackmount Chassis, 6x SCSI, Black, w/ 7 low PCI slot, w/460W P.S.
RM2013-R46-SATA-7l  2U Rackmount Chassis, 6x SATA, Black, w/ 7 low PCI slot, w/460W redundant P.S.
RM2013-R46-IDE-7l  2U Rackmount Chassis, 6x IDE, Black, w/ 7 low PCI slot, w/460W redundant P.S.
RM2013-R46-SCSI-7l  2U Rackmount Chassis, 6x SCSI, Black, w/ 7 low PCI slot, w/460W redundant P.S.
