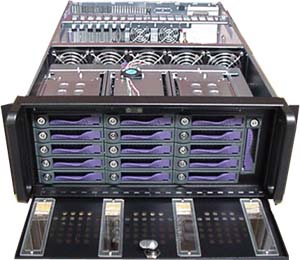

4U Rackmount Chassis : Part # RM4002

Material: Heavy-duty cold-rolled steel. Insidie: zinc-plated with bright chromate, Outside: texture-coated
Dimension: 19"(W)x 26.4"(D) x 7"(H)
Cooling: 8x8x32mm hot-swap fans plus 2x60x25mm exhaust fans
Power Supply: 460W/650W ATX or HRP
PCI Extension: 7 full-height and full-length slots
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Power and HDD LED's
System Boards: 12" x 13" ATX M/B
Speaker: 0.4W built-in
Drive Bay: 16x hot-swap drive bays for IDE or 15x hot-swap drive bays for SCA plus 2x5.25" . 1 x 5.25" slim CD-ROM + 1 x 3.5" slim FDD bays
Temperature: 0°C(32°F)~ 50°C(122°F)
Humidity: 5%~95% non-condensing

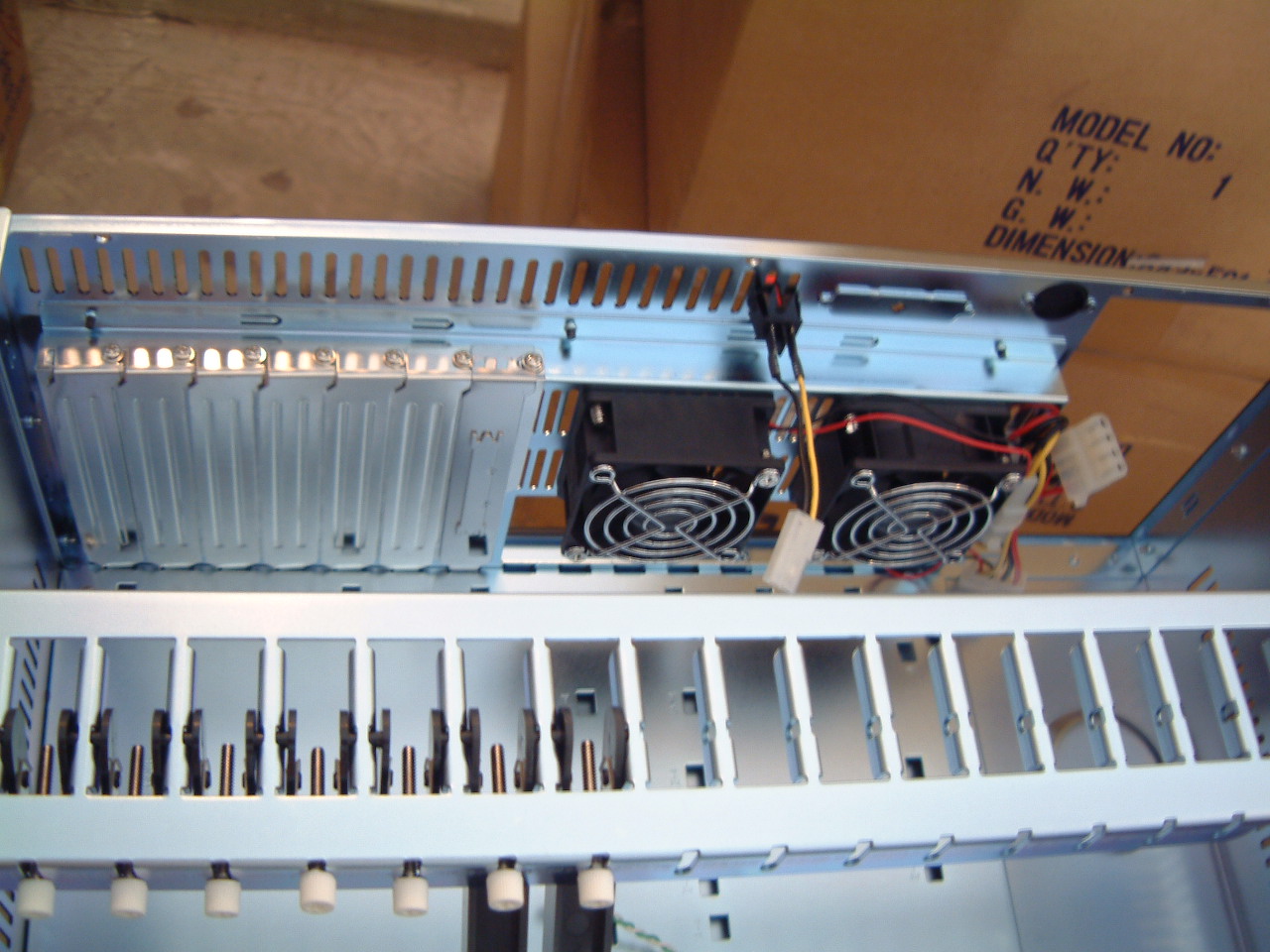

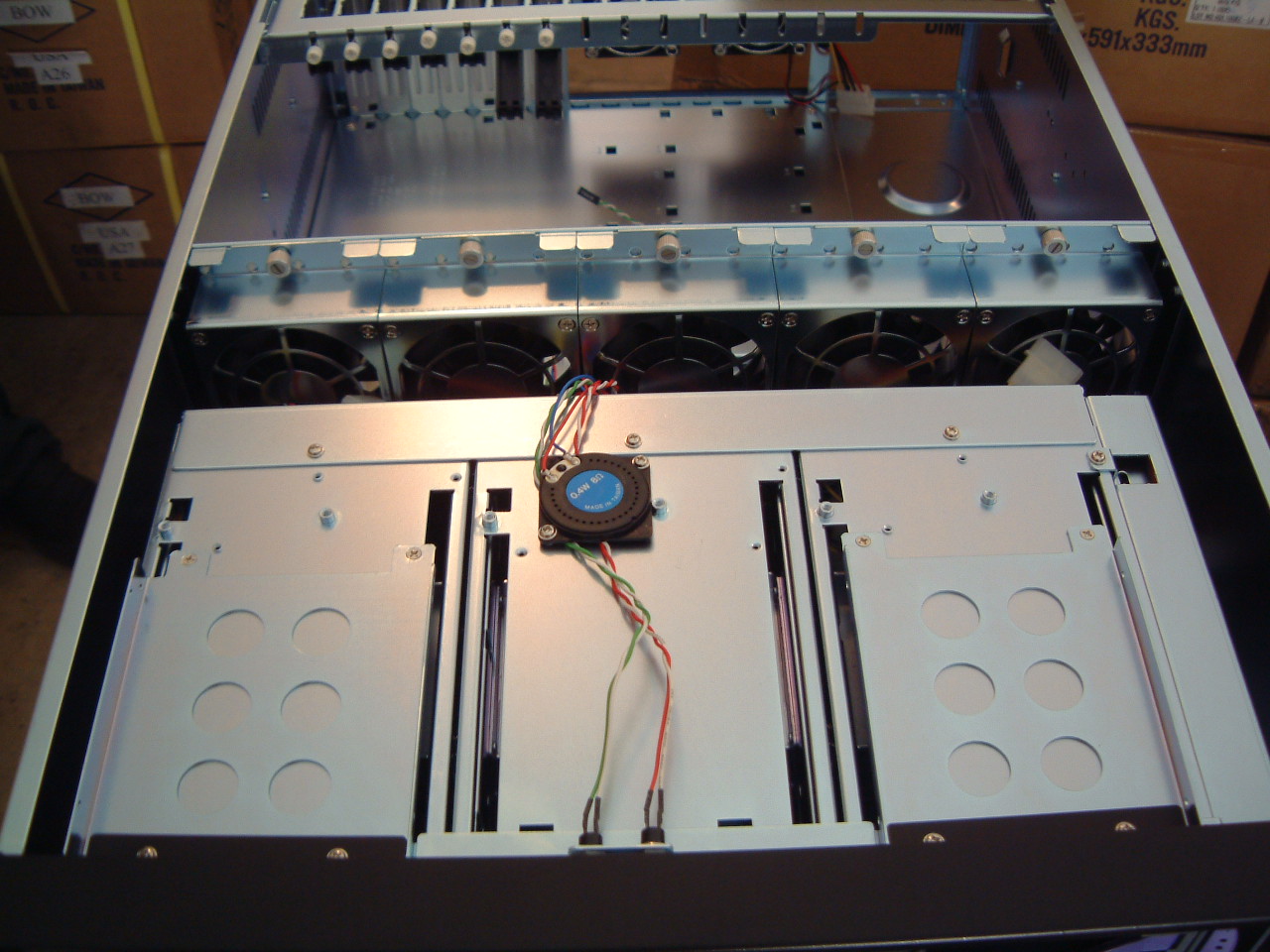

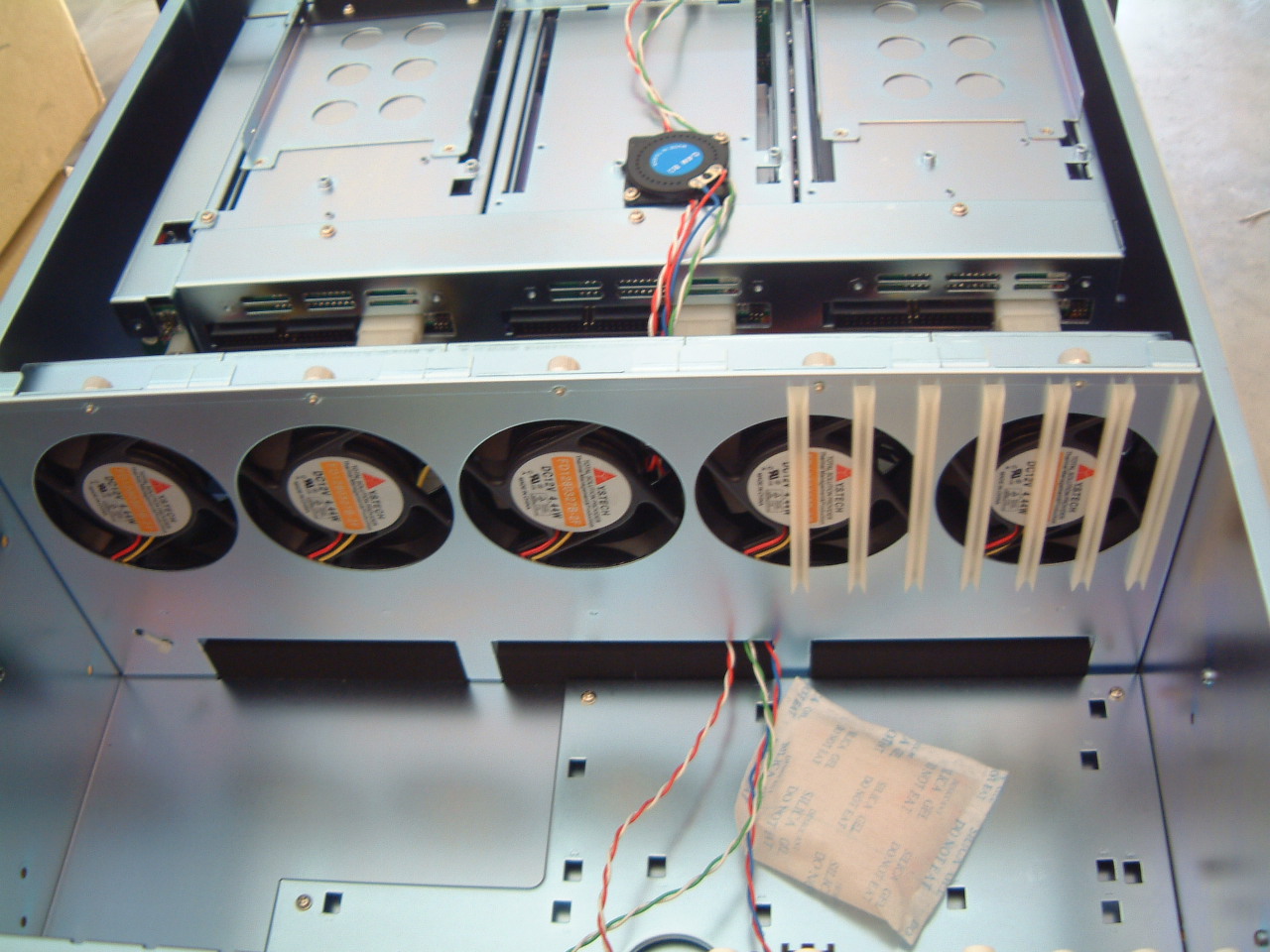

More photos - (click on the pictures for enlarged views)

FEATURES:
• 16x hot-swap IDE drive bays
• 460W N+1 hot-swap redundant power supply (upgradeable to 650W)
• 8x80x32mm hot-swap fans plus 2x60x25mm exhaust fans

APPLICATIONS: With 16 drive bays, you are already capable of creating a 4U Terabyte server. An excellent solution for media streaming, and massive data warehousing. Also ideal for RAID and NAS ready applications.

BENEFITS: With the capabilities of RAID and redundant power, it is characterized as a total fault resilient storage intensive chassis.
