     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

                                Industrial Display :   Part #   ID-06A
                                       6mm Aluminum Front Bezel 6.5"  Panel Mount Industrial  Displays
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

6.5 inch diagonal (129.6H x 97.4V)

Resolutions

640 x 480

Display Color

262,144 color

Brightness

400 cd/m2

Contrast ratio

600 : 1 (Typical)

Response Time

Tr=15 / Tf=25ms

Pixel pitch

0.203 x 0.203 mm

Viewing angle

60 / 60 / 40 / 55 (L / R / U / D)  or
120 /95

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Power Supply
External type, 110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video    Input
  • Video Input   :    S-Video and Composite
  • Input Connectors : RCA, S-video
  • Input Connectors : BNC, S-Video adapter   Details

    • Optional Touch Screen

                             Details

    Optional DC Power Input

     - 48V / 24V / 12V DC Power     Details
    Input Range:10~36V(DC-12V, DC-24V model)
                     36~75V (DC-48V model)
     DC power Output : DC 12V
    Voltage Accuracy    : +/- 1% (Max.)
    Safety  : Continuous short circuit protection

    Other options

    - NEMA4 / IP65 on front of LCD display              -TV turner [Signal Input : NTSC, PAL (I, B, G, H, M, D, N),
       SECAM (D, K, L, B, G)  / Connector : RF     ] with Remote
      controller                                                    - Remote controller only                                  - Audio Input
                                      Mechanical

    Material

     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension  254.7 x 65.8 x 182 mm (WxDxH)
    Product Weight  1.5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5~90%, non condensing
    Shock  10G peak acceleration
     (11ms duration)
    Vibration  5~500Hz, 1G RMS random vibration
    Safety Approval   CE, FCC

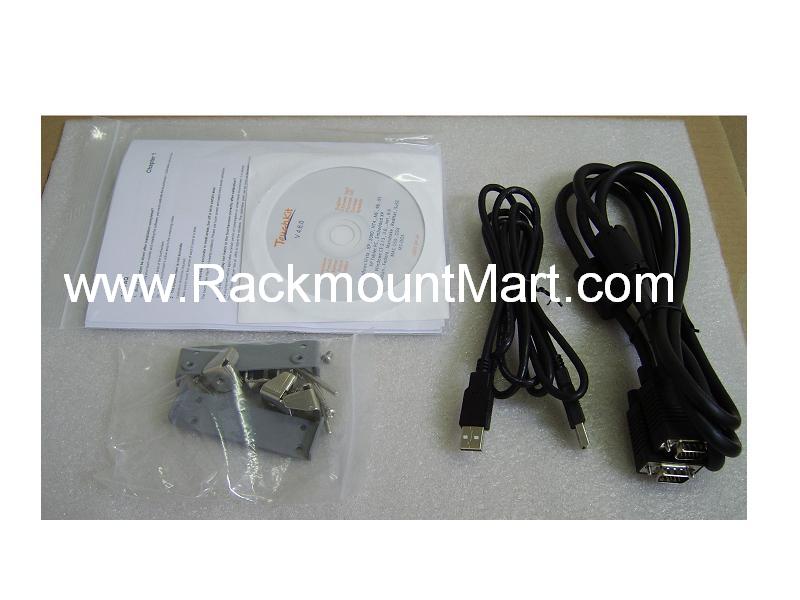

                                 Package Content

    Package Content

    		 LCD Monitor x 1 , VGA Cable (Male to Male) x 1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc, User Manual x 1

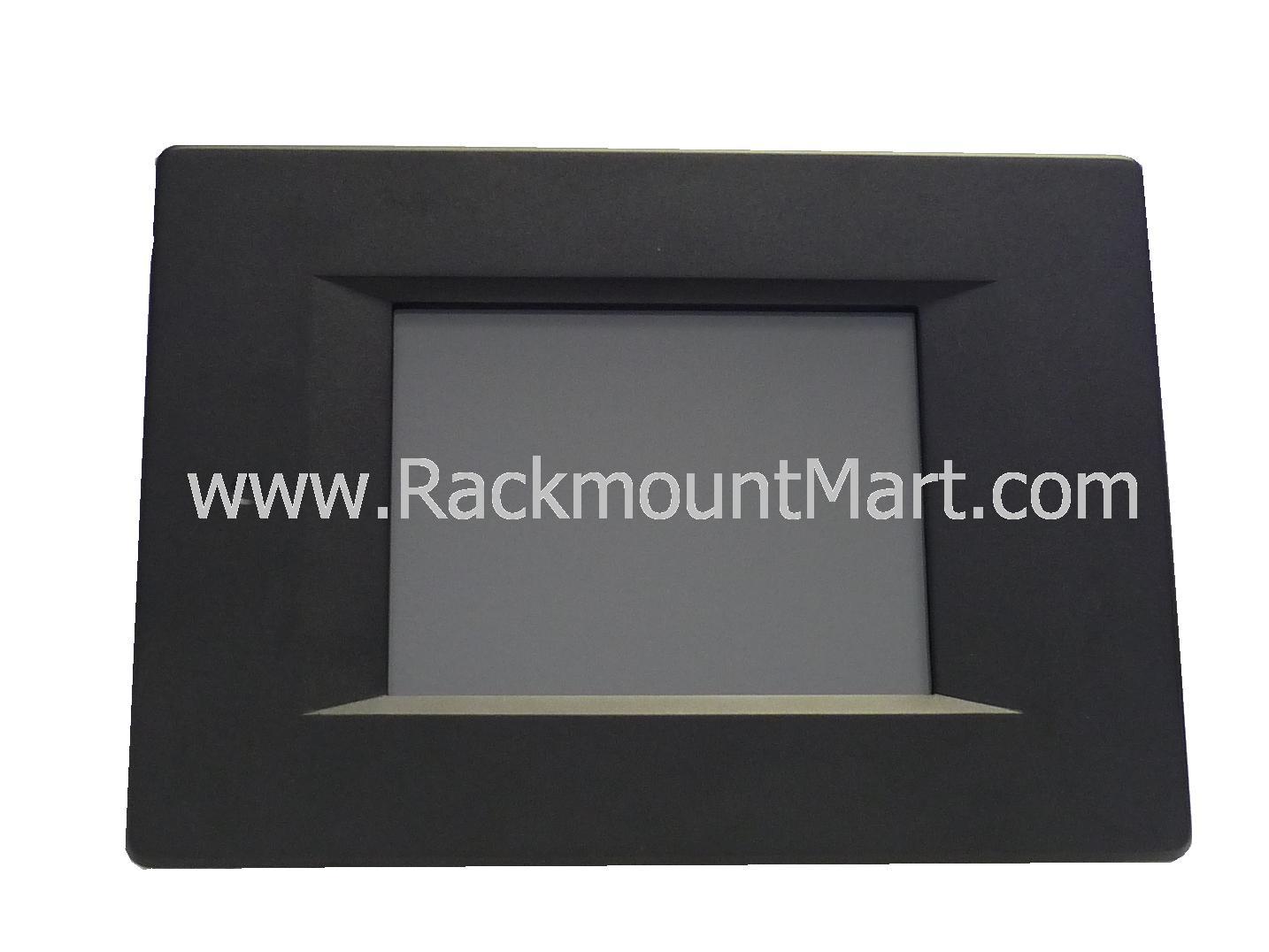

      Front View of  ID-06A



      Construction



       Front / Rear / Top / Side Views & Dimensions

          *click on above picture for enlarged view







                         ( VESA Mount /  Wall Mount )

    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7

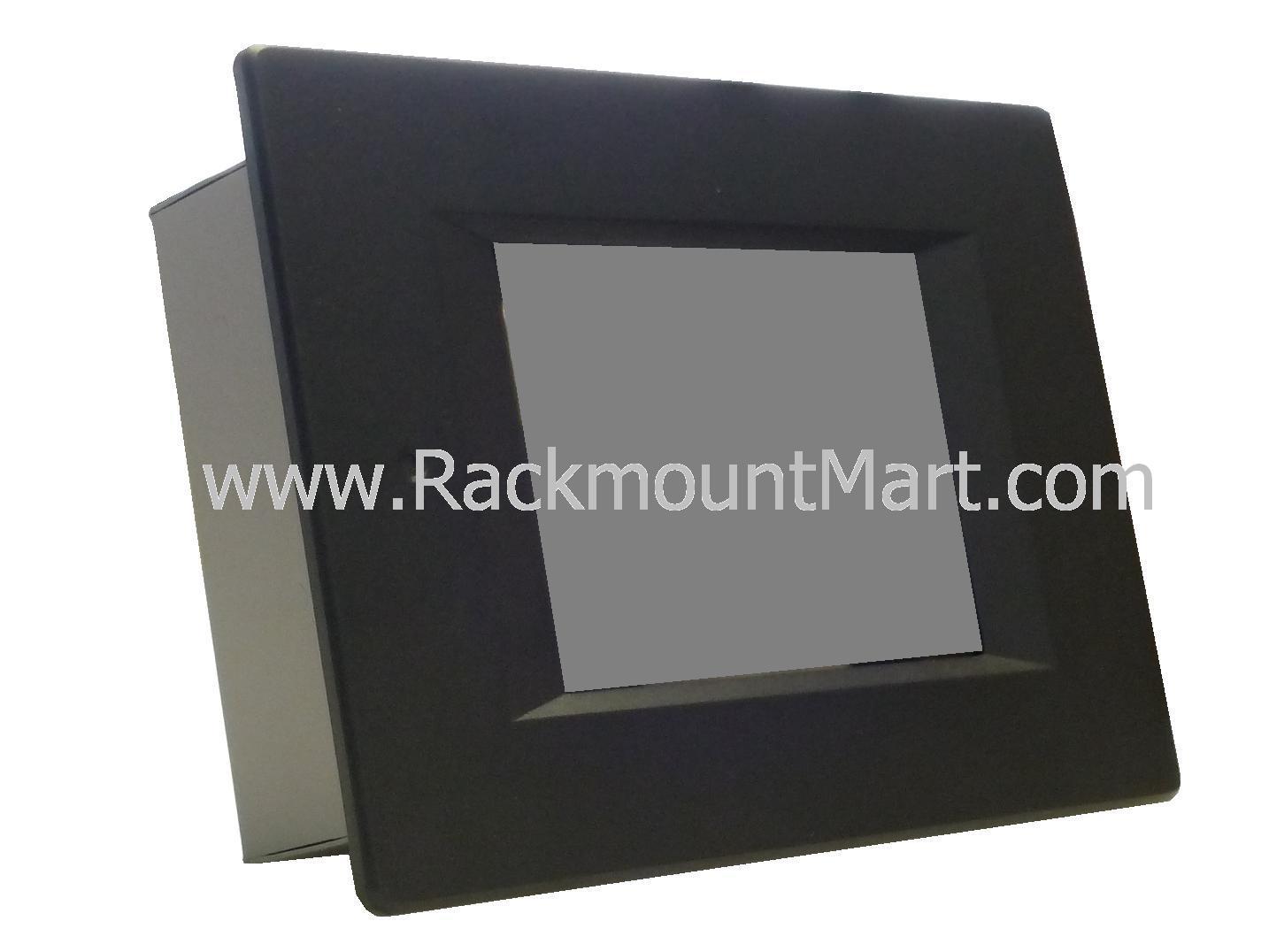

      More photos (click to enlarge )

    FEATURES :
    • 6.5" industrial TFT LCD panel support 640 x 480 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • 400 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC power input (12 / 24 / 48 VDC)
    • Optional video input   ( S-Video & RCA input or S-video & BNC  )
    • Optional touch screen, Optional NEMA 4 / IP 65 front protection
    • New Options:  TV turner with remote controller / remote controller only / Audio Input
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet




    Ordering information :
    Part # Description
     WITHOUT NEMA 4 / IP65
    ID-06A
    Price : $    410    		 Standard Version  - 6mm Aluminum Front Bezel 6.5" Industrial display
    ID-06A-AV
    Price : $    471    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + S-Video &
                               RCA
    ID-06A-BNC
    Price : $    471    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + S-Video & BNC
    ID-06A-TV
    Price : $    511    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + TV turner &
                               Remote Controller
    ID-06A-RM
    Price : $    464    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + Remote Controller
    ID-06A-SPK
    Price : $478    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + Audio Input
    ID-06A-DC12
    Price : $511    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + 12v DC Power
    ID-06A-DC24
    Price : $511    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + 24v DC Power
    ID-06A-DC48
    Price : $511    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + 48v DC Power
    ID-06A-TRS
    Price : $545    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display +
                               s-Resistive Touch screen & serial controller
    ID-06A-TRB
    Price : $545    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display +
                               s-Resistive Touch screen & USB controller
    ID-06A-TCS
    Price : $640    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display +
                               s-Capacitive Touch screen & serial controller
    ID-06A-TCB
    Price : $640    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display +
                               s-Capacitive Touch screen & USB controller
      With other options
    -AV
    Price :  + $61    		 + S-Video & RCA
    -BNC
    Price :  + $61    		 + S-Video &  BNC
    -TV
    Price :  + $101    		 + TV turner & Remote Controller
    -RM
    Price :  + $54    		 + Remote Controller
    -SPK
    Price :  + $68    		 + Audio Input
    -DC12
    Price :  + $101    		 add -12v DC to DC Power Input
    -DC24
    Price :  + $101    		 add -24v DC to DC  Power Input
    -DC48
    Price :  + $101    		 add -48v DC to DC  Power Input
     WITH NEMA 4 / IP65 on FRONT of LCD display panel
    ID-06A-N
    Price : $449    		 Standard Version  - 6mm Aluminum Front Bezel 6.5" Industrial display + NEMA 4 / IP65 on
                               front of LCD screen panel
    ID-06A-AV-N
    Price : $510    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + S-Video &
                               RCA  + NEMA 4 / IP65     on front of LCD screen panel
    ID-06A-BNC-N
    Price : $510    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + S-Video & BNC +
                               NEMA 4 / IP65     on front of LCD screen panel
    ID-06A-N-TV
    Price : $550    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + TV turner &
                               Remote Controller     + NEMA 4 / IP65 on front of LCD screen panel
    ID-06A-RM-N
    Price : $    503    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + Remote Controller
                               + NEMA 4 / IP65 on front of LCD screen panel
    ID-06A-SPK-N
    Price : $    517    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + Audio Input +
                               NEMA 4 / IP65 on front of LCD screen panel
    ID-06A-DC12-N
    Price : $550    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + 12v DC Power
                               +NEMA 4 / IP65     on front of LCD screen panel
    ID-06A-DC24-N
    Price : $550    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + 24v DC Power
                               +NEMA 4 / IP65     on front of LCD screen panel
    ID-06A-DC48-N
    Price : $550    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display + 48v DC Power
                               +NEMA 4 / IP65     on front of LCD screen panel
    ID-06A-TRS-N
    Price : $584    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display +
                               s-Resistive Touch screen & serial controller + NEMA 4 / IP65 on front
                               of LCD screen panel
    ID-06A-TRB-N
    Price :  $584    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display +
                               s-Resistive Touch screen & USB controller + NEMA 4 / IP65 on front
                               of LCD screen panel
    ID-06A-TCB-N
    Price :  $679    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display +
                               s-Capacitive Touch screen & USB controller + NEMA 4 / IP65 on front
                               of LCD screen panel
    ID-06A-TCS-N
    Price : $679    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" Industrial display +
                               s-    Capacitive Touch screen & serial controller + NEMA 4 / IP65 on
                                   front of LCD screen panel
      With other options
    -AV
    Price :  + $61    		 + S-Video & RCA
    -BNC
    Price :  + $61    		 + S-Video &  BNC
    -TV
    Price :  + $101    		 + TV turner & Remote Controller
    -RM
    Price :  + $54    		 + Remote Controller
    -SPK
    Price :  + $68    		 + Audio Input
    -DC12
    Price :  + $101    		 add -12v DC to DC Power Input
    -DC24
    Price :  + $101    		 add -24v DC to DC  Power Input
    -DC48
    Price :  + $101    		 add -48v DC to DC  Power Input
