     Home >>  Industrial Display >>  Industrial Touch Screen LCD >>    Panel Mount Style >>

     Industrial Touch Screen LCD in Panel Mount Style :   Part #   ID-06A-
                   6mm Aluminum Front Bezel 6.4"  Panel Mount Industrial  Displays  with Touch Screen
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial  TFT LCD Panel

Display Size

6.4 inch diagonal (129.6H x 97.4V)

Resolutions

640 x 480

Display Color

262,144 color

Brightness

400 cd/m2

Contrast ratio

600 : 1 (Typical)

Response Time

Tr=15 / Tf=25ms

Pixel pitch

0.203 x 0.203 mm

Viewing angle

60 / 60 / 40 / 55 (L / R / U / D)  or
120 /95

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Touch Screen

                         Details

Power Supply
External type, 110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video    Input
  • Video Input   :    S-Video and Composite
  • Input Connectors : RCA, S-video
  • Input Connectors : BNC, S-Video adapter   Details

    • Optional DC Power

     48V / 24V / 12V DC Power
    Input Range:10~36V(DC-12V, DC-24V model)
                     36~75V (DC-48V model)
     DC power Output : DC 12V
    Voltage Accuracy    : +/- 1% (Max.)
    Safety  : Continuous short circuit protection

    Other options

    - NEMA4 / IP65 on front of LCD display              -TV turner [ Signal Input : NTSC, PAL (I, B, G, H, M, D,
      N),  SECAM (D, K, L, B, G)  / Connector : RF     ] with
      Remote controller
    - Remote controller only                                  - Audio Input
                                      Mechanical

    Material

     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension  230 x 51 x 167 mm (WxDxH)
    Product Weight  1.5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -10 to 65 Degree Celsius (Storage)
    Relative Humidity  5 ~95%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    		 LCD Monitor x 1 , VGA Cable (Male to Male) x 1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc, User Manual x 1

      Front View of  ID-6A
      * without Touch screen



      Construction   * without Touch screen

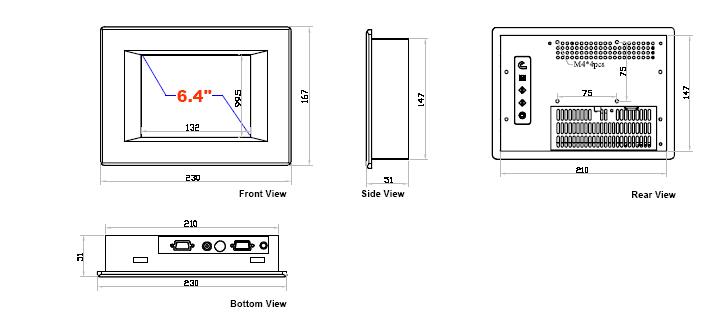

       Front / Rear / Top / Side Views & Dimensions
      * without Touch screen



          *click on above picture for enlarged view







                         ( VESA Mount /  Wall Mount )



    Touchscreen Drive Download(Resistive)
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE











    FEATURES :
    • 6.4" industrial TFT LCD panel support 640 x 480 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • 400 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC to DC power input (12 / 24 / 48 VDC)
    • Optional video input   ( S-Video & RCA input or S-video & BNC  )
    • Touch screen with optional NEMA 4 / IP 65 front protection
    • New Options:  TV turner with remote controller / remote controller only / Audio Input
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet






    Ordering information :
    Part # Description
                                                     NO NEMA 4 / IP65
    ID-06A-TRS
    Price : $641    		 6mm Aluminum Front Bezel 6.4" Industrial display +  s-Resistive Touch screen & serial controller
    ID-06A-TRB
    Price : $641    		 6mm Aluminum Front Bezel 6.4" Industrial display + s-Resistive Touch screen & USB controller
    ID-06A-TCS
    Price : $743    		 6mm Aluminum Front Bezel 6.4" Industrial display + s-Capacitive Touch screen & serial controller
    ID-06A-TCB
    Price : $743    		 6mm Aluminum Front Bezel 6.4" Industrial display + s-Capacitive Touch screen & USB controller
      With other options
    -AV
    Price :  + $61    		 + S-Video & RCA
    -BNC
    Price :  + $61    		 + S-Video &  BNC
    -TV
    Price :  + $101    		 + TV turner & Remote Controller
    -RM
    Price :  + $54    		 + Remote Controller
    -SPK
    Price :  + $68    		 + Audio Input
    -DC12
    Price :  + $101    		 add -12v DC to DC Power Input
    -DC24
    Price :  + $101    		 add -24v DC to DC  Power Input
    -DC48
    Price :  + $101    		 add -48v DC to DC  Power Input
                                                      WITH NEMA 4 / IP65 on Front of LCD screen panel
    ID-06A-TRS-N
    Price : $7    16    		  6mm Aluminum Front Bezel 6.4" Industrial display + s-Resistive Touch screen & serial controller + NEMA 4 / IP65 on front  of LCD screen panel
    ID-06A-TRB-N
    Price :  $7    16    		  6mm Aluminum Front Bezel 6.4" Industrial display +  s-Resistive Touch screen & USB controller + NEMA 4 / IP65 on front  of LCD screen panel
    ID-06A-TCS-N
    Price : $818    		  6mm Aluminum Front Bezel 6.4" Industrial display +  s-Capacitive Touch screen & serial controller + NEMA 4 / IP65 on  front of LCD screen panel
    ID-06A-TCB-N
    Price :  $818    		  6mm Aluminum Front Bezel 6.4" Industrial display +  s-Capacitive Touch screen & USB controller + NEMA 4 / IP65 on front  of LCD screen panel
      With other options
    -AV
    Price :  + $61    		 + S-Video & RCA
    -BNC
    Price :  + $61    		 + S-Video &  BNC
    -TV
    Price :  + $101    		 + TV turner & Remote Controller
    -RM
    Price :  + $54    		 + Remote Controller
    -SPK
    Price :  + $68    		 + Audio Input
    -DC12
    Price :  + $101    		 add -12v DC to DC Power Input
    -DC24
    Price :  + $101    		 add -24v DC to DC  Power Input
    -DC48
    Price :  + $101    		 add -48v DC to DC  Power Input
