Home >> Industrial Display >> Industrial Touch Screen LCD >> Chassis Display Style >>

Industrial Touch Screen LCD in Chassis Display Style : Part # ID-06D-

1.2mm Aluminum Front Bezel 6.4" Industrial Chassis Display with Touch Screen

LCD Panel
LCD Type	Grade A Industrial TFT LCD Panel
Display Size	6.4 inch diagonal (129.6H x 97.4V)
Resolutions	640 x 480
Display Color	262,144 color
Brightness	400 cd/m2
Contrast ratio	400 : 1 (Typical)
Response Time	Tr=15 / Tf=25ms
Pixel pitch	0.203 x 0.203 mm
Viewing angle	60 / 60 / 40 / 55 (L / R / U / D) or 120 /95
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	20,000 hrs
Signal Input	Input Video Signal : Analog RGB Video Level : Analog: 0.7Vp-p Sync Type : Separate H/V, Composite H/V Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size:108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
Touch Screen	Details
OPTIONS
Optional Video Input	Video Input :S-Video and Composite Input Connectors : RCA, S-video
Mechanical
Material	1.2mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Silver Back : Dark Grey (RAL7037)
Dimension	213 x 46 x 150 mm (WxDxH)
Product Weight	1.5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-6D
* without Touch screen

Construction * without Touch screen

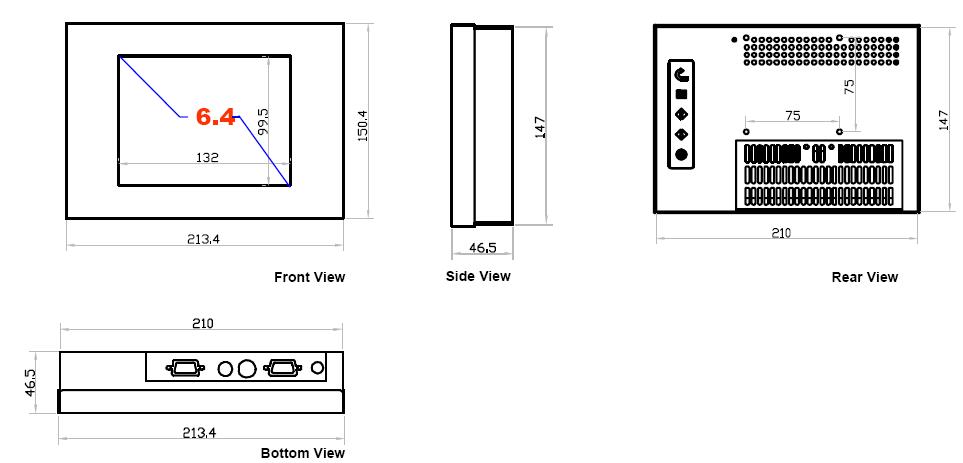

Front / Rear / Top / Side Views & Dimensions
* without Touch screen

*click on above picture for enlarged view

FEATURES :

6.4" industrial TFT LCD panel support 640 x 480 pixels

1.2mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

Low power consumption

400 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional DC power input (12 / 24 / 48V DC)

Optional video input (S-Video & RCA input)

VESA-mount, OEM mounting design

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part # Description

                                                 WITHOUT NEMA 4 / IP65

ID-06DTRS
Price : $669 Version w/option - 1.2mm Aluminum Front Bezel 6.4" Industrial display +
                           e-Resistive Touch screen & serial controller

ID-06DTRB
Price : $669 Version w/option - 1.2mm Aluminum Front Bezel 6.4" Industrial display +
                           e-Resistive Touch screen & USB controller

ID-06DTCS
Price : $858 Version w/option - 1.2mm Aluminum Front Bezel 6.4" Industrial display +
                          3M Capacitive Touch screen & serial controller

ID-06DTCB
Price : $858 Version w/option - 1.2 mm Aluminum Front Bezel 6.4" Industrial display +
                           3M Capacitive Touch screen & USB controller
