Industrial LCD
:
Part #
ID-08A
6mm Aluminum Front Bezel 8.4" Panel Mount Industrial
LCD Display
|
LCD Panel |
|
LCD Type |
Grade A Industrial TFT LCD Panel |
|
Display Size |
8.4 inch diagonal
(170.4H x 127.8V) |
|
Resolutions
|
800 x 600 |
|
Display Color |
262,144 color |
|
Brightness
|
220
cd/m2
|
|
Contrast
ratio
|
500
: 1 (Typical) |
|
Response Time
|
Tr=10 / Tf=25ms |
|
Pixel
pitch
|
0.213 x 0.213 mm |
|
Viewing
angle
|
65 / 65 / 55 / 55
(L / R / U / D) or
130 / 110 |
|
OSD Control |
Brightness,
Contrast, Phase & Color, H & V
position,
Auto-tune & Recall |
|
LCD MTBF |
50,000
hrs |
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level :
Analog: 0.7Vp-p
-Sync Type :
Separate H/V, Composite H/V
-Input Connector : D-Sub
15 pin VGA analog |
|
Power Supply |
External type,
110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC
Output,
Adapter size : 18(W)x64(H)x30Dmm, UL & CE
|
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
Optional Video Input |
Video
Input : S-Video and Composite
Input Connectors : RCA,
S-video
Input Connectors : RCA-BNC adapter
Details
|
|
Optional Touch Screen |
Details
|
|
Optional DC Power |
48V / 24V / 12V DC Power
Details
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit
protection |
|
Mechanical |
|
Material
|
6mm
Aluminum (Front panel)
1.2mm Steel (Rear case) |
|
Finish
|
Powder Coating |
|
Color |
Front
Panel : Black
Back : Dark Grey
(RAL7037) |
|
Dimension |
264 x 60.8 x 192 mm
(WxDxH) |
|
Product Weight |
2.5 kg |
|
Environmental |
Temperature
|
0 to 50
Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
|
Relative Humidity
|
5~90%, non
condensing |
|
Shock
|
10G peak
acceleration
(11ms duration) |
|
Vibration |
5~500Hz, 1G RMS random vibration |
|
Safety Approval |
CE,
FCC |
|
Package Content |
|
Package Content |
LCD Monitor x 1 , VGA Cable (Male
to Male) x
1, DC 12V adapter x1 , Power
cord x 1, Mounting Bracket x 1 pair, CD disc,
User Manual x
1 |
|

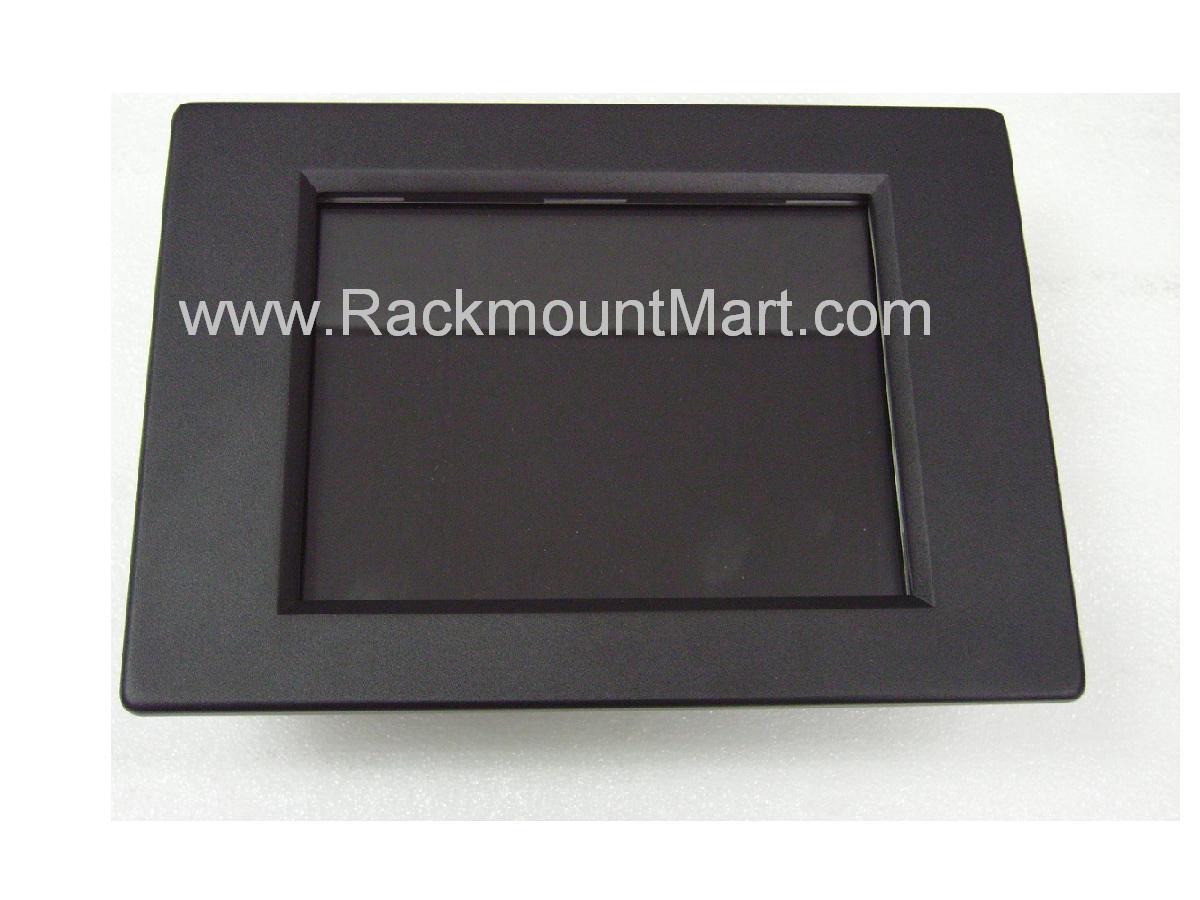

Front View of ID-8A
Construction
Front / Rear / Top / Side Views & Dimensions
*click on
above picture for enlarged view
( VESA Mount / Wall Mount )
|
|

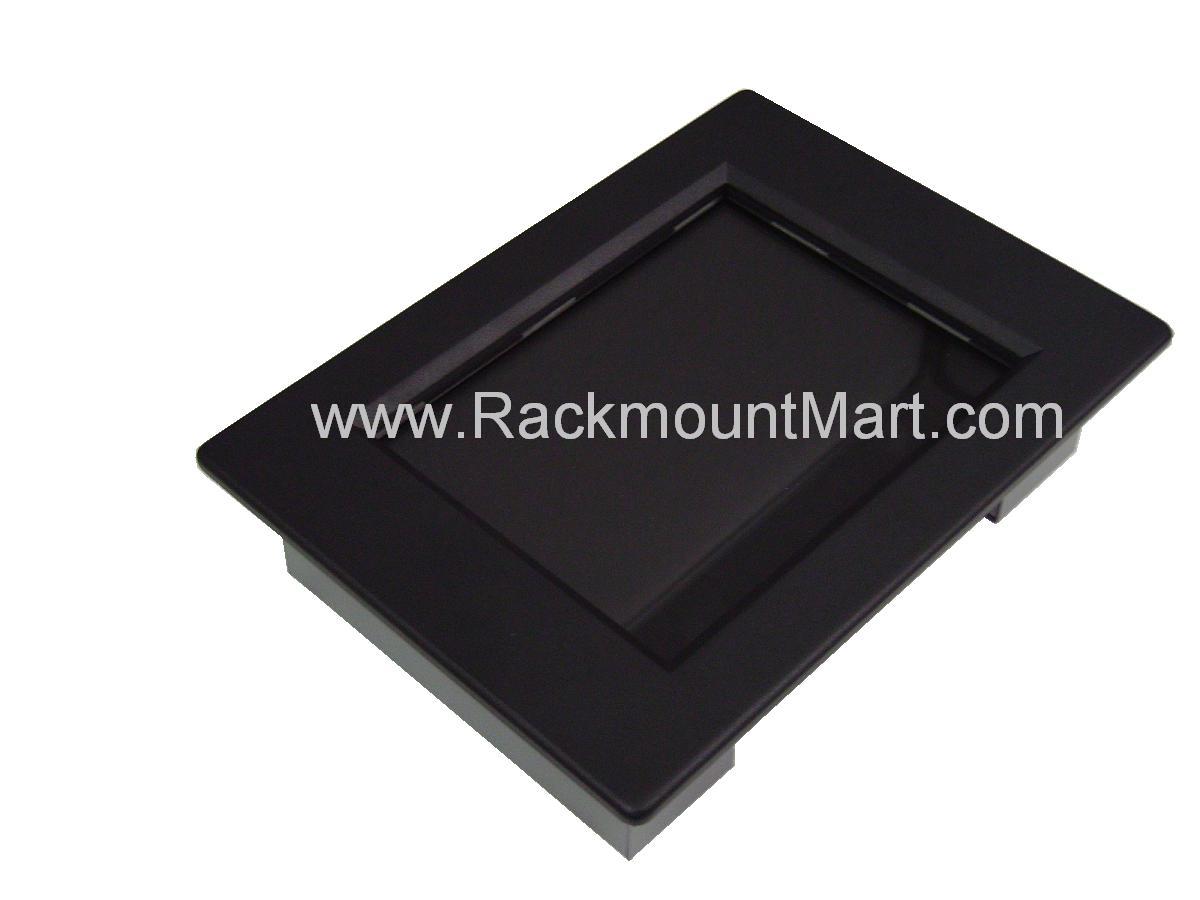

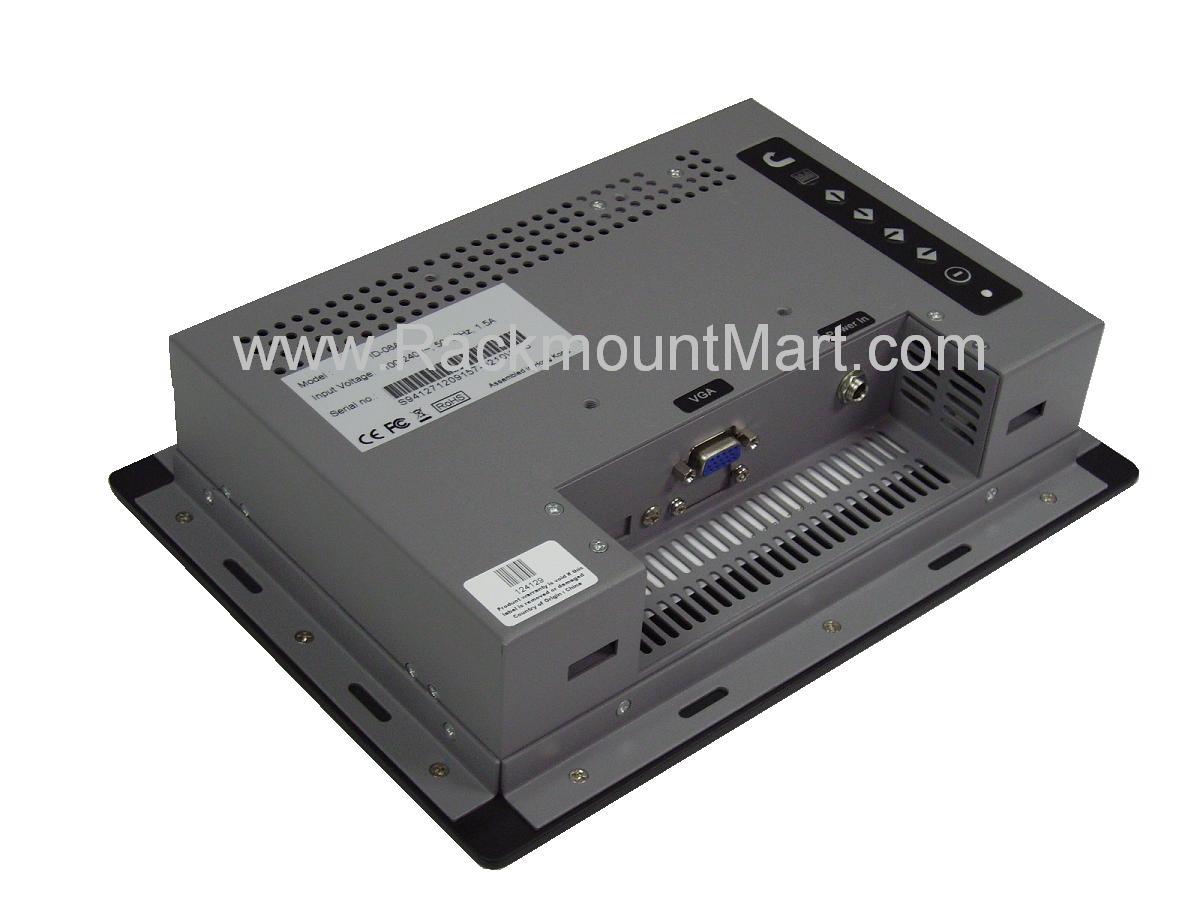

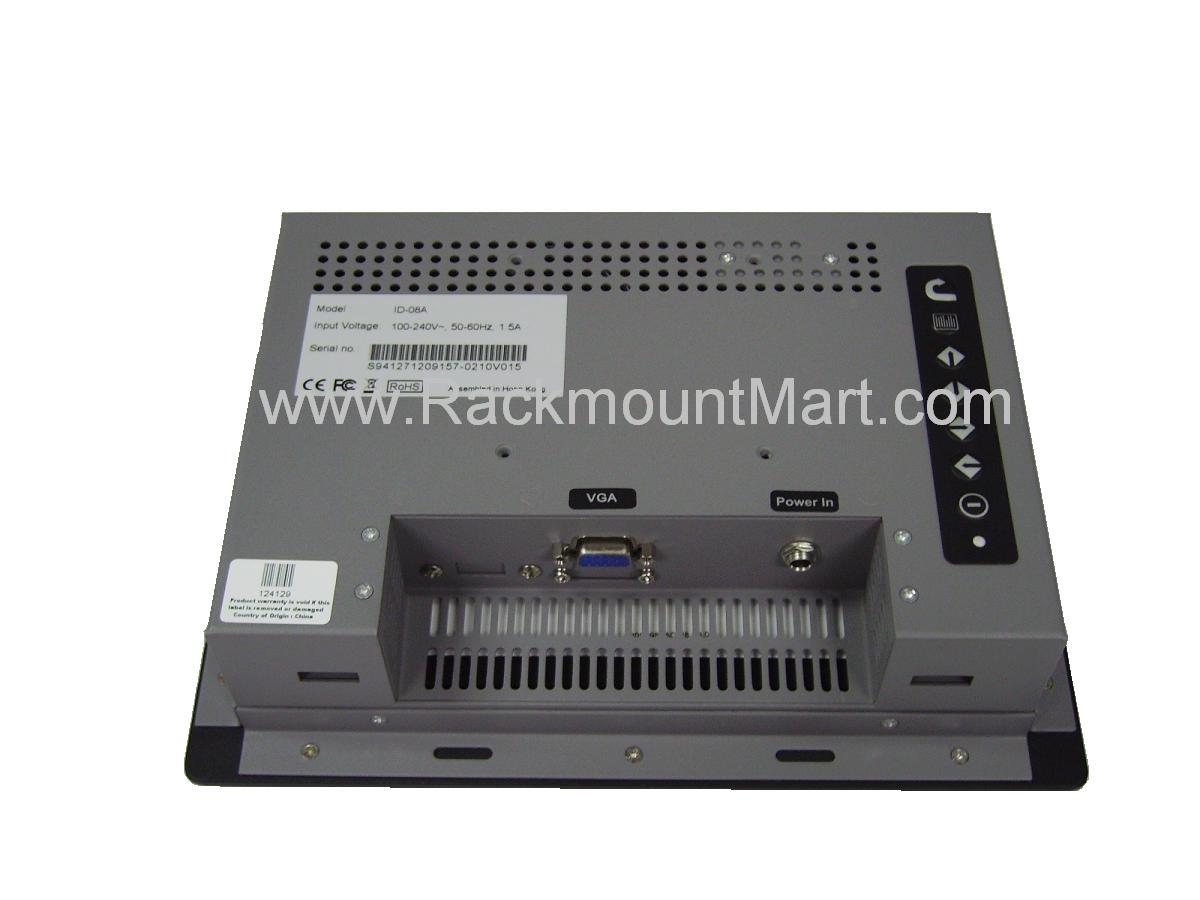

More photos (click to enlarge )
|
FEATURES :
- 8.4" industrial TFT LCD panel support 800 x 600 pixels
- 6mm Aluminum front bezel with 45 degree chamfer
- Rugged construction and modularized design
- 220 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Optional DC power input (12 / 24 / 48 VDC)
- Optional video input (S-Video & RCA input)
- Optional touch screen, NEMA 4 / IP 65 front protection
- Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM
mounting design etc. )
APPLICATIONS :
- Embedded display Unit
- Industrial automation
LCD panel
- Gaming, lottery & amusement display
- Touch screen display panel
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and
Instrumentation
Diagram for I/O Outlet
Ordering
information :
|
Part # |
Description |
|
WITHOUT NEMA 4 / IP65 |
ID-08A
Price : $455 |
Standard Version -
6mm Aluminum
Front Bezel 8.4" Industrial display |
ID-08AAV
Price : $516 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + S-Video &
Composite video(RCA) |
ID-08ABNC
Price : $516 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + S-Video &
Composite video(BNC) |
ID-08ADC12
Price : $556 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + 12v DC Power |
ID-08ADC24
Price : $556 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + 24v DC Power |
ID-08ADC48
Price : $556 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + 48v DC Power |
ID-08ATRS
Price : $604 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display +
Resistive Touch screen
& serial controller |
ID-08ATRB
Price : $604 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display +
Resistive Touch screen
& USB controller |
ID-08ATCS
Price : $712 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display +
Capacitive Touch screen
& serial controller |
ID-08ATCB
Price : $712 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display +
Capacitive Touch screen
& USB controller |
-AV
Price : $61 |
Add Composite video(RCA) + S-video |
-BNC
Price : $61 |
Add Composite video(BNC) + S-video |
-TV
Price : $101 |
Add TV tuner with remote controller |
-12VDC
Price : $101 |
Add 12V DC Power |
-24VDC
Price : $101 |
Add 24V DC Power |
-48VDC
Price : $101 |
Add 48V DC Power |
-SPK
Price : $68 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
|
WITH NEMA 4
/ IP65 |
ID-08AN
Price : $494 |
Standard Version -
6mm Aluminum
Front Bezel 8.4" Industrial display + NEMA 4 / IP65 |
ID-08AAVN
Price : $555 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + S-Video &
Composite video(RCA)
+ NEMA 4 / IP65 |
ID-08ABNCN
Price : $555 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + S-Video &
Composite video(BNC)
+ NEMA 4 / IP65 |
ID-08ADC12N
Price : $595 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + 12v DC Power
+NEMA
4 / IP65 |
ID-08ADC24N
Price : $595 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + 24v DC Power
+NEMA
4 / IP65 |
ID-08ADC48N
Price : $595 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display + 48v DC Power
+NEMA
4 / IP65 |
ID-08ATRSN
Price : $643 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display +
Resistive Touch screen
& serial controller + NEMA 4 / IP65 |
ID-08ATRBN
Price : $643 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display +
Resistive Touch screen
& USB controller + NEMA 4 / IP65 |
ID-08ATCSN
Price : $751 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display +
Capacitive Touch screen
& serial controller + NEMA 4 / IP65 |
ID-08ATCBN
Price : $751 |
Version w/option -
6mm Aluminum
Front Bezel 8.4" Industrial display +
Capacitive Touch screen
& USB controller + NEMA 4 / IP65 |
-AV
Price : $61 |
Add Composite video(RCA) + S-video |
-BNC
Price : $61 |
Add Composite video(BNC) + S-video |
-TV
Price : $101 |
Add TV tuner with remote controller |
-12VDC
Price : $101 |
Add 12V DC Power |
-24VDC
Price : $101 |
Add 24V DC Power |
-48VDC
Price : $101 |
Add 48V DC Power |
-SPK
Price : $68 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
