Industrial Touch Screen LCD in Panel Mount Style : Part # ID-10A-

6mm Aluminum Front Bezel 10.4" Panel Mount Industrial LCD Displays with TouchScreen

LCD Panel
LCD Type	Grade A Industrial TFT LCD Panel
Display Size	10.4 inch diagonal (211.2H x 158.4V)
Resolutions	800 x 600
Display Color	262,144 color
Brightness	230 cd/m2
Contrast ratio	500 : 1 (Typical)
Response Time	Tr=15 / Tf=25ms
Pixel pitch	0.264 x 0.264 mm
Viewing angle	60 / 60 / 35 / 65 (L / R / U / D) or 120 / 100
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Touch Screen	Details
Signal Input	-Input Video Signal : Analog RGB -Video Level : Analog: 0.7Vp-p -Sync Type : Separate H/V, Composite H/V -Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	-Video Input : S-Video and Composite -Input Connectors : RCA, S-video
Optional DC Power	48V / 24V / 12V DC Power Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	6mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Black Back : Dark Grey (RAL7037)
Dimension	275 x 47 x 215 mm (WxDxH)
Product Weight	2.5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 65 Degree Celsius (Storage)
Relative Humidity	5 ~95%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Safety Approval	CE, FCC

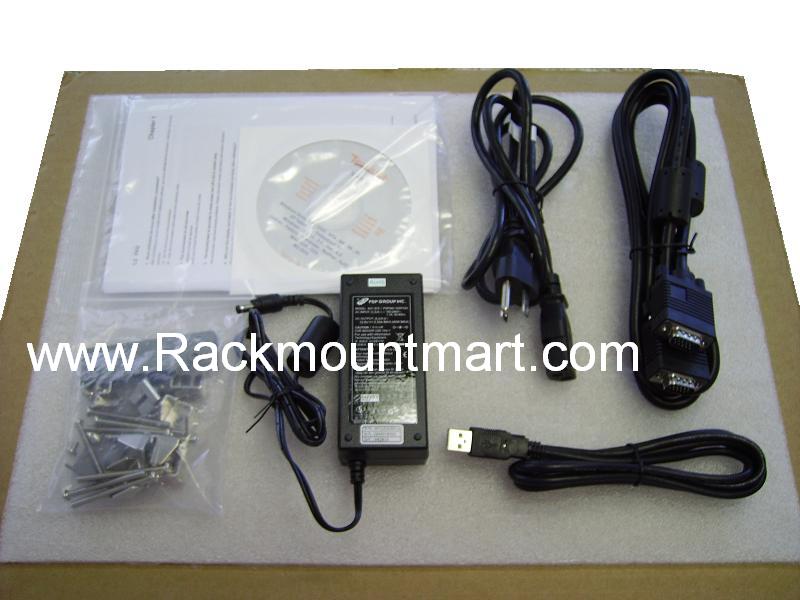

Package Content
Package Content	LCD Monitor x 1, VGA Cable (Male to Male) x1, DC 12V adapter x1 ,Power cord x 1,Mounting Bracket x 1 pair, CA disc, User Manual x 1

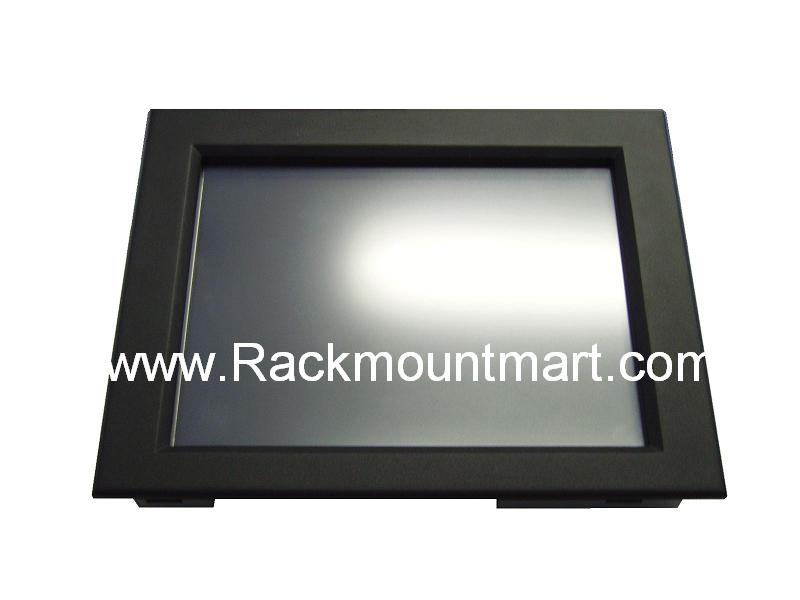

Front View of ID-10A
* without Touch screen

Construction * without Touch screen

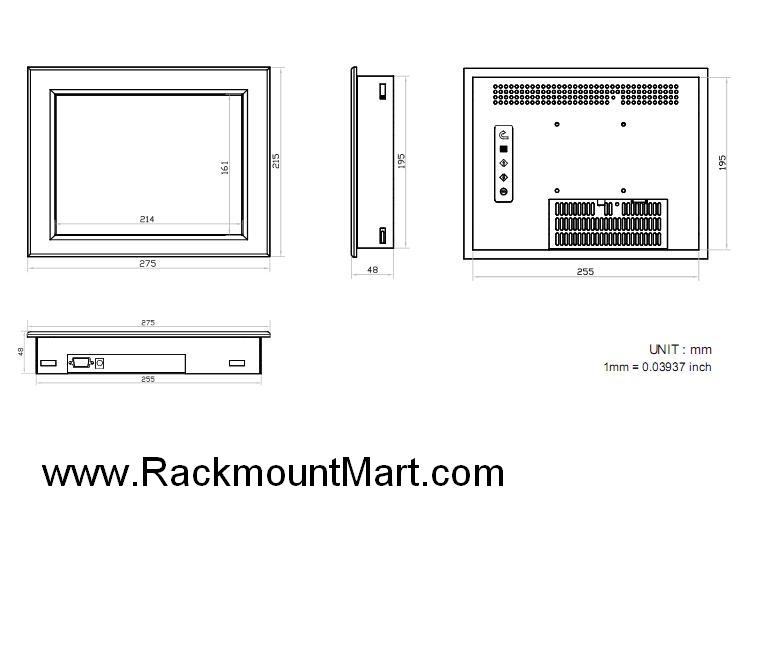

Front / Rear / Top / Side Views & Dimensions
* without Touch screen

*click on above picture for enlarged view

( VESA Mount / Wall Mount )

FEATURES :

10.4" industrial TFT LCD panel support 800 x 600 pixels

6mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

230 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional DC power input (12 / 24 / 48 VDC)

Optional video input (S-Video & RCA input)

Optional touch screen, NEMA 4 / IP 65 front protection

Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

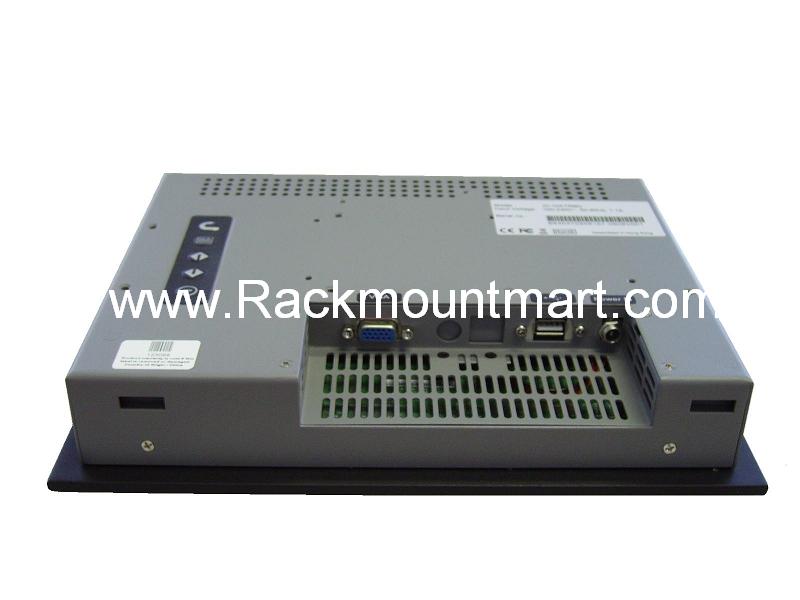

Diagram for I/O Outlet

Ordering information :

Part # Description

                                                 WITHOUT NEMA 4 / IP65

ID-10ATRS
Price : $736 Version w/option - 6mm Aluminum Front Bezel 10.4" Industrial display +
                           e-Resistive Touch screen & serial controller

ID-10ATRB
Price : $736 Version w/option - 6mm Aluminum Front Bezel 10.4" Industrial display +
                           e-Resistive Touch screen & USB controller

ID-10ATCS
Price : $1061 Version w/option - 6mm Aluminum Front Bezel 10.4" Industrial display +
                          3M Capacitive Touch screen & serial controller

ID-10ATCB
Price : $1061 Version w/option - 6mm Aluminum Front Bezel 10.4" Industrial display +
                           3M Capacitive Touch screen & USB controller

                                                  WITH NEMA 4 / IP65

ID-10ATRSN
Price : $818 Version w/option - 6mm Aluminum Front Bezel 10.4" Industrial display +
                           e-Resistive Touch screen & serial controller + NEMA 4 / IP65

ID-10ATRBN
Price : $818 Version w/option - 6mm Aluminum Front Bezel 10.4" Industrial display +
                           e-Resistive Touch screen & USB controller + NEMA 4 / IP65
