     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

                     Industrial Flat Panel Display :   Part #   ID-12A
                          6mm Aluminum Front Bezel 12.1" Panel Mount  Industrial Flat Panel Display
                                                  LCD Panel

LCD Type

 LG Grade A Industrial
 TFT LCD Panel

Display Size

12.1 inch diagonal (246.0H x 184.5V)

Resolutions

800 x 600

Display Color

262,144 color

Brightness

400 cd/m2

Contrast ratio

600 : 1 (Typical)

Response Time

Tr=10 / Tf=25ms

Pixel pitch

0.307 x 0.307 mm

Viewing angle

80 / 80 / 55 / 55 (L / R / U / D)  or
160 / 110

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

 -Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply
External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm,UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input
  • Video Input   :    S-Video and Composite
  • Input Connectors : RCA, S-video
  • Input Connectors : RCA-BNC adapter  Details

    • Optional Touch Screen

                     Details

    Optional DC Power

     48V / 24V / 12V DC Power
    Input Range:10~36V(DC-12V, DC-24V model)
                     36~75V (DC-48V model)
     DC power Output : DC 12V
    Voltage Accuracy    : +/- 1% (Max.)
    Safety  : Continuous short circuit protection
                                      Mechanical

    Material

     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension  326 x 59 x 270 mm (WxDxH)
    Product Weight  3.0 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -10 to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~90%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    		 LCD Monitor x 1 , VGA Cable (Male to Male) x 1,   DC 12V adapter  x1 ,  Power cord x 1,
    Mounting Bracket x 1 pair, CA disc,
    User Manual x 1

      Front View of  ID-12A



      Construction

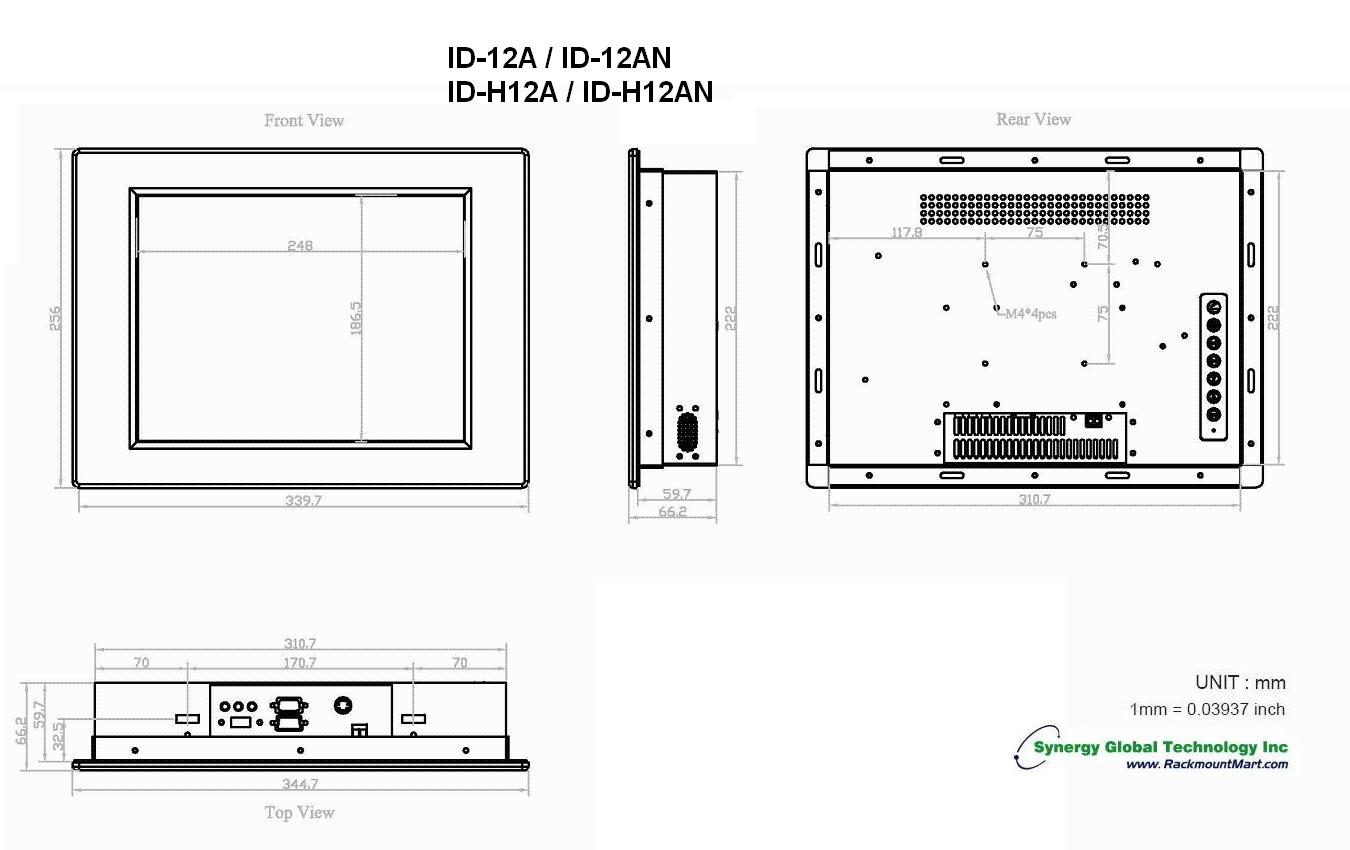

       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view







                         ( VESA Mount /  Wall Mount )



    Touchscreen Drive Download(Resistive)
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE









    FEATURES :
    • 12.1" industrial TFT LCD panel support 800 x 600 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • 300 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC power input (12 / 24 / 48 VDC)
    • Optional video input (S-Video & RCA input)
    • Optional touch screen, NEMA 4 / IP 65 front protection
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet






    Ordering information :
    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-12A
    Price : $601    		 Standard Version  - 6mm Aluminum Front Bezel 12.1" Industrial display
    ID-12AAV
    Price : $662    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + S-Video &
                              Composite video(RCA)
    ID-12ABNC
    Price : $662    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + S-Video &
                              Composite video(BNC)
    ID-12ADC12
    Price : $702    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + 12v DC Power
    ID-12ADC24
    Price : $702    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + 24v DC Power
    ID-12ADC48
    Price : $702    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + 48v DC Power
    ID-12ATRS
    Price : $817    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display +
                               e-Resistive Touch screen & serial controller
    ID-12ATRB
    Price : $817    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display +
                               e-Resistive Touch screen & USB controller
    ID-12ATCS
    Price : $939    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display +
                              e-Capacitive Touch screen & serial controller
    ID-12ATCB
    Price : $939    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display +
                               e-Capacitive Touch screen & USB controller
    -AV
    Price : $61    		 Add Composite video(RCA) + S-video
    -BNC
    Price : $61    		 Add Composite video(BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -12VDC
    Price : $101    		 Add 12V DC Power
    -24VDC
    Price : $101    		 Add 24V DC Power
    -48VDC
    Price : $101    		 Add 48V DC Power
    -SPK
    Price : $68    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
                                                      WITH NEMA 4 / IP65
    ID-12AN
    Price : $676    		 Standard Version  - 6mm Aluminum Front Bezel 12.1" Industrial display + NEMA 4 / IP65
    ID-12AAVN
    Price : $737    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + S-Video &
                               Composite video(RCA) + NEMA 4 / IP65
    ID-12ABNCN
    Price : $737    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + S-Video &
                               Composite video(BNC) + NEMA 4 / IP65
    ID-12ADC12N
    Price : $777    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + 12v DC
                               Power +NEMA 4 / IP65
    ID-12ADC24N
    Price : $777    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + 24v DC
                               Power +NEMA 4 / IP65
    ID-12ADC48N
    Price : $777    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display + 48v DC
                               Power +NEMA 4 / IP65
    ID-12ATRSN
    Price : $892    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display +
                               e-Resistive Touch screen & serial controller + NEMA 4 / IP65
    ID-12ATRBN
    Price : $892    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display +
                               e-Resistive Touch screen & USB controller + NEMA 4 / IP65
    ID-12ATCSN
    Price : $1014    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display +
                               e-Capacitive Touch screen & serial controller + NEMA 4 / IP65
    ID-12ATCBN
    Price : $1014    		 Version w/option  - 6mm Aluminum Front Bezel 12.1" Industrial display +
                               e-Capacitive Touch screen & USB controller + NEMA 4 / IP65
    -AV
    Price : $61    		 Add Composite video(RCA) + S-video
    -BNC
    Price : $61    		 Add Composite video(BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -12VDC
    Price : $101    		 Add 12V DC Power
    -24VDC
    Price : $101    		 Add 24V DC Power
    -48VDC
    Price : $101    		 Add 48V DC Power
    -SPK
    Price : $68    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
