Home >> Industrial Display >> Open Frame LCD Monitor >>

Industrial Flat Panel Monitor : Part # ID-15P

15" Open Frame TFT LCD Display

LCD Panel
LCD Type	Samsung Grade A Industrial TFT LCD Panel
Display Size	15 inch diagonal (304.13H x 228.1V)
Resolutions	1024 x 768
Display Color	16.2M color
Brightness	Min. 250 cd/m2
Contrast ratio	400 : 1 (Typical)
Response Time	Tr=15 / Tf=25ms
Pixel pitch	0.297 x 0.297 mm
Viewing angle	65 / 65 / 50 / 60 (L / R / U / D) or 130 / 110
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	-Input Video Signal : Analog RGB -Video Level : Analog: 0.7Vp-p -Sync Type : Separate H/V, Composite H/V -Input Connector : D-Sub 15 pin VGA analog
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	Video Input : S-Video and Composite Input Connectors : RCA, S-video
Optional Touch Screen	Details
Optional DC Power	48V / 24V / 12V DC Power Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	1.2mm Steel
Dimension	399 x 50 x 309 mm (WxDxH)
Product Weight	3.5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Shock	10G peak acceleration (11ms duration)
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

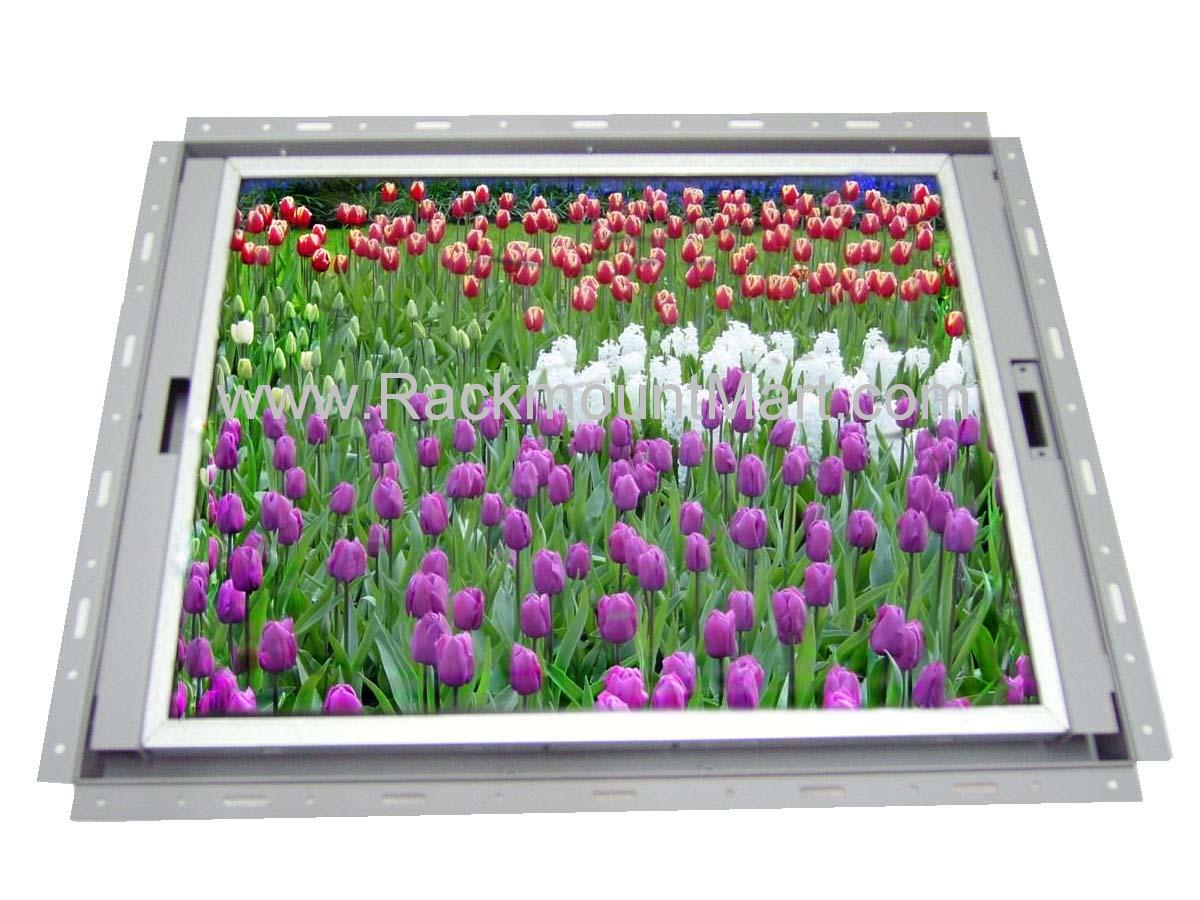

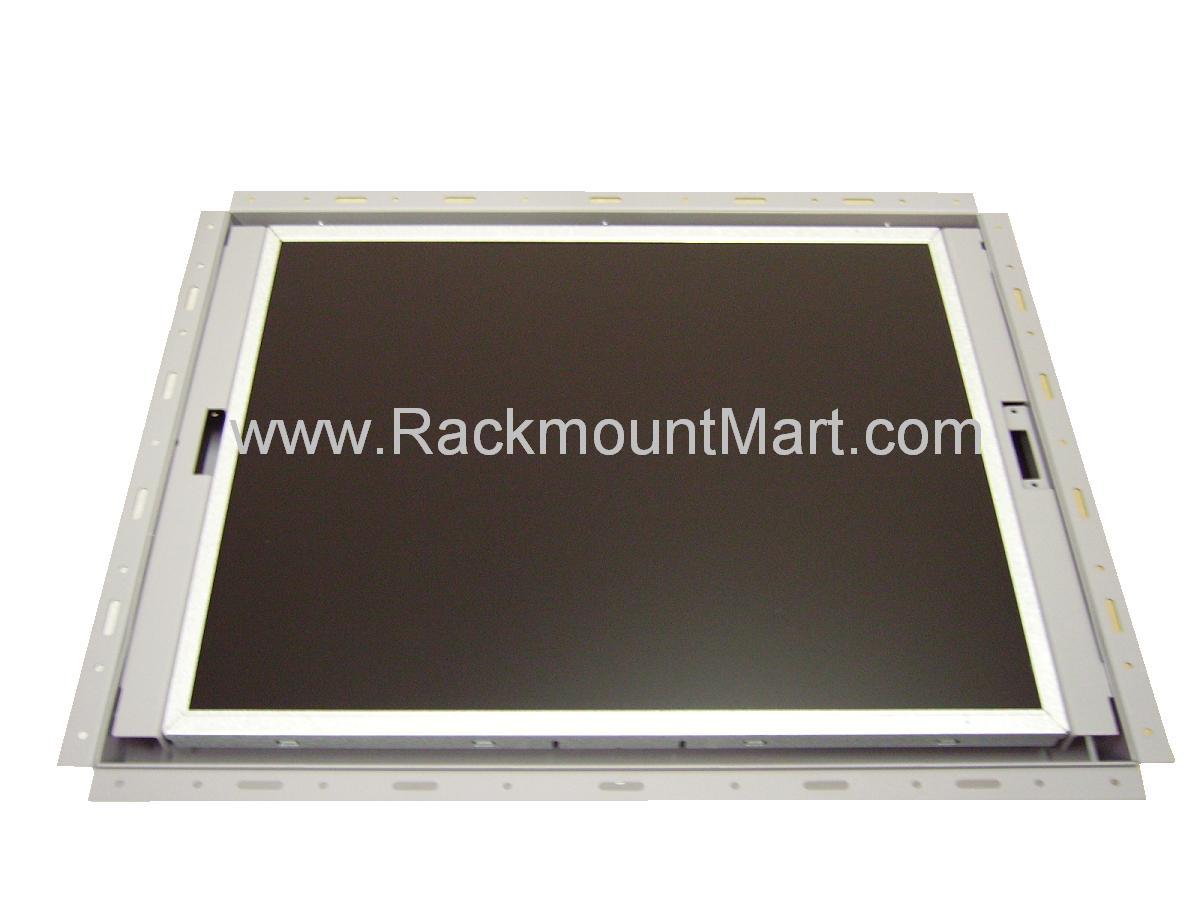

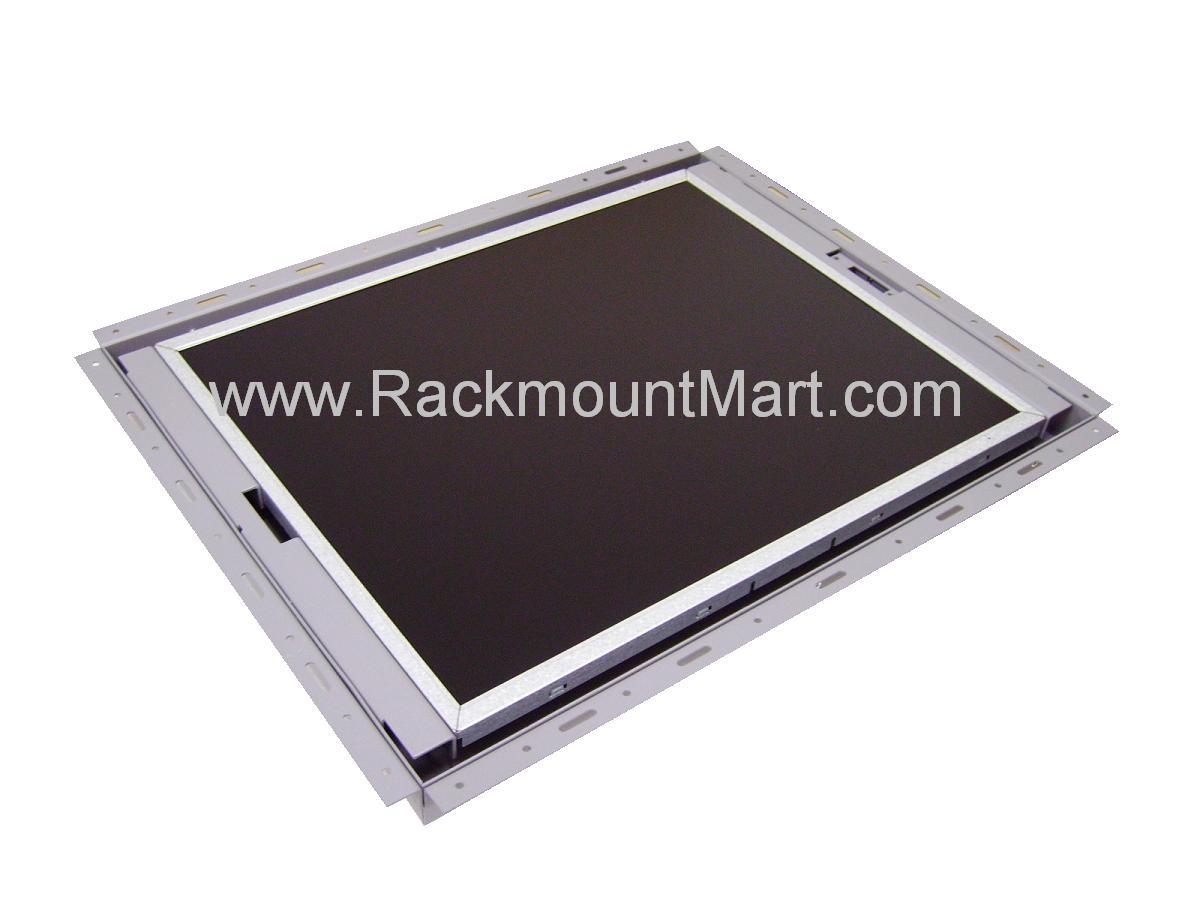

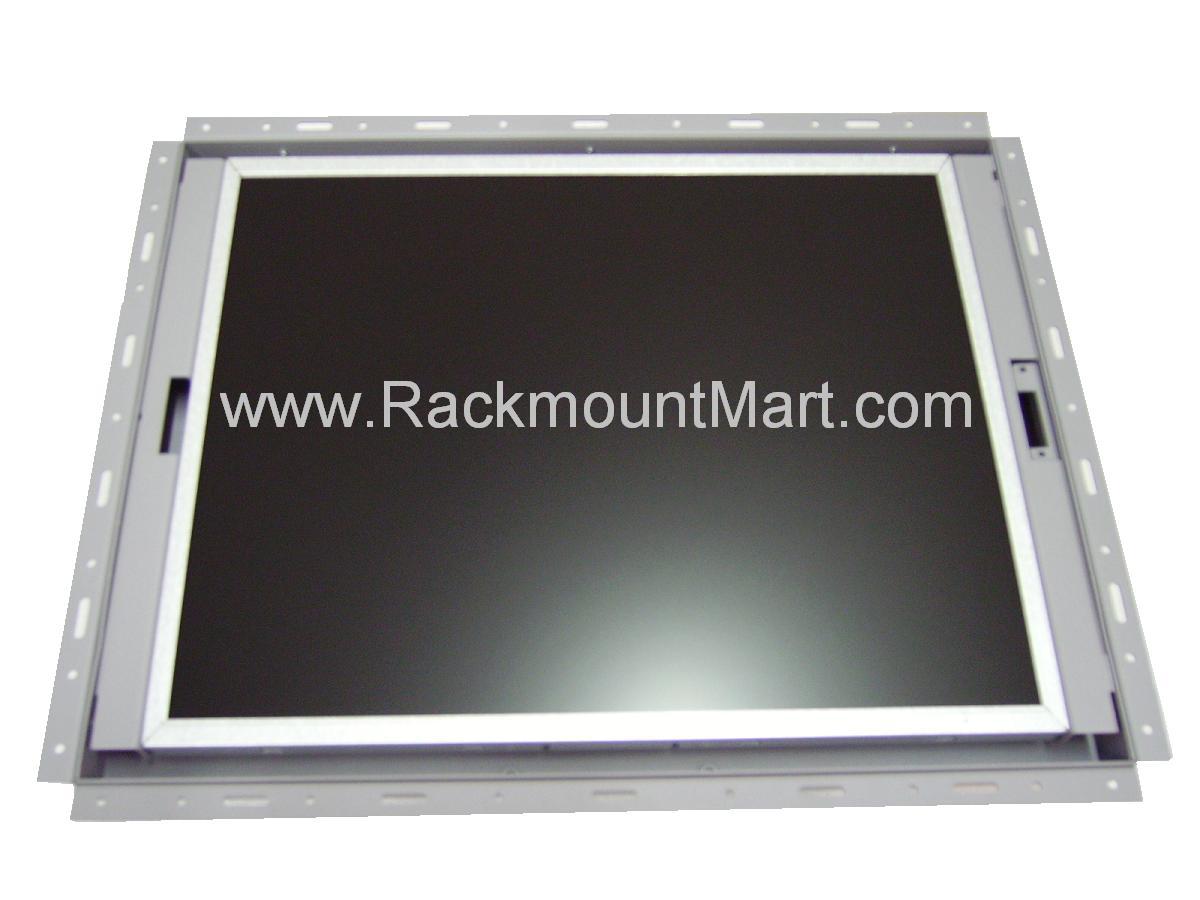

Front View of ID-15P

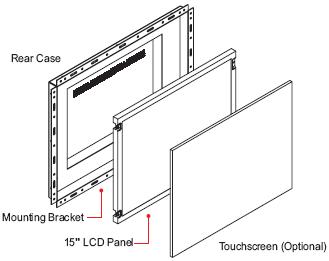

Construction

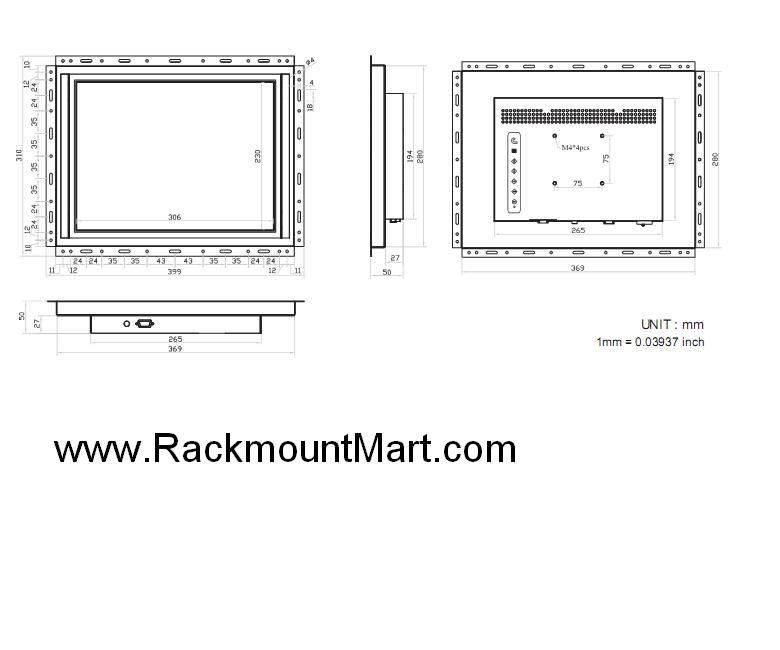

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

FEATURES :

15" industrial TFT LCD panel support 1024 x 768 pixels

Min 250 cd/m2 industrial brightness

OSD control keys to optimize the display

Low power consumption

Modularized design

Optional video input (S-Video & RCA input)

Optional with touch screen and DC power input

Low power consumption

Universal open frame kits

Universal-mount, OEM mounting

APPLICATIONS :

Industrial automation LCD panel
Embedded display Unit
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

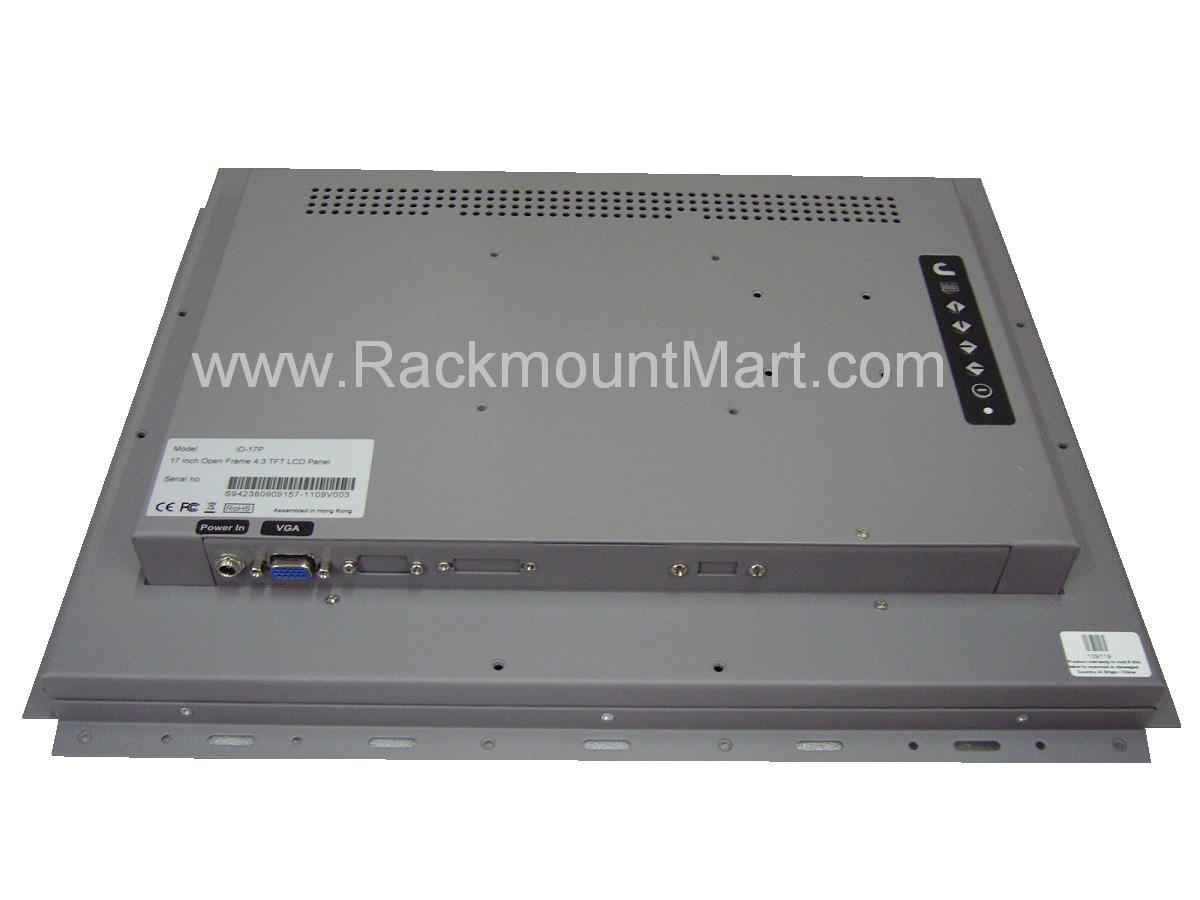

Diagram for I/O Outlet

Ordering information :

Part # Description

                                                 WITHOUT NEMA 4 / IP65

ID-15P
Price : $493 Standard Version - 15" Open Frame TFT LCD Display

ID-15PAV
Price : $547 Version w/option - 15" Open Frame TFT LCD Display + S-Video &
                           Composite Video

ID-15PBNC
Price : $547 Version w/option - 15" Open Frame TFT LCD Display + BNC

ID-15PDC12
Price : $601 Version w/option - 15" Open Frame TFT LCD Display + 12v DC Power

ID-15PDC24
Price : $601 Version w/option - 15" Open Frame TFT LCD Display + 24v DC Power

ID-15PDC48
Price : $601 Version w/option - 15" Open Frame TFT LCD Display + 48v DC Power

ID-15PTRS
Price : $750 Version w/option - 15" Open Frame TFT LCD Display +
                           e-Resistive Touch screen & serial controller

ID-15PTRB
Price : $750 Version w/option - 15" Open Frame TFT LCD Display +
                           e-Resistive Touch screen & USB controller

ID-15PTCS
Price : $1074 Version w/option - 15" Open Frame TFT LCD Display +
                          3M Capacitive Touch screen & serial controller

ID-15PTRB
Price : $1074 Version w/option - 15" Open Frame TFT LCD Display +
                           3M Capacitive Touch screen & USB controller
