Home >> Industrial Display >> Chassis Display >>

Industrial LCD Monitors : Part # ID-17Dw

1.2mm Aluminum Front Bezel 17" Wide Screen Chassis Display

LCD Panel
LCD Type	Grade A Industrial TFT LCD Panel
Display Size	Wide 17 inch (16:9)
Resolutions	1280 x 768
Display Color	16.2M color
Brightness	400 cd/m2
Contrast ratio	450 : 1 (Typical)
Response Time	Tr=15 / Tf=25ms
Pixel pitch	0.289 x 0.289 mm
Viewing angle	70 / 70 / 50 / 60 (L / R / U / D) or 140 / 110
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	Input Video Signal : Analog RGB Video Level : Analog: 0.7Vp-p Sync Type : Separate H/V, Composite H/V Input Connector : D-Sub 15 pin VGA analog
Buildt-in Video Input	Video Input : S-Video and Composite Input Connectors : RCA, S-video
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	TV Input:TV tuner with audio speaker-out Input Connectors : TV tuner with 3.5mm audio jack DVI Input : DVI-D digital input Input Connectors : DVI-D (male)
Mechanical
Material	1.2mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Silver Back : Dark Grey (RAL7037)
Dimension	421 x 54 x 271 mm (WxDxH)
Product Weight	5.0 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CA disc, User Manual x 1

Front View of ID-17Dw

Construction

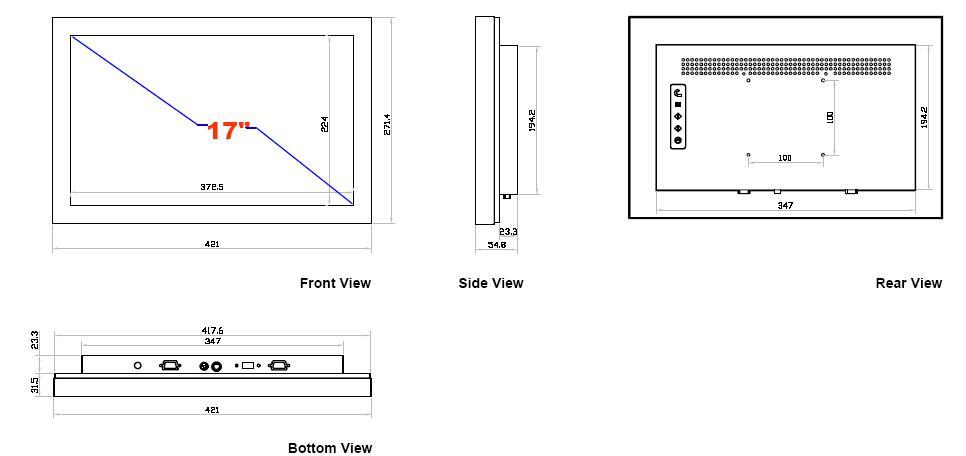

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

FEATURES :

17"(16:9) industrial TFT LCD panel support 1280 x 768 pixels

1.2mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

Low power consumption

400 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional video input (TV tuner & DVI)

VESA-mount, OEM mounting design

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part # Description

WITHOUT NEMA 4 / IP65

ID-17Dw
Price : $769 Standard Version - 1.2mm Aluminum Front Bezel 17" Industrial display

ID-17DwDC12
Price : $823 Version w/option - 1.2mm Aluminum Front Bezel 17" Industrial display + 12v DC Power
