Industrial Monitor :
Part #
ID-17P
17" Samsung Open Frame TFT LCD Display
|
LCD Panel |
|
LCD Type |
 Samsung
Grade A Industrial
TFT LCD Panel |
|
Display Size |
17 inch diagonal (337.92H x 270V) |
|
Resolutions
|
1280 x 1024 |
|
Display Color |
16.2M color |
|
Brightness
|
300
cd/m2
|
|
Contrast ratio
|
1000 : 1 (Typical) |
|
Response Time
|
Tr=1.3 / Tf=3.7ms |
|
Pixel pitch
|
0.264 x 0.264 mm |
|
Viewing angle
|
80 / 80 / 80 / 80 (L / R / U / D)
or
160 / 160 |
|
OSD Control |
Brightness, Contrast, Phase &
Color, H & V
position, Auto-tune & Recall |
|
LCD MTBF |
50,000
hrs |
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level :
Analog: 0.7Vp-p
-Sync Type :
Separate H/V, Composite H/V
-Input Connector : D-Sub
15 pin VGA analog |
|
Power Supply |
External type,10 ~ 220 VAC at 50 or 60Hz via
AC adapter
(12V), 12V DC Output,
Adapter size :
108(W)x64(H)x30Dmm, UL & CE
|
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
Optional Video Input |
-
Video
Input : DVI and S-Video and Composite and BNC
-
Input Connectors : RCA,
S-video, DVI
|
|
Optional Touch Screen |
Details
 |
|
Optional DC Power |
48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V,
DC-24V model)
36~75V (DC-48V model)
DC power Output
: DC 12V
Voltage Accuracy:
+/- 1% (Max.)
Safety : Continuous short circuit protection |
|
Mechanical |
|
Material
|
1.2mm
Steel |
|
Dimension |
416 x 50 x 334
mm (WxDxH) |
|
Product Weight |
4.5 kg |
|
Environmental |
|
Temperature |
0 to 50 Degree
Celsius (Operation)
-10 to 60 Degree Celsius (Storage) |
|
Relative Humidity |
5 ~90%, non
condensing |
|
Vibration |
5~500Hz 1G RMS
random vibration |
|
Safety Approval |
CE, FCC |
|
Package Content |
|
Package Content |
LCD Monitor x 1 , VGA Cable (Male
to Male) x
1, DC 12V adapter x1 , Power
cord x 1, Mounting Bracket x 1 pair, CD disc,
User Manual x
1 |
|
Front View of ID-17P

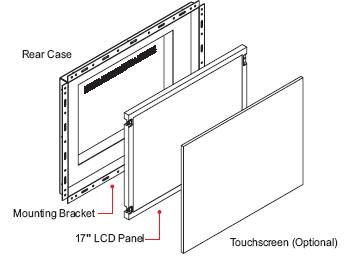

Construction

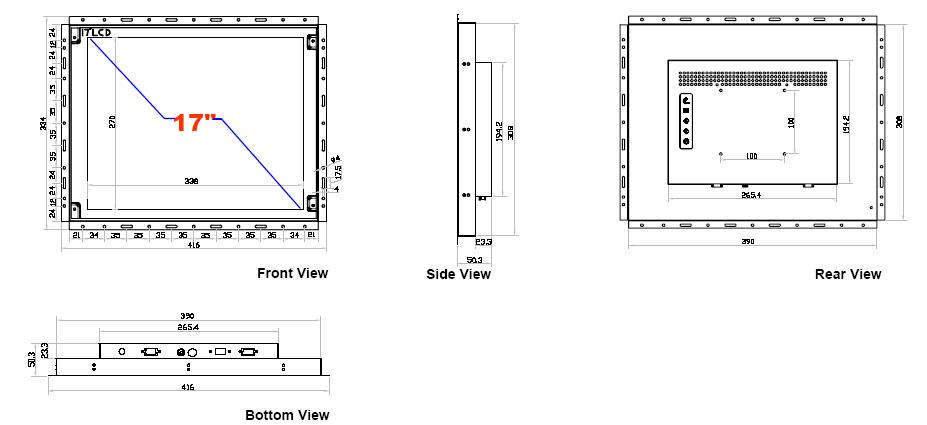

Front / Rear / Top / Side Views & Dimensions
*click
on above picture for enlarged view
|
|
More Photos, click on the following for enlarged view:
FEATURES :
- 17" industrial TFT LCD panel support 1280 x 1024 pixels
- 300 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Low power consumption
- Modularized design
- Optional video input (DVI & S-Video & RCA input)
- Optional with touch screen and DC power input
- Low power consumption
- Universal open frame kits
- Universal-mount, OEM mounting
APPLICATIONS :
- Industrial automation LCD panel
- Embedded display Unit
- Gaming, lottery & amusement display
- Touch screen display panel
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and
Instrumentation
Diagram for I/O Outlet
Ordering
information :
|
Part # |
Description |
|
WITHOUT NEMA 4 / IP65 |
ID-17P
Price : $453 |
Standard Version -
17" Samsung Open Frame TFT LCD Display |
ID-17PDVI
Price : $561 |
Version w/option -
17" Samsung Open Frame TFT LCD Display + DVI |
ID-17PAV
Price : $514 |
Version w/option -
17" Samsung Open Frame TFT LCD Display + S-Video &
Composite video(RCA) |
ID-17PBNC
Price : $514 |
Version w/option -
17" Samsung Open Frame TFT LCD Display + S-Video &
Composite video(BNC) |
ID-17PDC12
Price : $615 |
Version w/option -
17" Samsung Open Frame TFT LCD Display + 12v DC Power |
ID-17PDC24
Price : $615 |
Version w/option -
17" Samsung Open Frame TFT LCD Display + 24v DC Power |
ID-17PDC48
Price : $615 |
Version w/option -
17" Samsung Open Frame TFT LCD Display + 48v DC Power |
ID-17PTRS
Price : $737 |
Version w/option -
17" Samsung Open Frame TFT LCD Display +
e-Resistive Touch screen
& serial controller |
ID-17PTRB
Price : $737 |
Version w/option -
17" Samsung Open Frame TFT LCD Display +
e-Resistive Touch screen
& USB controller |
ID-17PTCS
Price : $912 |
Version w/option -
17" Samsung Open Frame TFT LCD Display +
e-Capacitive Touch
screen & serial controller |
ID-17PTRB
Price : $912 |
Version w/option -
17" Samsung Open Frame TFT LCD Display +
e-Capacitive Touch
screen & USB controller |
-DVI
Price : $108 |
Add DVI |
-AV
Price : $61 |
Add Composite video(RCA) + S-video |
-BNC
Price : $61 |
Add Composite video(BNC) + S-video |
-TV
Price : $101 |
Add TV tuner with remote controller |
-QD
Price : $635 |
Add Quad display |
-12VDC
Price : $162 |
Add 12V DC Power |
-24VDC
Price : $162 |
Add 24V DC Power |
-48VDC
Price : $162 |
Add 48V DC Power |
-SPK
Price : $68 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
