Industrial LCD Monitor
:
Part #
ID-19Aw
6mm Aluminum Front Bezel 19" Samsung Panel Mount
Wide Screen Industrial
Monitor
|
LCD Panel |
|
LCD Type |
 Samsung Grade A Industrial
TFT LCD Panel |
|
Display Size |
Wide 19 inch (16:9) |
|
Resolutions
|
1440 x 900 |
|
Display Color |
16.7M color |
|
Brightness
|
300
cd/m2
|
|
Contrast
ratio
|
1000
: 1 (Typical) |
|
Response Time
|
Tr=1.3 / Tf=3.7ms |
|
Pixel
pitch
|
0.283 x 0.283 mm |
|
Viewing
angle
|
80 / 80 / 80 / 80
(L / R / U / D) or
160 / 160 |
|
OSD Control |
Brightness,
Contrast, Phase & Color, H & V
position,
Auto-tune & Recall |
|
LCD MTBF |
50,000
hrs |
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level :
Analog: 0.7Vp-p
-Sync Type :
Separate H/V, Composite H/V
-Input Connector : D-Sub
15 pin VGA analog |
|
Built-in Video Input |
-Video
Input : S-Video and Composite
-Input Connectors : RCA,
S-video |
|
Power Supply |
External type,
110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC
Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
Optional Video Input |
-
TV
Input : TV tuner with audio
speaker-out
-
Input Connectors : TV tuner
with 3.5mm audio jack
-
DVI
Input : DVI-D digital input
-
Input
Connectors : DVI-D (male)
|
|
Mechanical |
|
Material
|
6mm
Aluminum (Front panel)
1.2mm Steel (Rear case) |
|
Finish
|
Powder Coating |
|
Color |
Front
Panel : Black
Back : Dark Grey
(RAL7037) |
|
Dimension |
484 x 60 x 333 mm
(WxDxH) |
|
Product Weight |
5.0 kg |
|
Environmental |
|
Temperature |
0 to 50
Degree Celsius (Operation)
-10 to 60 Degree Celsius (Storage) |
|
Relative Humidity |
5 ~90%, non
condensing |
|
Vibration |
5~500Hz 1G
RMS random vibration |
|
Safety Approval |
CE,
FCC |
|
Package Content |
|
Package Content |
LCD Monitor x 1,VGA Cable (Male
to Male) x 1, DC 12V adapter x1 ,Power
cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x
1 |
|
|
Front View of ID-19Aw
Construction

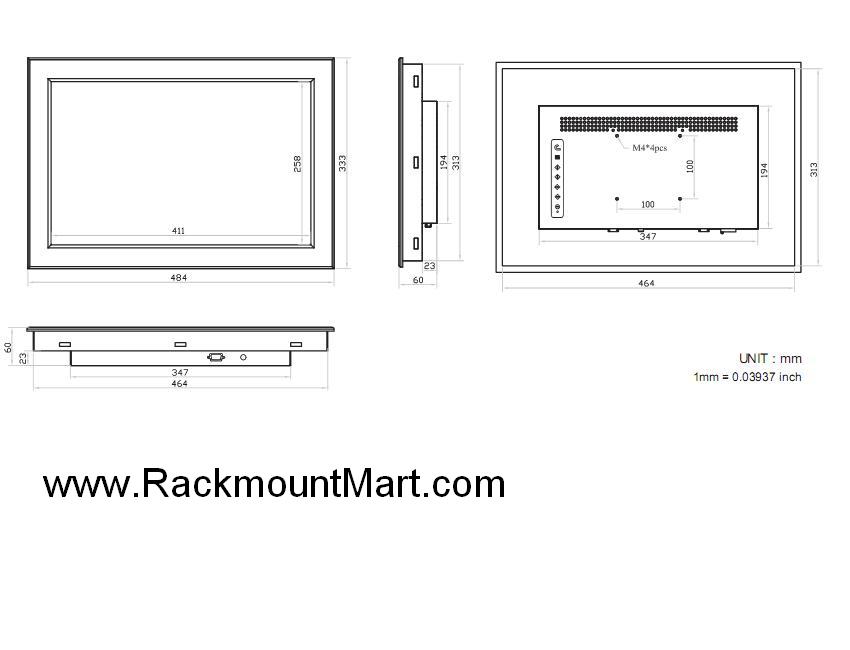

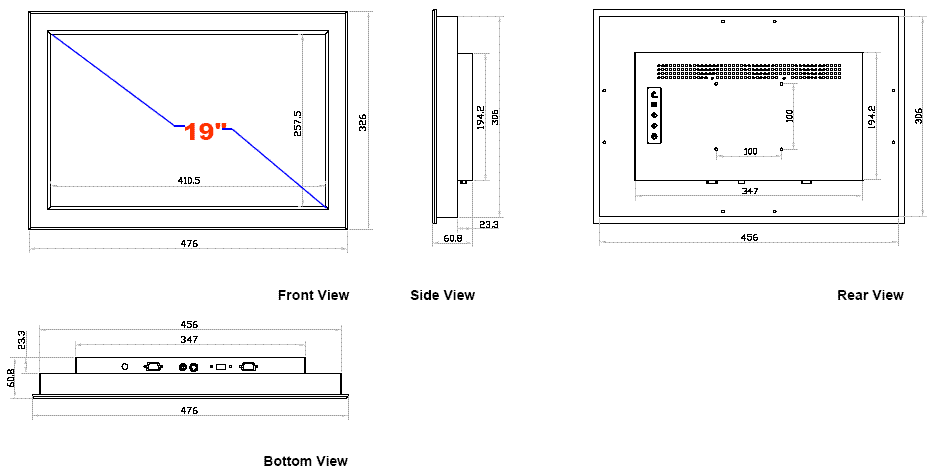

Front / Rear / Top / Side Views & Dimensions
*click on
above picture for enlarged view
|
|
FEATURES :
- 19"(16:9) industrial TFT LCD panel support 1440 x 900 pixels
- 6mm Aluminum front bezel with 45 degree chamfer
- Rugged construction and modularized design
- 300 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Optional video input (TV tuner & DVI)
- Optional touch screen, NEMA 4 / IP 65 front protection
- Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM
mounting design etc. )
APPLICATIONS :
- Embedded display Unit
- Industrial automation
LCD panel
- Gaming, lottery & amusement display
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and
Instrumentation
Diagram for I/O Outlet
Ordering
information :
|
Part # |
Description |
|
WITHOUT NEMA 4 / IP65 |
ID-19Aw
Price : $507 |
Standard Version -
6mm Aluminum
Front Bezel 19" Samsung Industrial display |
ID-19AwTV
Price : $608 |
Version w/option -
6mm Aluminum
Front Bezel 19" Samsung Industrial display +
TV Tuner |
-DVI
Price : $108 |
Add DVI |
-AV
Price : $108 |
Add Composite video(RCA) + S-video with remote controller |
-BNC
Price : $108 |
Add Composite video(BNC) + S-video with remote controller |
-QD
Price : $635 |
Add Quad Display |
-TRB
Price : $324 |
Add e-Resistive + USB controller Touch Screen |
-TRS
Price : $324 |
Add e-Resistive + serial controller Touch Screen |
-TCB
Price : $514 |
Add e-Capacitive + USB controller Touch Screen |
-TCS
Price : $514 |
Add e-Capacitive + serial controller Touch Screen |
-12VDC
Price : $162 |
Add 12V DC power |
-24VDC
Price : $162 |
Add 24V DC power |
-48VDC
Price : $162 |
Add 48V DC power |
-SPK
Price : $68 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
|
WITH NEMA 4
/ IP65 |
ID-19AwN
Price : $595 |
Standard Version -
6mm Aluminum
Front Bezel 19" Samsung Industrial display +
NEMA 4 / IP65 |
ID-19AwTVN
Price : $696 |
Version w/option -
6mm Aluminum
Front Bezel 19" Samsung Industrial display +
TV Tuner+NEMA
4 / IP65 |
-DVI
Price : $108 |
Add DVI |
-AV
Price : $108 |
Add Composite video(RCA) + S-video with remote controller |
-BNC
Price : $108 |
Add Composite video(BNC) + S-video with remote controller |
-QD
Price : $635 |
Add Quad Display |
-TRB
Price : $324 |
Add e-Resistive + USB controller Touch Screen |
-TRS
Price : $324 |
Add e-Resistive + serial controller Touch Screen |
-TCB
Price : $514 |
Add e-Capacitive + USB controller Touch Screen |
-TCS
Price : $514 |
Add e-Capacitive + serial controller Touch Screen |
-12VDC
Price : $162 |
Add 12V DC power |
-24VDC
Price : $162 |
Add 24V DC power |
-48VDC
Price : $162 |
Add 48V DC power |
-SPK
Price : $68 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
