      Industrial Touch Screen LCD in Open Frame Style : Part #   ID-19P-
                                                 19" Open Frame TFT LCD Monitor  with Touch Screen
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

19 inch diagonal (376.32H x 301.056V)

Resolutions

1280 x 1024

Display Color

16.7M color

Brightness

300 cd/m2

Contrast ratio

700 : 1 (Typical)

Response Time

Tr=15 / Tf=25ms

Pixel pitch

0.294 x 0.294 mm

Viewing angle

75 / 75 / 75 / 60 (L / R / U / D)  or
150 / 135

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

 -Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply
External type,110 ~ 220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount

Touch Screen

                 Details

                                                  OPTIONS

Optional Video  Input
  • Video Input : S-Video and Composite
  • Input Connectors : RCA, S-video

Optional DC Power

 48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
 DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety  : Continuous short circuit protection
                                  Mechanical

Material

  1.2mm Steel

Dimension  464 x 56 x 360 mm (WxDxH)
Product Weight  5.5 kg
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -10 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   5~500Hz 1G RMS random vibration
Safety Approval   CE, FCC
                             Package Content

Package Content

 LCD Monitor x 1 , VGA Cable (Male to Male) x
1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc,
User Manual x 1

  Front View of  ID-19P
  * without Touch screen

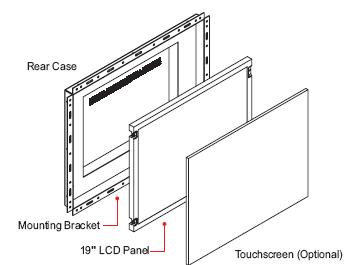

Construction  * without Touch screen

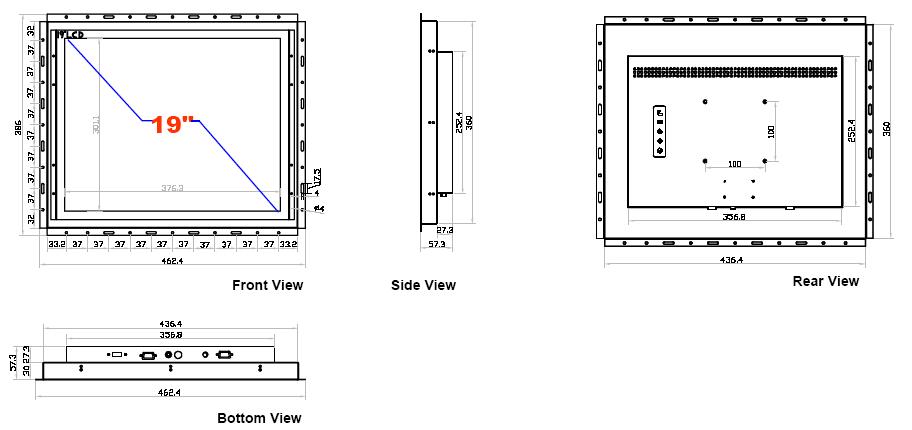

   Front / Rear / Top / Side Views & Dimensions
   * without Touch screen



      *click on above picture for enlarged view














FEATURES :
  • 19" industrial TFT LCD panel support 1280 x 1024 pixels
  • 300 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Low power consumption
  • Modularized design
  • Optional video input (S-Video & RCA input)
  • Optional DC power input
  • Low power consumption
  • Universal open frame kits
  • Universal-mount, OEM mounting

APPLICATIONS :

  • Industrial automation LCD panel
  • Embedded display Unit
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

     Diagram for  I/O Outlet






Ordering information :
Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-19PTRS
Price : $892		 Version w/option  - 19" Open Frame TFT LCD Display +
                           e-Resistive Touch screen & serial controller
ID-19PTRB
Price : $892		 Version w/option  - 19" Open Frame TFT LCD Display +
                           e-Resistive Touch screen & USB controller
ID-19PTCS
Price : $1304		 Version w/option  - 19" Open Frame TFT LCD Display +
                          3M Capacitive Touch screen & serial controller
ID-19PTCB
Price : $1304		 Version w/option  - 19" Open Frame TFT LCD Display +
                           3M Capacitive Touch screen & USB controller
