Industrial Displays
:
Part #
ID-32Aw
6mm Aluminum Front Bezel 32 " Samsung Panel Mount Wide Screen
Industrial Monitor
|
LCD Panel |
|
LCD Type |
 Samsung Grade A Industrial
TFT LCD Panel |
|
Display Size |
Wide 32 inch (16:9) |
|
Resolutions
|
1366 x 768 |
|
Display Color |
16.7M color |
|
Brightness
|
450
cd/m2
|
|
Contrast
ratio
|
1200
: 1 (Typical) |
|
Response Time
|
Tr=10 / Tf=6ms |
|
Pixel
pitch
|
0.510 x 0.510 mm |
|
Viewing
angle
|
89 / 89 / 89 / 89
(L / R / U / D) or
178 / 178 |
|
OSD Control |
Brightness,
Contrast, Phase & Color, H & V
position,
Auto-tune & Recall |
|
LCD MTBF |
50,000
hrs |
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level :
Analog: 0.7Vp-p
-Sync Type :
Separate H/V, Composite H/V
-Input Connector : D-Sub
15 pin VGA analog |
|
Built-in Video Input |
-Video
Input : S-Video and Composite
-Input Connectors : RCA,
S-video |
|
Power Supply |
External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC
Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
|
|
- NEMA4 / IP65 on front of LCD display
|
-TV turner [
Signal Input : NTSC, PAL (I, B, G, H, M, D, N),
SECAM (D,
K, L, B, G) / Connector : RF
] with Remote
controller
|
- DVI
Input : DVI-D digital input -
Input
Connectors : DVI-D (male) |
|
|
Optional DC Power |
48V / 24V / 12V DC Power
Details
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit
protection |
|
Mechanical |
|
Material
|
6mm
Aluminum (Front panel)
1.2mm Steel (Rear case) |
|
Finish
|
Powder Coating |
|
Color |
Front
Panel : Black
Back : Dark Grey
(RAL7037) |
|
Dimension |
850 x 135 x 520 mm
(WxDxH) |
|
Product Weight |
23.0 kg |
|
Environmental |
Temperature
|
0 to 50
Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
|
Relative Humidity
|
5~90%, non
condensing |
|
Shock
|
10G peak
acceleration
(11ms duration) |
|
Vibration |
5~500Hz, 1G RMS random vibration |
|
Safety Approval |
CE,
FCC |
|
Package Content |
|
Package Content |
LCD Monitor x 1,VGA Cable (Male
to Male) x 1, DC 12V adapter x1 , Power
cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x
1 |
|
|

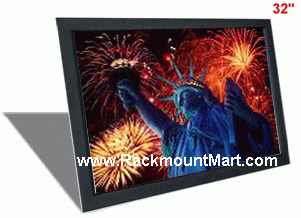

Front View of ID-32Aw

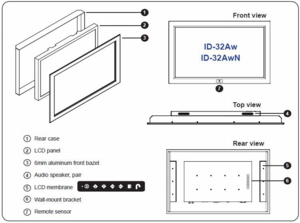

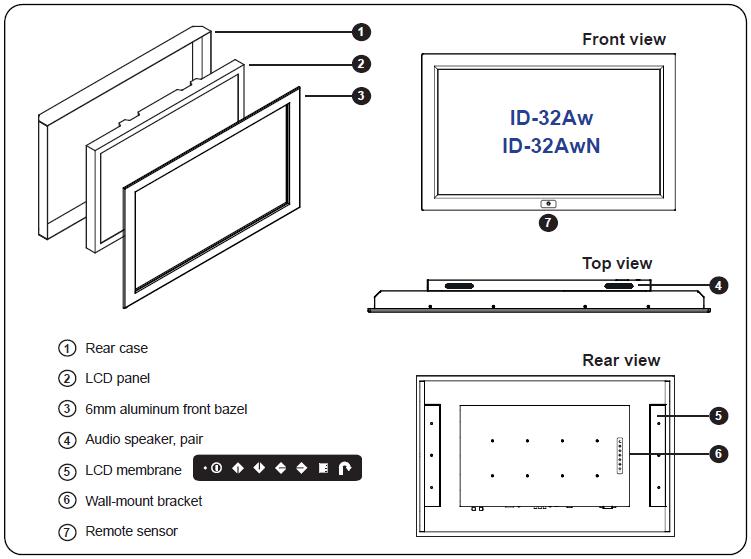

Construction

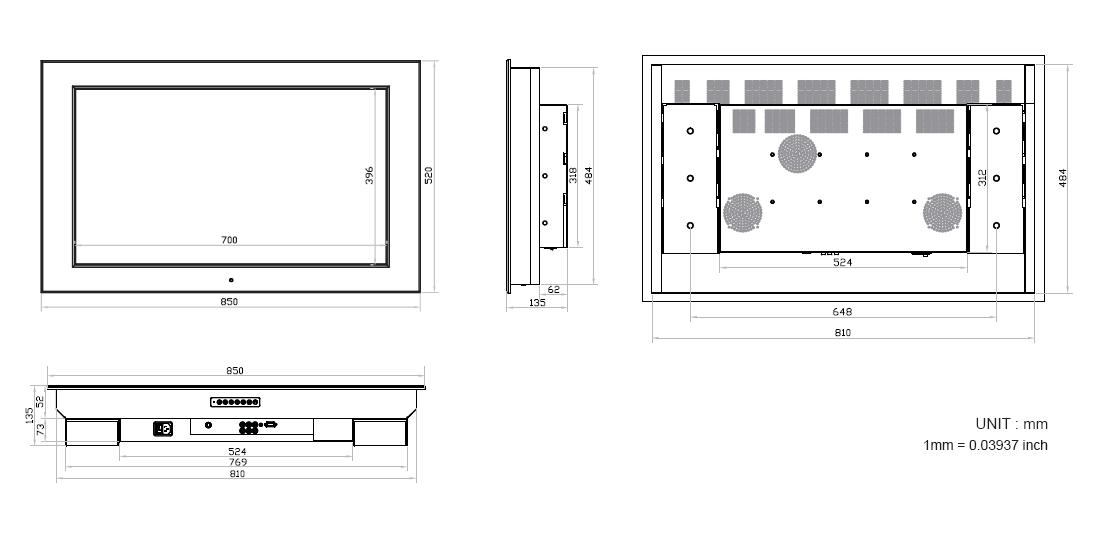

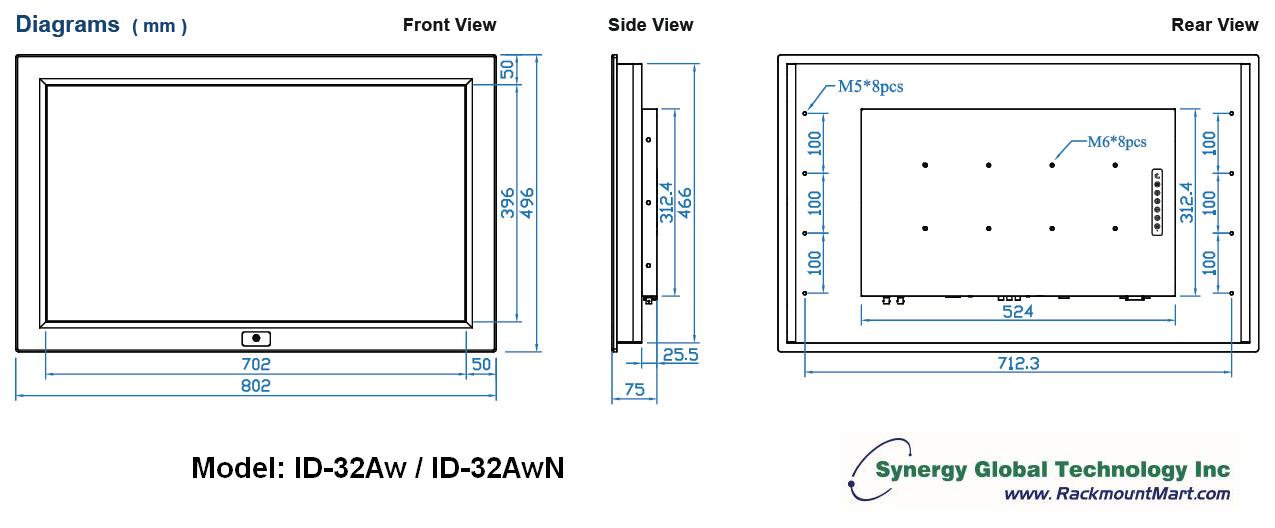

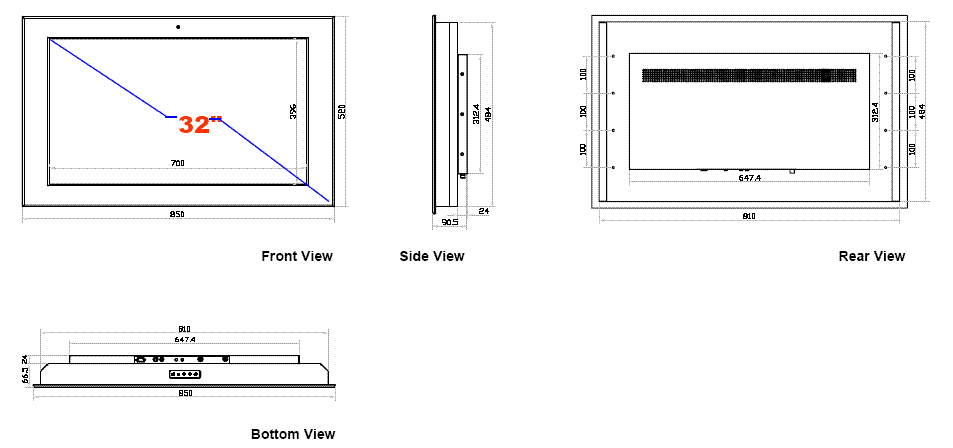

Front / Rear / Top / Side Views & Dimensions
*click on
above picture for enlarged view
( VESA Mount / Wall Mount )
|
|

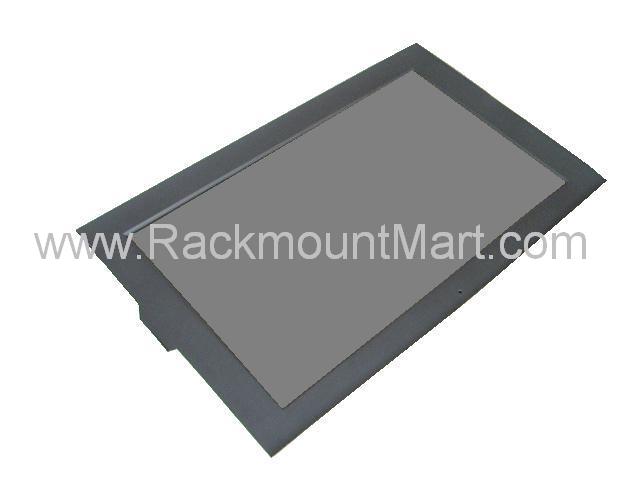

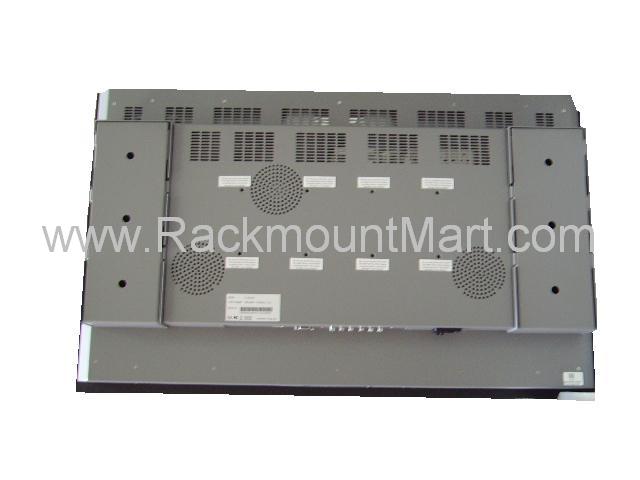

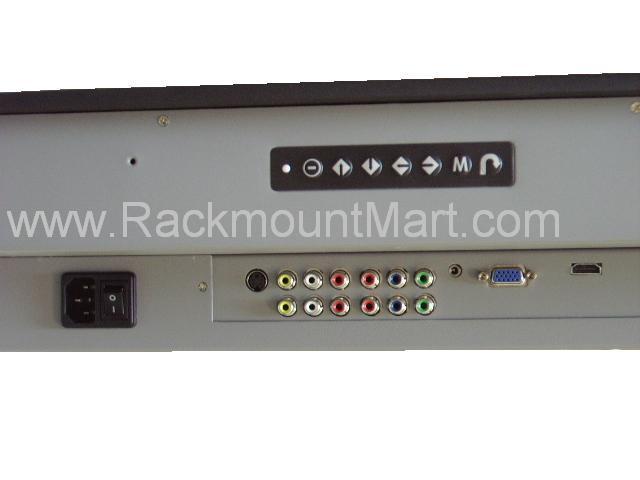

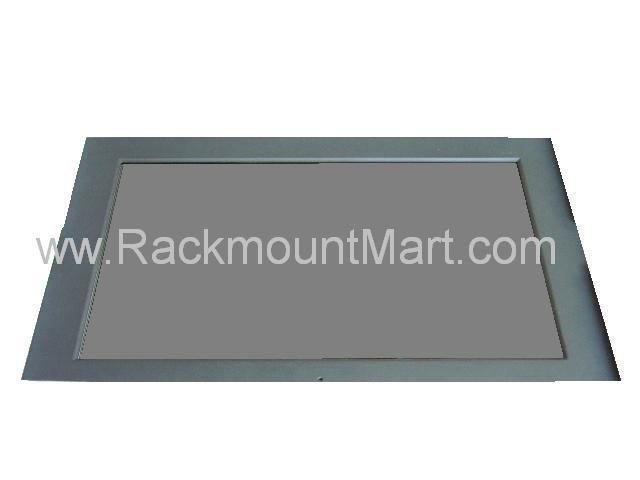

More Photos, click on the following for enlarged view:
FEATURES :
- 32"(16:9) industrial TFT LCD panel support 1336 x 768 pixels
- 6mm Aluminum front bezel with 45 degree chamfer
- Rugged construction and modularized design
- 450 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Optional video input (TV tuner & DVI)
- Optional touch screen, NEMA 4 / IP 65 front protection
- Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM
mounting design etc. )
APPLICATIONS :
- Embedded display Unit
- Industrial automation
LCD panel
- Gaming, lottery & amusement display
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and
Instrumentation

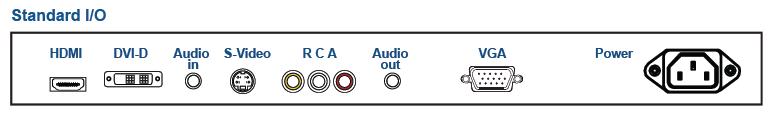

Diagram for I/O Outlet
Ordering
information :
|
Part # |
Description |
|
WITHOUT NEMA 4 / IP65 |
ID-32Aw
Price : $1212 |
6mm Aluminum
Front Bezel 32" Samsung Industrial LCD with VGA, HDMI,
Component, S-Video & RCA input, audio input with speaker and
remote controller |
ID-32Aw-TV
Price : $1347 |
6mm Aluminum
Front Bezel 32" Samsung Industrial LCD with VGA, HDMI,
Component, S-Video & RCA input, audio input with speaker and
remote controller ** and TV turner |
-TCB
Price : $905 |
Add Capacitive Touch
screen & USB controller |
-TCS
Price : $905 |
Add Capacitive Touch
screen & serial controller |
-QD
Price : $594 |
Add Quad Display |
|
WITH NEMA 4
/ IP65 |
ID-32AwN
Price : $1270 |
6mm Aluminum
Front Bezel 32" Samsung Industrial LCD with VGA, HDMI,
Component, S-Video & RCA input, audio input with speaker and
remote controller + NEMA 4 / IP65 |
ID-32AwTVN
Price : $1405 |
6mm Aluminum
Front Bezel 32" Samsung Industrial LCD with VGA, HDMI,
Component, S-Video & RCA input, audio input with speaker and
remote controller + TV Tuner + NEMA
4 / IP65 |
-TCB
Price : $905 |
Add Capacitive Touch
screen & USB controller |
-TCS
Price : $905 |
Add Capacitive Touch
screen & serial controller |
-QD
Price : $594 |
Add Quad display |
