Industrial Displays
:
Part #
ID-32Pw
32" Samsung Wide Screen (16:9) Open Frame TFT LCD Display
|
LCD Panel |
|
LCD Type |
 Samsung Grade A Industrial
TFT LCD Panel |
|
Display Size |
Wide 32 inch (16:9) (700V x 396H) |
|
Resolutions
|
1366 x 768 |
|
Display Color |
16.7M color |
|
Brightness
|
500 cd/m2
|
|
Contrast
ratio
|
1200
: 1 (Typical) |
|
Response Time
|
Tr=10 / Tf=6ms |
|
Pixel
pitch
|
0.511 x 0.511 mm |
|
Viewing
angle
|
89 / 89 / 89 / 89
(L / R / U / D) or
178 / 178 |
|
OSD Control |
Brightness,
Contrast, Phase & Color,
H & V position,
Auto-tune & Recall |
|
LCD MTBF |
50,000
hrs |
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level :
Analog: 0.7Vp-p
-Sync Type :
Separate H/V, Composite H/V
-Input Connector : D-Sub
15 pin VGA analog
-Support Picture in
Picture (PIP) |
|
Built-in Video Input |
-Built-in VGA & HDMI input
-Video
Input : HDMI, Componet (Y+Pb+Pr),
S-Video and Composite
-Input Connectors : HDMI, RCA x 3,
S-Video (Mini-DIN 4), RCA |
|
Built-in Audio Input |
-Audio Input : Analog audio
2-channel (L/R)
-Connectors:
Audio RCA x 2
-With speaker as well |
|
Power Supply |
External type,
110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC
Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
Optional Video Input |
-
TV
Input : TV tuner -
Input Connectors : TV tuner with 3.5mm audio jack
[
Signal Input : NTSC, PAL (I, B, G,
H, M, D, N), SECAM (D,
K, L, B, G) /
Connector : RF
]
-
DVI
Input : DVI-D digital input -
Input
Connectors : DVI-D (male)
|
|
Mechanical |
|
Material
|
1.2mm Steel |
|
Dimension |
836 x 117 x 510 mm
(WxDxH) |
|
Product Weight |
23 kg |
|
Environmental |
|
Temperature |
0 to 50
Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage) |
|
Relative Humidity |
5 ~90%, non
condensing |
|
Vibration |
58~500Hz / 0.98G
RMS random vibration |
|
Safety Approval |
CE,
FCC |
|
Package Content |
|
Package Content |
LCD Monitor x 1 , VGA Cable (Male
to Male) x 1, DC 12V adapter x1 , Power
cord x 1, Mounting Bracket x 1 pair, CA disc, User Manual x
1 |
|
|

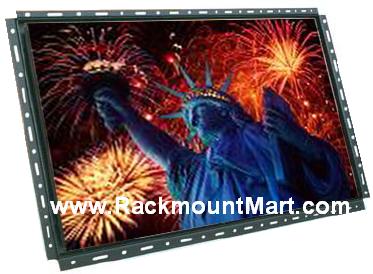

Front View of ID-32Pw

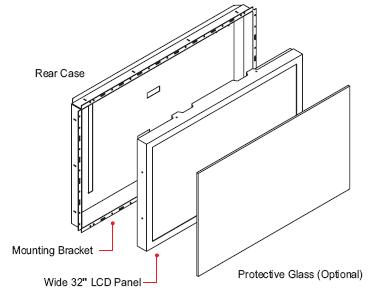

Construction

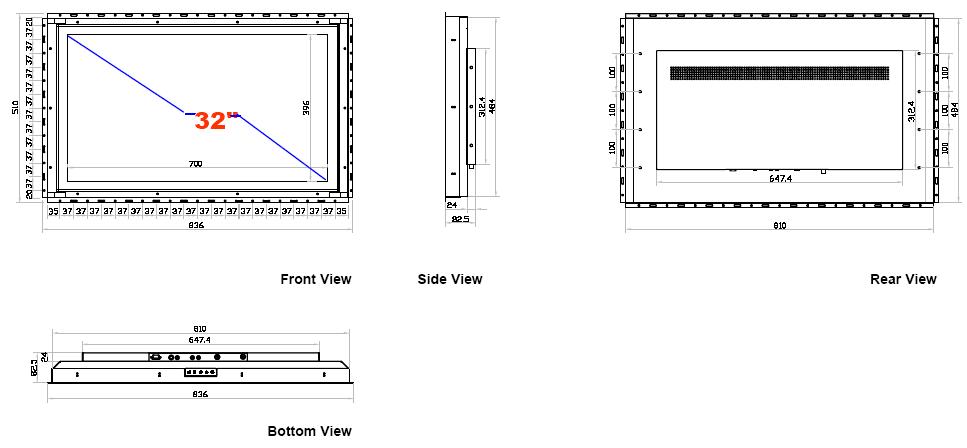

Front / Rear / Top / Side Views & Dimensions
*click on
above picture for enlarged view
|
|
FEATURES :
- 32"(16:9) industrial TFT LCD panel support 1366 x 768 pixels
- Industrial open frame front mounting kit
- 450 cd/m2 industrial brightness
- Different models fit for various application
- OSD control keys to optimize the display
- VGA and Video input (DVI & S-video & Composite)
- Modularized design
- Wall-mount, OEM mounting design
APPLICATIONS :
- Portrait or landscape viewing for information displays
- Single or multi-display solution for digital signage
- Ideal solution for data center or conference rooms
- Gamming, lottery & amusement display
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and
Instrumentation
Diagram for I/O Outlet
Ordering
information :
|
Part # |
Description |
|
WITHOUT NEMA 4 / IP65 |
ID-32Pw
Price : $1345 |
32"(16:9) Samsung Open Frame
Industrial LCD with VGA, HDMI, Component, S-Video & RCA input,
audio input with speaker and remote
controller |
ID-32Pw-TV
Price : $1480 |
32"(16:9) Samsung Open Frame
Industrial LCD with VGA, HDMI, Component, S-Video & RCA input,
audio input with speaker and remote
controller + **TV Tuner |
-QD
Price : $635 |
Add Quad Display |
