     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

                                           Industrial LCD :   Part #   ID-40Aw
         6mm Aluminum Front Bezel 40 " Samsung  Industrial  LCD with Speaker and Remote controller
LCD Panel

LCD Type

Samsung Industrial LCD

Display Size

Wide 40  inch (16:9)

Resolutions

1366 x 768

Display Color

16.7M color

Brightness

500 cd/m2

Contrast ratio

2000 : 1 (Typical)

Response Time

Tr=10 / Tf=6ms

Pixel pitch

0.648 x 0.648 mm

Viewing angle

89 / 89 / 89 / 89 (L / R / U / D)  or
178 / 178

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

 -Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog
-Support Picture in Picture (PIP)

Built-in Video  Input

 -Built-in VGA  & 1080P HDMI input
-Video Input   : HDMI, Componet (Y+Pb+Pr),
                      S-Video and Composite
-Input Connectors : HDMI, RCA x 3,
                         S-Video (Mini-DIN 4), RCA

Built-in Audio Input

 -Audio Input : Analog audio 2-channel (L/R)
-Connectors: Audio  RCA x 2
-With speaker as well

Power Supply
External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
OPTIONS


- NEMA4 / IP65 on front of LCD display
-TV turner [ Signal Input : NTSC, PAL (I, B, G, H, M, D, N),
   SECAM (D, K, L, B, G)  / Connector : RF ] with Remote
  controller
- DVI Input : DVI-D digital input -
Input Connectors : DVI-D (male)

Optional DC Power

 48V / 24V / 12V DC Power    Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
 DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety  : Continuous short circuit protection
Mechanical

Material

 6mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating
Color  Front Panel : Black
 Back          : Dark Grey
Dimension  1022 x 133.6 x 605 mm (WxDxH)
Product Weight  45.0 kg
Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval   CE, FCC
Package Content

Package Content

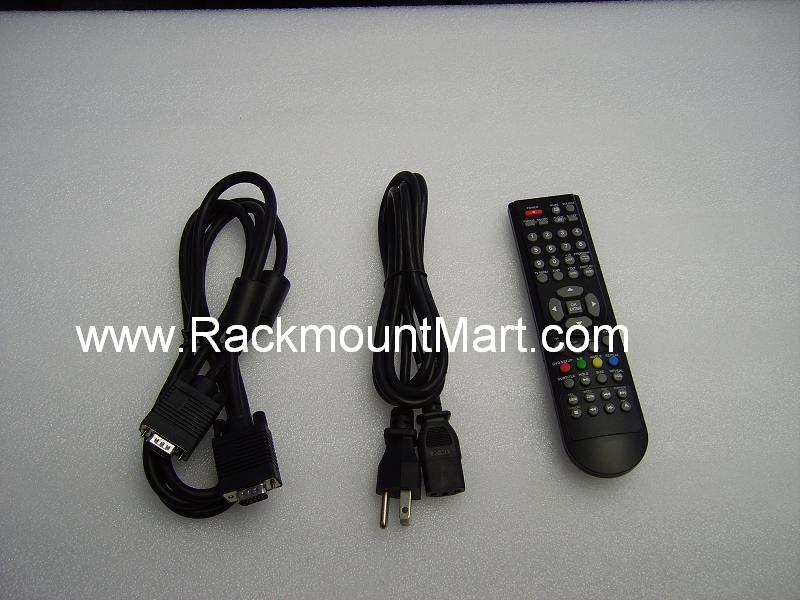

LCD Monitor x 1,VGA Cable (Male to Male) x 1,   DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1 ,
remote controller

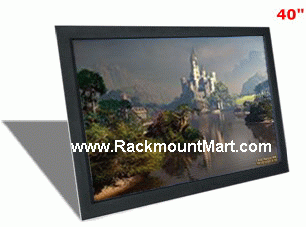

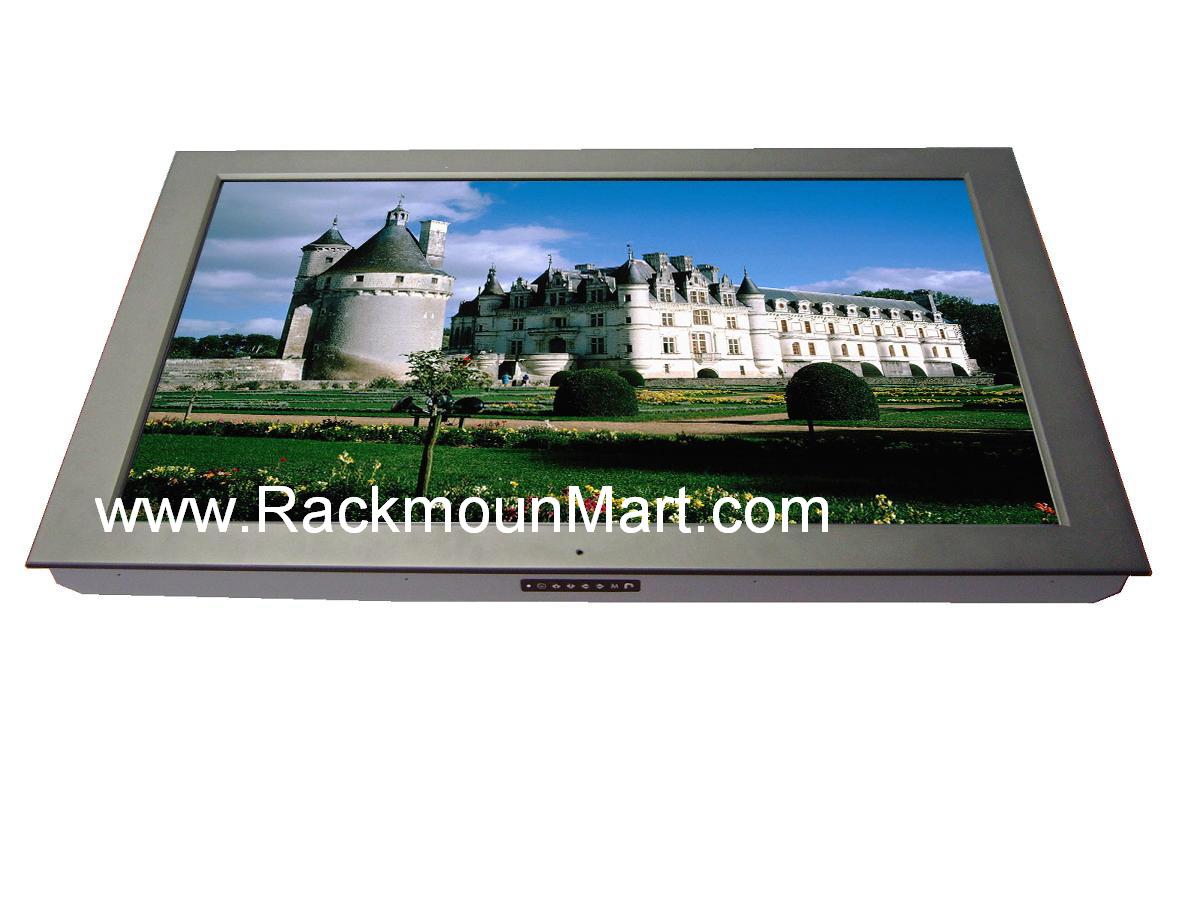

  Front View of Industrial LCD ID-40Aw



  Construction  of Industrial LCD ID-40Aw

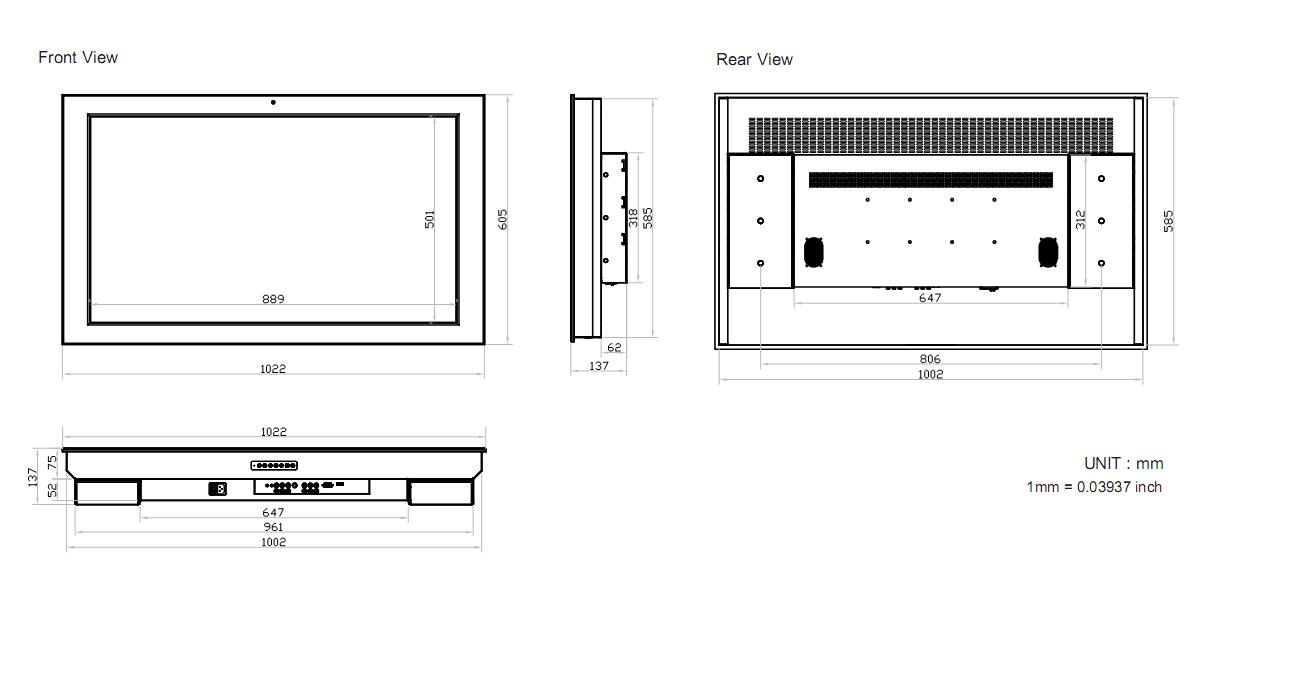

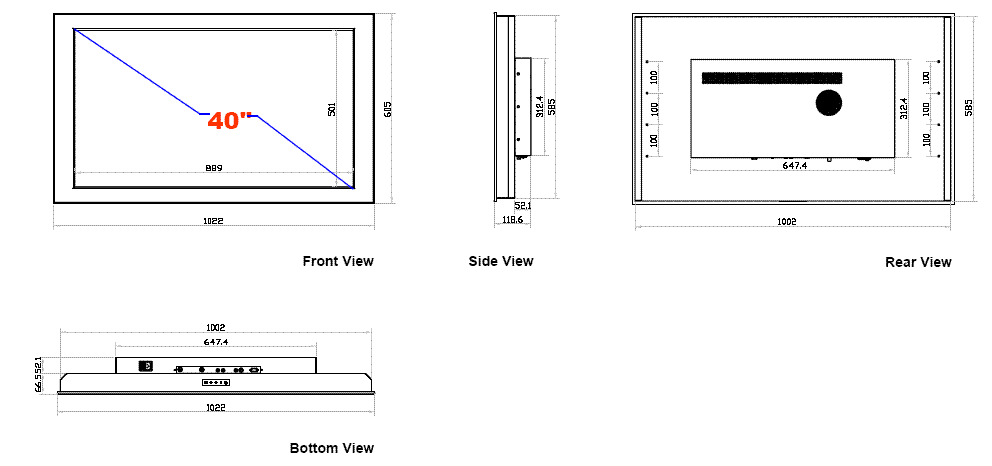

   Front / Rear / Top / Side Views & Dimensions
            *click on above picture for enlarged view

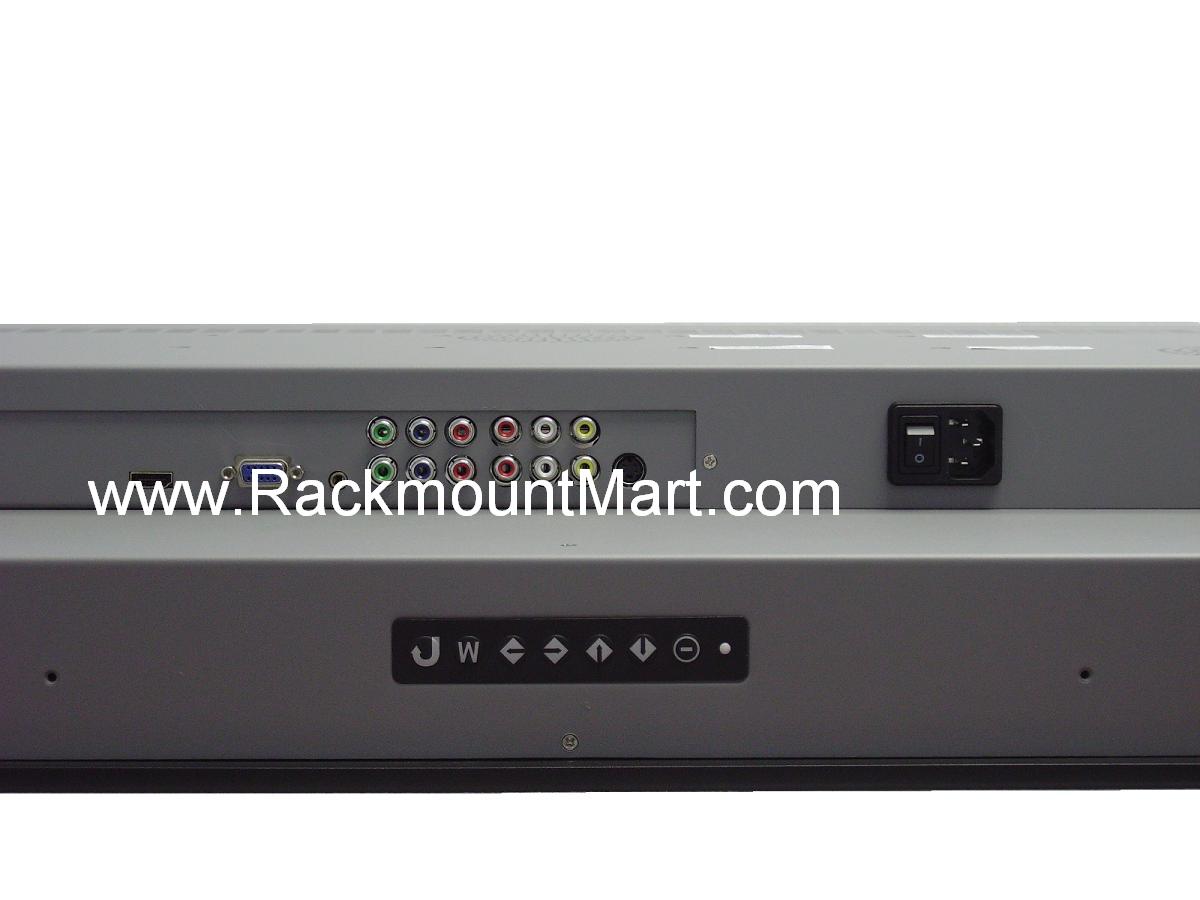

   ID-40W IO PLATE

            *click on above picture for enlarged view







                     ( VESA Mount /  Wall Mount )

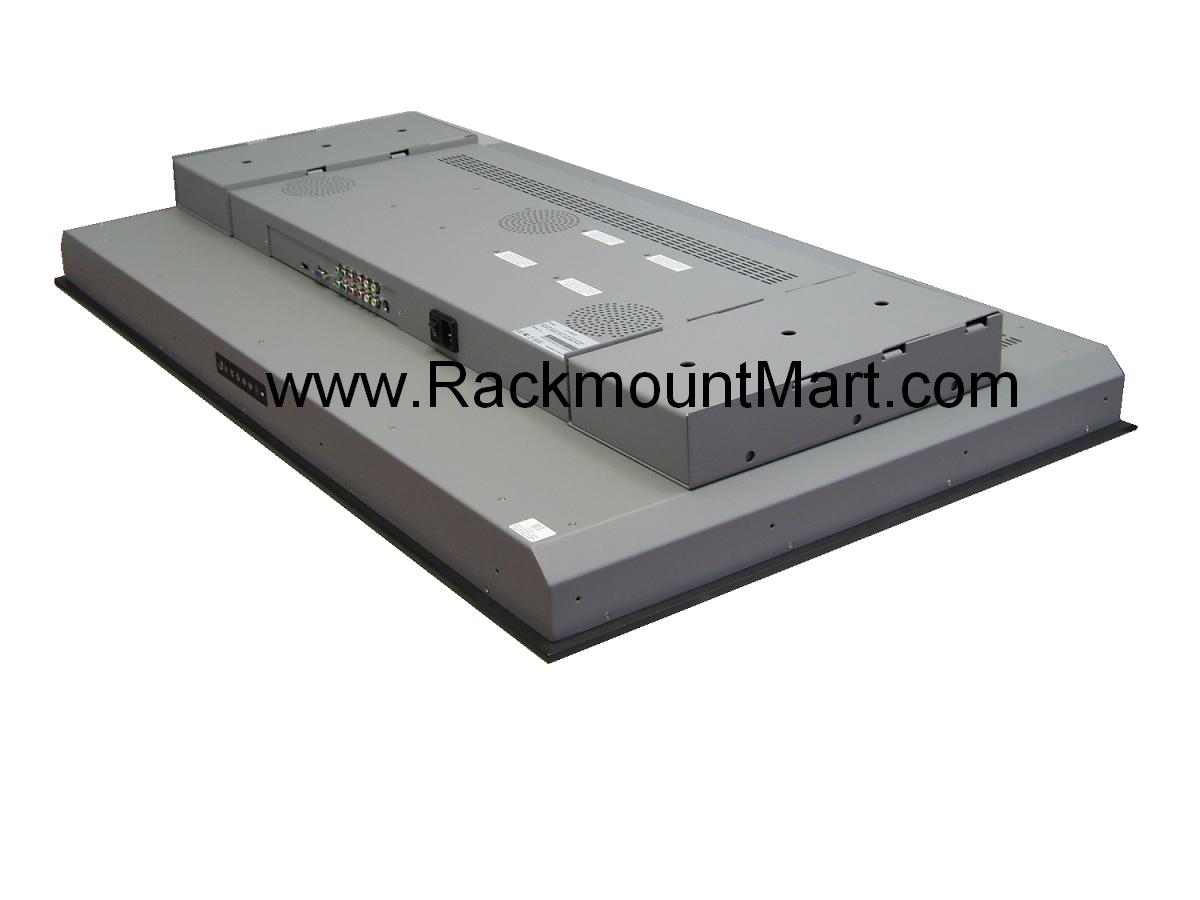

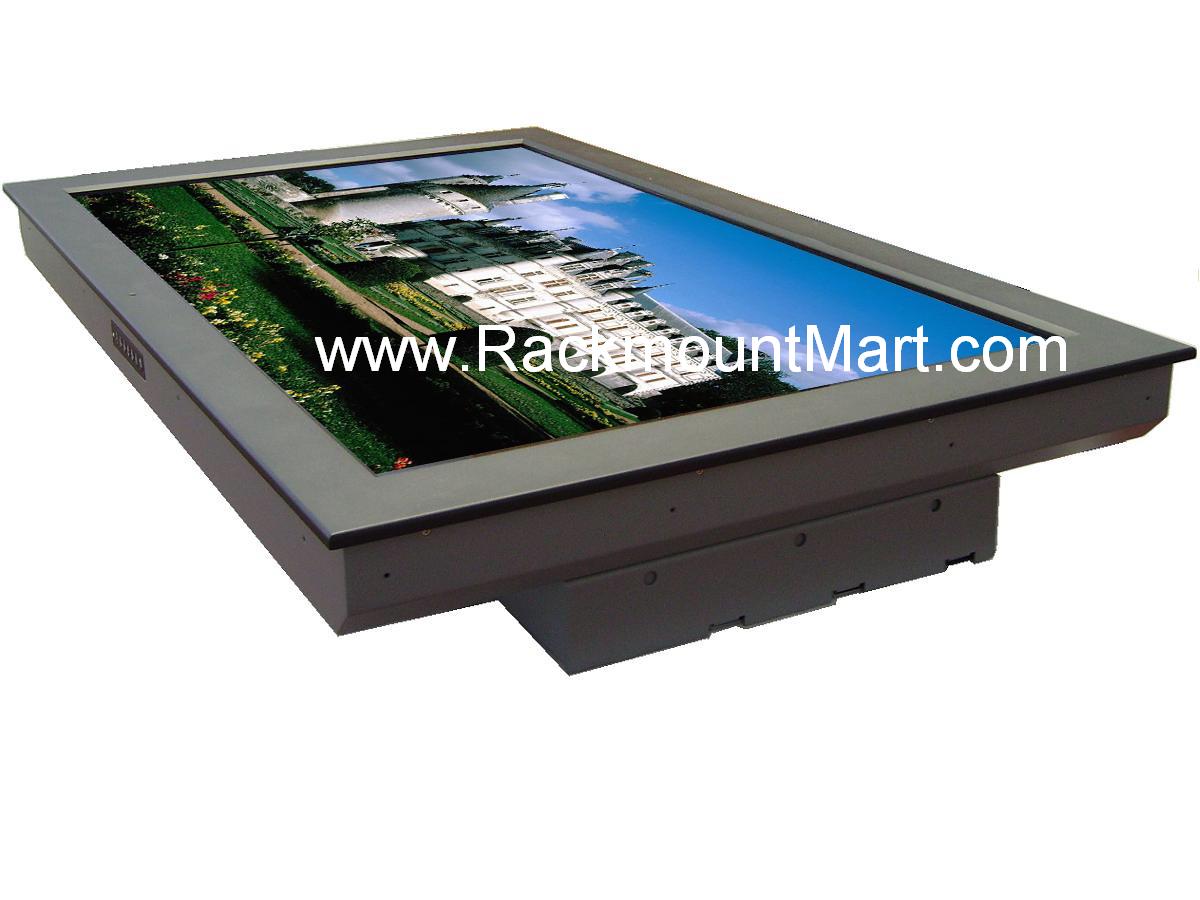

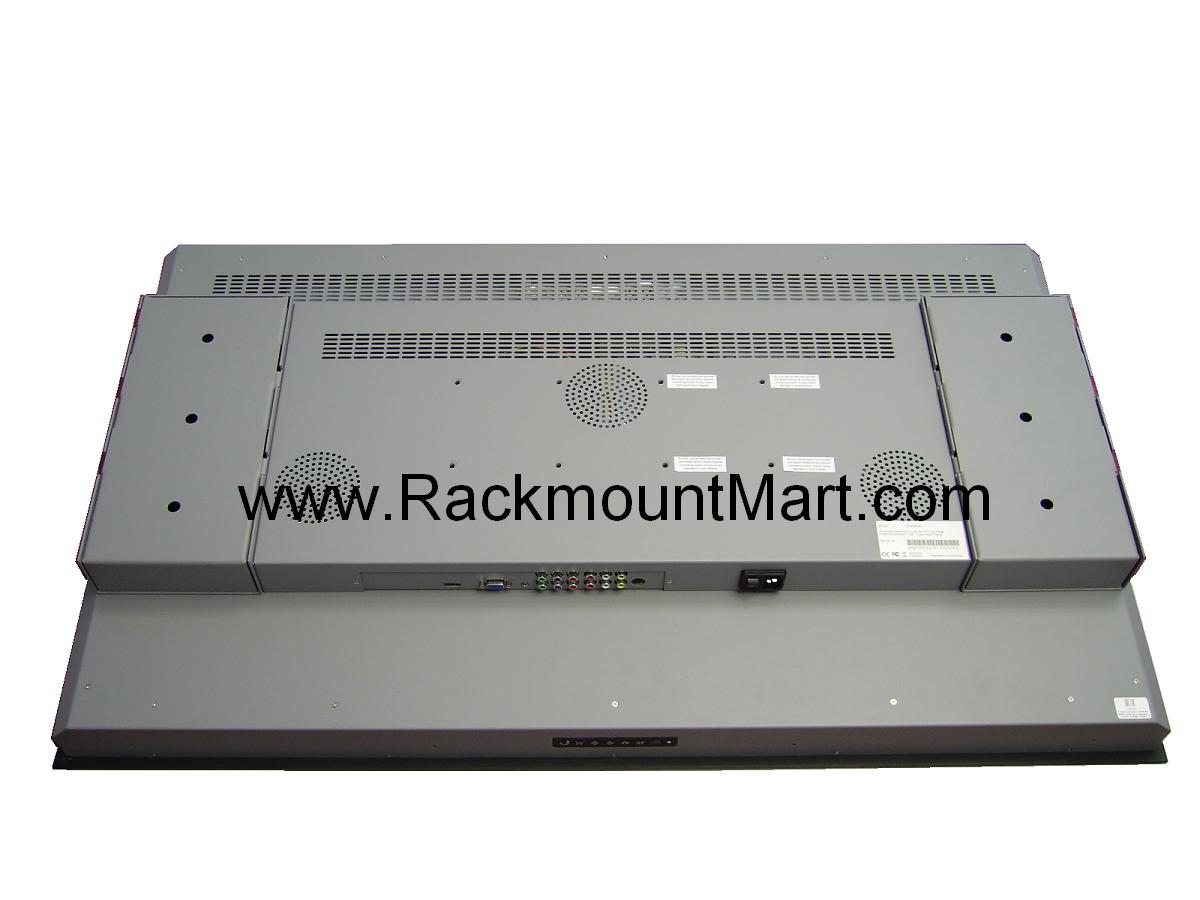

MORE PHOTOS :


FEATURES :
  • 40"(16:9) industrial LCD panel support 1366 x 768 pixels
  • with remote controller
  • 6mm Aluminum front bezel with 45 degree chamfer
  • Rugged construction and modularized design
  • 500 cd/m2 industrial brightness
  • OSD control keys & remote controller to optimize the display
  • Support Picture in Picture (PIP)
  • Built-in VGA  & HDMI input
  • Built-in video input (Component, S-Video & RCA)
  • Built-in audio input with speaker
  • Optional video input (TV tuner & DVI)
  • Optional NEMA / IP65 on front of display panel
  • Wide-ranges Mounting kits
    (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Industrial process control LCD panel
  • Point of sales / Kiosk
  • Security / surveillance
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation
  • Flight information display panel
    •

Ordering information :
Part # Description

ID-40Aw
Price : $1667		 6mm Aluminum Front Bezel 40" Samsung Industrial LCD with VGA, HDMI, Component, S-Video & RCA input, audio input with speaker and remote controller
ID-40Aw-TV
Price : $1802		 6mm Aluminum Front Bezel 40" Samsung Industrial LCD with VGA, HDMI, Component, S-Video & RCA input, audio input with speaker and remote controller ** and TV turner
-N
Price : $52		 Add NEMA 4 / IP65 on front of LCD panel
-QD
Price : $594		 Add Quad Display
