                                Industrial Display :   Part #   ID-H06A
                       6mm Aluminum Front Bezel 6.5" High Brightness Industrial Display - Panel Mount Style
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

6.5 inch diagonal (132H x 99V)

Resolutions

640 x 480

Display Color

262,144 color

Brightness

1000 cd/m2

Contrast ratio

500 : 1 (Typical)

Response Time

Tr=26 / Tf=26ms

Pixel pitch

0.207 x 0.207 mm

Viewing angle

80 / 80 / 70 / 70 (L / R / U / D)

OSD Control

Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Power Supply

 Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter

Mounting

Support VESA-mount, Panel-mount, Wall-mount & Bracket mount
                                                  OPTIONS

Optional Video    Input
  • Video Input: S-Video and Composite
  • Input Connectors : BNC, RCA, S-video

    • Optional Touch Screen

                             Details

    Other options

    - Video Input : S-Video & Composite Video (BNC/RCA)
    - NEMA4 / IP65, TV tuner, Audio, Remote controller
    - 48V / 24V / 12V DC Power     Details
    - Anti-Reflective Film, Optical Bonding
                                      Mechanical

    Material

     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension 254.7 x 65.8 x 182 mm (WxDxH)
    Product Weight  1.5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~95%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Shock  10G acceleration (11ms duration)
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    		 LCD Monitor x 1 , VGA Cable (Male to Male) x 1,   AC to DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, User Manual x 1

      Front View of  ID-6A



      Construction

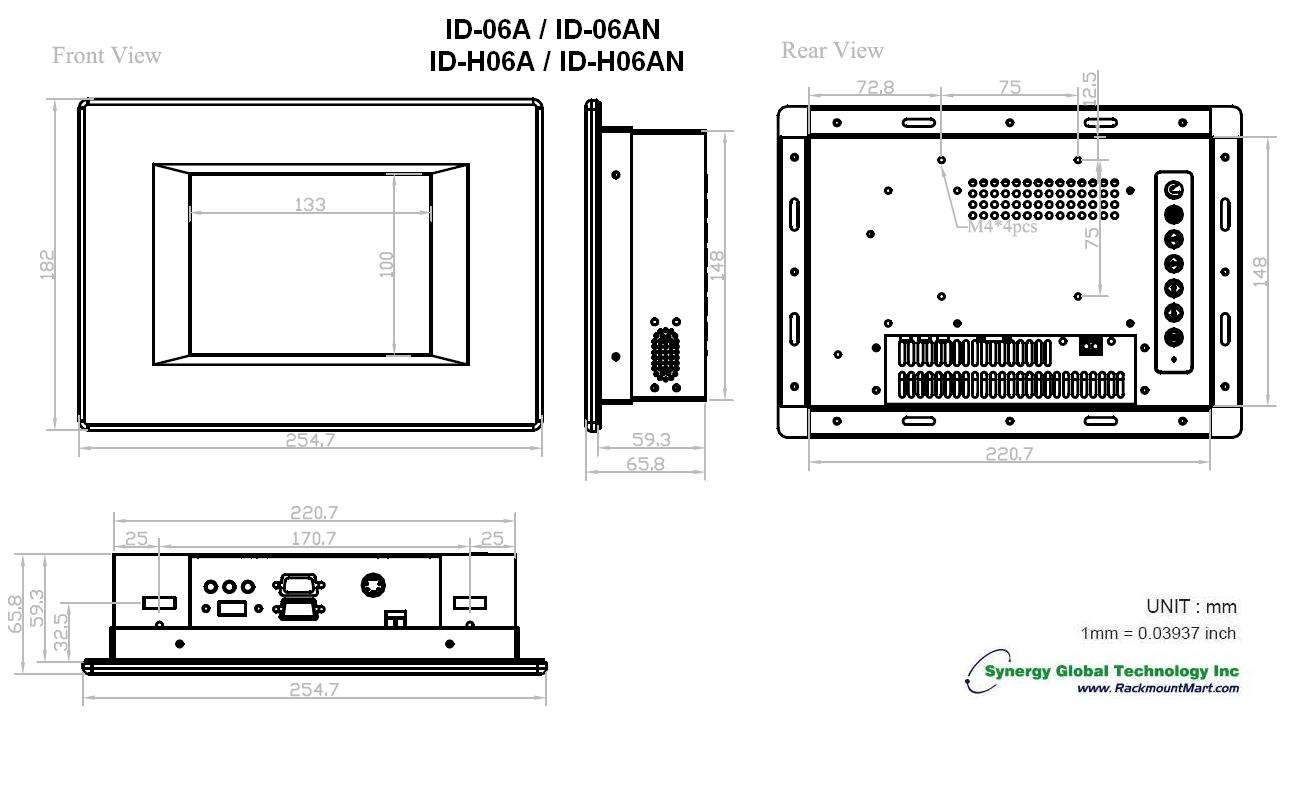

       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view







                         ( VESA Mount /  Wall Mount )

      ***NOTE: Coming soon! Refer to similar model now

    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7











    More Photos, click on the following for enlarged view:


    FEATURES :
    • 6.5" industrial TFT LCD panel support 640 x 480 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • 1000 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC power input (12 / 24 / 48 VDC)
    • Optional video input   ( S-Video & RCA input or S-video & BNC  )
    • Optional touch screen, Optional NEMA 4 / IP 65 front protection
    • New Options:  TV turner with remote controller / remote controller only / Audio Input
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet




    Ordering information :
    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-H06A
    Price : $705    		 Standard Version  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display
    ID-H06AAV
    Price : $766    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               S-Video & Composite video(RCA)
    ID-H06ABNC
    Price : $766    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               S-Video & Composite video(BNC)
    ID-H06ADC12
    Price : $867    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               12v DC Power
    ID-H06ADC24
    Price : $867    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               24v DC Power
    ID-H06ADC48
    Price : $867    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               48v DC Power
    ID-H06ATRS
    Price : $840    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               Resistive Touch screen & serial controller
    ID-H06ATRB
    Price : $840    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               Resistive Touch screen & USB controller
    ID-H06ATCS
    Price : $935    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               Capacitive Touch screen & serial controller
    ID-H06ATCB
    Price : $935    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               Capacitive Touch screen & USB controller
    -AV
    Price : $61    		 Add Composite video(RCA) + S-video
    -BNC
    Price : $61    		 Add Composite video(BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -12VDC
    Price : $162    		 Add 12V DC Power
    -24VDC
    Price : $162    		 Add 24V DC Power
    -48VDC
    Price : $162    		 Add 48V DC Power
    -SPK
    Price : $68    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $104    		 Add Anti-reflective film
    -OB
    Price : $200    		 Add Optical bonding
                                                      WITH NEMA 4 / IP65
    ID-H06AN
    Price : $744    		 Standard Version  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               NEMA 4 / IP65
    ID-H06AAVN
    Price : $805    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               S-Video & Composite video(RCA) + NEMA 4 / IP65
    ID-H06ABNCN
    Price : $805    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               S-Video & Composite video(BNC) + NEMA 4 / IP65
    ID-H06ADC12N
    Price : $906    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               12v DC Power +NEMA 4 / IP65
    ID-H06ADC24N
    Price : $906    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               24v DC Power +NEMA 4 / IP65
    ID-H06ADC48N
    Price : $906    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               48v DC Power +NEMA 4 / IP65
    ID-H06ATRSN
    Price : $879    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               Resistive Touch screen & serial controller + NEMA 4 / IP65
    ID-H06ATRBN
    Price : $879    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               Resistive Touch screen & USB controller + NEMA 4 / IP65
    ID-H06ATCSN
    Price : $974    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               Capacitive Touch screen & serial controller + NEMA 4 / IP65
    ID-H06ATCBN
    Price : $974    		 Version w/option  - 6mm Aluminum Front Bezel 6.5" High Brightness Industrial display +
                               Capacitive Touch screen & USB controller + NEMA 4 / IP65
    -AV
    Price : $61    		 Add Composite video (RCA) + S-video
    -BNC
    Price : $61    		 Add Composite video (BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -12VDC
    Price : $162    		 Add 12V DC Power Input
    -24VDC
    Price : $162    		 Add 24V DC Power Input
    -48VDC
    Price : $162    		 Add 48V DC Power Input
    -SPK
    Price : $68    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $104    		 Add Anti-reflective film
    -OB
    Price : $200    		 Add Optical bonding
