     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

                                Industrial Display :   Part #   ID-H10A
                          6mm Aluminum Front Bezel 10.4" High Brightness Industrial Display - Panel Mount Style
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

10.4 inch diagonal (211H x 158V)

Resolutions

800 x 600

Display Color

262K color

Brightness

1000 cd/m2

Contrast ratio

800 : 1 (Typical)

Response Time

Tr=10 / Tf=25ms

Pixel pitch

0.264 x 0.264 mm

Viewing angle

70° / 70° / 55° / 65° (L / R / U / D)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

 -Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

 Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter

Mounting

Support VESA-mount, Panel-mount, Wall-mount & Bracket mount
                                                  OPTIONS

Optional Video  Input
  • Video Input : S-Video and Composite
  • Input Connectors : BNC, RCA, S-video

    • Optional Touch Screen

                     Details

    Other Options

    - Video Input : S-Video & Composite Video (BNC/RCA)"
    - NEMA4 / IP65, TV tuner, Audio, Remote controller
    - 48V / 24V / 12V DC Power     Details
    - Anti-Reflective Film, Optical Bonding

                                      Mechanical

    Material

     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension 284.7 x 60.8 x 222 mm (WxDxH)
    Product Weight  2.5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~95%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Shock   10G acceleration (11ms duration)
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    		 LCD Monitor x 1, VGA Cable (Male to Male) x1,   AC to DC 12V adapter  x1 ,Power cord x 1,Mounting Bracket x 1 pair, User Manual x 1

      Front View of  ID-H10A

      Construction

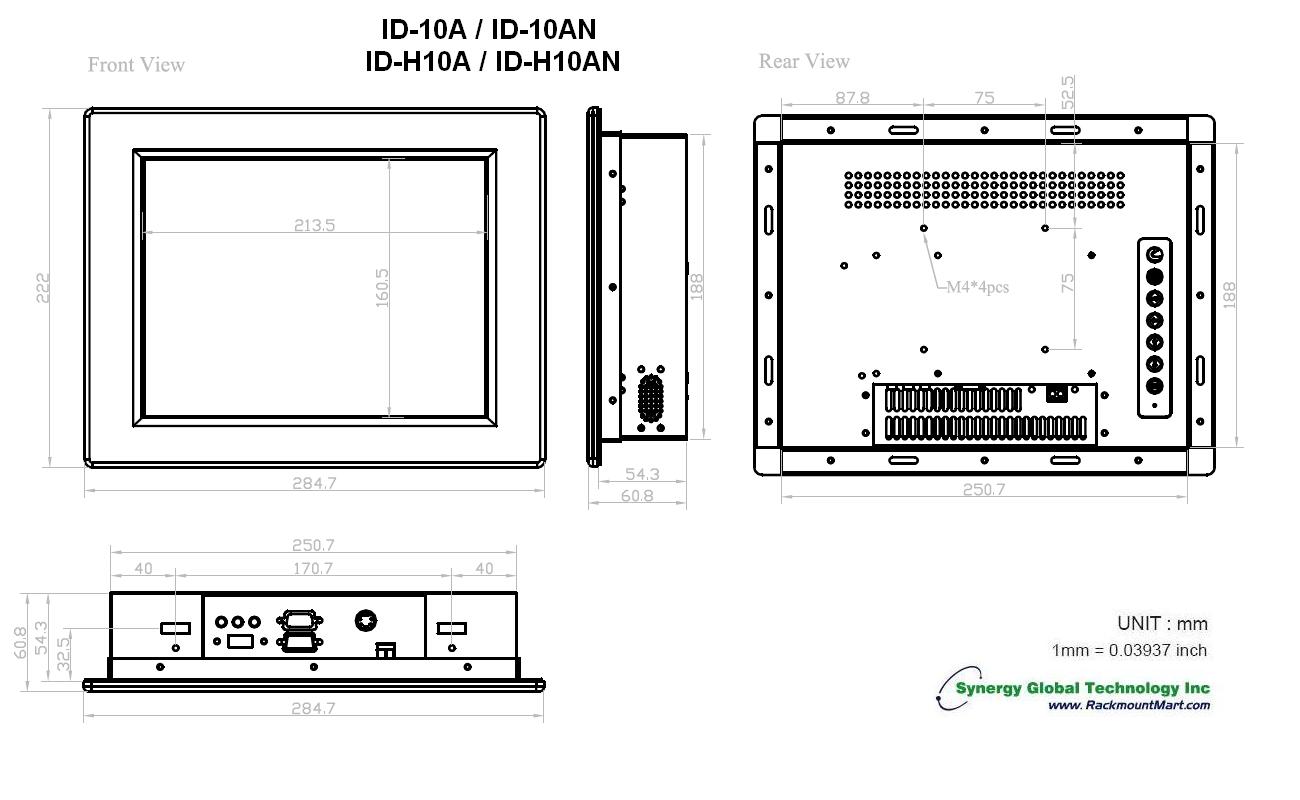

       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view







                         ( VESA Mount /  Wall Mount )

      NOTE: Coming soon! Refer to similar model now

    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7









    More Photos, click on the following for enlarged view:


    FEATURES :
    • 10.4" industrial TFT LCD panel support 800 x 600 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • 1000 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC power input (12 / 24 / 48 VDC)
    • Optional video input (S-Video & RCA input)
    • Optional touch screen, NEMA 4 / IP 65 front protection
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet




    Ordering information :
    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-H10A
    Price : $962    		 Standard Version  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display
    ID-H10AAV
    Price : $1023    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               S-Video & Composite video(RCA)
    ID-H10ABNC
    Price : $1023    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               S-Video & Composite video(BNC)
    ID-H10ADC12
    Price : $1124    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               12v DC Power
    ID-H10ADC24
    Price : $1124    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               24v DC Power
    ID-H10ADC48
    Price : $1124    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               48v DC Power
    ID-H10ATRS
    Price : $1131    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               Resistive Touch screen & serial controller
    ID-H10ATRB
    Price : $1131    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               Resistive Touch screen & USB controller
    ID-H10ATCS
    Price : $1225    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               Capacitive Touch screen & serial controller
    ID-H10ATCB
    Price : $1225    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               Capacitive Touch screen & USB controller
    -AV
    Price : $61    		 Add Composite video(RCA) + S-video
    -BNC
    Price : $61    		 Add Composite video(BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -12VDC
    Price : $162    		 Add 12V DC Power
    -24VDC
    Price : $162    		 Add 24V DC Power
    -48VDC
    Price : $162    		 Add 48V DC Power
    -SPK
    Price : $68    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $139    		 Add Anti-reflective film
    -OB
    Price : $236    		 Add Optical bonding
                                                      WITH NEMA 4 / IP65
    ID-H10AN
    Price : $1000    		 Standard Version  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               NEMA 4 / IP65
    ID-H10AAVN
    Price : $1061    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               S-Video & Composite video(RCA) + NEMA 4 / IP65
    ID-H10ABNCN
    Price : $1061    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               S-Video & Composite video(BNC) + NEMA 4 / IP65
    ID-H10ADC12N
    Price : $1162    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               12v DC Power +NEMA 4 / IP65
    ID-H10ADC24N
    Price : $1162    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               24v DC Power +NEMA 4 / IP65
    ID-H10ADC48N
    Price : $1162    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               48v DC Power +NEMA 4 / IP65
    ID-H10ATRSN
    Price : $1169    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               Resistive Touch screen & serial controller + NEMA 4 / IP65
    ID-H10ATRBN
    Price : $1169    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               Resistive Touch screen & USB controller + NEMA 4 / IP65
    ID-H10ATCSN
    Price : $1263    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               Capacitive Touch screen & serial controller + NEMA 4 / IP65
    ID-H10ATCBN
    Price : $1263    		 Version w/option  - 6mm Aluminum Front Bezel 10.4" High Brightness Industrial display +
                               Capacitive Touch screen & USB controller + NEMA 4 / IP65
    -AV
    Price : $61    		 Add Composite video (RCA) + S-video
    -BNC
    Price : $61    		 Add Composite video (BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -12VDC
    Price : $162    		 Add 12V DC Power Input
    -24VDC
    Price : $162    		 Add 24V DC Power Input
    -48VDC
    Price : $162    		 Add 48V DC Power Input
    -SPK
    Price : $68    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $139    		 Add Anti-reflective film
    -OB
    Price : $236    		 Add Optical bonding
