Sunlight Readable Industrial Flat Panel Display : Part # ID-H15A

6mm Aluminum Front Bezel 15" Sunlight Readable Display - Panel Mount Style

LCD Panel
LCD Type	Samsung Grade A Industrial TFT LCD Panel
Display Size	15 inch diagonal (304.13H x 228.1V)
Resolutions	1024 x 768
Display Color	16.2M color
Brightness	1,400 cd/m2
Contrast ratio	400 : 1 (Typical)
Response Time	Tr=15 / Tf=25ms
Pixel pitch	0.297 x 0.297 mm
Viewing angle	65 / 65 / 50 / 60 (L / R / U / D) or 130 / 110
OSD Control	Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall
LCD MTBF	50,000 hrs
Signal Input	Input Video Signal : Analog RGB Video Level : Analog: 0.7Vp-p Sync Type : Separate H/V, Composite H/V Input Connector:D-Sub 15 pin VGA analog
Power Supply	External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output, Adapter size : 108(W)x64(H)x30Dmm, UL & CE
Mounting	VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS
Optional Video Input	Video Input : S-Video and Composite Input Connectors : RCA, S-video
Optional Touch Screen	Details
Optional DC Power	48V / 24V / 12V DC Power Input Range:10~36V(DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection
Mechanical
Material	6mm Aluminum (Front panel) 1.2mm Steel (Rear case)
Finish	Powder Coating
Color	Front Panel : Black Back : Dark Grey (RAL7037)
Dimension	390 x 55 x 300 mm (WxDxH)
Product Weight	3.5 kg
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -10 to 60 Degree Celsius (Storage)
Relative Humidity	5 ~90%, non condensing
Vibration	5~500Hz 1G RMS random vibration
Safety Approval	CE, FCC
Package Content
Package Content	LCD Monitor x 1 , VGA Cable (Male to Male) x 1, DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

Front View of ID-H15A

Construction

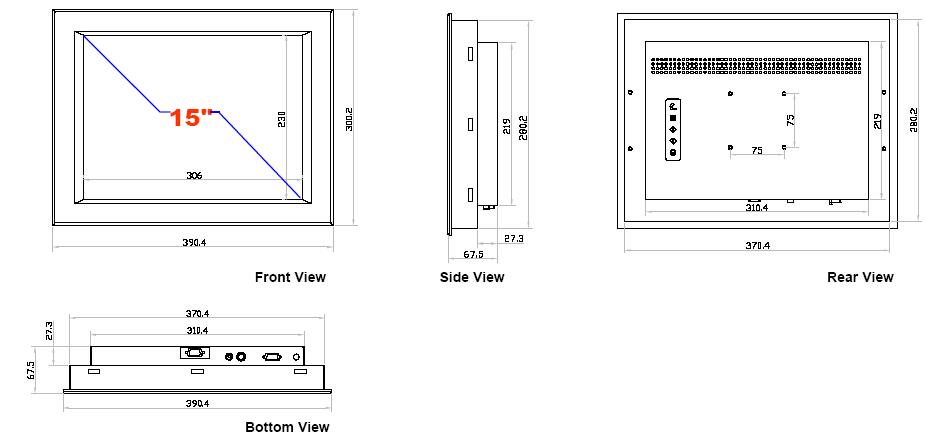

Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

FEATURES :

15" industrial TFT LCD panel support 1024 x 768 pixels

6mm Aluminum front bezel with 45 degree chamfer

Rugged construction and modularized design

1400 cd/m2 industrial brightness

OSD control keys to optimize the display

Optional front IP protection

Optional video input (S-Video & RCA input)

Optional touch screen, NEMA 4 / IP 65 front protection

Wide-ranges Mounting kits
(VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

Embedded display Unit
Industrial automation LCD panel
Gaming, lottery & amusement display
Touch screen display panel
Kiosks, arcade games, Hospitality Display, ATM Machines
Aviation simulators, Industrial test equipment, and Instrumentation

Diagram for I/O Outlet

Ordering information :

Part # Description

                                                 WITHOUT NEMA 4 / IP65

ID-H15A
Price : $1459 Standard Version - 6mm Aluminum Front Bezel 15" Industrial display

ID-H15AAV
Price : $1568 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + S-Video &
                           Composite Video

ID-H15ABNC
Price : $1568 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + BNC

ID-H15ADC12
Price : $1595 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + 12v DC Power

ID-H15ADC24
Price : $1595 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + 24v DC Power

ID-H15ADC48
Price : $1595 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + 48v DC Power

ID-H15ATRS
Price : $1716 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display +
                           e-Resistive Touch screen & serial controller

ID-H15ATRB
Price : $1716 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display +
                           e-Resistive Touch screen & USB controller

ID-H15ATCS
Price : $2041 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display +
                          3M Capacitive Touch screen & serial controller

ID-H15ATCB
Price : $2041 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display +
                           3M Capacitive Touch screen & USB controller

                                                  WITH NEMA 4 / IP65

ID-H15AN
Price : $1574 Standard Version - 6mm Aluminum Front Bezel 15" Industrial display + NEMA 4 / IP65

ID-H15AAVN
Price : $1682 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + S-Video &
                           Composite Video + NEMA 4 / IP65

ID-H15ABNCN
Price : $1682 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + BNC +
                           NEMA 4 / IP65

ID-H15ADC12N
Price : $1709 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + 12v DC Power
                           +NEMA 4 / IP65

ID-H15ADC24N
Price : $1709 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + 24v DC Power
                           +NEMA 4 / IP65

ID-H15ADC48N
Price : $1709 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display + 48v DC Power
                           +NEMA 4 / IP65

ID-H15ATRSN
Price : $1831 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display +
                           e-Resistive Touch screen & serial controller + NEMA 4 / IP65

ID-H15ATRBN
Price : $1831 Version w/option - 6mm Aluminum Front Bezel 15" Industrial display +
                           e-Resistive Touch screen & USB controller + NEMA 4 / IP65
