     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

                            Industrial LCD Monitors :   Part #   ID-H17A
                  6mm Aluminum Front Bezel 17" High Brightness Industrial Display - Panel Mount Style
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

17 inch diagonal (338H x 270V)

Resolutions

1280 x 1024

Display Color

16.7M color

Brightness

800 cd/m2

Contrast ratio

800 : 1 (Typical)

Response Time

Tr=3.5 / Tf=1.5ms

Pixel pitch

0.264 x 0.264 mm

Viewing angle

80 / 80 / 80 / 80 (L / R / U / D)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

 -Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

 Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter

Mounting

Support VESA-mount, Panel-mount, Wall-mount& Bracket mount
                                                  OPTIONS

Optional Video  Input
  • Video Input : DVI, S-Video and Composite
  • Input Connectors : DVI, BNC, RCA,
        S-video
    		•

    Optional Touch Screen

                     Details

    Other Options

    - Video Input :Video Input : DVI, S-Video & Composite Video (BNC/RCA)
    - NEMA4 / IP65, TV tuner, Audio, Remote controller
    - 48V / 24V / 12V DC Power Input
    - Anti-Reflective Film, Optical Bonding

                                      Mechanical

    Material

     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension  439 x 62 x 357 mm (WxDxH)
    Product Weight  5.5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~90%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Shock    10G acceleration (11ms duration)
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    		 LCD Monitor x1,VGA Cable (Male to Male) x1, AC to DC 12V adapter x1 ,Power cord x 1,  Mounting Bracket x 1 pair, User Manual x 1

      Front View of  ID-H17A

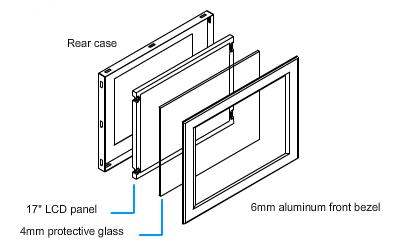

            Construction

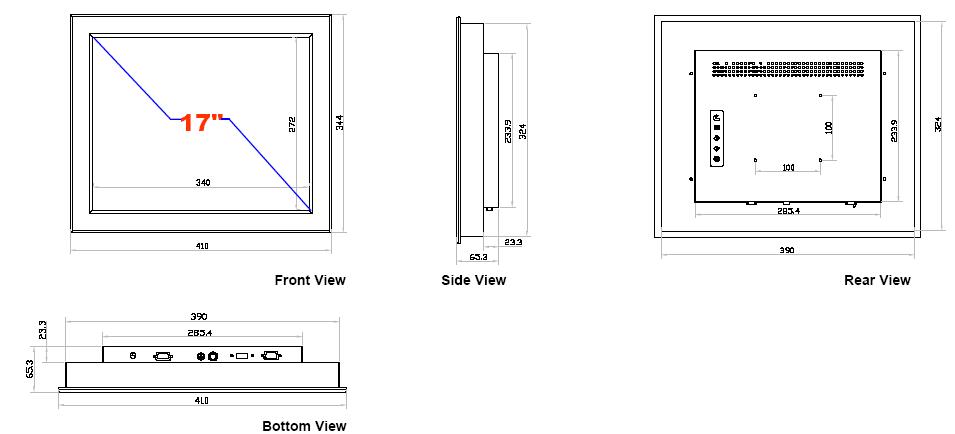

       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view

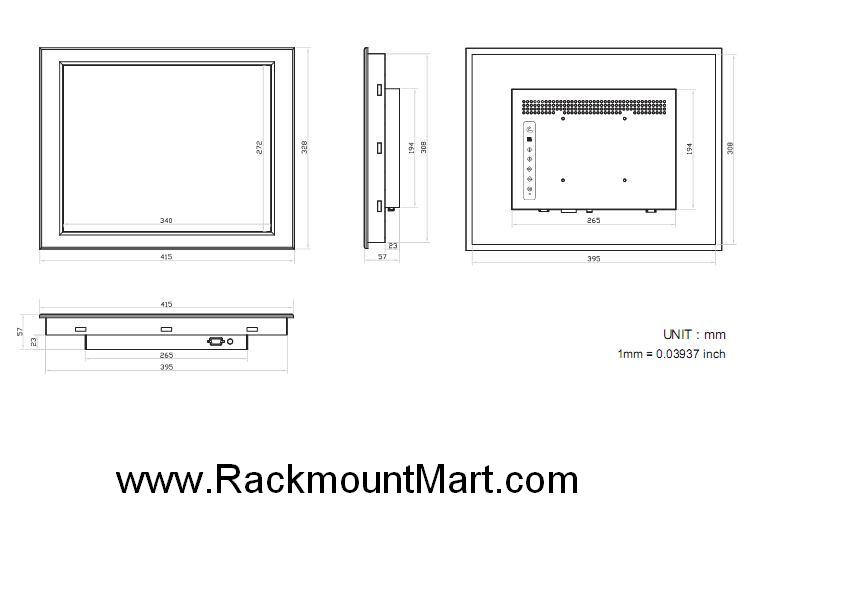

                         ( VESA Mount /  Wall Mount )

    NOTE: Coming soon! Refer to similar model now

    Touchscreen Drive Download(Resistive)
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    <




    FEATURES :
    • 17" industrial TFT LCD panel support 12800 x 1024 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • 800 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC power input (12 / 24 / 48 VDC)
    • Optional video input (DVI & S-Video & RCA input)
    • Optional touch screen, NEMA 4 / IP 65 front protection
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet






    Ordering information :
    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-H17A
    Price : $1365    		 Standard Version  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display
    ID-H17AAV
    Price : $1426    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               S-Video & Composite video(RCA)
    ID-H17ADVI
    Price : $1473    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display + DVI
    ID-H17ABNC
    Price : $1426    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               S-Video & Composite video(BNC)
    ID-H17ADC12
    Price : $1568    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               12v DC Power
    ID-H17ADC24
    Price : $1568    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               24v DC Power
    ID-H17ADC48
    Price : $1568    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               48v DC Power
    ID-H17ATRS
    Price : $1649    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               Resistive Touch screen & serial controller
    ID-H17ATRB
    Price : $1649    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               Resistive Touch screen & USB controller
    ID-H17ATCS
    Price : $1824    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               Capacitive Touch screen & serial controller
    ID-H17ATCB
    Price : $1824    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               Capacitive Touch screen & USB controller
    -DVI
    Price : $108    		 Add DVI
    -AV
    Price : $61    		 Add Composite video(RCA) + S-video
    -BNC
    Price : $61    		 Add Composite video(BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -QD
    Price : $635    		 Add Quad display
    -12VDC
    Price : $203    		 Add 12V DC Power
    -24VDC
    Price : $203    		 Add 24V DC Power
    -48VDC
    Price : $203    		 Add 48V DC Power
    -SPK
    Price : $68    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $189    		 Add Anti-reflective film
    -OB
    Price : $450    		 Add Optical bonding
                                                      WITH NEMA 4 / IP65
    ID-H17AN
    Price : $1453    		 Standard Version  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               NEMA 4 / IP65
    ID-H17AAVN
    Price : $1514    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               S-Video & Composite video(RCA) + NEMA 4 / IP65
    ID-H17ADVIN
    Price : $1561    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                              DVI + NEMA 4 / IP65
    ID-H17ABNCN
    Price : $1514    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               S-Video & Composite video(BNC) + NEMA 4 / IP65
    ID-H17ADC12N
    Price : $1656    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               12v DC Power +NEMA 4 / IP65
    ID-H17ADC24N
    Price : $1656    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               24v DC Power +NEMA 4 / IP65
    ID-H17ADC48N
    Price : $1656    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               48v DC Power +NEMA 4 / IP65
    ID-H17ATRSN
    Price : $1737    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               Resistive Touch screen & serial controller + NEMA 4 / IP65
    ID-H17ATRBN
    Price : $1737    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               Resistive Touch screen & USB controller + NEMA 4 / IP65
    ID-H17ATCSN
    Price : $1912    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               Capacitive Touch screen & serial controller + NEMA 4 / IP65
    ID-H17ATCBN
    Price : $1912    		 Version w/option  - 6mm Aluminum Front Bezel 17" High Brightness Industrial display +
                               Capacitive Touch screen & USB controller + NEMA 4 / IP65
    -DVI
    Price : $108    		 Add DVI
    -AV
    Price : $61    		 Add Composite video (RCA) + S-video
    -BNC
    Price : $61    		 Add Composite video (BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -QD
    Price : $635    		 Add Quad display
    -12VDC
    Price : $203    		 Add 12V DC Power Input
    -24VDC
    Price : $203    		 Add 24V DC Power Input
    -48VDC
    Price : $203    		 Add 48V DC Power Input
    -SPK
    Price : $68    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $155    		 Add Anti-reflective film
    -OB
    Price : $450    		 Add Optical bonding
