    Home >>  Industrial Display >>  Sunlight Readable Display / Open Frame Style >>


                             Sunlight LCD Industrial LCD Displays :   Part #   ID-H17P

                                     17" High Brightness Industrial Display - Open Frame Style
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

17 inch diagonal (132H x 99V)

Resolutions

1280x 1024

Display Color

262,144 color

Brightness

1000 cd/m2

Contrast ratio

500 : 1 (Typical)

Response Time

Tr=26 / Tf=26ms

Pixel pitch

0.207 x 0.207 mm

Viewing angle

80 / 80 / 70 / 70 (L / R / U / D)

OSD Control

Brightness, Contrast, Phase & Color, H & V position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Power Supply

 Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter

Mounting

Support VESA-mount, Panel-mount, Wall-mount & Bracket mount
                                                  OPTIONS

Optional Video    Input
  • Video Input: S-Video and Composite
  • Input Connectors : BNC, RCA, S-video

    • Optional Touch Screen

                             Details

    Other options

    - Video Input : S-Video & Composite Video (BNC/RCA)
    - TV tuner, Audio, Remote controller
    - 48V / 24V / 12V DC Power Input     Details
    - Anti-Reflective Film, Optical Bonding
                                      Mechanical

    Material

     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension 436 x 55.7x 353.6 mm (WxDxH)
    Product Weight  1.5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~95%, non condensing
    Vibration   5~500Hz 1G RMS random vibration
    Shock  10G acceleration (11ms duration)
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    		 LCD Monitorx1,VGA Cable(Male to Male) x1,   AC to DC 12V adapter  x1,  Power cord x 1,  Mounting Bracket x 1 pair, User Manual x 1

      Front View of  ID-H17P

      Construction

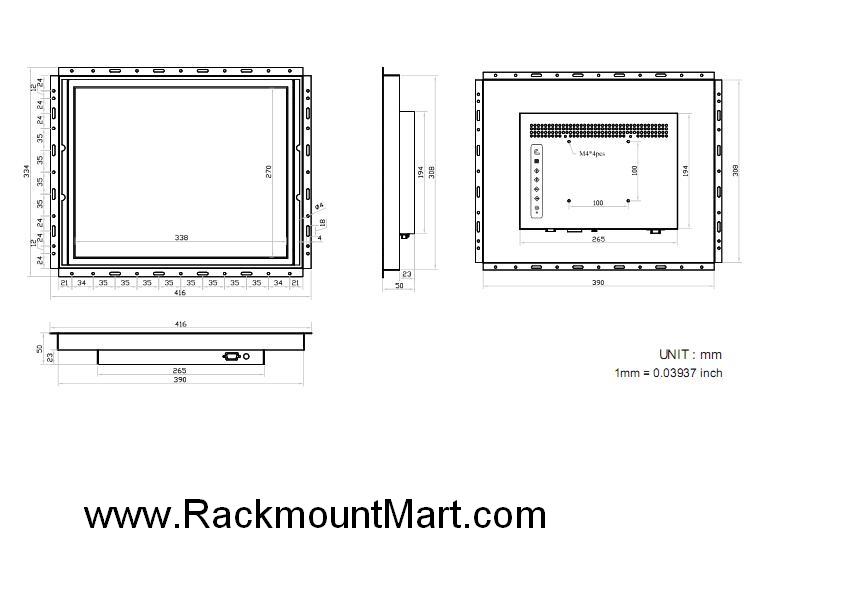

       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view




      NOTE: Coming soon! Refer to similar model now

    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7



    More Photos, click on the following for enlarged view:


    FEATURES :
    • 17" industrial TFT LCD panel support 1280 x 1024 pixels
    • 800 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Low power consumption
    • Different models fit for various application
    • Modularized design
    • Optional video input (DVI & S-Video & RCA input)
    • Optional with touch screen and DC power input
    • Low power consumption
    • VESA-mount, Universal-mount, OEM mounting design

    APPLICATIONS :

    • Industrial automation LCD panel
    • Embedded display Unit
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet

    Ordering information :
    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-H17P
    Price : $1026    		 Standard Version  - 17" Samsung Open Frame TFT LCD Display
    ID-H17PAV
    Price : $1107    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display + S-Video &
                               Composite video(RCA)
    ID-H17PBNC
    Price : $1107    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display + S-Video &
                               Composite video(BNC)
    ID-H17PDVI
    Price : $1087    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display + DVI
    ID-H17PDC12
    Price : $1229    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display + 12v DC Power
    ID-H17PDC24
    Price : $1229    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display + 24v DC Power
    ID-H17PDC48
    Price : $1229    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display + 48v DC Power
    ID-H17PTRS
    Price : $1256    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display +
                               Resistive Touch screen & serial controller
    ID-H17PTRB
    Price : $1256    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display +
                               Resistive Touch screen & USB controller
    ID-H17PTCS
    Price : $1424    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display +
                              Capacitive Touch screen & serial controller
    ID-H17PTRB
    Price : $1424    		 Version w/option  - 17" Samsung Open Frame TFT LCD Display +
                               Capacitive Touch screen & USB controller
    -DVI
    Price : $61    		 Add DVI
    -AV
    Price : $81    		 Add Composite video(RCA) + S-video
    -BNC
    Price : $81    		 Add Composite video(BNC) + S-video
    -TV
    Price : $101    		 Add TV tuner with remote controller
    -QD
    Price : $594    		 Add Quad display
    -12VDC
    Price : $203    		 Add 12V DC Power
    -24VDC
    Price : $203    		 Add 24V DC Power
    -48VDC
    Price : $203    		 Add 48V DC Power
    -SPK
    Price : $81    		 Add Audio input
    -RM
    Price : $54    		 Add Remote controller
    -AR
    Price : $189    		 Add Anti-reflective film
    -OB
    Price : $405    		 Add Optical bonding
