     Home >>  Industrial Display  >>  Sunlight Readable Display / Panel Mount Style >>

                                                      Sunlight LCD:   Part #   ID-H19A
                                6mm Aluminum Front Bezel 19" Samsung Sunlight LCD  - Panel Mount Style
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

19 inch diagonal (376.3H x 301.0V)

Resolutions

1280 x 1024

Display Color

16.7M color

Brightness

800 cd/m2

Contrast ratio

800 : 1 (Typical)

Response Time

Tr=1.3 / Tf=3.7ms

Pixel pitch

0.294 x 0.294 mm

Panel color

16.7 million display colors

Viewing angle

80/80/80/80 (L / R / U / D)  or
160  / 160

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite H/V
  • Input Connector : D-Sub 15 pin VGA analog

Power Supply
External type, 110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input
  • Video Input   :    DVI and S-Video and Composite and BNC
  • Input Connectors : RCA, S-video, DVI

Optional Touch Screen

                 Details

Optional DC Power

 48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
 DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety  : Continuous short circuit protection
                                  Mechanical

Material

 6mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating
Color  Front Panel : Black
 Back          : Dark Grey (RAL7037)
Dimension  471 x 63 x 393 mm (WxDxH)
Product Weight  6 kg
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -10 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   5~500Hz 1G RMS random vibration
Safety Approval   CE, FCC
                             Package Content

Package Content

 LCD Monitor x 1 , VGA Cable (Male to Male) x 1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CA disc, User Manual x 1

  Front View of  Sunlight LCD ID-H19A



  Construction

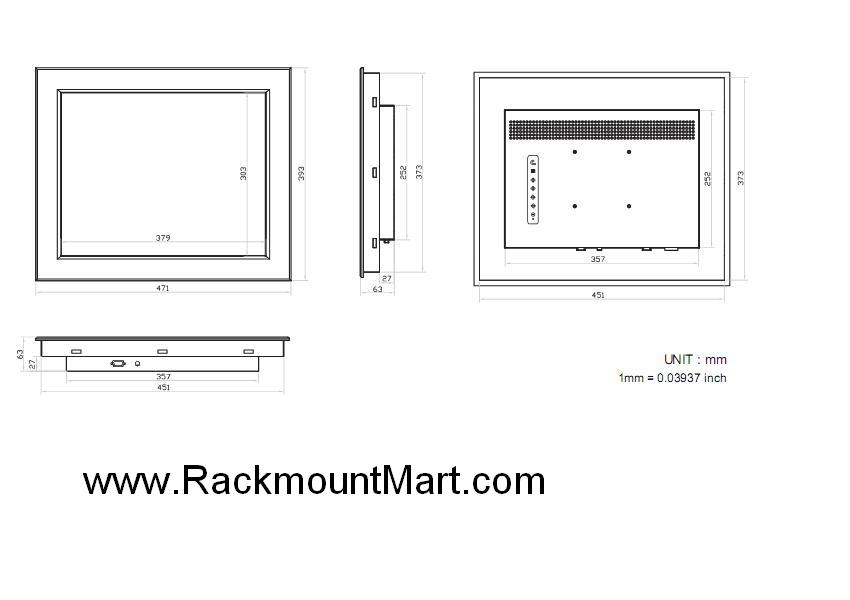

   Front / Rear / Top / Side Views & Dimensions



      *click on above picture for enlarged view








Touchscreen Drive Download(Resistive)
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE













FEATURES :
  • 19" industrial Sunlight TFT LCD panel support 1280 x 1024 pixels
  • 6mm Aluminum front bezel with 45 degree chamfer
  • Rugged construction and modularized design
  • 800 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Optional front IP protection
  • Optional video input (DVI & S-Video & RCA input)
  • Optional touch screen, NEMA 4 / IP 65 front protection
  • Wide-ranges Mounting kits
    (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

     Diagram for  I/O Outlet

Ordering information :
Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-H19A
Price : $1527		 Standard Version  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD
ID-H19AAV
Price : $1588		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           S-Video & Composite video(RCA)
ID-H19ABNC
Price : $1588		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           S-Video & Composite video(BNC)
ID-H19ADVI
Price :  $1635		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           DVI
ID-H19ADC12
Price : $1730		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           12v DC Power
ID-H19ADC24
Price : $1730		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           24v DC Power
ID-H19ADC48
Price : $1730		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           48v DC Power
ID-H19ATRS
Price : $1851		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           e-Resistive Touch screen & serial controller
ID-H19ATRB
Price :  $1851		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           e-Resistive Touch screen & USB controller
ID-H19ATCS
Price : $2013		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                          e-Capacitive Touch screen & serial controller
ID-H19ATCB
Price : $2013		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           e-Capacitive Touch screen & USB controller
-DVI
Price : $108		 Add DVI
-AV
Price : $61		 Add Composite video(RCA) + S-video
-BNC
Price : $61		 Add Composite video(BNC) + S-video
-TV
Price : $101		 Add TV tuner with remote controller
-QD
Price : $635		 Add Quad display
-12VDC
Price : $203		 Add 12V DC Power
-24VDC
Price : $203		 Add 24V DC Power
-48VDC
Price : $203		 Add 48V DC Power
-SPK
Price : $68		 Add Audio input
-RM
Price : $54		 Add Remote controller
-AR
Price : $209		 Add Anti-reflective film
-OB
Price : $608		 Add Optical bonding
                                                  WITH NEMA 4 / IP65
ID-H19AN
Price : $1615		 Standard Version  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           NEMA 4 / IP65
ID-H19AAVN
Price : $1676		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           S-Video & Composite video(RCA) + NEMA 4 / IP65
ID-H19ABNCN
Price : $1676		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           S-Video & Composite video(BNC) + NEMA 4 / IP65
ID-H19ADVIN
Price : $1723		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           DVI + NEMA 4 / IP65
ID-H19ADC12N
Price : $1818		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           12v DC Power + NEMA 4 / IP65
ID-H19ADC24N
Price : $1818		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           24v DC Power + NEMA 4 / IP65
ID-H19ADC48N
Price : $1818		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           48v DC Power + NEMA 4 / IP65
ID-H19ATRSN
Price : $1939		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           e-Resistive Touch screen & serial controller + NEMA 4 / IP65
ID-H19ATRBN
Price : $1939		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           e-Resistive Touch screen & USB controller + NEMA 4 / IP65
ID-H19ATRSN
Price : $2101		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           e-Capacitive Touch screen & serial controller + NEMA 4 / IP65
ID-H19ATRBN
Price : $2101		 Version w/option  - 6mm Aluminum Front Bezel 19" Samsung Sunlight LCD+
                           e-Capacitive Touch screen & USB controller + NEMA 4 / IP65
-DVI
Price : $108		 Add DVI
-AV
Price : $61		 Add Composite video(RCA) + S-video
-BNC
Price : $61		 Add Composite video(BNC) + S-video
-TV
Price : $101		 Add TV tuner with remote controller
-QD
Price : $635		 Add Quad display
-12VDC
Price : $203		 Add 12V DC Power
-24VDC
Price : $203		 Add 24V DC Power
-48VDC
Price : $203		 Add 48V DC Power
-SPK
Price : $68		 Add Audio input
-RM
Price : $54		 Add Remote controller
-AR
Price : $209		 Add Anti-reflective film
-OB
Price : $608		 Add Optical bonding
