Home >> Rackmount LCD / KVM >> High Bright / Sunlight Readable Rackmount LCD Monitor KVM >>

Home >> Rackmount LCD / KVM >> 15" Rackmount LCD Keyboard KVM >>

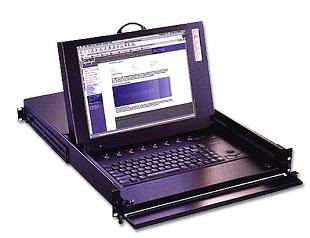

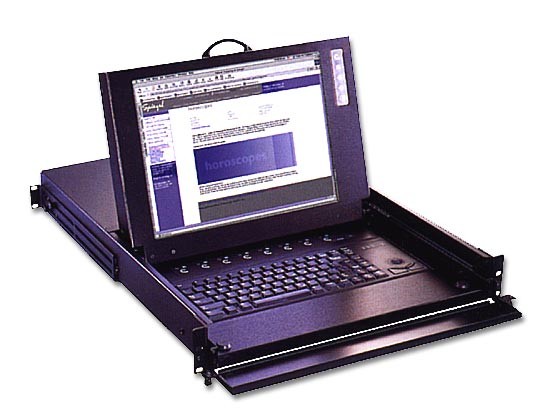

1.5U Rackmount LCD Monitor Keyboard Drawer / KVM Switch :
Part # HRKP115 / LCD1.5U15-01

1.5 U Rackmount High Bright 15" TFT LCD Monitor Keyboard Drawer
( optional 8 port or 16 port KVM switch )

Panel: SAMSUNG 15" LCD panel

Display Type	TFT / LCD active matrix color
Resolutions	1024 x 768
Response time	Tr =5ms / Tf =20ms
Contrast ratio	300 : 1 typical
Brightness	1400 cd/ m2 typical
Pixel pitch	0.297mm (H) x 0.297mm (W)
Panel color	16.7 million display colors
Viewing angle	115 º (Horiz.) / 100 º (Vert.)
KVM	Standard : 1 port KVM Optional : 8-port or 16-port KVM Switch
Storage temp.	-20 to 60 ºC
Operating temp.	0 to 50 ºC
Dimension	43.9(W) x 6.6(H) x 60(D)cm
MTBF	25,000 hours

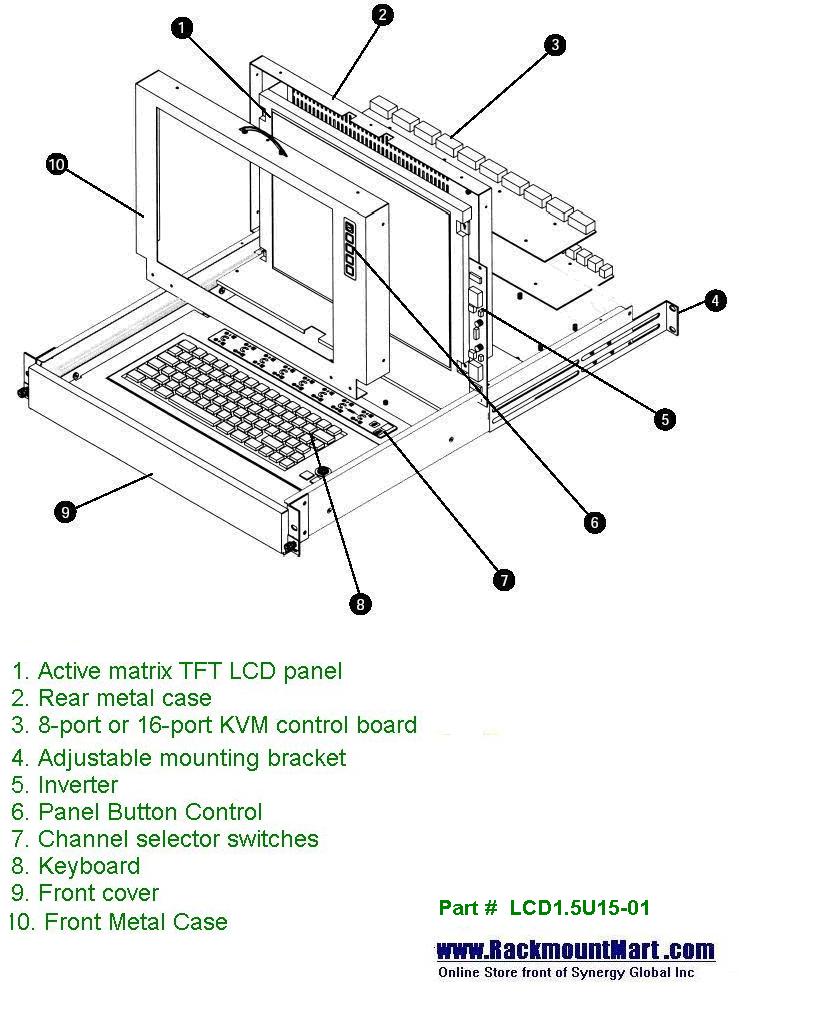

*click on picture for enlarged view

Features :

SAMSUNG LCD Panel
Occupies only 1.5U of vertical rack space
Adjustable mounting brackets from 15.4" to 31.1" (390 to 790 mm) (front to rear 19" mounts). Suitable for 30" to 39.4" (750 to 1000mm) deep 19 cabinet
Designed to satisfy most commercial, industrial or military application requirements
Viewable under ambient lighting condition
Anodized aluminum front panel
High brightness (Sunlight Readable ) and contrast enhances display quality, enhances sunlight and daylight readability
Brightness more than 1400cd/m 2 -15"
3 Keyboard options (Cherry type w/ trackball & Notebook type w/ either trackball or touchpad) supporting multiple languages ( click here to see details )
Provides the longest lamp life possible for all brightness levels
Built in on screen display controlled by integral membrane switches
Standard D-sub 15-pin VGA input connector
Slide rails have two fixed positions to prevent movement of the keyboard
Supplied with 12V 5A remote power adapter (single power source)
All mounting hardware included
One 6-ft long cable included for Standard model and Eight 6-ft cables included for 8-port or 16-port KVM model

Power supply :

Remote adapter : 110V - 220 V AC Input , 12V 5A Output
Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
Cable length from mains plug to adapter : 6ft / 182cm
Cable length from adapter to unit : 6ft / 180cm
Safety approval : FCC CE
Mains plug options available
Optional - power adaptor 48V or 24V DC input available

With 8-port or 16-port KVM Switch Only

Multi-platform-compatible : SUN, HP, IBM, Dell & Compaq
Built-in KVM switch function for easy controlling and monitoring up to 16 residing servers/platforms
Easily switch button to select the PC channel by using the push-button channel selector switches, Hot Keys, or via the On-Screen Display (OSD) Menu
Auto scan mode for monitoring PCs and flexible scan time from 5-99 seconds
Add or remove computers without powering down the switch
Support eight characters password protection and search PC server name
Cascade up to 128 servers 16-channel, 8- channel & 4- channel rackmount model (Cascade Level : 8 / Maximum no. of accessible PC : 128)
Built-in microprocessor emulation for each port boots up process
Hot-pluggable when adding to 16 characters long
VGA, keyboards & mouse all in one by 15 pin HDB connector
Input VGA resolution : 1,920 x 1,440
LED display for easy status monitoring
12V 1A remote power adapter ( single power source) included
No software needed
All mounting hardware included
Eight 6-ft cables included

Ordering information :

Part # Description

HRKP115c / LCD1.5U15-01-c                Price : $1786 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with Cherry keyboard & trackball mouse, one 6-ft long cable included

HRKP115e / LCD1.5U15-01-n                Price : $1700 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with notebook keyboard & touchpad mouse, one 6-ft long cable included

HRKP115b / LCD1.5U15-01-b
Price : $1700 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with notebook keyboard & trackball mouse, one 6-ft long cable included

HRKP115-801c / LCD1.5U15-01-8KVM-c Price : $2064 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with Cherry keyboard & trackball mouse and 8 port KVM switch, eight 6-ft long cables included

HRKP115-801e / LCD1.5U15-01-8KVM-n Price : $1979 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with notebook keyboard & touch-pad mouse and 8 port KVM switch, eight 6-ft long cables included

HRKP115-801b / LCD1.5U15-01-8KVM-b Price : $1979 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with notebook keyboard & trackball mouse and 8 port KVM switch, eight 6-ft long cables included

HRKP115-1601c /LCD1.5U15-01-16KVM-c Price : $2279 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with Cherry keyboard & trackball mouse and 16 port KVM switch, eight 6-ft long cables included

HRKP115-1601e / LCD1.5U15-01-16KVM-n Price : $2193 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with notebook keyboard & touch pad mouse and 16 port KVM switch, eight 6-ft long cables included

HRKP115-1601b / LCD1.5U15-01-16KVM-b Price : $2193 1.5U Rackmount 15" TFT LCD Monitor Keyboard Drawer with notebook keyboard & trackball mouse and 16 port KVM switch, eight 6-ft long cables included
