Rack Console LCD1U10-02

                          SHORT DEPTH 1U Rack Console 10" Grade A Industrial LCD Monitor Keyboard
                                      Optional DB-15 Kvm / CAT5 Kvm ( CAT6 Kvm ) connector
           Optional Combo Kvm ( USB PS2 Kvm ) / PS2 Kvm / Multi-User Matrix Kvm / Kvm Over IP
                                           Optional 1 / 2 / 3 / 4 Consoles for Local / Remote Access

Rack Console LCD1U10-02

*click on photo for enlarged view

Rack Console Benefits

Rugged 1U 10.4" LCD Rack Console
Optional Cost Efficient built in KVM with various choices:
- Connector : DB-15 KVM or Cat5 KVM ( Cat6 KVM )
- KVM Type : Combo KVM (USB PS2 KVM ) / PS/2 KVM /
Multi-User Matrix KVM
Secure remote user access across the internet via optional IP console (KVM Over IP )
Mix PS/2 , USB & SUN with Multi-Platform switch capability
"One Man" installation slides for easy and quick installation
Combo interface either PS/2 or USB input to the rack console
High Scalability : Interchangeable KVM, & Keyboard & mouse modules
Slide rails with fixed positions to prevent drawer movement when typing
Optional S-Video + Composite Video ( BNC or RCA ),
DVI-D, Touch screen , DC Power input, Audio
*** Single port includes VGA, DVI, BNC, S-video and Audio inputs
1 year Warranty

General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows

LCD Screen

LCD Type

Grade A Industrial monitor 10 inch Active Matrix TFT LCD Panel

Display Size

10.4 inch diagonal

Resolutions

1024 x 768

Response time

Tr=10 / Tf=25 ms

Contrast ratio

1200 : 1

Brightness

400 cd/ m2

Pixel pitch

0.297 (H) x 0.297 (V) mm

Panel color

16.2 million display colors

Viewing angle

176 (Horiz.) x 176 (Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (BNC or RCA ),
DVI-D ...More Video Input Details
*** Single port includes VGA, DVI, BNC, S-video and Audio inputs

LCD MTBF

50,000 hrs

Keyboard &
Pointing Device

Notebook type KB w/ Tochpad or Cherry KB w/Trackball

KVM ( Keyboard Video Mouse )

Connector

KVM Version

DB-15

* DB-15 No KVM ( with combo interface)

* DB-15 PS/2 KVM ( 8 or 16 port )

* DB-15 Combo KVM ( USB PS2 KVM )
No. of Console	No of KVM port
1 ( Local only )	8 or 16
2 ( 1 x local + 1 x remote )	8 or 16
2 ( 1 x local + 1 x IP )	8 or 16

* DB-15 Matrix KVM
No. of Console	No. of KVM port
2 ( 1 x local + 1 x remote )	8 or 16
3 ( 1 x local + 2 x remote )	8 or 16
3 (1x local +1x remote +1x IP )	8 or 16
4 ( 1 x local + 3 x remote )	8 or 16
4 (1x local +1x remote +2x IP )	8 or 16
4 (1x local +2x remote +1x IP )	8 or 16

CAT5 / CAT6

* CAT6 Combo KVM ( USB PS2 KVM )
No. of Console	No. of KVM port
1 ( Local only )	8 or 16 or 32
2 ( 1 x local + 1 x remote )	8 or 16 or 32
2 ( 1 x local + 1 x IP )	8 or 16 or 32

* CAT6 Matrix KVM
No. of Console	No. of KVM port
2 ( 1 x local + 1 x remote )	16 or 32
3 ( 1 x local + 2 x remote )	16 or 32
3 (1x local +1x remote +1x IP )	16 or 32
4 ( 1 x local + 3 x remote )	16 or 32
4 (1x local +1x remote +2x IP )	16 or 32
4 (1x local +2x remote +1x IP )	16 or 32

Power Supply

Internal Power Supply : 110V - 220 V AC Input , 12V 5A Output

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)

Relative Humidity

90%, non condensing

Shock

50G peak acceleration
(11ms, half since wave)

Vibration

58~500Hz/ 0.98G
(11min/ cycle)

Mechanical

Product Dimension

(W x D x H )
442 x 410 x 44 mm /17.4 x 16.1 x 1.73 inch

Product Weight

Approximately 33 lbs / 15kg

Relative Humidity

90%, non condensing

Regulatory Approval

UL , FCC , CE , VCCI , 3C*

More photos (click to enlarge )

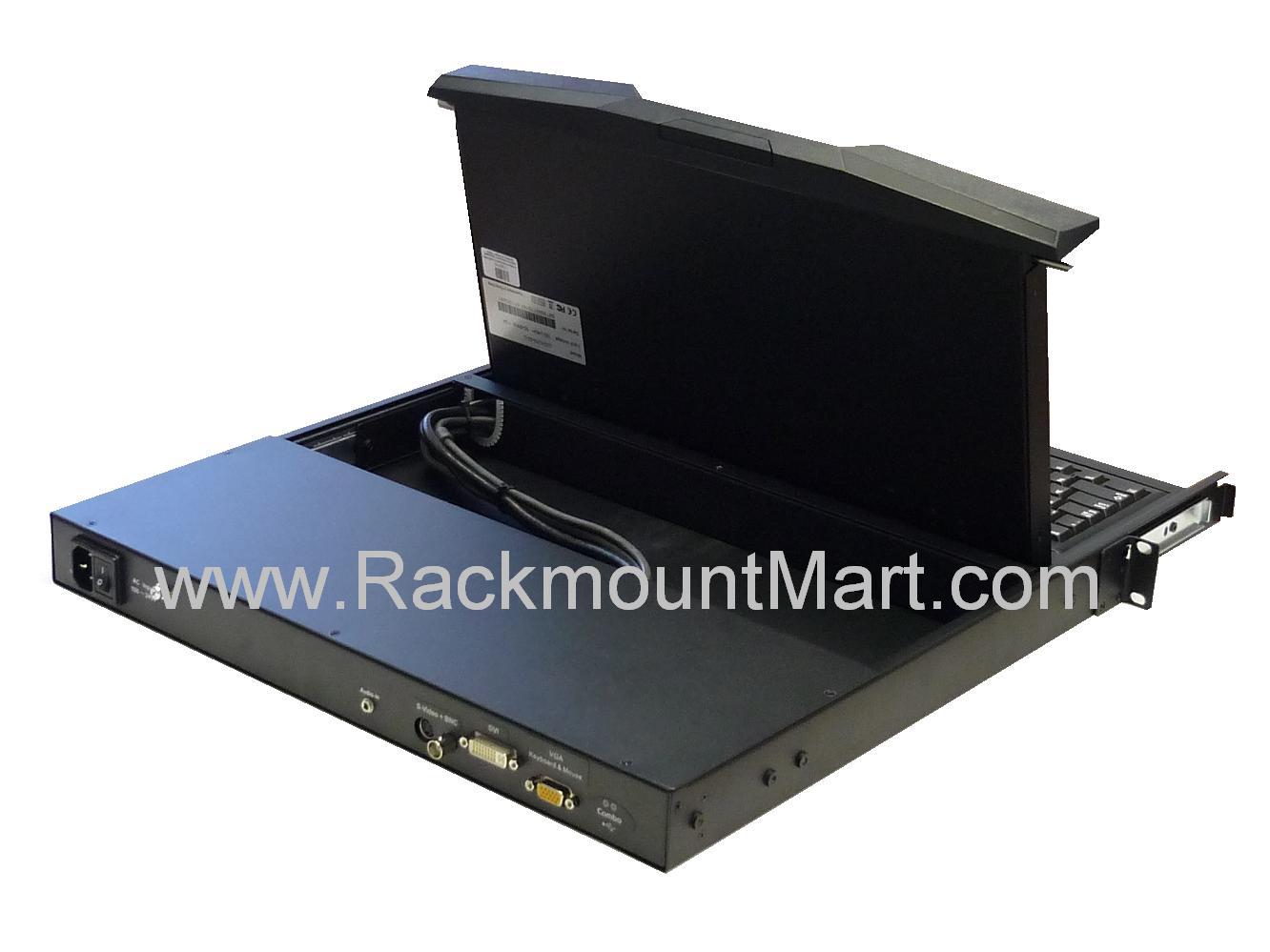

Dimension/Construction/Rear Views

*click on above pictures for enlarged view

Product Sheet
Single Product Sheet
User Manual
User Manual
KVM Support
DB-15 KVM
DB-15 PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local + remote console
DB-15 Combo USB PS2 kvm Local + IP console
CAT5 / CAT6 KVM
Cat5 / Cat6 Combo USB PS2 kvm Local console
Cat5 / Cat6 Combo USB PS2 kvm Local + remote console
Cat5 / Cat6 Combo USB PS2 kvm Local + IP console
Matrix KVM
DB-15 Matrix USB PS2 kvm Local + remote console
DB-15 Matrix USB PS2 kvm Local + IP console
Cat5 / Cat6 Matrix USB PS2 kvm Local + remote console
Cat5 / Cat6 Matrix USB PS2 kvm Local + IP console

Optional Peripheral & Accessory

- S-Vdieo + Composite Video (BNC or RCA) / DVI-D

- Touch screen

- DC Power Input ( 12V / 24V / 48V )

- KVM Cables & Cascade Cables in Various Length

- USB & PS/2 Dongles

-PS2 to SUN /iMac USB adapter

- KVM Extender -IP KVM Extender

Free Ground Shipping( A $55 Value) *Click for details

(Promotion items are not applicable)

Customer who ordered this product may also order these :
- KVM Switch	- Rack Shelves
- PDU ( Power Distribution Unit )	- Rack Drawer
- Server Rack Cabinet	- Power Strips
- 4 Post Rack	- Rack Cooling Fan
- Wall Rack Mount

Features of Rack Console :

Industrial monitor Grade A 10" LCD Panel in 1U Rack space
Either PS/2 or USB input to this Rack console ( the rack LCD drawer / keyboard )
Space Saving: Only 16.14" deep in 1U space
7-button LCD OSD membrane with a power LED
2 point lock, with Stylish latching front panel to release the 2-point lock
Micro switch for screen auto power off , power saving feature for prolonging the lift of LCD panel
KVM membrane
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Unique mechanical design to maximize rack mountable space
Black Anodized aluminum front panel
VGA, keyboards & mouse all in one by 15 pin HDB connector
Built in slide rails which can be mounted easily in any 19" rack cabinet
EMC shielding around the monitor housing to minimize interference
Rear rack mounting bracket included
Standard 6-ft KVM cable, optional 10, 15 ft available
Optional : S-Video and Composite video input (RCA or BNC ), DVI-D , Audio, Touch screen, DC power input adapter , Speaker (can be added on single and 8-port KVM only)
Single port version comes w/ build-in VGA, DVI, BNC, S-video and Audio input

Features of Optional KVM :

Connector

KVM Version

Number of KVM port

Cascade Capacity

Capability / KVM Technical Specifications

DB-15

PS/2 KVM

8 or 16 port

Up to 8 Levels / 128 Servers

Capability

DB-15 PS/2 kvm hooks up 8 or 16 servers with multi-platforms and multi-operating systems. PS/2 KVM cables included

Link to KVM Technical Specification

* DB-15 8 Port PS/2 KVM
* DB-15 16 Port PS/2 KVM

DB-15

Combo KVM (USB PS2 KVM )

8 or 16 port

Up to 8 Levels / 240 Servers

Capability

DB-15 Combo kvm hooks up 8 or 16 servers with multi-platforms and multi-operating systems. With local + remote console model, user can remote access up to 1,000 feet distance via CAT6 cable. While with local + IP console model, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2 interface. Respective Combo KVM cables or/and dongles included

Link to KVM Technical Specification

* DB-15 1 Console 8 Port Combo KVM
* DB-15 1 Console 16 Port Combo KVM
* DB-15 2 Console ( Local + Remote ) 8 Port Combo KVM
* DB-15 2 Console ( Local + Remote ) 16 Port Combo KVM
* DB-15 2 Console ( Local + IP ) 8 Port Combo KVM
* DB-15 2 Console ( Local + IP ) 16 Port Combo KVM

DB-15

Matrix KVM

8 or 16 port

Up to 8 Levels / 240 Servers

Capability

DB-15 Matrix kvm allows maximum of 4 users to local access, remote access up to 1000 feet distance via CAT6 cable or IP remote access without distance limitation via internet. This model supports servers with either USB or PS/2 interface. Respective Combo KVM cables included

Link to KVM Technical Specification

* DB-15 2-4 Console (Local+Remote) 8 /16 Port Matrix KVM
* DB-15 3-4 Console(Local+Remote+IP) 8/16 Port Matrix KVM

CAT5 /
CAT6

Combo KVM (USB PS2 KVM )

8 / 16 / 32 port

Up to 8 Levels / 256 Servers

Capability

CAT6 Combo kvm hooks up 8 , 16 or 32 servers with multi-platforms and multi-operating systems. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2 interface.

Link to KVM Technical Specification

* CAT6 1 Console 8 Port Combo KVM
* CAT6 1 Console 16 Port Combo KVM
* CAT6 1 Console 32 Port Combo KVM
* CAT6 2 Console (Local + Remote) 8 Port Combo KVM
* CAT6 2 Console (Local + Remote) 16 Port Combo KVM
* CAT6 2 Console (Local + Remote) 32 Port Combo KVM
* CAT6 2 Console (Local + IP) 8 Port Combo KVM
* CAT6 2 Console (Local + IP) 16 Port Combo KVM
* CAT6 2 Console (Local + IP) 32 Port Combo KVM

CAT5 /
CAT6

Matrix KVM

8 / 16 / 32 port

Up to 8 Levels / 256 Servers

Capability

CAT6 Matrix kvm allows maximum of 4 users. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. Respective dongles included.

Link to Technical Specification

* CAT6 2 Console (Local + Remote) 8 /16/32 Port Matrix KVM
*CAT6 3-4 Console(Local+Remote+IP)8/16/32 Port Matrix KVM

ORDERING INFORMATION FOR LCD1U10-02 - 1U SAMSUNG 10" LCD RACK CONSOLE WITH
VARIOUS KVM OPTIONS

DB-15 KVM

CAT5 KVM /
CAT6 KVM

Matrix KVM

DB-15 KVM : Single User , Optional Remote Console , Optional IP KVM

LOCAL CONSOLE ONLY

KVM Choice

No. of KVM port

KVM Cable / Dongle

Keyboard

Part #

Price

No KVM , Combo USB PS2 Interface

1 x Combo KVM cable
w/ VGA, DVI, BNC, S-Video, and Audio

Touchpad

LCD1U10-02-n

Promotion
Price: $938

Trackball

LCD1U10-02-c

$1155

PS/2 KVM

8 x PS/2 KVM cable

Touchpad

LCD1U10-02-8KVM-n

$1380

Trackball

LCD1U10-02-8KVM-c

$1530

16 x PS2 KVM cable

Touchpad

LCD1U10-02-16KVM-n

$1584

Trackball

LCD1U10-02-16KVM-c

$1734

Combo KVM
(USB PS/2)

8 x Combo KVM cable

Touchpad

LCD1U10-02-8KVM-n-u

$1493

Trackball

LCD1U10-02-8KVM-c-u

$1643

16 x Combo KVM cable

Touchpad

LCD1U10-02-16KVM-n-u

$1713

Trackball

LCD1U10-02-16KVM-c-u

$1863

LOCAL CONSOLE + REMOTE CONSOLE

KVM Choice

No. of KVM port

KVM Cable / Dongle

Keyboard

Part #

Price

Combo KVM
(USB PS/2)

8 x Combo KVM cable

Touchpad

LCD1U10-02-8KVM2-n

$1683

Trackball

LCD1U10-02-8KVM2-c

$1833

16 x Combo KVM cable

Touchpad

LCD1U10-02-16KVM2-n

$1865

Trackball

LCD1U10-02-16KVM2-c

$2015

LOCAL CONSOLE + IP REMOTE CONSOLE

KVM Choice

No. of KVM port

KVM Cable / Dongle

Keyboard

Part #

Price

Combo KVM
(USB PS/2)

8 x Combo KVM cable

Touchpad

LCD1U10-02-8KVM2IP-n

$1906

Trackball

LCD1U10-02-8KVM2IP-c

$2056

16 x Combo KVM cable

Touchpad

LCD1U10-02-16KVM2IP-n

$2096

Trackball

LCD1U10-02-16KVM2IP-c

$2246

DB-15 Matrix KVM : Multiple Users Up to 4 Simultaneous Users
KVM Port	KVM Console	Keyboard Type	Part #	Description
8 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M82-n Price: $2111	1U 10.4" (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	2 console (1x Local + 1x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M82-c Price: $2261	1U 10.4" (1x Local + 1x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M83-n Price: $2353	1U 10.4" (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M83-c Price: $2503	1U 10.4" (1x Local + 2x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M84-n Price: $2581	1U 10.4" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M84-c Price: $2731	1U 10.4" (1x Local + 3x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
16 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M162-n Price: $2520	1U 10.4" (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	2 console (1x Local + 1x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M162-c Price: $2670	1U 10.4" (1x Local + 1x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M163-n Price: $2747	1U 10.4" (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M163-c Price: $2897	1U 10.4" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M164-n Price: $2975	1U 10.4" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M164-c Price: $3125	1U 10.4" (1x Local + 3x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
DB-15 Matrix KVM : Multiple Users with IP Remote Console
KVM Port	KVM Console	Keyboard Type	Part #	Description
8 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M83IP-n Price: $2611	1U 10.4" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M83IP-c Price: $2761	1U 10.4" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M84IP-n Price: $2823	1U 10.4" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M84IP-c Price: $2973	1U 10.4" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M84IP2-n Price: $3096	1U 10.4" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M84IP2-c Price: $3246	1U 10.4" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo KVM cable included, Black
16 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M163IP-n Price: $3005	1U 10.4" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M163IP-c Price: $3155	1U 10.4" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M164IP-n Price: $3232	1U 10.4" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M164IP-c Price: $3382	1U 10.4" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U10-02-M164IP2-n Price: $3490	1U 10.4" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U10-02-M164IP2-c Price: $3640	1U 10.4" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo KVM cable included, Black
OPTIONS
Part # & Price			Description of Option
-12VDC Price : $171			Add 12V DC Power Input
-24VDC Price : $171			Add 24V DC Power Input
-48VDC Price : $171			Add 48V DC Power Input
-BNC Price : $114			Add Composite Video (BNC) + S-video
-AV Price : $114			Add Composite Video (RCA) + S-video
-DVI Price : $114			Add DVI-D Input
-TRS Price : $300			Add Resistive touch screen + Serial controller ( Height changed from 1U to 1.5U )
-TRB Price : $300			Add Resistive touch screen + USB controller ( Height changed from 1U to 1.5U )
-TCS Price : $486			Add Capacitive touch screen + Serial controller ( Height changed from 1U to 1.5U )
-TCB Price : $486			Add Capacitive touch screen + USB controller ( Height changed from 1U to 1.5U )
-SPK Price : $114			Add speakers

Back to top

Toll Free : 1-888-865-6888 Fax : 510-226-8968 Email : sales@RackmountMart.com

Home | Buy Online | About Us | Contact Us | Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice. Legal.
