1U Rack-mount LCD Monitor Panel with Keyboard Drawer / KVM Switch :
Part # LCD1U15-02

1U Rack-mount 15" LCD Monitor Panel with Keyboard
Drawer and Built-in Power supply optional 8 port KVM switch ( UL Listed *, FCC & CE approved , RoHS Compliant )

LCD1U15-02-n ( Touchpad version) LCD1U15-02-c ( Trackball version)

***Click on photo for enlarged view

Click on the following photos for enlarged views :

LCD1U15-02-n LCD1U15-02-n LCD1U15-02-n LCD1U15-02-n LCD1U15-02-8KVM-n

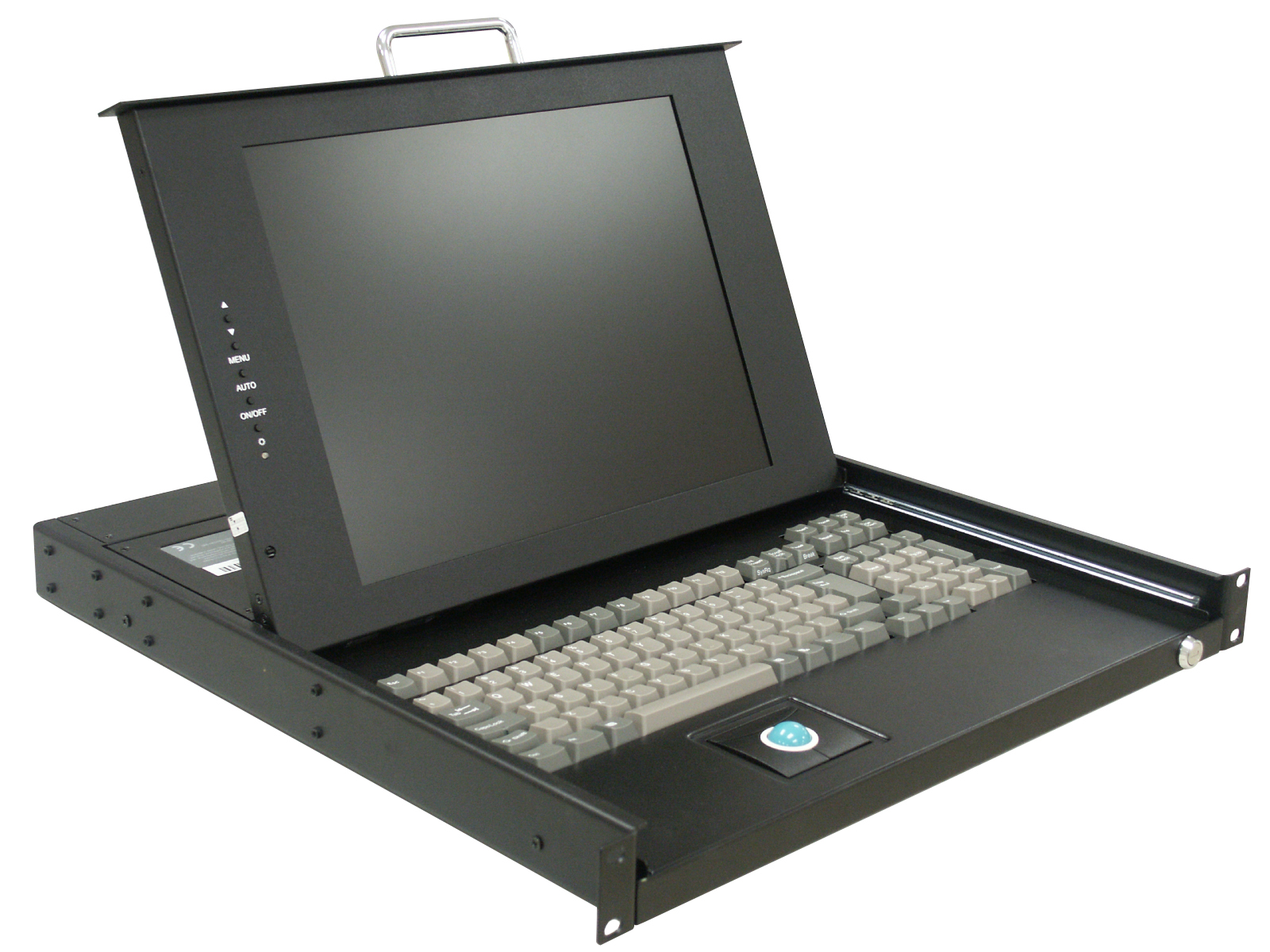

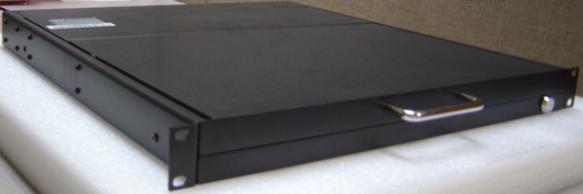

LCD1U15-02-8KVM-n LCD1U15-02 LCD1U15-02 LCD1U15-02-c LCD1U15-02-c LCD1U15-02-c

LCD1U15-02-n (Standard single port w/touchpad)	LCD1U15-02-8KVM (w/ 8 KVM switch)
LCD1U15-02-c (Standard single port w/ trackball)	User Manual
*FREE GROUND SHIPPING*

UL Listed , FCC and CE Approved & RoHS Compliant
15.1" ultra bright/contrast TFT screen
Meets EIA-310C & IEC-3 specifications
Heavy-duty steel
Support DOS, Win 3.X, Win 95 / 98 / 98SE / 2000 / ME / XP, WinNT, SCO Uix, HP Unix, Linux, Netware
105-key Notebook keyboard with numeric keypad and built-in touchpad OR

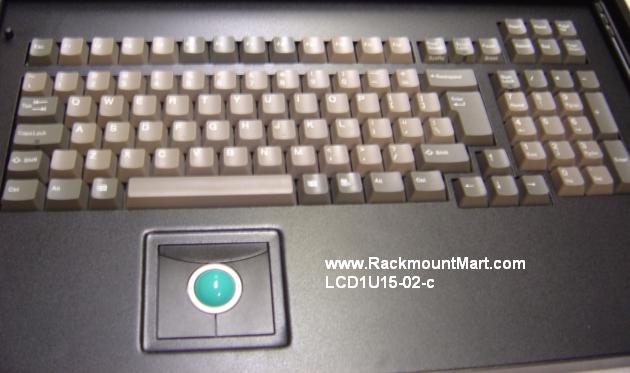

Mechanical 105-key keyboard with with numeric keypad & trackball mouse
15.1" TFT 1024 x 768
Anti-glare tempered glass for added protection to the LCD screen
Built-in Power Adapter
Built-in side railing for instant installation
Movable front panel offers additional comfort during data entry
Keyboard available in multiple languages
Available in black and Customized colors available
Optional DC-48V power supply / Touch-screen

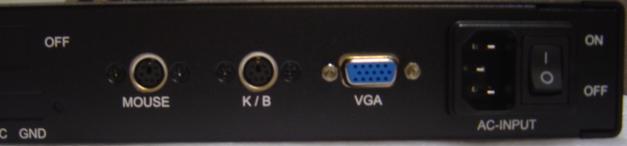

PS2 KVM cable connector : 15Pin D-sub Male (to Cascade VGA port), PS/2 x2 Male (to Cascade PS/2 ports), 15Pin D-sub Male (to Console VGA port), PS/2 x2 Male (to Console PS/2 ports)

	I	II	III
Model No	LCD1U15-02-n	LCD1U15-02-8KVM-n	LCD1U15-02-c
Certification	*UL Listed , FCC and CE Approved**		FCC and CE Approved
Ports switch for PC	Single port	8 ports	Single Port
Dimension	17.5" x 1.75" x 21.65" (W x H x D) 444.5mmx44.5mmx550mm (W x H x D)	17.5" x 1.75" x 23.22" (W x H x D) 444.5mm x 44.5mm x 590mm (W x H x D)	17.42" x 1.75" x 18.9" (W x H x D) 442.4mmx44.5mmx480mm (W x H x D)
Power Supply	1U, AC 50W, DC +48V, 80W auto switching	AC 110/220V Auto Switch	1AC 110/220V Auto Switch
Keyboard	Mechnical 105 key Notebook Keyboard with Numeric keypad and built-in touchpad		Mechanical 105 key Keyboard with Numeric keypad and with built-in trackball
Extension Cable	None	3 IN 1	1 x 1.8 meter (standard VGA, keyboard, mouse cable)
Extension Rail	Up to 35.4" (900mm)	Up to 35.4" (900mm)	Up to 35.4" (900mm)
Protection	Anti-glare Tempered glass		None
Chassis	Heavy-duty Steel
Language	US (standard), Optional : UK, Chinese etc
Color	Black
Auto Power Switch	LCD back-light will automatically shut off when the screen set fold
Key Lock	None		1
Security Lock	Thumb screw x 2		None
Operation Temperature	0-50° C (32-122°F)
Operation Temperature	0-50° C (32-122°F)
Storage Temperature	-5 to 60 Degree Celsius
Relative Humidity	5~90%, non condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz, 1G RMS random vibration
Cable Set	15 pin to 15 pin D-sub cabl, PS2 keyboard & mouse detachable
Display
Diagonal	15" (381mm)
Resolution	1024 x 768
Size	15.1"
Display Area	304.1 x 228.1
Brightness	300
Contrast Ratio	350: 1
Viewing Angle	160 / 160
Backlight MTBF	50,000 hours
Number of Color	16.2 M
Input Signal	Analog : 0.7Vp-p / 75 Ohms
Frame Rate	60Hz (typ), 75Hz (Max)
KVM Switch
KVM Switch Port	N/A	8	N/A
Hot Plug	N/A	Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs	N/A
Video Quality	N/A	Up to 1280 x 1024 with 200 MHz bandwidth	N/A
Auto Scan Mode	N/A	5s - 99s	N/A

Ordering information :

Part #	Description
LCD1U15-02-n Price:$718	1U Rackmount 15" TFT LCD Monitor Keyboard Drawer with touchpad mouse
LCD1U15-02-c Price:$778	1U Rackmount 15" TFT LCD Monitor Keyboard Drawer with trackball mouse
LCD1U15-02-8KVM-n Price:$1018	1U Rackmount 15" TFT LCD Monitor Keyboard Drawer with 8 port KVM switch and touchpad mouse & 8 units of KVM cables
