1U Rackmount LCD Monitor Keyboard Drawer with optional KVM Switch LCD1U15-04

                          1U Rack Console 15" SAMSUNG Grade A Industrial LCD Monitor Keyboard
                                      Optional DB-15 Kvm / CAT5 Kvm ( CAT6 Kvm ) connector
           Optional Combo Kvm ( USB PS2 Kvm ) / PS2 Kvm / Multi-User Matrix Kvm / Kvm Over IP
                                           Optional 1 / 2 / 3 / 4 Consoles for Local / Remote Access

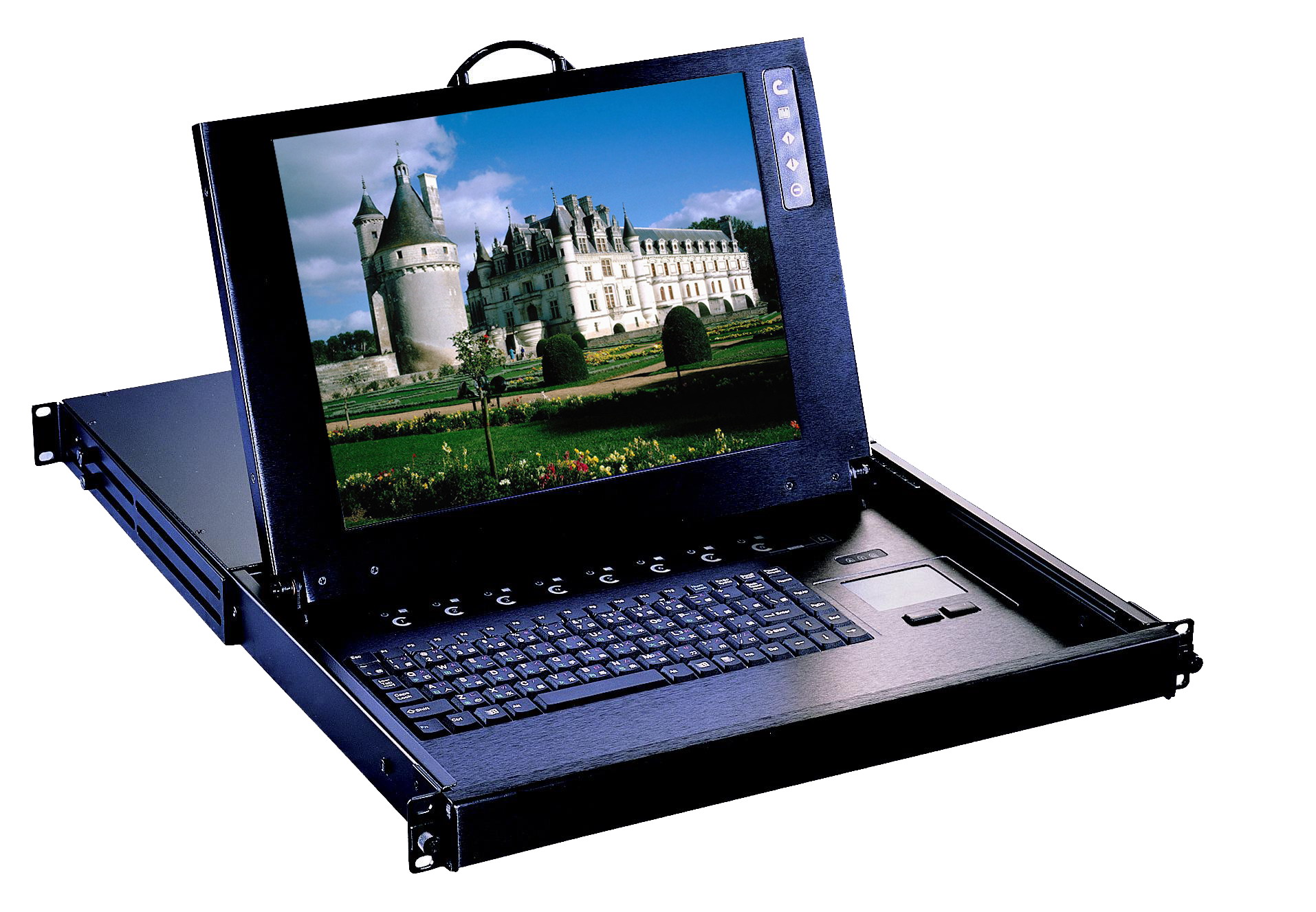

Rack Console LCD1U15-04-n

*click on photo for enlarged view

Rack Console Benefits

Rugged 1U 15" SAMSUNG LCD Rack Console
Optional Cost Efficient built in KVM with various choices:
- Connector : DB-15 KVM or Cat5 KVM ( Cat6 KVM )
- KVM Type : Combo KVM (USB PS2 KVM ) / PS/2 KVM /
Multi-User Matrix KVM
Secure remote user access across the internet via optional IP console (KVM Over IP )
Mix PS/2 , USB & SUN with Multi-Platform switch capability
"One Man" installation slides for easy and quick installation
Combo interface either PS/2 or input to the rack console
Slide rails with fixed positions to prevent drawer movement when typing
Optional S-Video + Composite Video ( BNC or RCA ),
DVI-D, Touch screen , DC Power input, Audio
2 year Warranty

General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows

LCD Screen

LCD Type

Grade A Industrial monitor 15 inch Active Matrix TFT LCD Panel

Display Size

15 inch diagonal

Resolutions

1,024 x 768 with 60 / 70 / 75Hz

Response time

Tr=2 / Tf=6 ms

Contrast ratio

700 : 1

Brightness

250 cd/ m2

Pixel pitch

0.297 (H) x 0.297 (V) mm

Panel color

16.2 million display colors

Viewing angle

150 / 135 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (BNC or RCA ),
DVI-D ...More Video Input Details

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n

Notebook type KB w/ Numeric Keypad & Touchpad

Model b

Notebook type KB w/ Numeric Keypad & Trackball ...More Keyboard Details

KVM ( Keyboard Video Mouse )

Connector

KVM Version

DB-15

* DB-15 No KVM ( with combo interface)

* DB-15 PS/2 KVM ( 8 or 16 port )

* DB-15 Combo KVM ( USB PS2 KVM )
No. of Console	No of KVM port
1 ( Local only )	8 or 16
2 ( 1 x local + 1 x remote )	8 or 16
2 ( 1 x local + 1 x IP )	8 or 16

* DB-15 Matrix KVM
No. of Console	No. of KVM port
2 ( 1 x local + 1 x remote )	8 or 16
3 ( 1 x local + 2 x remote )	8 or 16
3 (1x local +1x remote +1x IP )	8 or 16
4 ( 1 x local + 3 x remote )	8 or 16
4 (1x local +1x remote +2x IP )	8 or 16
4 (1x local +2x remote +1x IP )	8 or 16

CAT5 /
CAT6

* CAT6 Combo KVM ( USB PS2 KVM )
No. of Console	No. of KVM port
1 ( Local only )	8 or 16 or 32
2 ( 1 x local + 1 x remote )	8 or 16 or 32
2 ( 1 x local + 1 x IP )	8 or 16 or 32

* CAT6 Matrix KVM
No. of Console	No. of KVM port
2 ( 1 x local + 1 x remote )	16 or 32
3 ( 1 x local + 2 x remote )	16 or 32
3 (1x local +1x remote +1x IP )	16 or 32
4 ( 1 x local + 3 x remote )	16 or 32
4 (1x local +1x remote +2x IP )	16 or 32
4 (1x local +2x remote +1x IP )	16 or 32

Power Supply

Internal Power Supply : 110V - 220 V AC Input , 12V 5A Output

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity

90%, non condensing

Shock

50G peak acceleration
(11ms, half since wave)

Vibration

58~500Hz/ 0.98G
(11min/ cycle)

Mechanical

Product Dimension

(W x D x H )
442 x 650 x 44 mm /17.4 x 25.6 x 1.73 inch

Product Weight

Approximately 33 lbs / 15kg

Relative Humidity

90%, non condensing

Regulatory Approval

FCC , CE , VCCI , 3C*

More photos (click to enlarge )

Dimension

Construction

Rear Views

*click on above pictures for enlarged view

Product Sheet
Product Sheet
User Manual
General User Manual
KVM Support
	DB-15 KVM
DB-15 PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local + remote console
DB-15 Combo USB PS2 kvm Local + IP console
	CAT5 / CAT6 KVM
Cat5 / Cat6 Combo USB PS2 kvm Local console
Cat5 / Cat6 Combo USB PS2 kvm Local + remote console
Cat5 / Cat6 Combo USB PS2 kvm Local + IP console
	Matrix KVM
DB-15 Matrix USB PS2 kvm Local + remote console
DB-15 Matrix USB PS2 kvm Local + IP console
Cat5 / Cat6 Matrix USB PS2 kvm Local + remote console
Cat5 / Cat6 Matrix USB PS2 kvm Local + IP console

Optional Peripheral & Accessory

- S-Vdieo + Composite Video (BNC or RCA) / DVI-D

- Touch screen

- DC Power Input ( 12V / 24V / 48V )

- KVM Cables & Cascade Cables in Various Length

- USB & PS/2 Dongles

-PS2 to SUN /iMac USB adapter

- KVM Extender -IP KVM Extender

Free Ground Shipping( A $55 Value) *Click for details

Customer who ordered this product may also order these :
- KVM Switch	- Rack Shelves
- PDU ( Power Distribution Unit )	- Rack Drawer
- Server Rack Cabinet	- Power Strips
- 4 Post Rack	- Rack Cooling Fan
- Wall Rack Mount

Features of Rack Console :

SAMSUNG Industrial monitor Grade A 15" LCD Panel in 1U Rack space
Either PS/2 or USB input to this Rack console (the rack LCD drawer / keyboard
7-button LCD OSD membrane with a power LED
2 point lock, with Stylish latching front panel to release the 2-point lock
Micro switch for screen auto power off , power saving feature for prolonging the lift of LCD panel
KVM membrane
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Unique mechanical design to maximize rack mountable space
Black Anodized aluminum front panel
VGA, keyboards & mouse all in one by 15 pin HDB connector
Built in slide rails which can be mounted easily in any 19" rack cabinet
EMC shielding around the monitor housing to minimize interference
Rear rack mounting bracket included
Standard 6-ft KVM cable, optional 10, 15, 33 ft available
Optional : S-Video and Composite video input (RCA or BNC ), DVI-D , Audio, Touch screen, DC power input adapter , Speaker

Connector

KVM Version

Number of KVM port

Cascade Capacity

Capability / KVM Technical Specifications

DB-15

PS/2 KVM

8 or 16 port

Up to 8 Levels / 128 Servers

Capability

DB-15 PS/2 kvm hooks up 8 or 16 servers with multi-platforms and multi-operating systems. PS/2 KVM cables included

Link to KVM Technical Specification

* DB-15 8 Port PS/2 KVM
* DB-15 16 Port PS/2 KVM

DB-15

Combo KVM (USB PS2 KVM )

8 or 16 port

Up to 8 Levels / 240 Servers

Capability

DB-15 Combo kvm hooks up 8 or 16 servers with multi-platforms and multi-operating systems. With local + remote console model, user can remote access up to 1,000 feet distance via CAT6 cable. While with local + IP console model, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2 interface. Respective Combo KVM cables or/and dongles included

Link to KVM Technical Specification

* DB-15 1 Console 8 Port Combo KVM
* DB-15 1 Console 16 Port Combo KVM
* DB-15 2 Console ( Local + Remote ) 8 Port Combo KVM
* DB-15 2 Console ( Local + Remote ) 16 Port Combo KVM
* DB-15 2 Console ( Local + IP ) 8 Port Combo KVM
* DB-15 2 Console ( Local + IP ) 16 Port Combo KVM

DB-15

Matrix KVM

8 or 16 port

Up to 8 Levels / 240 Servers

Capability

DB-15 Matrix kvm allows maximum of 4 users to local access, remote access up to 1000 feet distance via CAT6 cable or IP remote access without distance limitation via internet. This model supports servers with either USB or PS/2 interface. Respective Combo KVM cables included

Link to KVM Technical Specification

* DB-15 2-4 Console (Local+Remote) 8 /16 Port Matrix KVM
* DB-15 3-4 Console(Local+Remote+IP) 8/16 Port Matrix KVM

CAT5 /
CAT6

Combo KVM (USB PS2 KVM )

8 / 16 / 32 port

Up to 8 Levels / 256 Servers

Capability

CAT6 Combo kvm hooks up 8 , 16 or 32 servers with multi-platforms and multi-operating systems. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2 interface.

Link to KVM Technical Specification

* CAT6 1 Console 8 Port Combo KVM
* CAT6 1 Console 16 Port Combo KVM
* CAT6 1 Console 32 Port Combo KVM
* CAT6 2 Console (Local + Remote) 8 Port Combo KVM
* CAT6 2 Console (Local + Remote) 16 Port Combo KVM
* CAT6 2 Console (Local + Remote) 32 Port Combo KVM
* CAT6 2 Console (Local + IP) 8 Port Combo KVM
* CAT6 2 Console (Local + IP) 16 Port Combo KVM
* CAT6 2 Console (Local + IP) 32 Port Combo KVM

CAT5 /
CAT6

Matrix KVM

8 / 16 / 32 port

Up to 8 Levels / 256 Servers

Capability

CAT6 Matrix kvm allows maximum of 4 users. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. Respective dongles included.

Link to Technical Specification

* CAT6 2 Console (Local + Remote) 8 /16/32 Port Matrix KVM
*CAT6 3-4 Console(Local+Remote+IP)8/16/32 Port Matrix KVM

ORDERING INFORMATION FOR LCD1U15-04 - 1U SAMSUNG 15" LCD RACK CONSOLE WITH
VARIOUS KVM OPTIONS

DB-15 KVM

CAT5 KVM /
CAT6 KVM

Matrix KVM

NO KVM ( Single Port ) with Built-in Combo PS2 & USB interface**
KVM Support	Keyboard Type	Part #	Description
Single Port for DB-15 PS2 connection with built-in *Combo PS2 / USB* Interface	Notebook KB w/ Touchpad	LCD1U15-04-n Price : $644	1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 4-in-1 Combo cable. Black
	Notebook KB w/ Trackball	LCD1U15-04-b Price : $644	1U 15" Samsung Panel w/ Notebook KB & trackball & 1 x 6-ft 4-in-1 Combo cable. Black
	Cherry KB w/ Trackball	LCD1U15-04-c Price : $780	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 1 x 6-ft 4-in-1 Combo cable. Black
Single Port for DB-15 USB connection with built-in *Combo PS2 / USB* Interface	Notebook KB w/ Touchpad	LCD1U15-04-n-u Price: $644	1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 4-in-1 Combo cable. Black
	Notebook KB w/ Trackball	LCD1U15-04-b-u Price: $644	1.5U 15" Samsung Panel w/ Notebook KB & trackball & 1 x 6-ft 4-in-1 Combo cable. Black
	Cherry KB w/ Trackball	LCD1U15-04-c-u Price: $780	1U 15" Samsung Panel w/ Cherry KB & trackball & 1 x 6-ft 4-in-1 Combo cable. Black
Single Console KVM ( Local console, 8 / 16 / 32 port KVM )
DB-15 KVM ( Local console DB-15 KVM)
KVM Support	Keyboard Type	Part #	Description
Local console DB-15 8 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-8KVM-n Price: $939	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-8KVM-b Price: $939	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-8KVM-c Price: $1076	1.5U 15"Samsung Panel w/ Cherry KB & trackball & Local console DB-15 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cables. Black
Local console DB-15 16 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-16KVM-n Price: $1144	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-16KVM-b Price: $1144	1U 15"Samsung Panel w/ Notebook KB & trackball & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-16KVM-c Price: $1280	1.5U 15"Samsung Panel w/ Cherry KB & trackball & Local console DB-15 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cables. Black
Local console DB-15 8 Port USB KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-8KVM-n-u Price: $1053	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-8KVM-b-u Price: $1053	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-8KVM-c-u Price: $1189	1.5U 15" Samsung Panel w/ Cherry KB & trackball & Local console DB-15 8 port USB KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
Local console DB-15 16 Port USB KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-16KVM-n-u Price: $1273	1U 15" Samsung Panel w/ Notebook KB & touchpad & Local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-16KVM-b-u Price: $1273	1U 15" Samsung Panel w/ Notebook KB & trackball & Local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-16KVM-c-u Price: $1409	1.5U 15" Samsung Panel w/ Cherry KB & trackball & Local console DB-15 16 port USB KVM switch & 16 x 6-ft 4-in-1 Combo cables. Black
2 Console KVM ( Local & Remote Console , 8 / 16 / 32 port KVM)
DB-15 KVM ( 2 Consoles, Local & Remote DB-15 KVM )
KVM Support	Keyboard Type	Part #	Description
2 Consoles ( Local + Remote console ) DB-15 8 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-8KVM2-n Price: $1242	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-8KVM2-b Price:$1242	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-8KVM2-c Price:$1379	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 4-in-1 Combo cables. Black
2 Consoles ( Local + Remote console ) DB-15 16 Port PS2 KVM Switch	Notebook KB w/ Touchpad	LCD1U15-04-16KVM2-n Price:$1424	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 16 ports PS/2 KVM switch & 16 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-16KVM2-b Price:$1424	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 16 ports PS/2 KVM switch & 16x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-16KVM2-c Price:$1561	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 16 ports PS/2 KVM switch & 16x 6-ft 4-in-1 Combo cables. Black
2 Consoles ( Local + IP console ) DB-15 8 Port PS2 KVM Over IP Switch	Notebook KB w/ Touchpad	LCD1U15-04-8KVM2IP-n Price:$1545	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-8KVM2IP-b Price:$1545	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + IP) DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-8KVM2IP-c Price:$1682	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + IP) DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 4-in-1 Combo cables. Black
2 Consoles ( Local + IP console ) DB-15 16 Port PS2 KVM Over IP Switch	Notebook KB w/ Touchpad	LCD1U15-04-16KVM2IP-n Price:$1735	1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo cables. Black
	Notebook KB w/ Trackball	LCD1U15-04-16KVM2IP-b Price:$1735	1U 15" Samsung Panel w/ Notebook KB & trackball & 2 consoles (Local + IP) DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo cables. Black
	Cherry KB w/ Trackball	LCD1U15-04-16KVM2IP-c Price:$1871	1.5U 15" Samsung Panel w/ Cherry KB & trackball & 2 consoles (Local + IP) DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 4-in-1 Combo cables. Black

DB-15 Matrix KVM
KVM Port	KVM Console	Keyboard Type	Part #	Description
8 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M82-n Price: $1750	1U 15" (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	2 console (1x Local + 1x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M82-b Price: $1750	1U 15" (1x Local + 1x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M83-n Price: $1992	1U 15" (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M83-b Price: $1992	1U 15" (1x Local + 2x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M84-n Price: $2220	1U 15" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M84-b Price: $2220	1U 15" (1x Local + 3x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
16 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M162-n Price: $2159	1U 15" (1x Local + 1x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	2 console (1x Local + 1x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M162-b Price: $2159	1U 15" (1x Local + 1x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M163-n Price: $2386	1U 15" (1x Local + 2x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M163-b Price: $2386	1U 15" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M164-n Price: $2614	1U 15" (1x Local + 3x Remote) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M164-b Price: $2614	1U 15" (1x Local + 3x Remote) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
DB-15 Matrix KVM With IP Remote
KVM Port	KVM Console	Keyboard Type	Part #	Description
8 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M83IP-n Price: $2250	1U 15" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M84IP-b Price: $2250	1U 15" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M84IP-n Price: $2462	1U 15" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M84IP-b Price: $2462	1U 15" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M84IP2-n Price: $2735	1U 15" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M84IP2-b Price: $2735	1U 15" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 4-in-1 Combo cable included, Black
16 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M163IP-n Price: $2644	1U 15" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M163IP-b Price: $2644	1U 15" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M164IP-n Price: $2871	1U 15" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD1U15-04-M164IP-b Price: $2871	1U 15" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD1U15-04-M164IP2-n Price: $3129	1U 15" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB wTrackBall & Numeric Keypad	LCD1U15-04-M164IP2-b Price: $3129	1U 15" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 4-in-1 Combo cable included, Black
OPTIONS
Part # & Price			Description of Option
-12VDC Price : $171			Add 12V DC power input
-24VDC Price : $171			Add 24V DC power input
-48VDC Price : $171			Add 48V DC power input
-BNC Price : $114			Add Composite Video (RCA) + S-video
-AV Price : $114			Add Composite Video (BNC) + S-video
-DVI Price : $114			Add DVI-D Input
-TRS Price : $279			Add resistive touchscreen + Serial controller (the Height changed frome 1U to 1.5U)
-TRB Price : $279			Add resistive touchscreen + USB controller (the Height changed frome 1U to 1.5U)
-TCS Price : $429			Add capacitive touchscreen + Serial controller (the Height changed frome 1U to 1.5U)
-TCB Price : $429			Add capacitive touchscreen + USB controller (the Height changed frome 1U to 1.5U)
-SPK Price : $114			Add speaker

Back to top

Toll Free : 1-888-865-6888 Fax : 510-226-8968 Email : sales@RackmountMart.com

Home | Buy Online | About Us | Contact Us | Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice. Legal.
